7.6 Typical Characteristics
| EN = VIN | VOUT = 1.55 V | Device Not Switching |
(IQ_VIN)
| EN = VIN | VIN = VOUT = 3.3 V | Device Not Switching |
(IQ_100%_MODE)
| EN = GND |

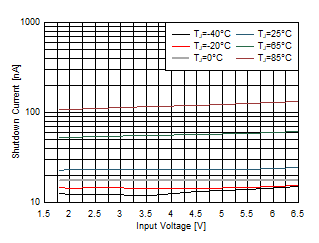

(ISD)

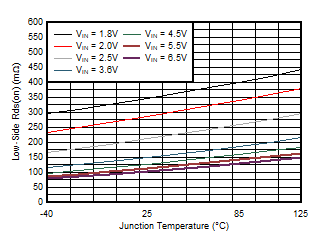

Figure 7. Low-Side RDSON versus Temperature
(DLC, YBG packages)

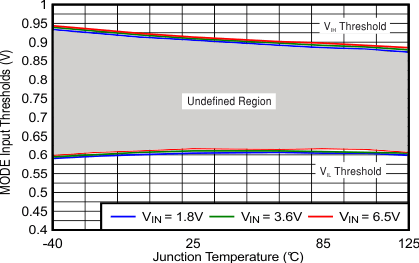

Figure 9. MODE Input Thresholds versus Temperature
| EN = GND | VOUT = 1.8 V |
| EN = VIN | VOUT = 1.55 V | Device Not Switching |

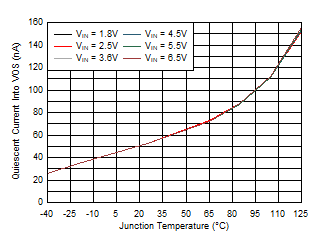

(IQ_VOS)
| EN = VIN | VOUT = 1.8 V | Device Not Switching |

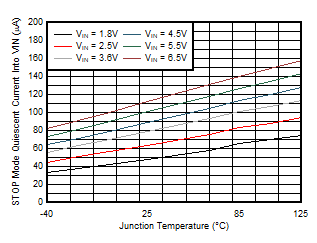

(IQ_VIN_STOP)
(DLC, YBG packages)
Figure 8. EN Input Thresholds versus Temperature

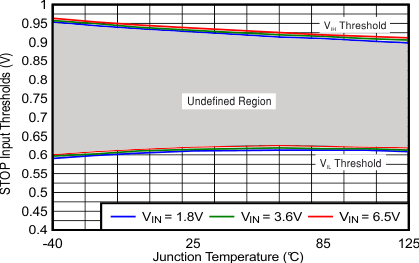

Figure 10. STOP Input Thresholds versus Temperature
