10.3.2 Synchronizing to an External Clock
The TPS62816-Q1 can be externally synchronized by applying an external clock on the MODE/SYNC pin. There is no need for any additional circuitry as long as the input signal meets the requirements given in the electrical specifications. The clock can be applied or removed during operation, allowing the user to switch from an externally defined fixed frequency to power save mode or to internal fixed-frequency operation. The value of the RCF resistor must be chosen such that the internally defined frequency and the externally applied frequency are close to each other. This ensures a smooth transition from internal to external frequency and vice versa.

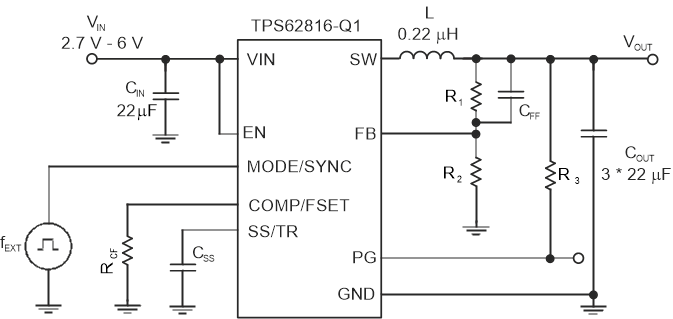

Figure 10-59 Schematic Using External
Synchronization| VIN = 5 V | RCF = 8.06 kΩ | IOUT = 0.2 A |
| VOUT = 1.8 V | fEXT = 2.5 MHz | |
| VIN = 5 V | RCF = 8.06 kΩ | IOUT = 2 A |
| VOUT = 1.8 V | fEXT = 2.5 MHz | |
