10.2.3 Application Curves

All plots have been taken with a nominal switching frequency of 2.25 MHz when set to PWM mode, unless otherwise noted. The BOM is according to Table 8-1.

V_OUT = 3.3 V

PFM

T_A = 25°C

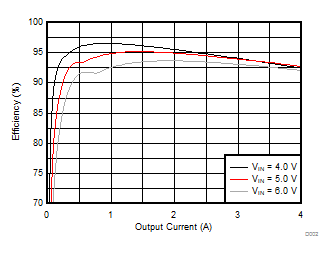

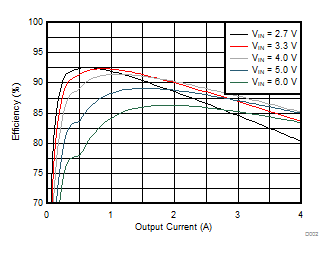

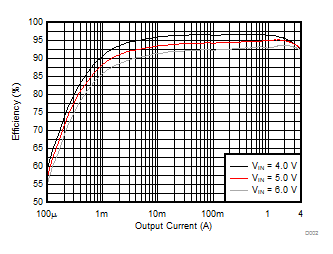

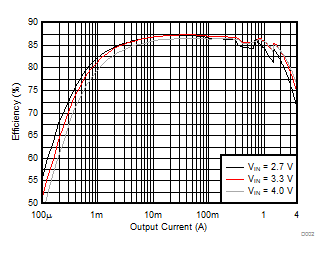

Figure 10-2 Efficiency versus Output Current

V_OUT = 1.8 V

PFM

T_A = 25°C

Figure 10-4 Efficiency versus Output Current

V_OUT = 1.2 V

PFM

T_A = 25°C

Figure 10-6 Efficiency versus Output Current

V_OUT = 1.0 V

PFM

T_A = 25°C

Figure 10-8 Efficiency versus Output Current

V_OUT = 0.6 V

PFM

T_A = 25°C

Figure 10-10 Efficiency versus Output Current

V_OUT = 3.3 V

PFM

T_A = 25°C

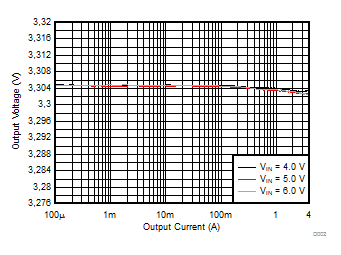

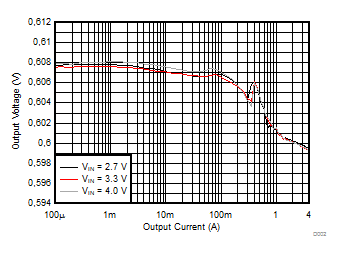

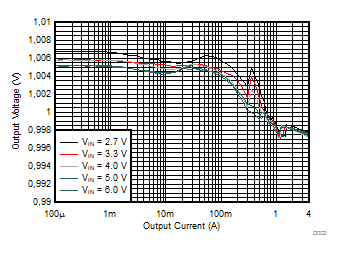

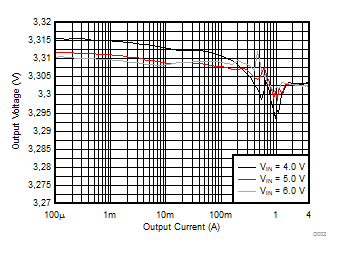

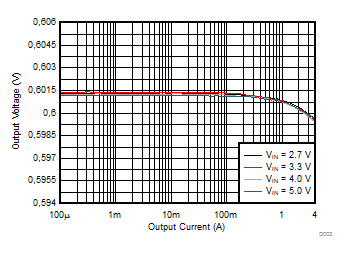

Figure 10-12 Output Voltage versus Output Current

V_OUT = 1.8 V

PFM

T_A = 25°C

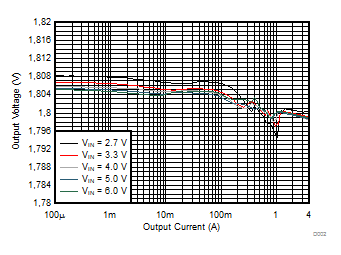

Figure 10-14 Output Voltage versus Output Current

V_OUT = 1.2 V

PFM

T_A = 25°C

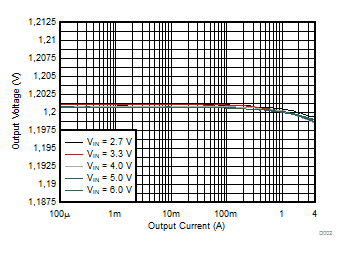

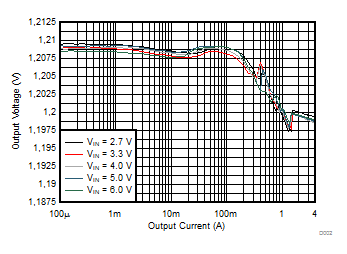

Figure 10-16 Output Voltage versus Output Current

V_OUT = 1.0 V

PFM

T_A = 25°C

Figure 10-18 Output Voltage versus Output Current

V_OUT = 0.6 V

PFM

T_A = 25°C

Figure 10-20 Output Voltage versus Output Current

V_OUT = 3.3 V	PFM	T_A = 25°C
V_IN = 5.0 V	I_OUT = 0.4 A to 3.6 A to 0.4 A

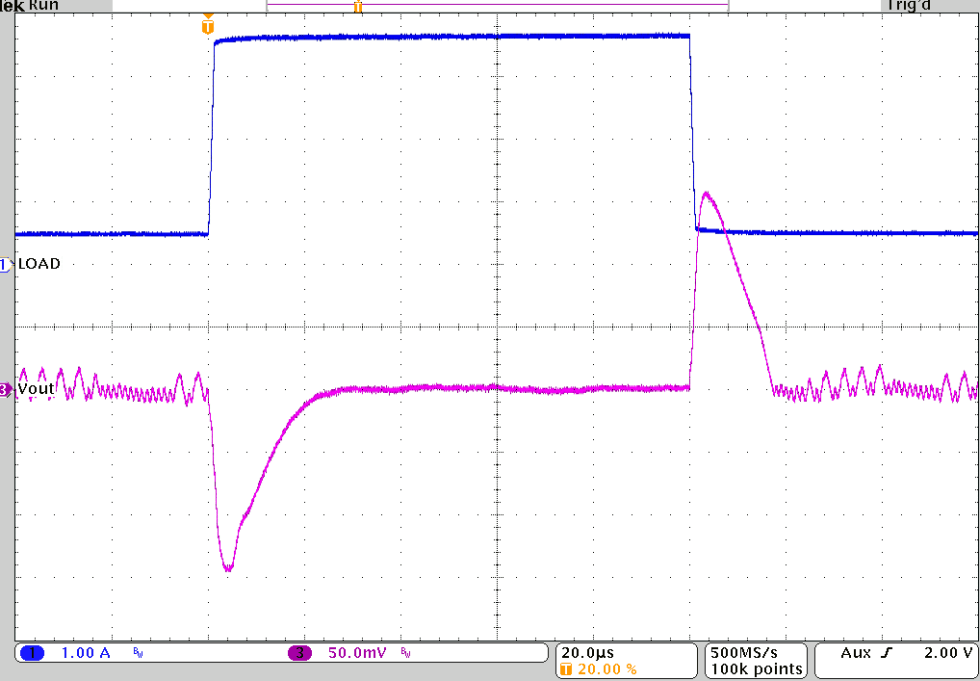

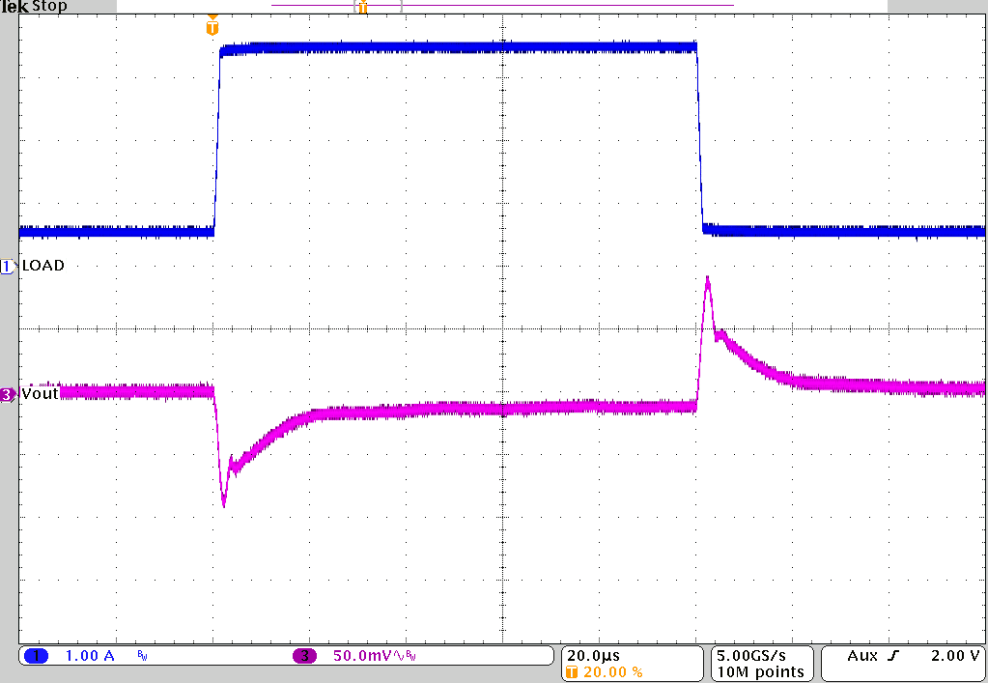

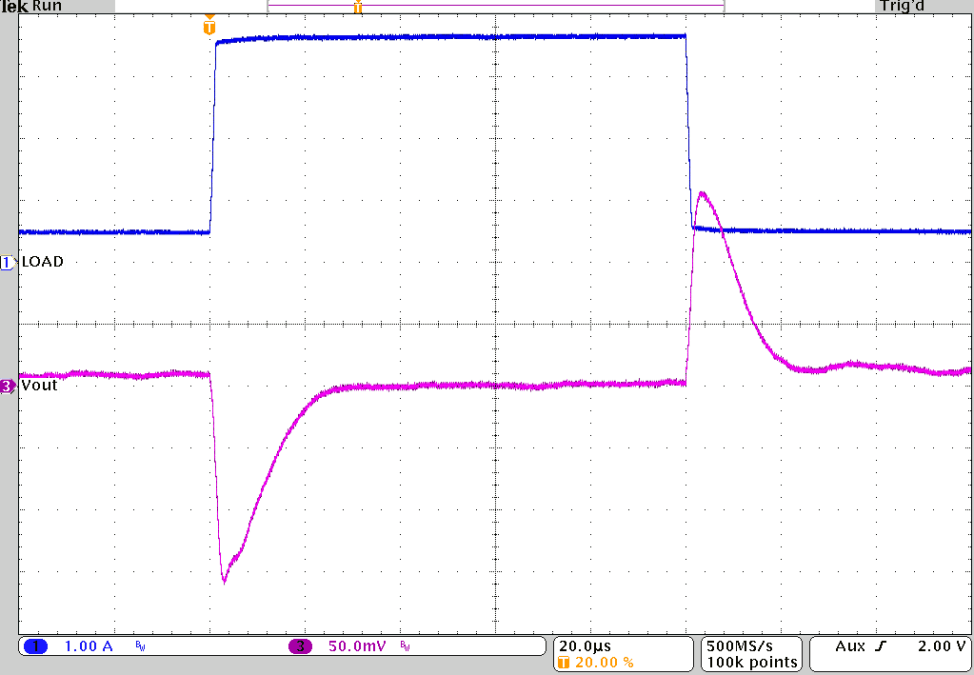

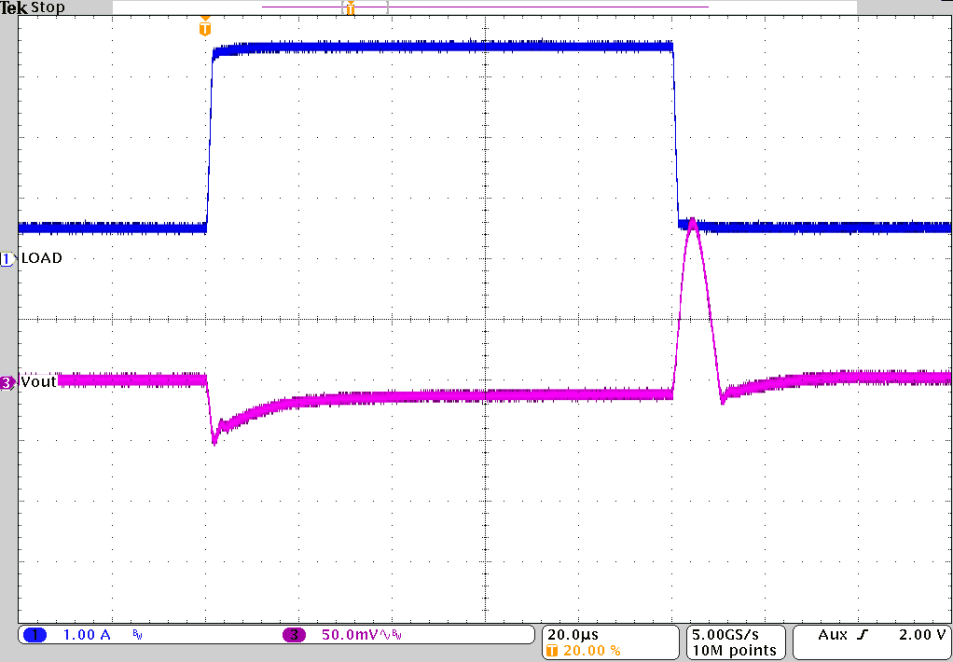

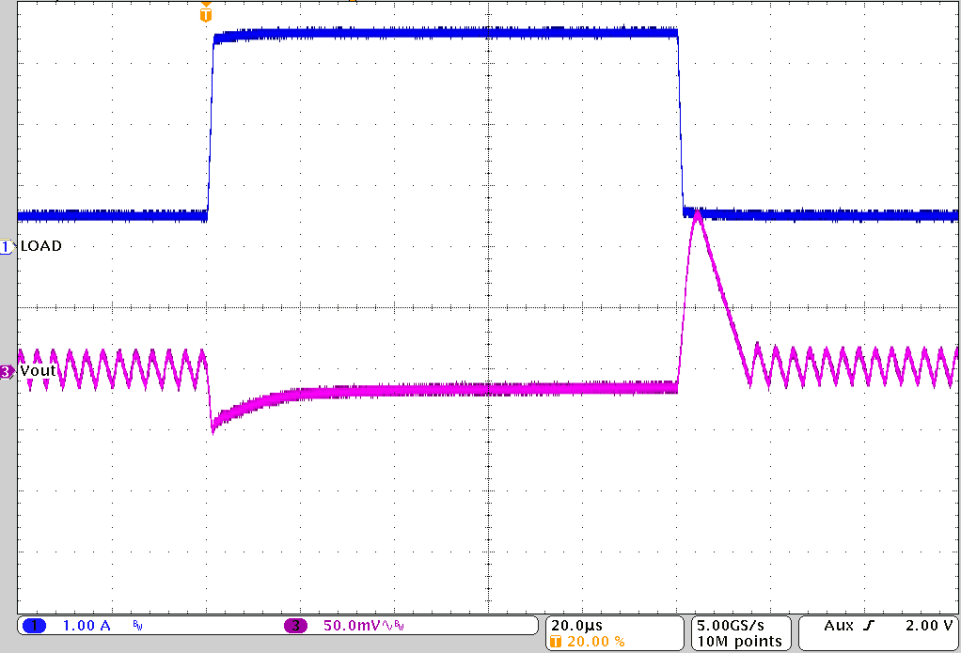

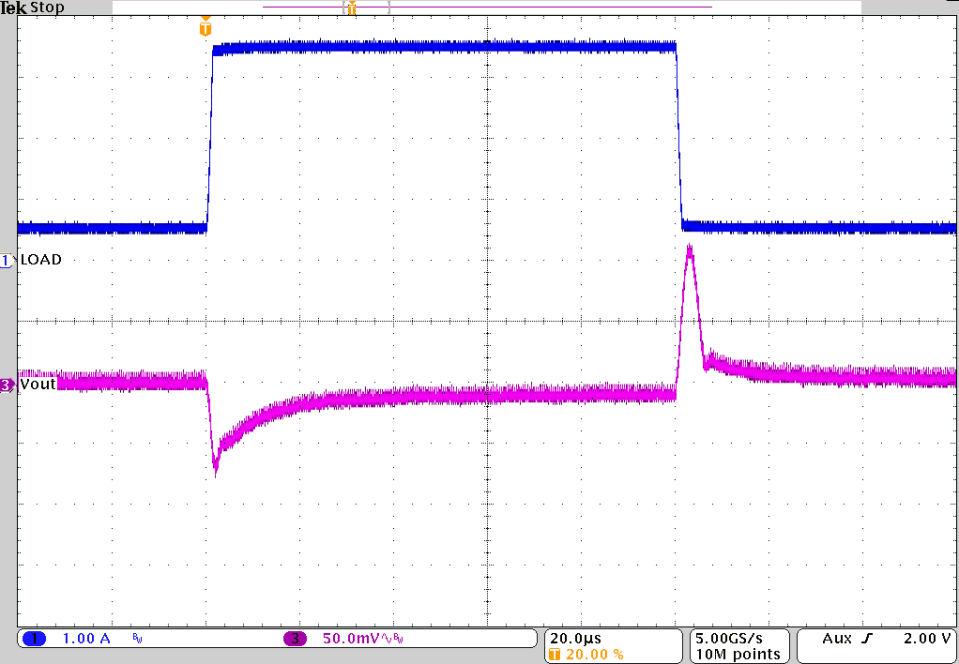

Figure 10-22 Load Transient Response

V_OUT = 1.8 V	PFM	T_A = 25°C
V_IN = 5.0 V	I_OUT = 0.4 A to 3.6 A to 0.4 A

Figure 10-24 Load Transient Response

V_OUT = 1.2 V	PFM	T_A = 25°C
V_IN = 5.0 V	I_OUT = 0.4 A to 3.6 A to 0.4 A

Figure 10-26 Load Transient Response

V_OUT = 1.0 V	PFM	T_A = 25°C
V_IN = 5.0 V	I_OUT = 0.4 A to 3.6 A to 0.4 A

Figure 10-28 Load Transient Response

V_OUT = 0.6 V	PFM	T_A = 25°C
V_IN = 3.3 V	I_OUT = 0.4 A to 3.6 A to 0.4 A

Figure 10-30 Load Transient Response

V_OUT = 3.3 V	PFM	T_A = 25°C
I_OUT = 0.5 A	V_IN = 4.5 V to 5.5 V to 4.5 V

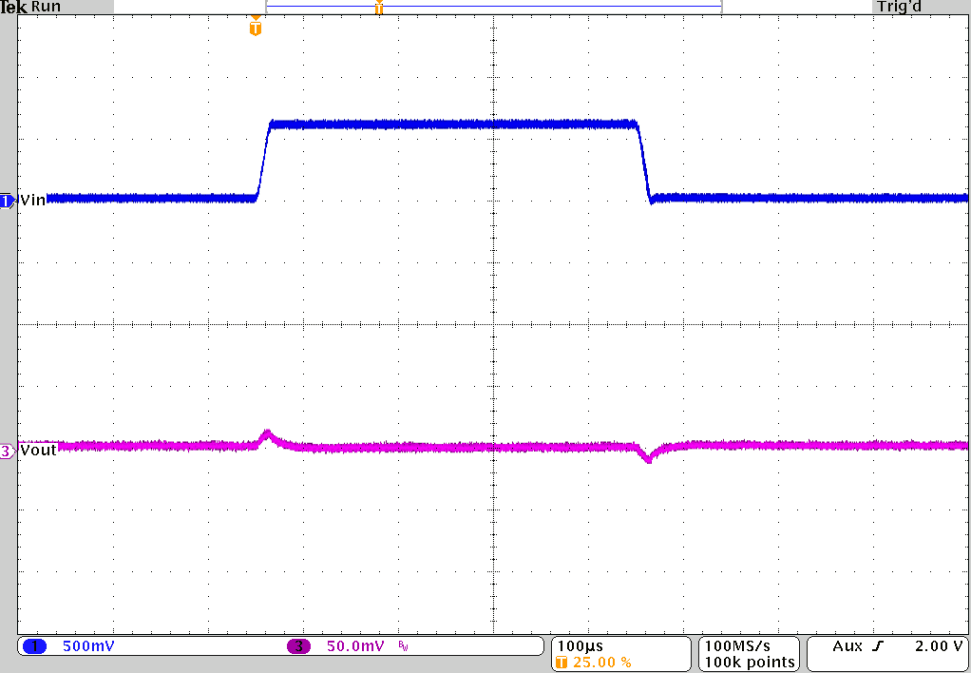

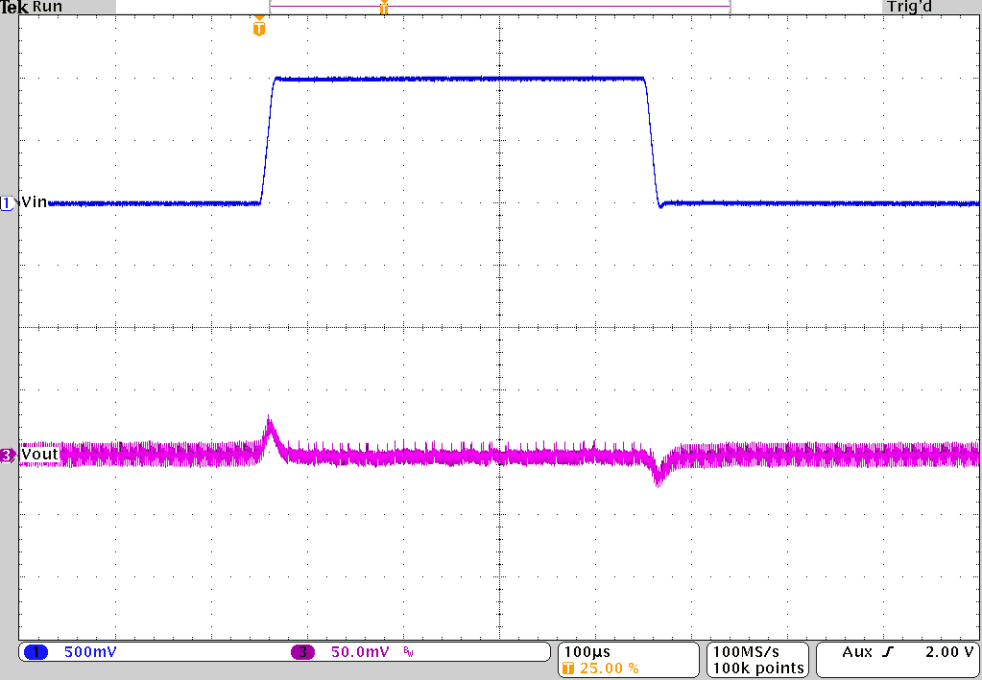

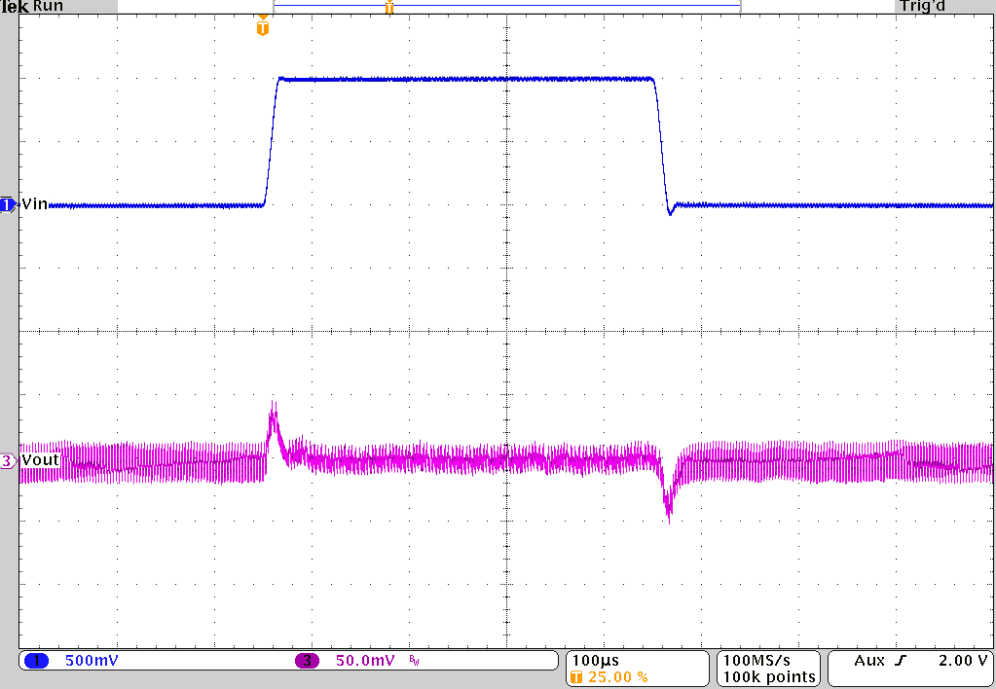

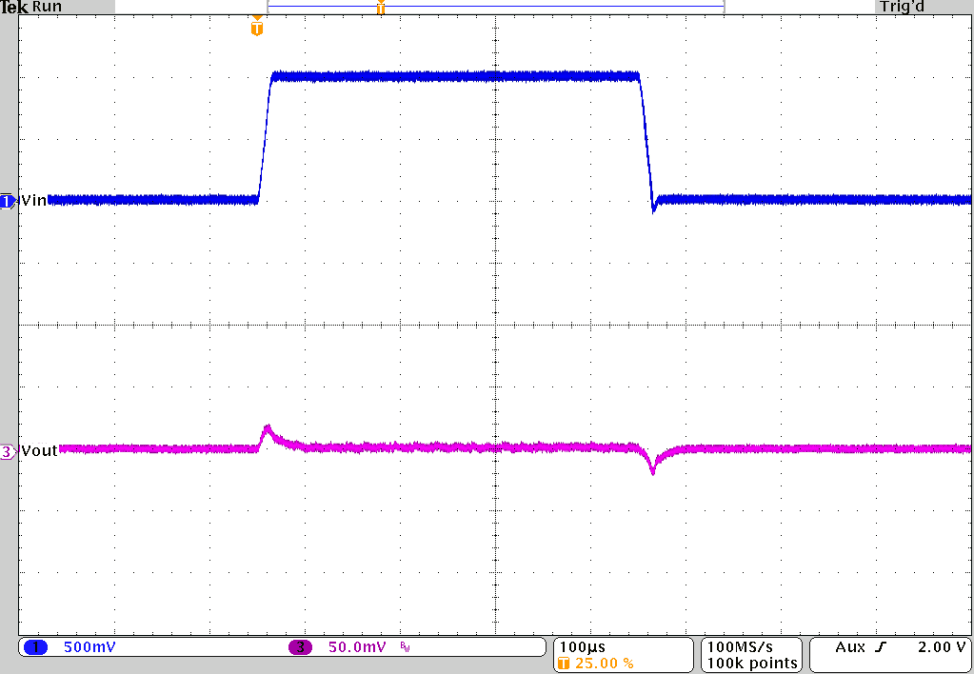

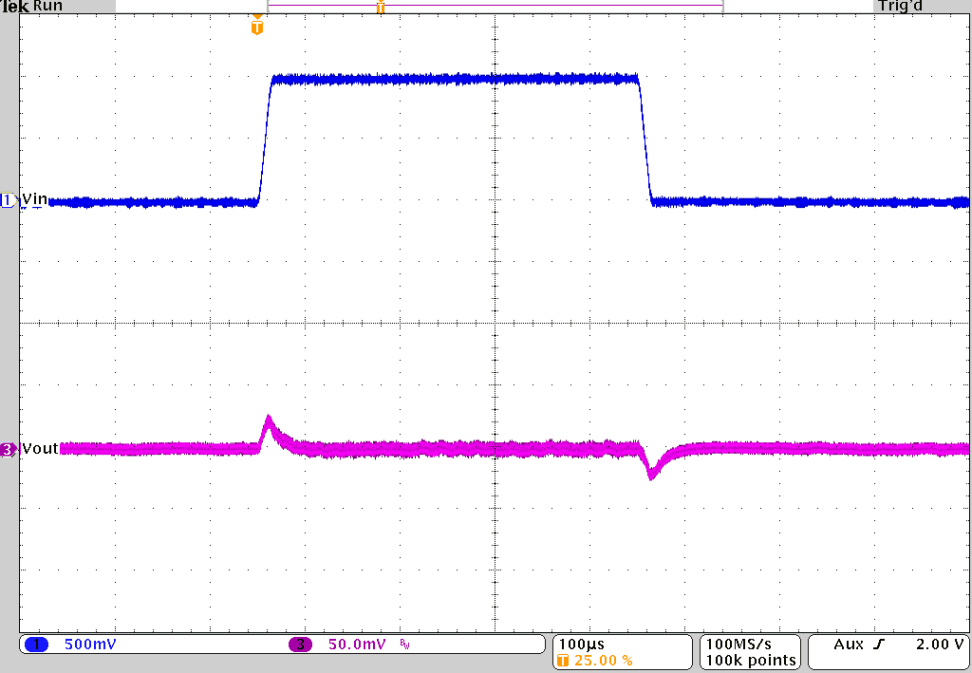

Figure 10-32 Line Transient Response

V_OUT = 1.8 V	PFM	T_A = 25°C
I_OUT = 0.5 A	V_IN = 4.5 V to 5.5 V to 4.5 V

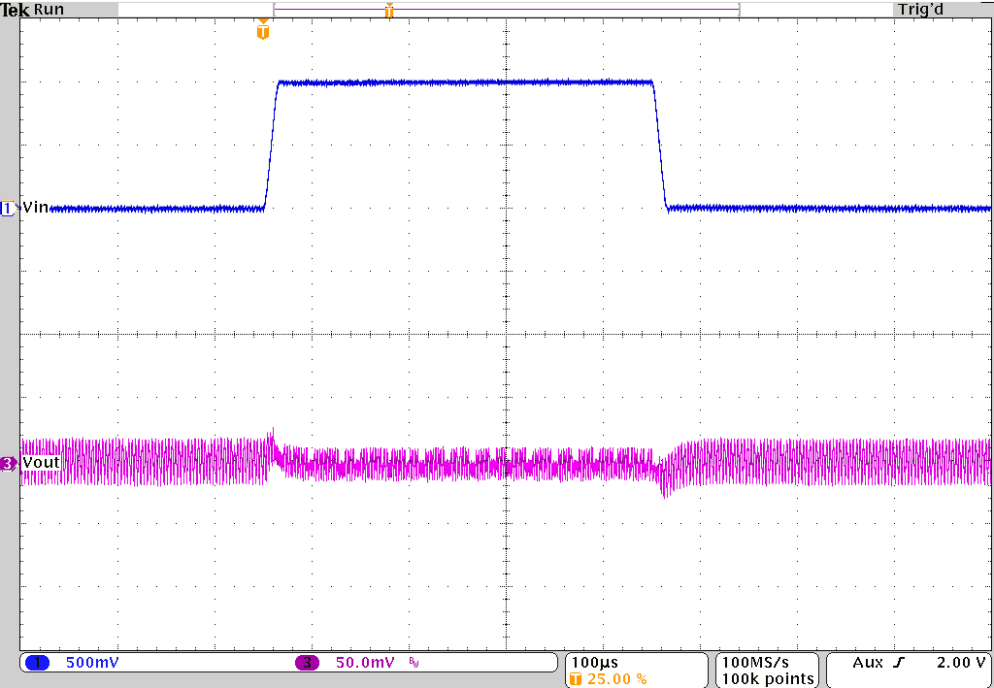

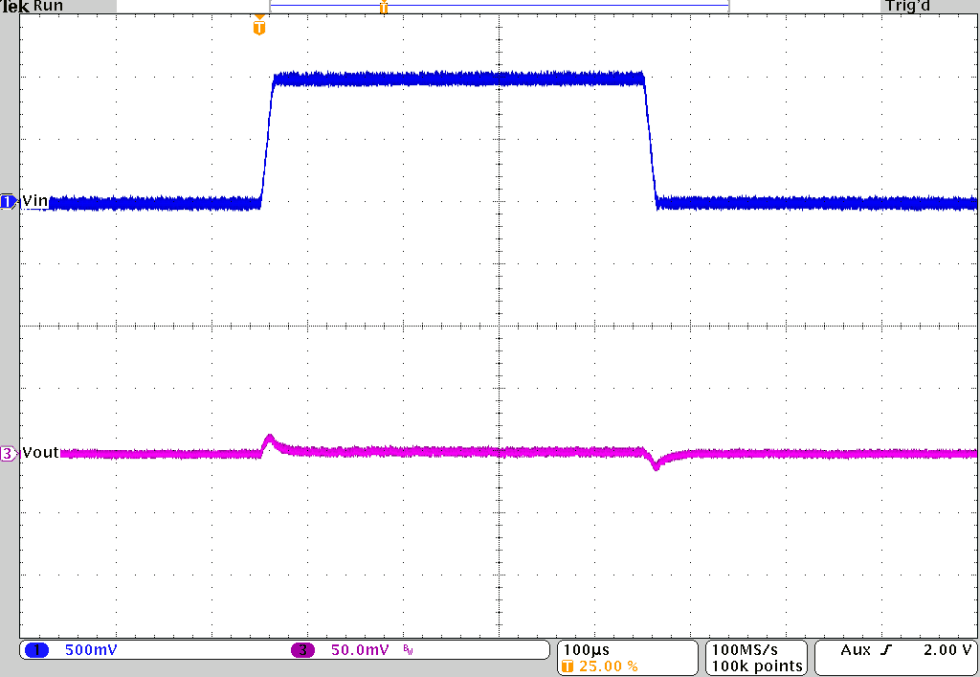

Figure 10-34 Line Transient Response

V_OUT = 1.2 V	PFM	T_A = 25°C
I_OUT = 0.5 A	V_IN = 4.5 V to 5.5 V to 4.5 V

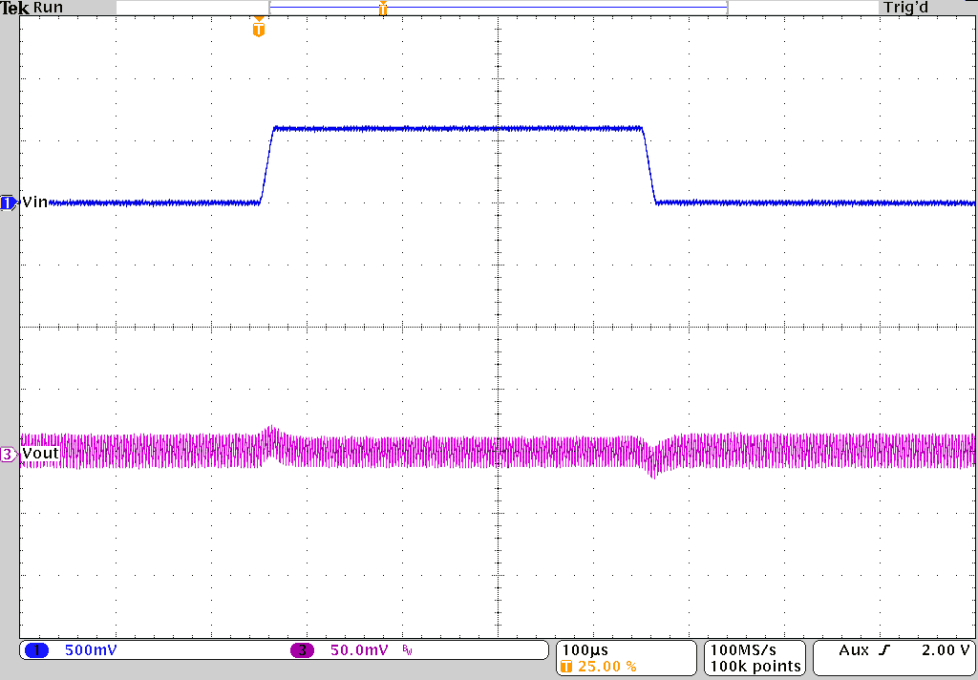

Figure 10-36 Line Transient Response

V_OUT = 1.0 V	PFM	T_A = 25°C
I_OUT = 0.5 A	V_IN = 4.5 V to 5.5 V to 4.5 V

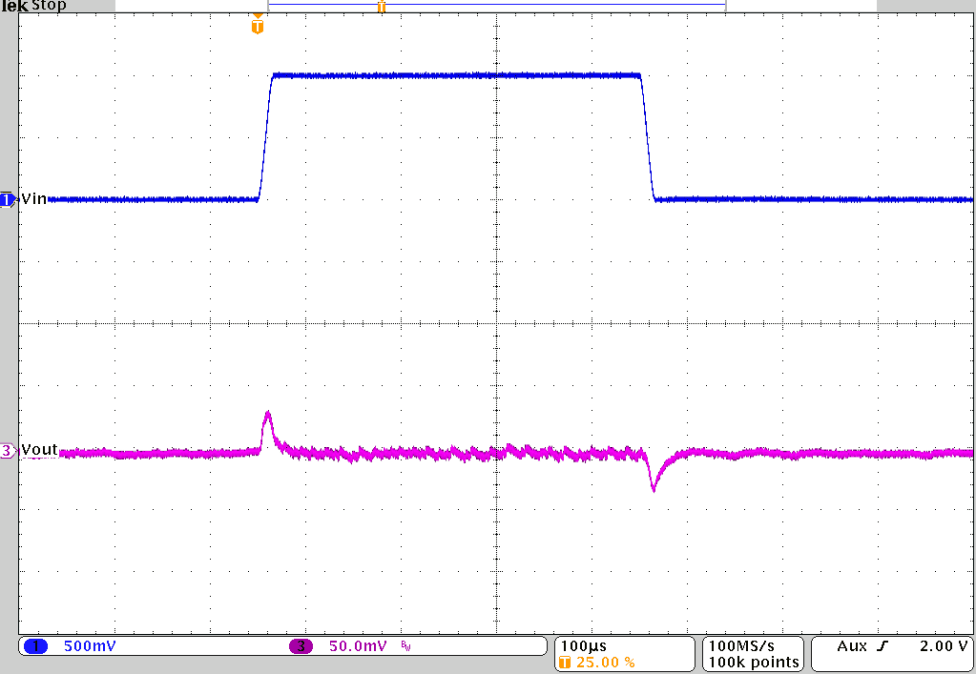

Figure 10-38 Line Transient Response

V_OUT = 0.6 V	PFM	T_A = 25°C
I_OUT = 0.5 A	V_IN = 3.0 V to 3.6 V to 3.0 V

Figure 10-40 Line Transient Response

V_OUT = 3.3 V	PFM	T_A = 25°C
I_OUT = 0.5 A	V_IN = 5.0 V	BW = 20 MHz

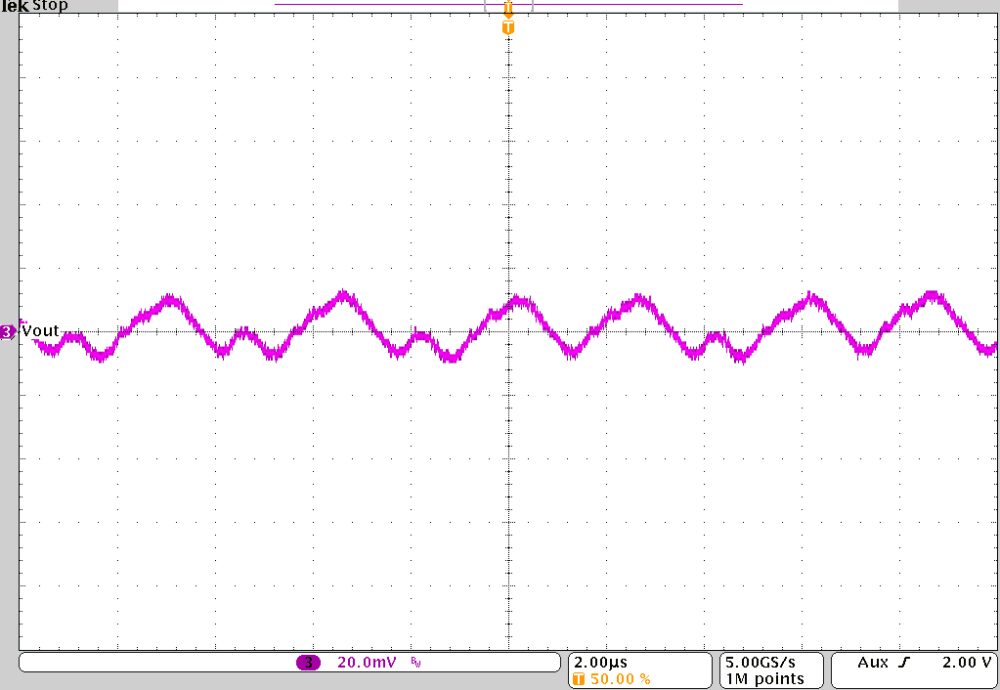

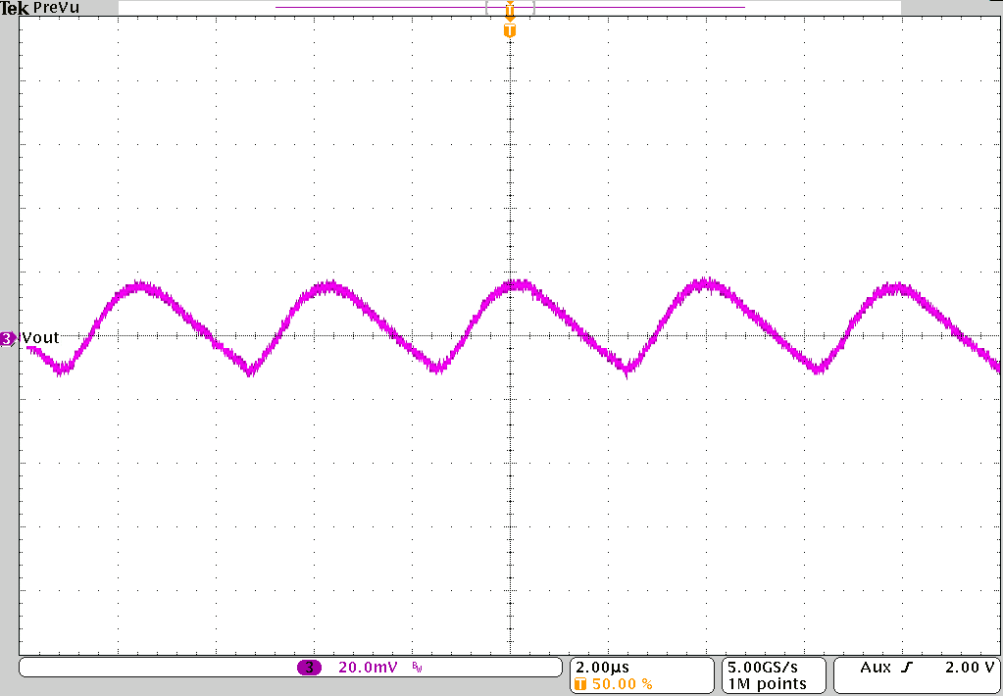

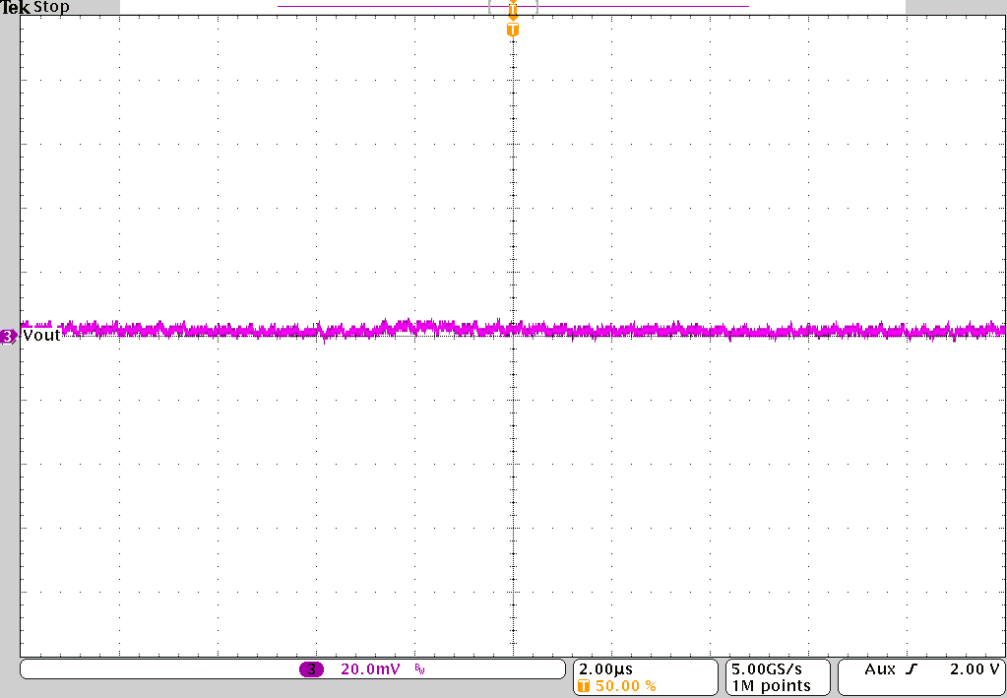

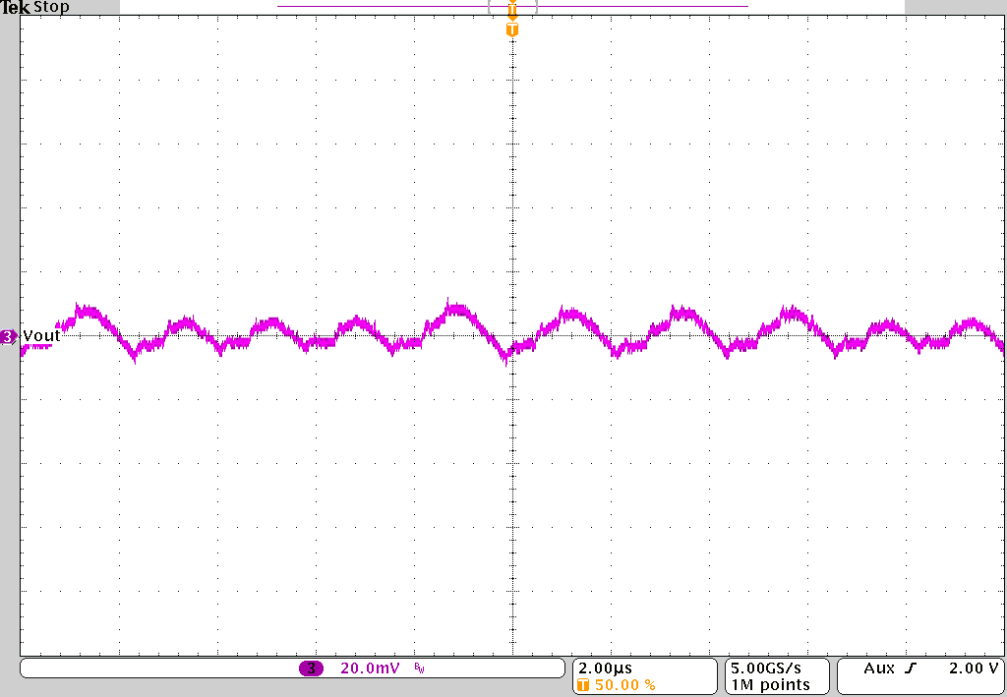

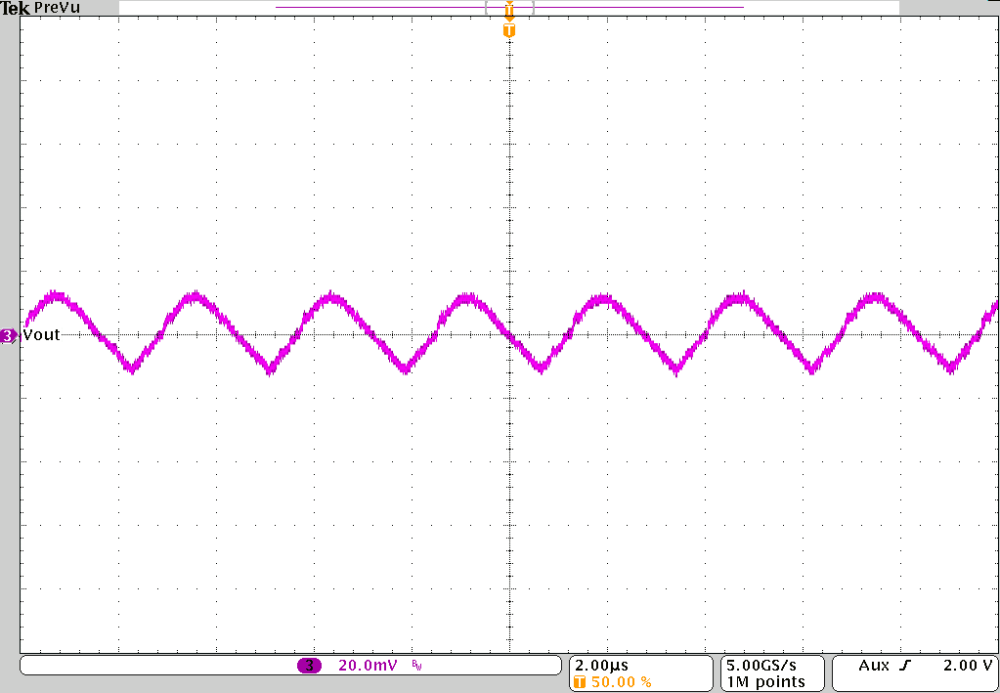

Figure 10-42 Output Voltage Ripple

V_OUT = 1.8 V	PFM	T_A = 25°C
I_OUT = 0.5 A	V_IN = 5.0 V	BW = 20 MHz

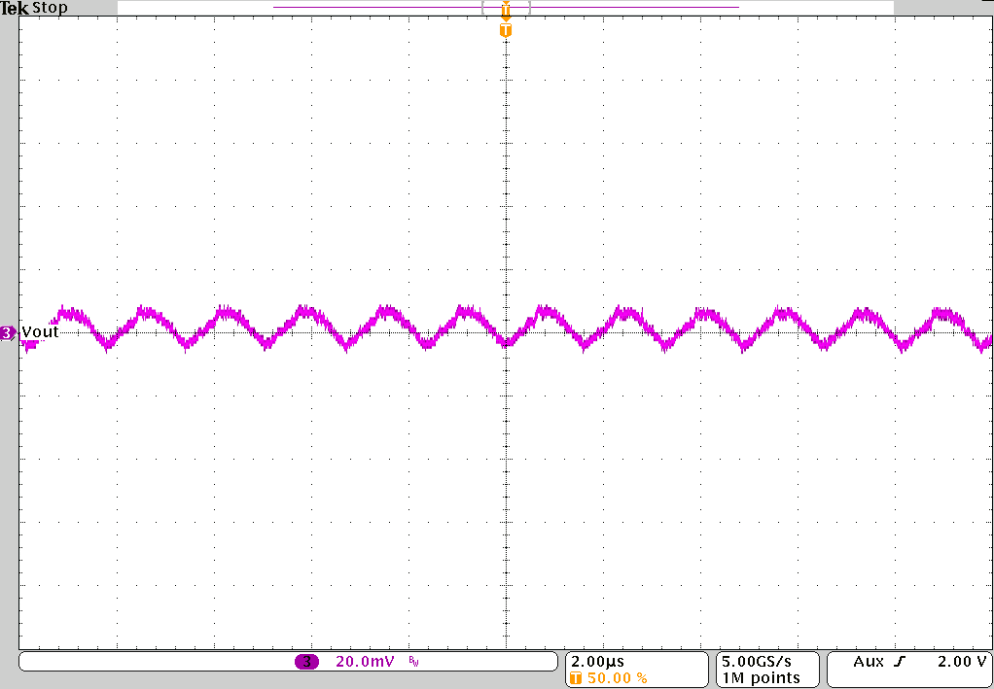

Figure 10-44 Output Voltage Ripple

V_OUT = 1.2 V	PFM	T_A = 25°C
I_OUT = 0.5 A	V_IN = 5.0 V	BW = 20 MHz

Figure 10-46 Output Voltage Ripple

V_OUT = 1.0 V	PFM	T_A = 25°C
I_OUT = 0.5 A	V_IN = 5.0 V	BW = 20 MHz

Figure 10-48 Output Voltage Ripple

V_OUT = 0.6 V	PFM	T_A = 25°C
I_OUT = 0.5 A	V_IN = 3.3 V	BW = 20 MHz

Figure 10-50 Output Voltage Ripple

V_OUT = 3.3 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 5 V	C_SS = 4.7 nF

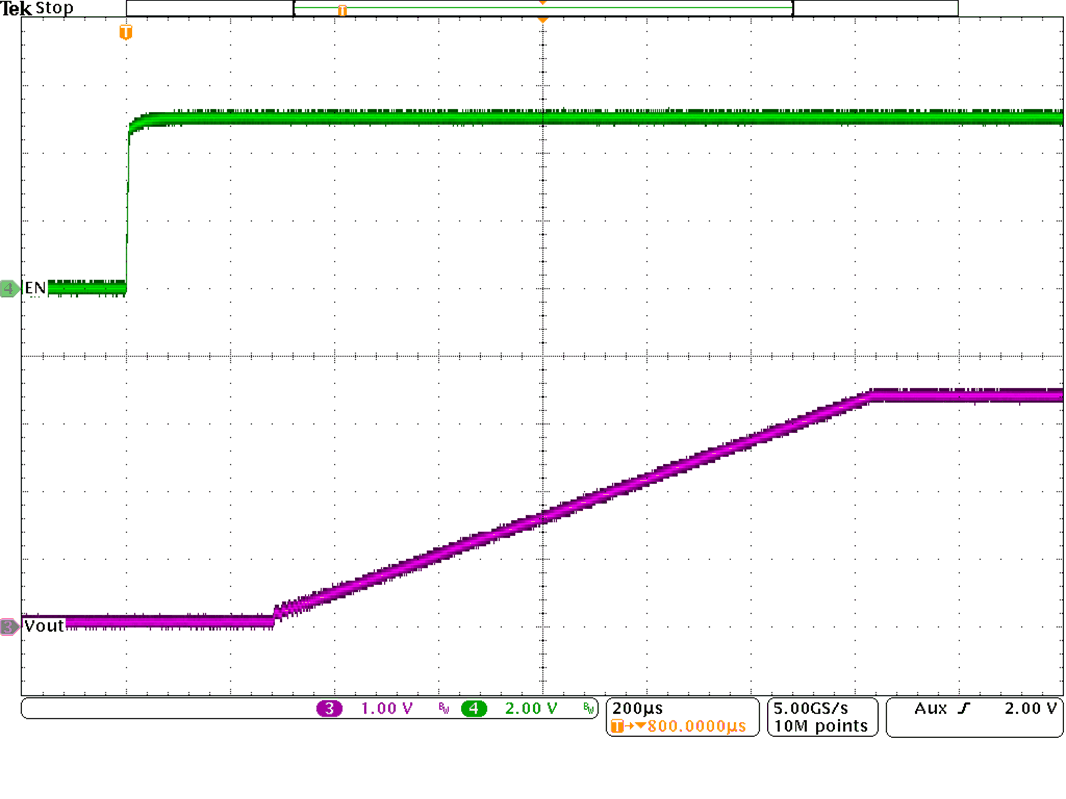

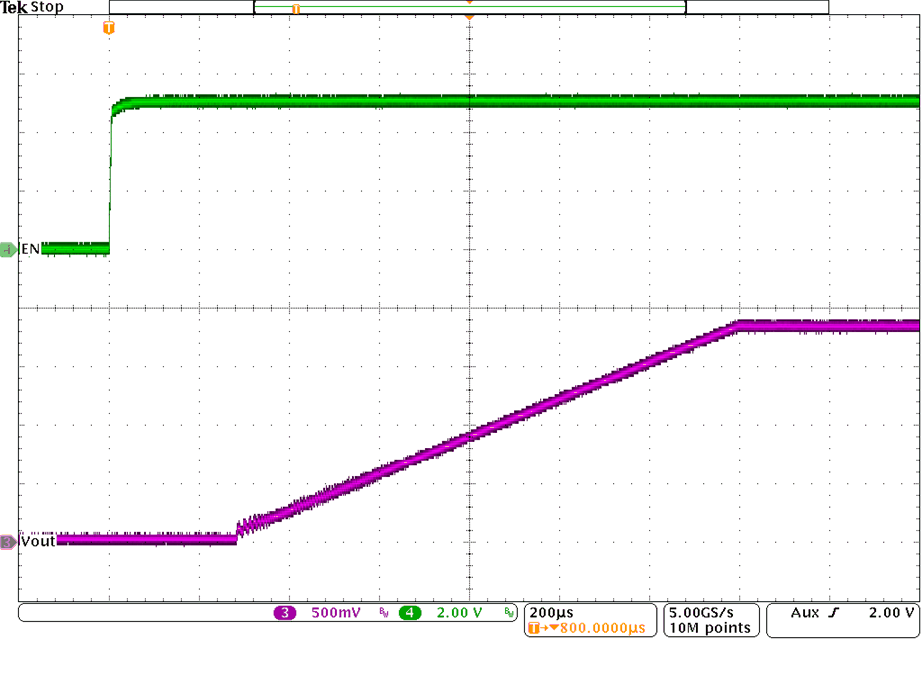

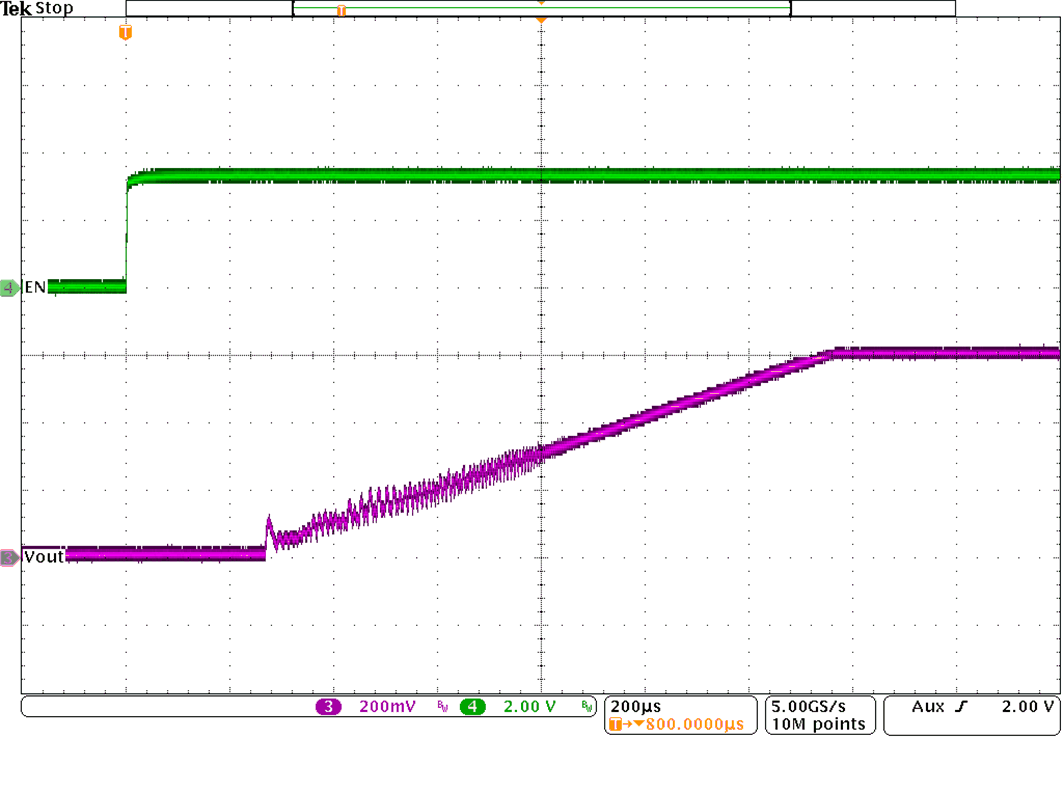

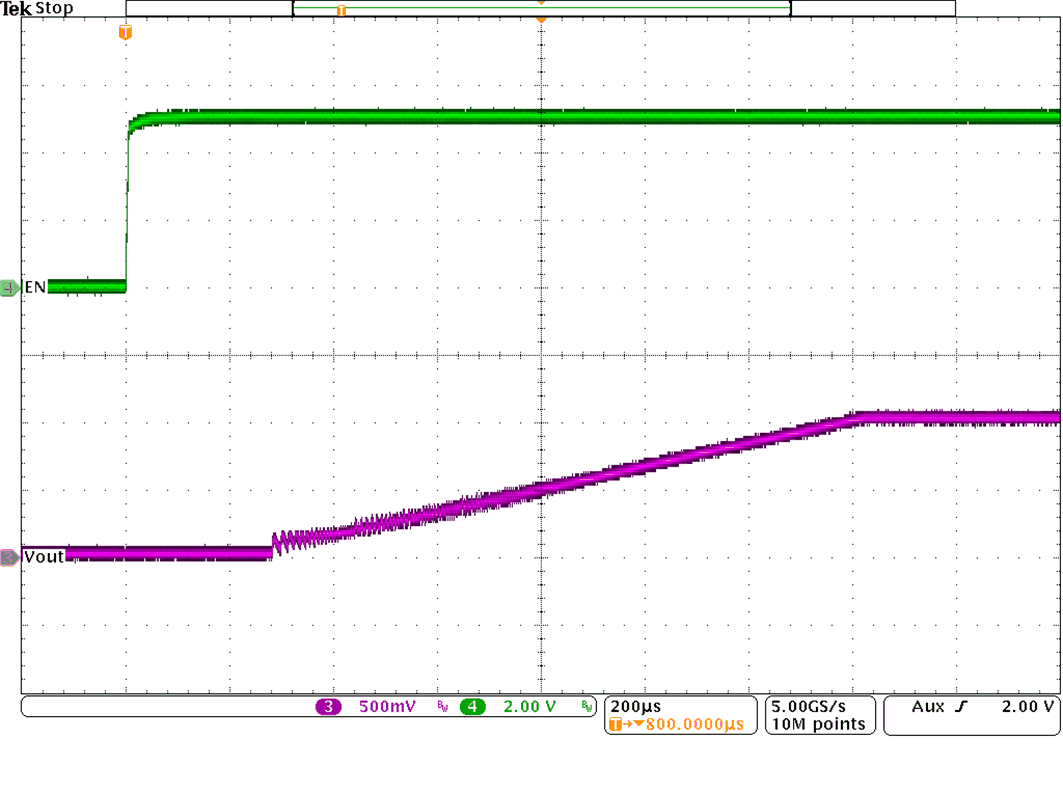

Figure 10-52 Start-Up Timing

V_OUT = 1.2 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 5 V	C_SS = 4.7 nF

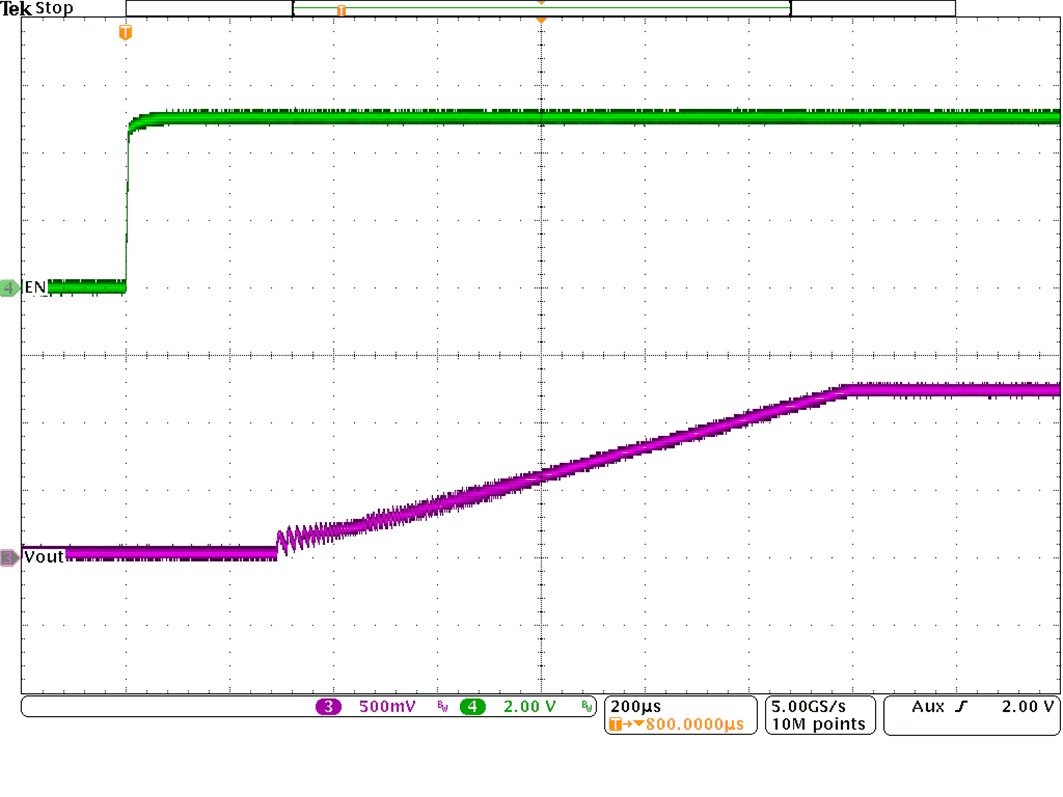

Figure 10-54 Start-Up Timing

	V_OUT = 0.6 V	PWM	T_A = 25°C
	I_OUT = 4 A	V_IN = 3.3 V	C_SS = 4.7 nF

Figure 10-56 Start-Up Timing

V_OUT = 3.3 V

PWM

T_A = 25°C

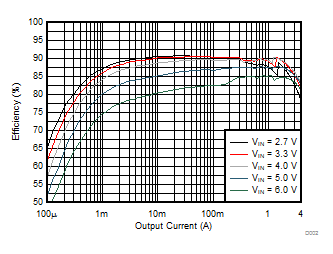

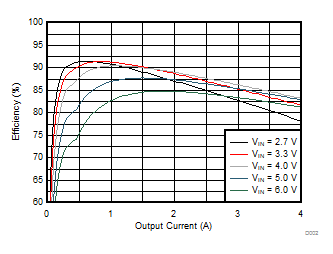

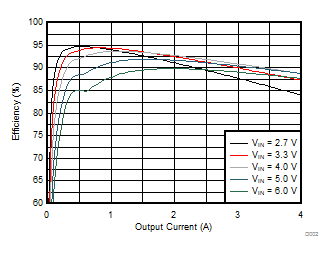

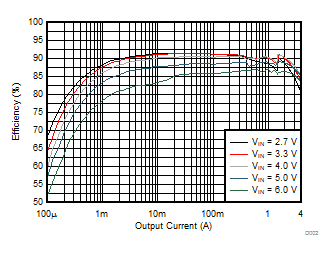

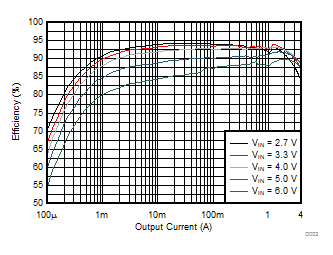

Figure 10-3 Efficiency versus Output Current

V_OUT = 1.8 V

PWM

T_A = 25°C

Figure 10-5 Efficiency versus Output Current

V_OUT = 1.2 V

PWM

T_A = 25°C

Figure 10-7 Efficiency versus Output Current

V_OUT = 1.0 V

PWM

T_A = 25°C

Figure 10-9 Efficiency versus Output Current

V_OUT = 0.6 V

PWM

T_A = 25°C

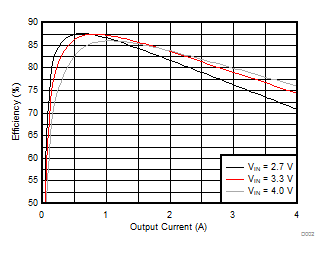

Figure 10-11 Efficiency versus Output Current

V_OUT = 3.3 V

PWM

T_A = 25°C

Figure 10-13 Output Voltage versus Output Current

V_OUT = 1.8 V

PWM

T_A = 25°C

Figure 10-15 Output Voltage versus Output Current

V_OUT = 1.2 V

PWM

T_A = 25°C

Figure 10-17 Output Voltage versus Output Current

V_OUT = 1.0 V

PWM

T_A = 25°C

Figure 10-19 Output Voltage versus Output Current

V_OUT = 0.6 V

PWM

T_A = 25°C

Figure 10-21 Output Voltage versus Output Current

V_OUT = 3.3 V	PWM	T_A = 25°C
V_IN = 5.0 V	I_OUT = 0.4 A to 3.6 A to 0.4 A

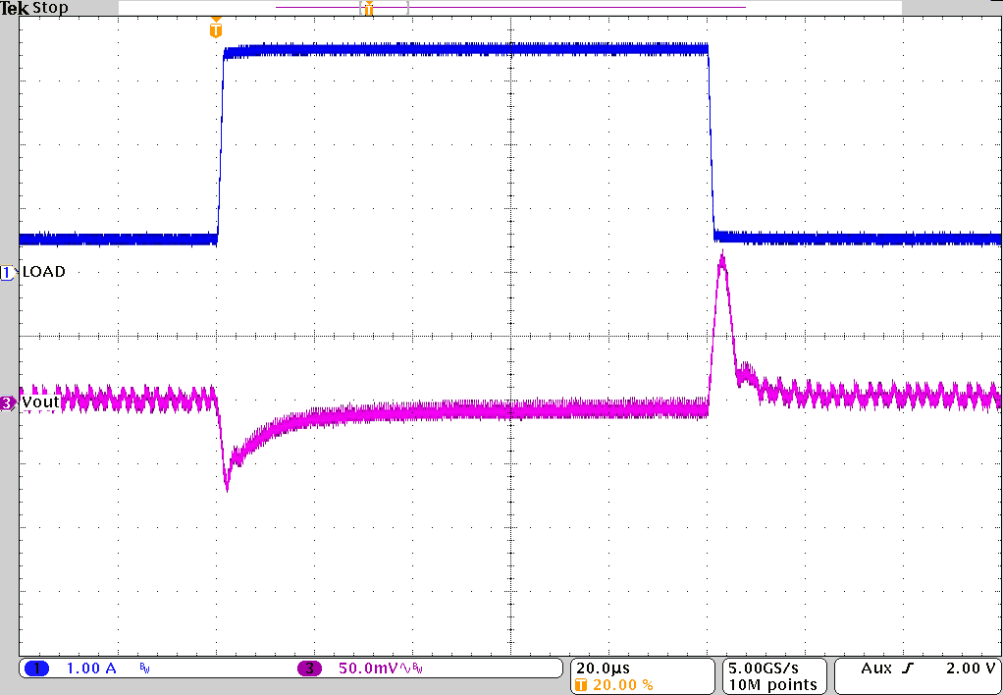

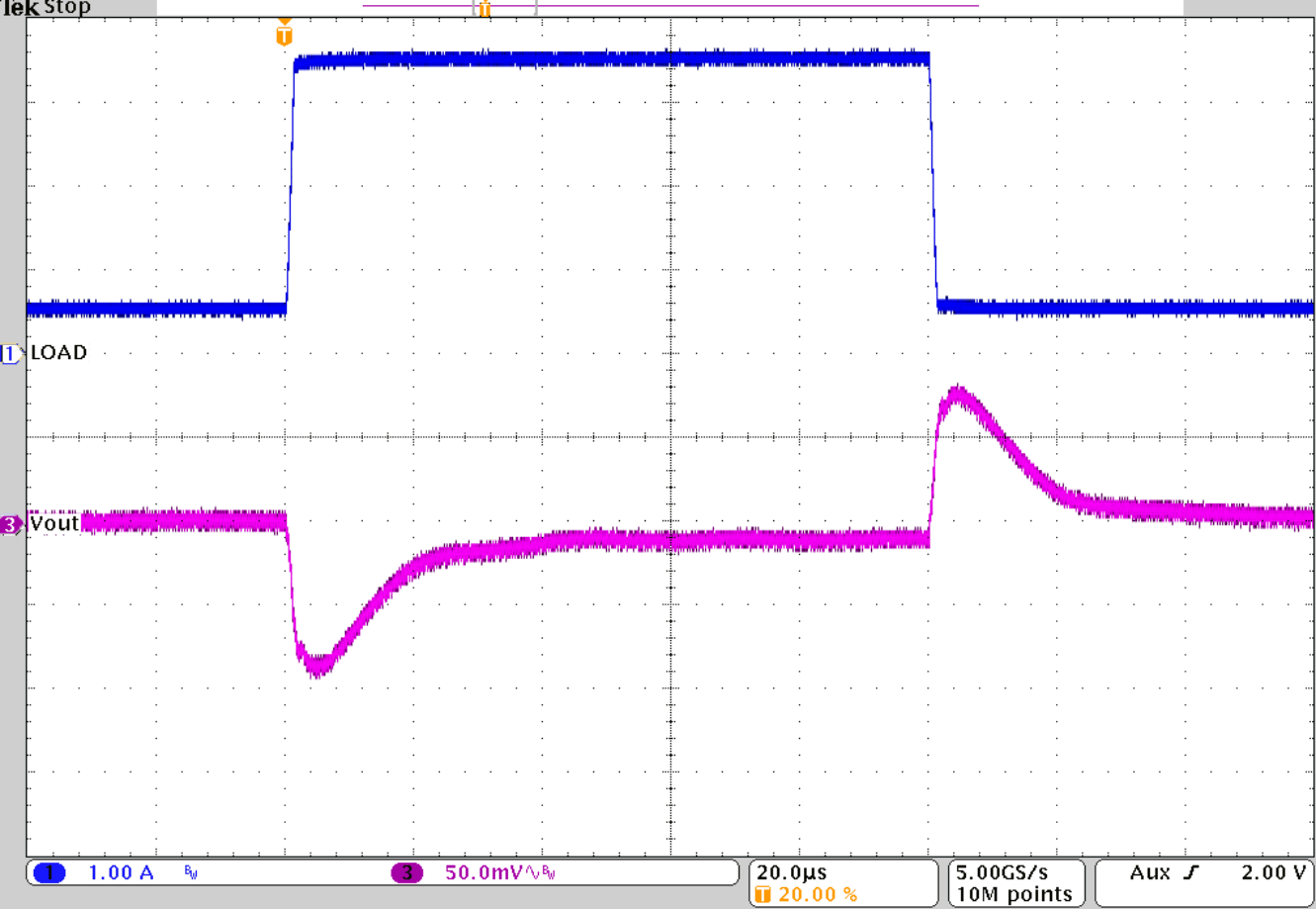

Figure 10-23 Load Transient Response

V_OUT = 1.8 V	PWM	T_A = 25°C
V_IN = 5.0 V	I_OUT = 0.4 A to 3.6 A to 0.4 A

Figure 10-25 Load Transient Response

V_OUT = 1.2 V	PWM	T_A = 25°C
V_IN = 5.0 V	I_OUT = 0.4 A to 3.6 A to 0.4 A

Figure 10-27 Load Transient Response

V_OUT = 1.0 V	PWM	T_A = 25°C
V_IN = 5.0 V	I_OUT = 0.4 A to 3.6 A to 0.4 A

Figure 10-29 Load Transient Response

V_OUT = 0.6 V	PWM	T_A = 25°C
V_IN = 3.3 V	I_OUT = 0.4 A to 3.6 A to 0.4 A

Figure 10-31 Load Transient Response

V_OUT = 3.3 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 4.5 V to 5.5 V to 4.5 V

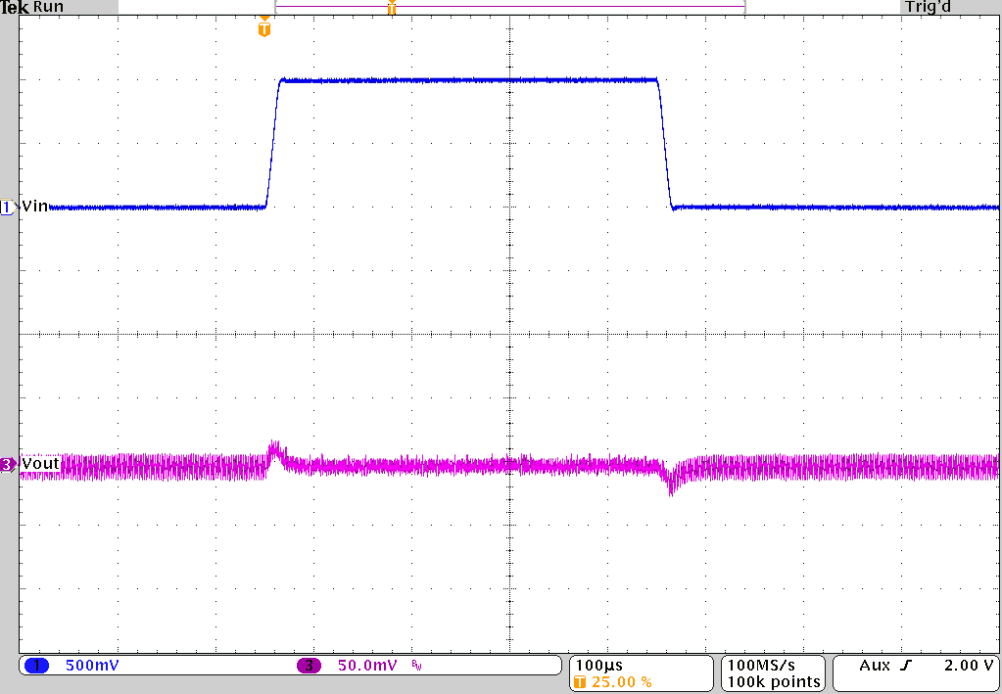

Figure 10-33 Line Transient Response

V_OUT = 1.8 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 4.5 V to 5.5 V to 4.5 V

Figure 10-35 Line Transient Response

V_OUT = 1.2 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 4.5 V to 5.5 V to 4.5 V

Figure 10-37 Line Transient Response

V_OUT = 1.0 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 4.5 V to 5.5 V to 4.5 V

Figure 10-39 Line Transient Response

V_OUT = 0.6 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 3.0 V to 3.6 V to 3.0 V

Figure 10-41 Line Transient Response

V_OUT = 3.3 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 5.0 V	BW = 20 MHz

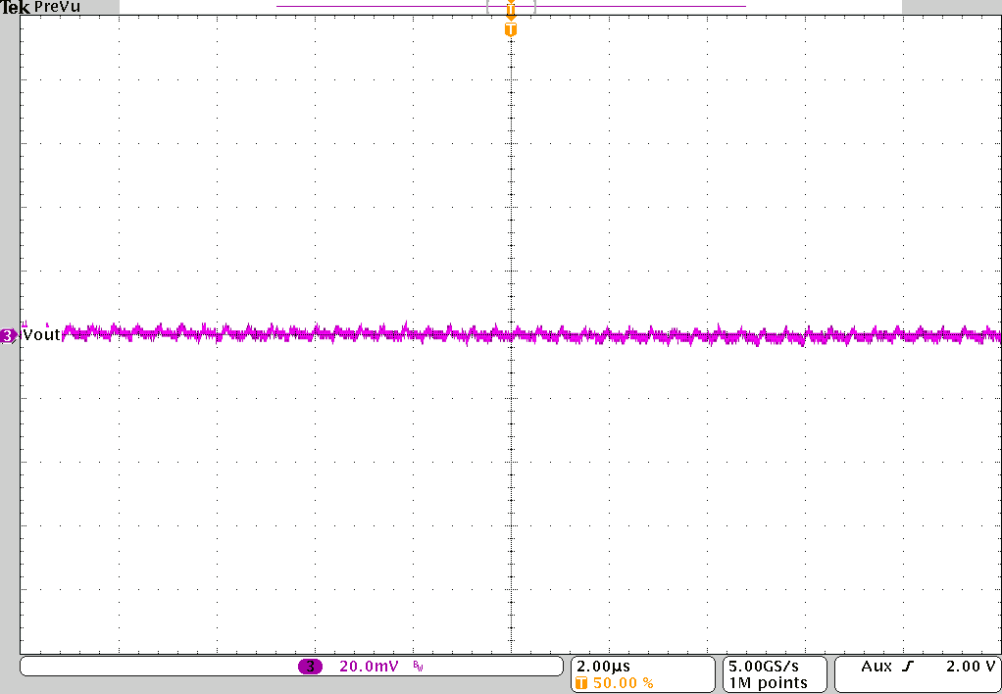

Figure 10-43 Output Voltage Ripple

V_OUT = 1.8 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 5.0 V	BW = 20 MHz

Figure 10-45 Output Voltage Ripple

V_OUT = 1.2 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 5.0 V	BW = 20 MHz

Figure 10-47 Output Voltage Ripple

V_OUT = 1.0 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 5.0 V	BW = 20 MHz

Figure 10-49 Output Voltage Ripple

V_OUT = 0.6 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 3.3 V	BW = 20 MHz

Figure 10-51 Output Voltage Ripple

V_OUT = 1.8 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 5 V	C_SS = 4.7 nF

Figure 10-53 Start-Up Timing

V_OUT = 1.0 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 5 V	C_SS = 4.7 nF

Figure 10-55 Start-Up Timing
