7.3 System Examples
Figure 7-22, Figure 7-23, and Figure 7-24 show additional circuits for varying voltage options.
Figure 7-22 1.5-V Adjustable Version Operating at 2.8 MHz

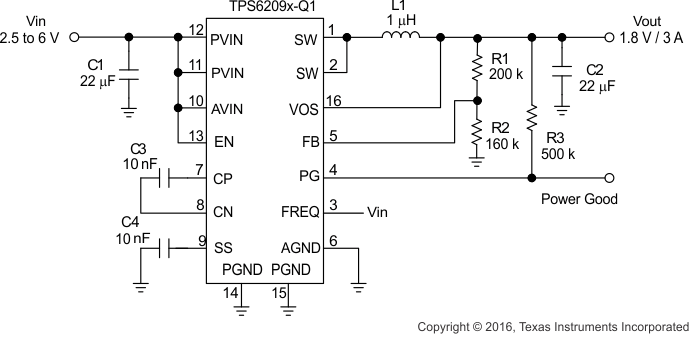

Figure 7-23 1.8-V Adjustable Version Operating at 1.4 MHz

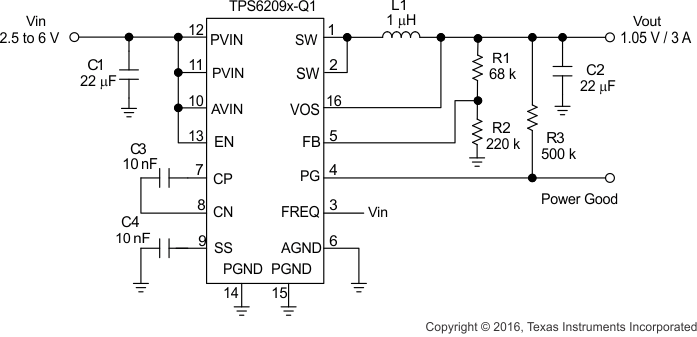

Figure 7-24 1.05-V Adjustable Version Operating at 1.4 MHz
