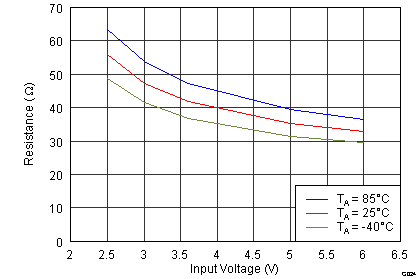

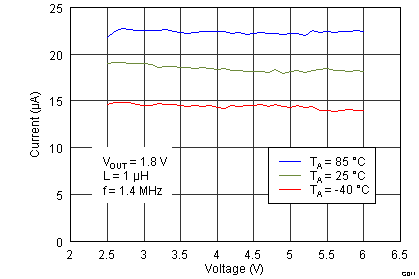

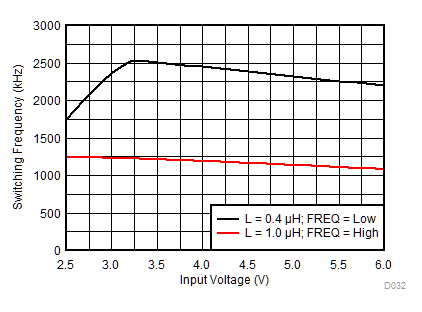

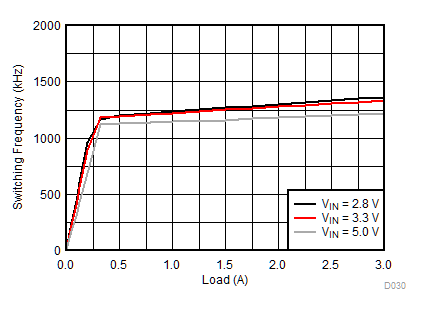

5.6 Typical Characteristics

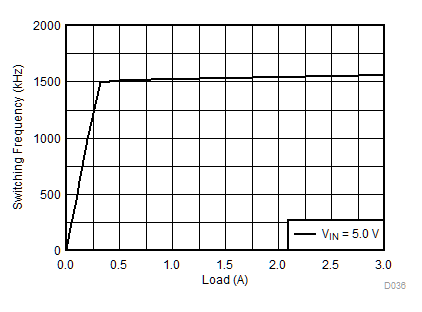

| VOUT = 1 V | L = 1 μH | FREQ = High |

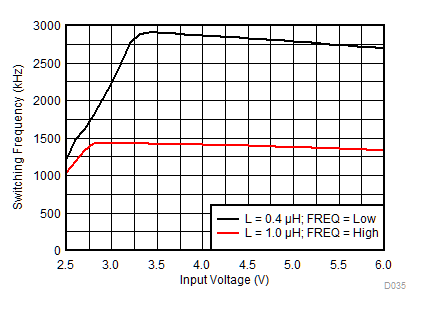

| VOUT = 1 V | IOUT = 1 A |

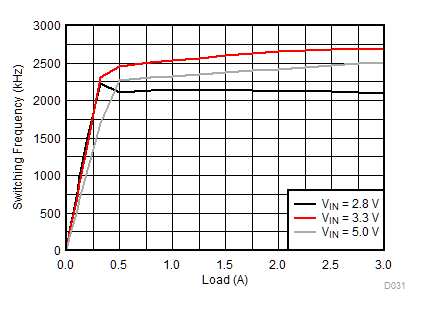

| VOUT = 1.8 V | L = 0.4 μH | FREQ = Low |

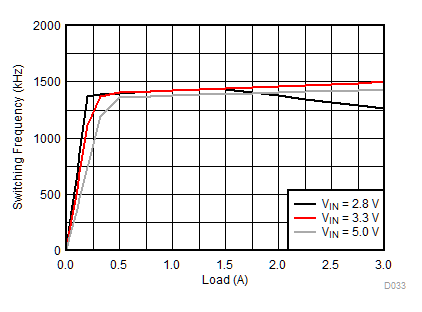

| VOUT = 3.3 V | L = 1 μH | FREQ = High |
| VOUT = 3.3 V | IOUT = 1 A |

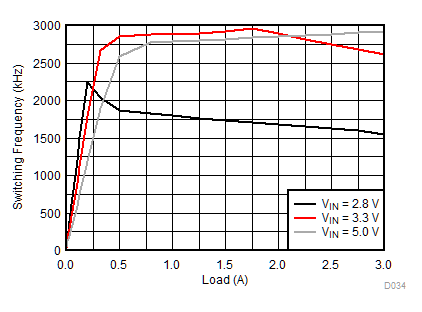

| VOUT = 1 V | L = 0.4 μH | FREQ = Low |

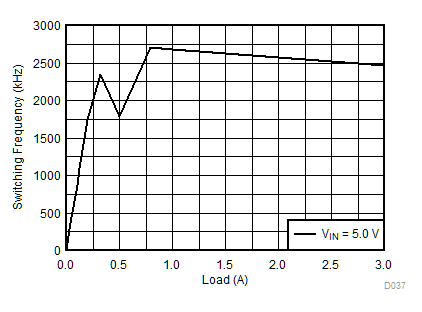

| VOUT = 1.8 V | L = 1 μH | FREQ = High |

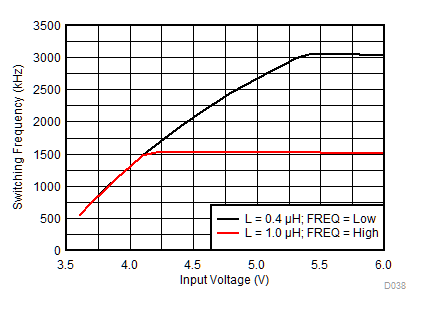

| VOUT = 1.8 V | IOUT = 1 A |
| VOUT = 3.3 V | L = 0.4 μH | FREQ = Low |
