7.6 Typical Characteristics

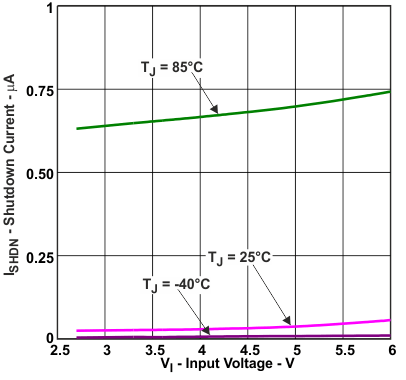

Figure 7-1 Shutdown Current vs Input Voltage and Ambient Temperature

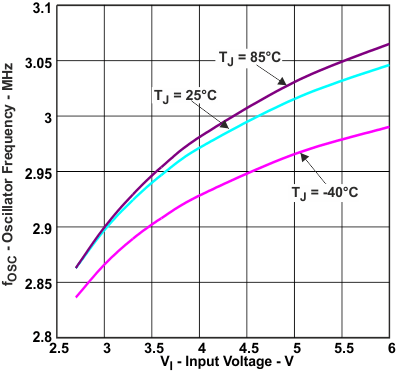

Figure 7-3 Oscillator Frequency vs Input Voltage

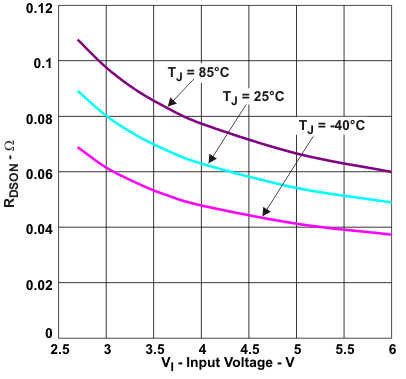

Figure 7-5 RDSON High-Side Switch
Figure 7-2 Quiescent Current vs Input Voltage
Figure 7-4 RDSON Low-Side Switch

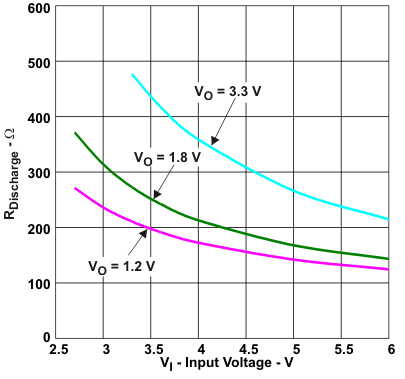

Figure 7-6 Rdischarge vs Input Voltage
