7.6 Typical Characteristics
VIN = 3.3 V, VOUT
= 9 V (VO pin), TA = 25°C, Fsw = 2.2 MHz, unless otherwise
noted.

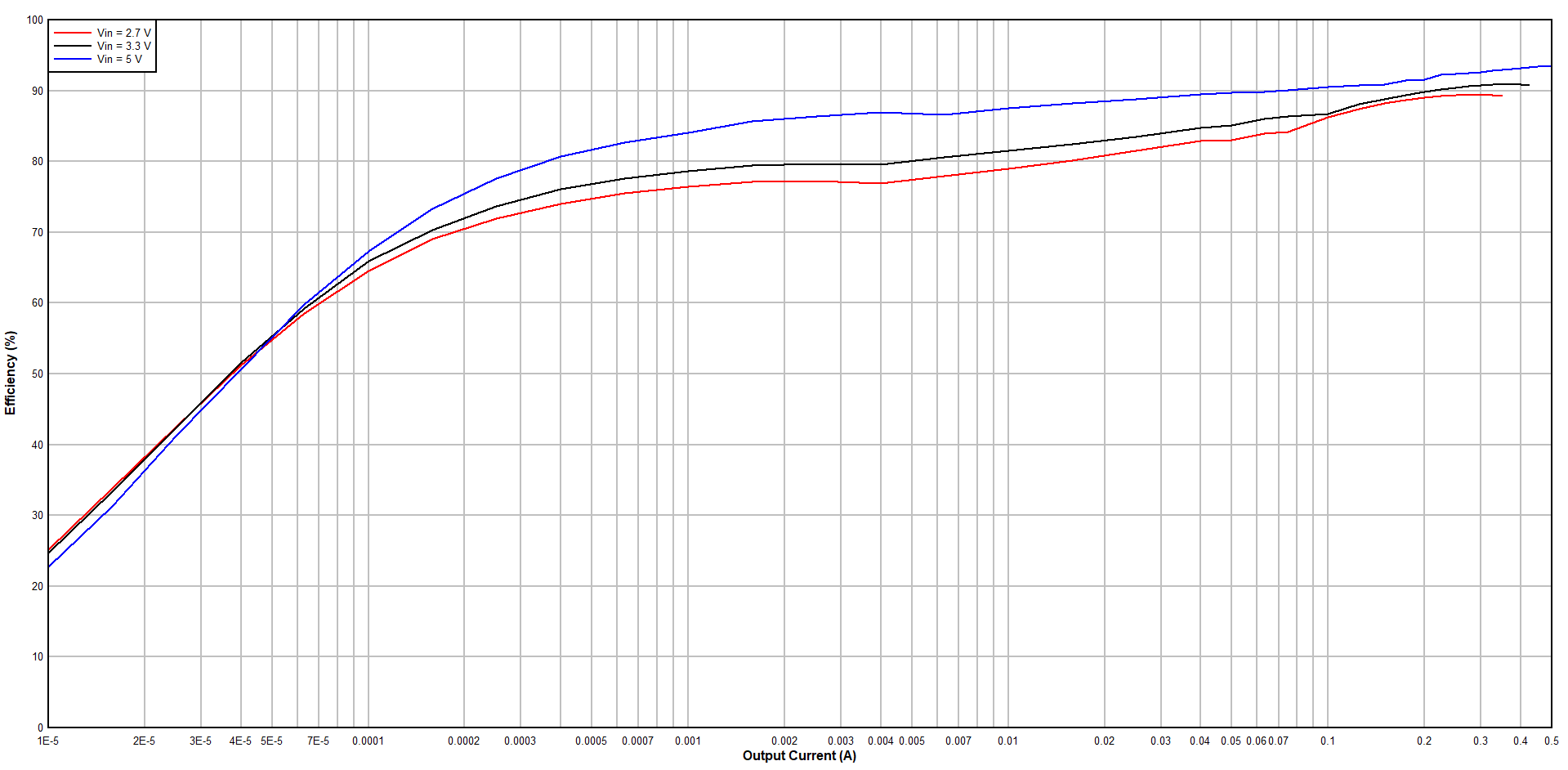

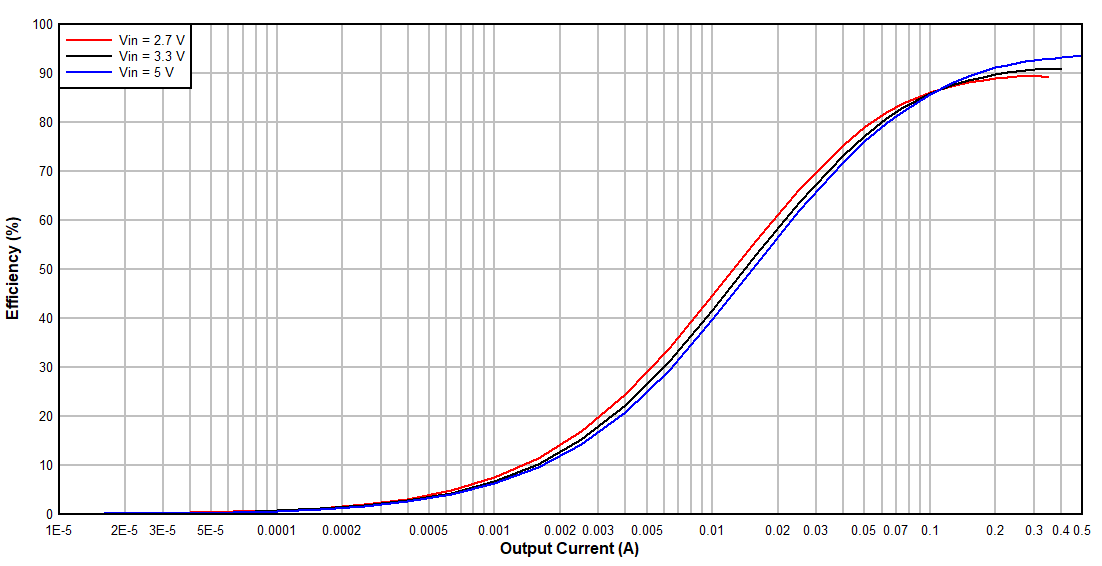

Figure 7-1 9 VOUT Efficiency vs
Output Current

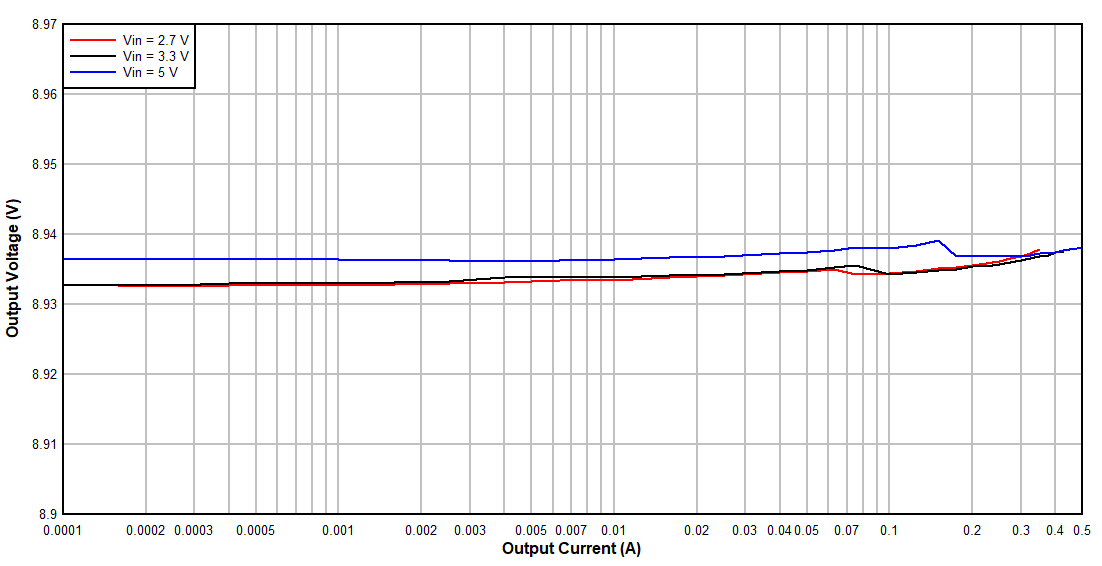

Figure 7-3 9 VOUT Regulation vs
Output Current

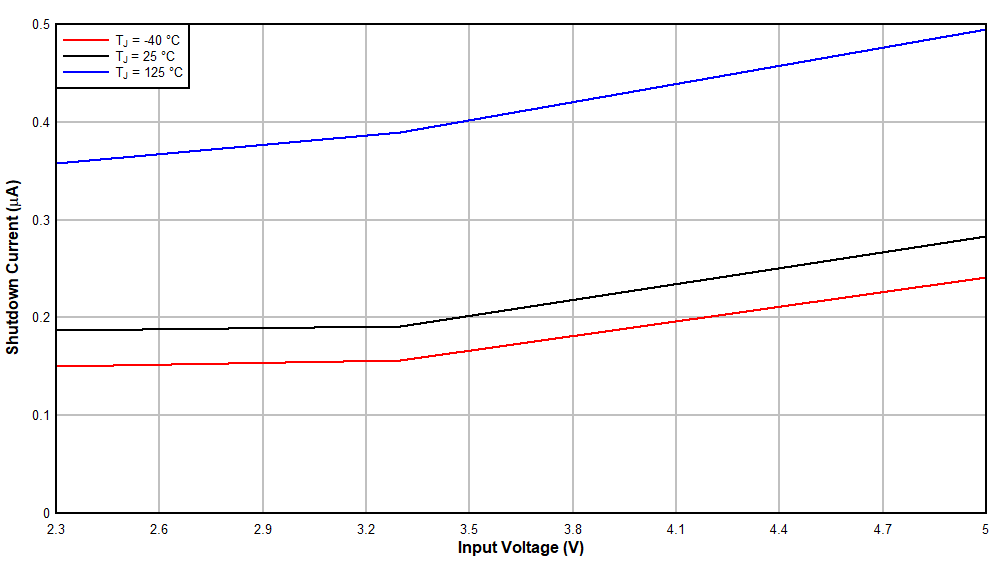

Figure 7-5 Shutdown Current vs Input
Voltage

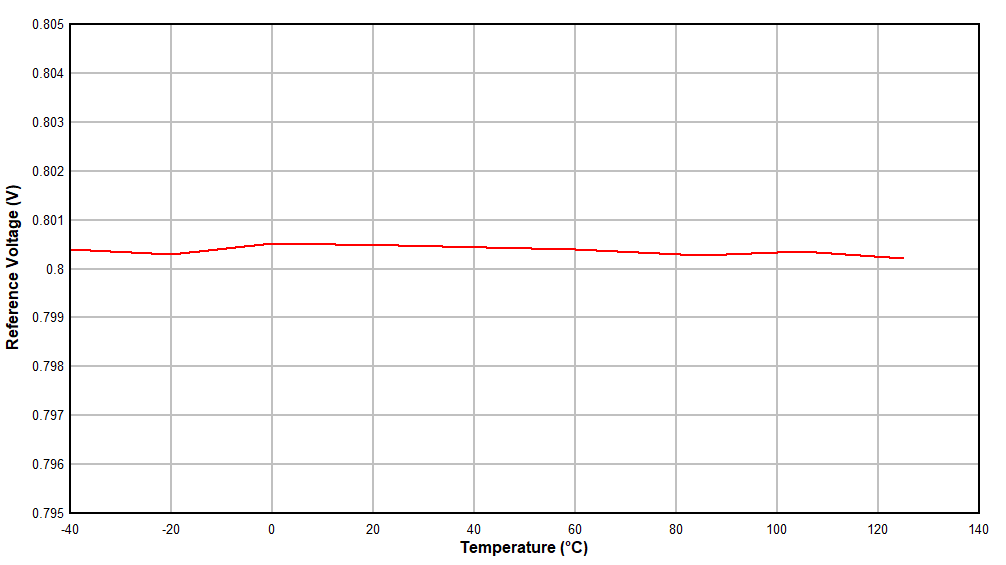

Figure 7-7 Reference Voltage vs
Temperature

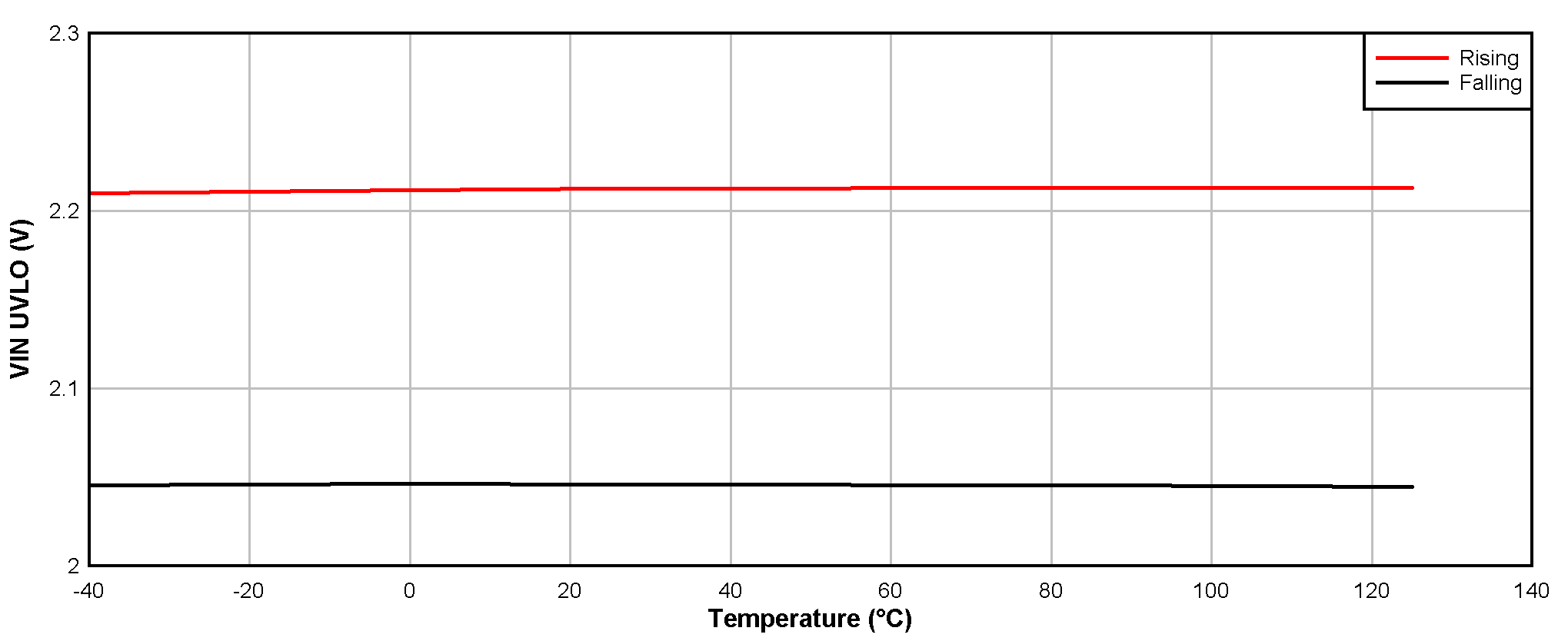

Figure 7-9 VIN UVLO
Threshold Voltage vs Temperature

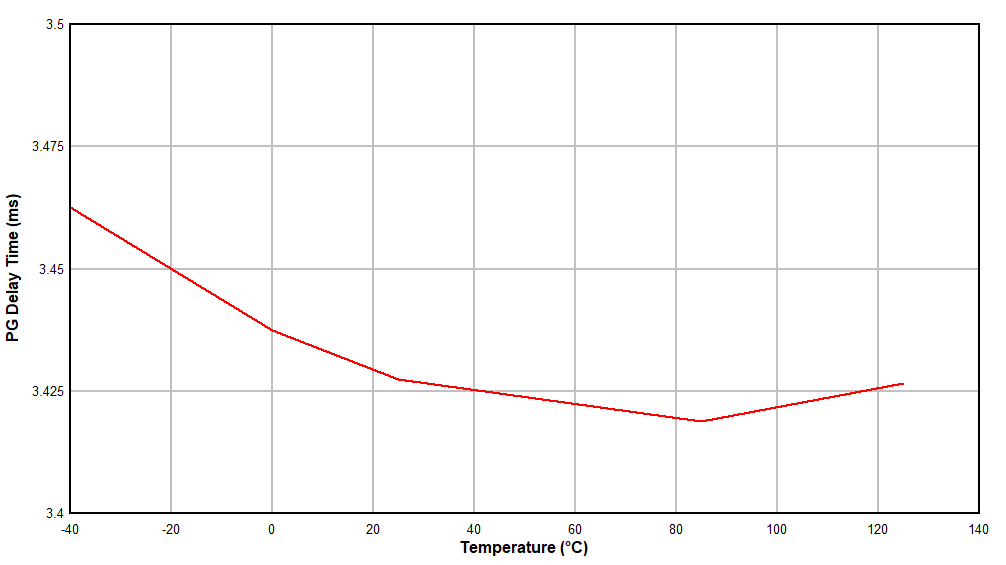

Figure 7-11 PG Delay Time vs
Temperature
Figure 7-2 9 VOUT Efficiency vs
Output Current

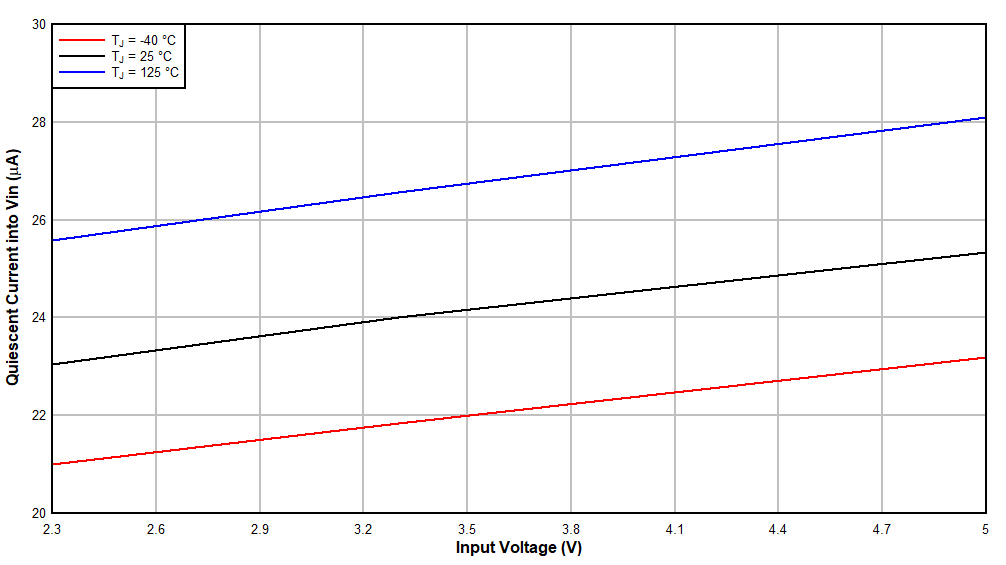

Figure 7-4 Quiescent Current into
VIN vs Input Voltage

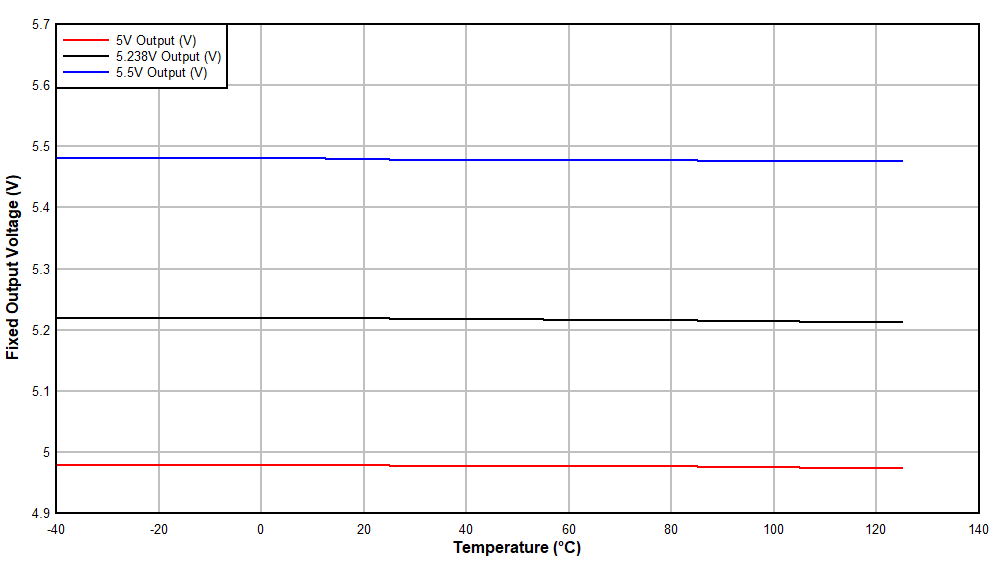

Figure 7-6 Fixed Output Voltage vs
Temperature

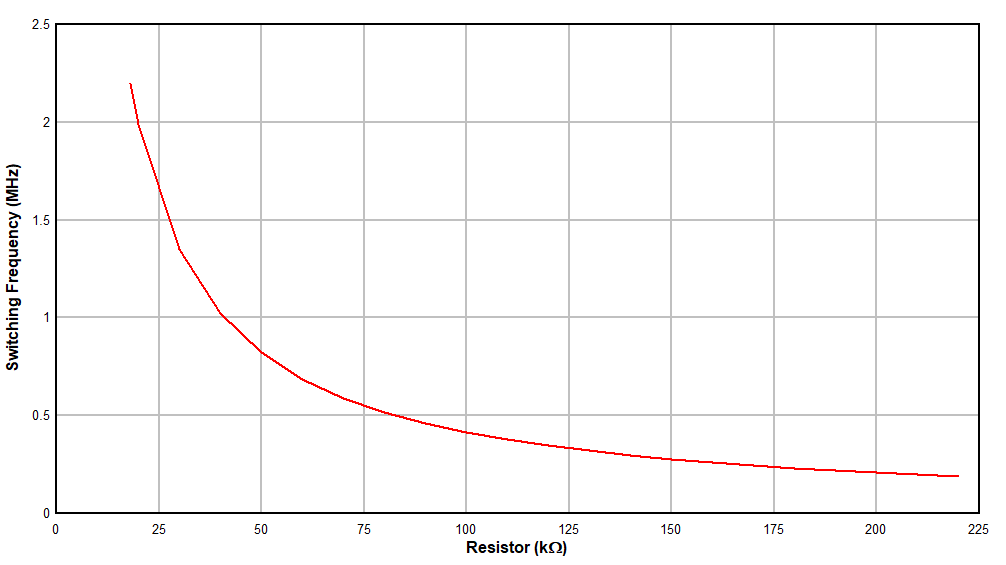

Figure 7-8 Switching Frequency vs
Setting Resistance

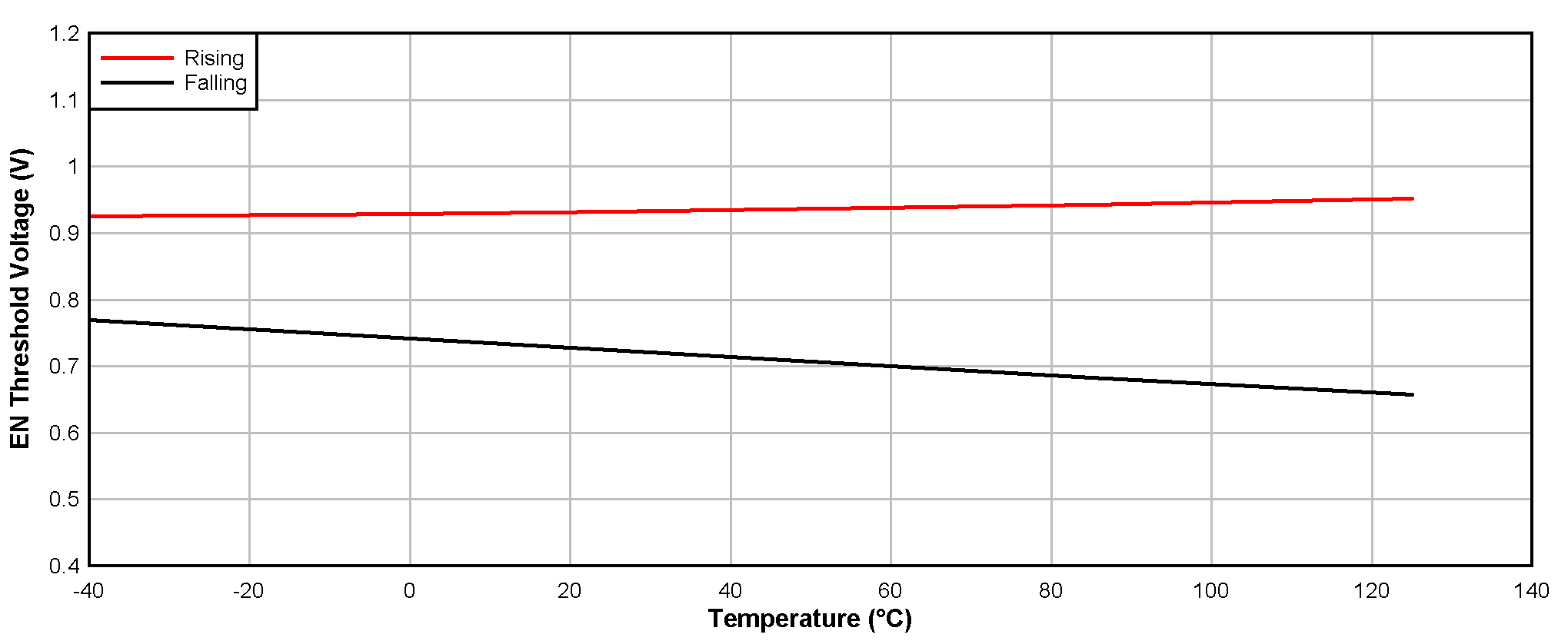

Figure 7-10 EN Threshold Voltage vs
Temperature

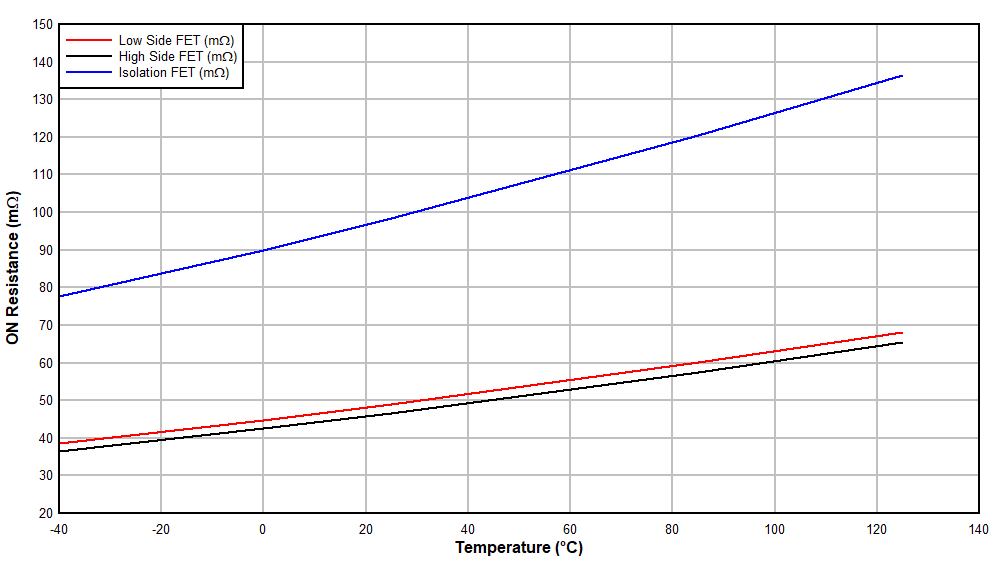

Figure 7-12 RDSON vs
Temperature
| VOUT = 9 V | Auto PFM | Fsw = 2.2 MHz |
| VOUT = 9 V | Auto PFM | Fsw = 2.2 MHz |
Figure 7-5 Shutdown Current vs Input
VoltageFigure 7-7 Reference Voltage vs
TemperatureFigure 7-9 VIN UVLO
Threshold Voltage vs TemperatureFigure 7-11 PG Delay Time vs
Temperature| VOUT = 9 V | FPWM | Fsw = 2.2 MHz |
Figure 7-6 Fixed Output Voltage vs
TemperatureFigure 7-8 Switching Frequency vs
Setting ResistanceFigure 7-10 EN Threshold Voltage vs
TemperatureFigure 7-12 RDSON vs
Temperature
