8.2.2.6.1 Small Signal Model
The TPS61372 uses the peak current with adaptive off-time control topology. With the inductor current information sensed, the small-signal model of the power stage reduces from a two-pole system, created by L and COUT, to a single-pole system, created by ROUT and COUT. An external loop compensation network connecting to the COMP pin of TPS61372 is added to optimize the loop stability and the response time, a resistor RC, capacitor CC, and CP shown in Figure 8-2 comprises the loop compensation network.
Figure 8-2 TPS61372 Control Equivalent Circuitry ModelThe small signal of power stage including the slope compensation is:
where
- D is the duty cycle
- ROUT is the output load resistor
- RSENSE is the equivalent internal current sense resistor, which is typically 0.2 Ω of TPS61372
The single pole of the power stage is:
where
- COUT is the output capacitance, for a boost converter having multiple, identical output capacitors in parallel, simply combine the capacitors with the equivalent capacitance
The zero created by the ESR of the output capacitor is:
where
- RESR is the equivalent resistance in series of the output capacitor
The right-hand plane zero is:
where
- D is the duty cycle
- ROUT is the output load resistor
- L is the inductance
The TPS61372 COMP pin is the output of the internal trans-conductance amplifier.

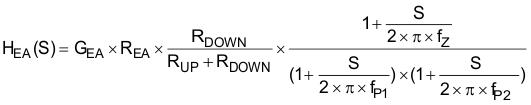

Equation 15 shows the equation for feedback resistor network and the error amplifier.
where
- REA is the output impedance of the error amplifier REA = 500 M?. GEA is the transconuctance of the error amplifier, GEA = 175 μS.
- ?P1, ?P2 is the pole's frequency of the compensation
- fZ is the zero’s frequency of the compensation network
where
- CC is the zero capacitor compensation
where
- CP is the pole capacitor compensation
- RC is the resistor of the compensation network
