7 Pin Configuration and Functions

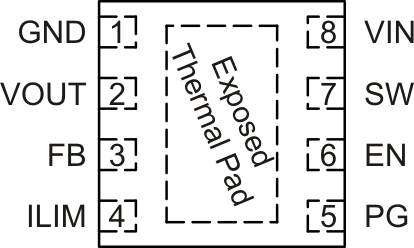

DSG Package
8-Pin WSON
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| EN | 6 | I | Enable input (1 enabled, 0 disabled) |
| FB | 3 | I | Voltage feedback pin |
| GND | 1 | Ground | |
| ILIM | 4 | I | Adjustable average input current limit. Can be connected to VIN for maximum current limit or to GND for minimum current limit. |
| PG | 5 | O | Output power good (1 good, 0 failure; open drain) |
| SW | 7 | I | Connection for Inductor |
| VIN | 8 | I | Supply voltage for power stage |
| VOUT | 2 | O | Boost converter output |
| Exposed Thermal Pad | Must be soldered to achieve appropriate power dissipation and for mechanical reasons. Must be connected to GND. | ||
