ZHCSDX3F June 2015 – September 2021 TPS61098 , TPS610981 , TPS610982 , TPS610985 , TPS610986 , TPS610987

PRODUCTION DATA

封裝選項

機械數據 (封裝 | 引腳)

DSE|6
- MPDS287A

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

7.6 Typical Characteristics

TPS61098, '1, '5, '6

MODE = High

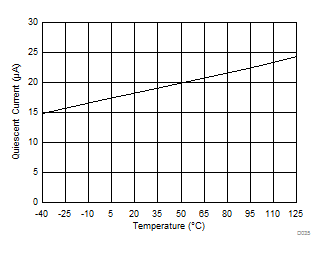

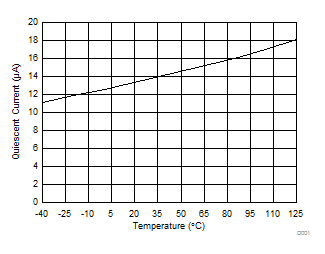

Figure 7-1 I_Q into VMAIN Pin at Active Mode vs Temperature

TPS610982

MODE = High

Figure 7-3 I_Q into VMAIN Pin at Active Mode vs Temperature

TPS61098, '7

MODE = High

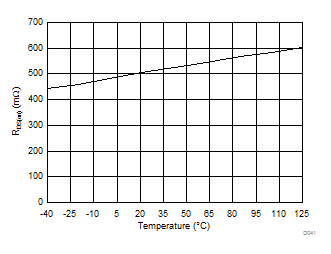

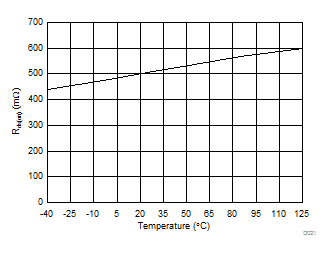

Figure 7-5 Rectifier On Resistance vs Temperature

TPS61098, '7

MODE = Low

Figure 7-7 Rectifier On Resistance vs Temperature

TPS610981

MODE = High / Low

Figure 7-9 Rectifier On Resistance vs Temperature

TPS610982

MODE = High / Low

Figure 7-11 Rectifier On Resistance vs Temperature

TPS610985

MODE = High / Low

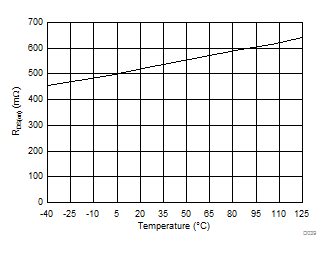

Figure 7-13 Rectifier on Resistance vs Temperature

TPS610986

MODE = High / Low

Figure 7-15 Rectifier on Resistance vs Temperature

TPS61098x

V_IN < V_(MAIN)

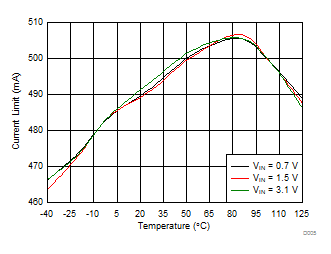

Figure 7-17 Current Limit vs Temperature

TPS61098, '7

MODE = High

V_(MAIN) = 4.3 V

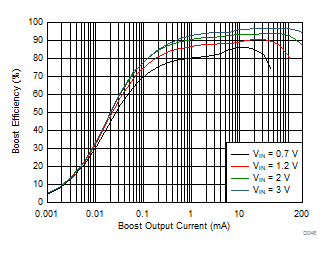

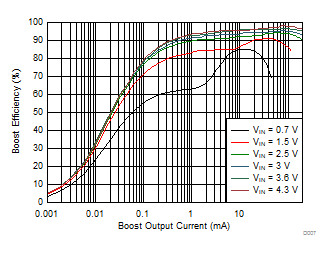

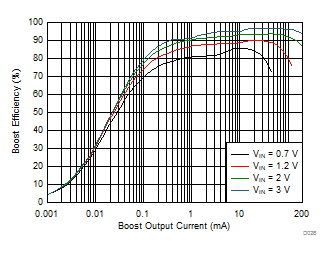

Figure 7-19 Boost Efficiency vs Output Current (Active Mode)

TPS610981

MODE = High

V_(MAIN) = 3.3 V

Figure 7-21 Boost Efficiency vs Output Current (Active Mode)

TPS610982

MODE = High

V_(MAIN) = 3.3 V

Figure 7-23 Boost Efficiency vs Output Current (Active Mode)

TPS610985

Mode = High

V_(MAIN) = 3 V

Figure 7-25 Boost Efficiency vs Output Current (Active Mode)

TPS610986

MODE = High

V_(MAIN) = 3.3 V

Figure 7-27 Boost Efficiency vs Output Current (Active Mode)

TPS61098, '7

MODE = High

V_(MAIN) = 4.3 V

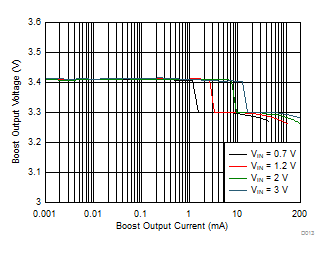

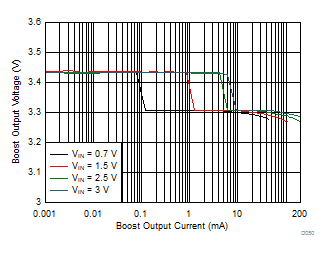

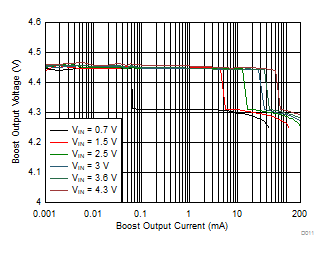

Figure 7-29 Boost Load Regulation (Active Mode)

TPS610981

MODE = High

V_(MAIN) = 3.3 V

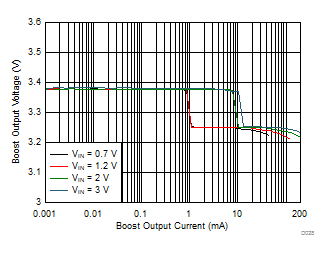

Figure 7-31 Boost Load Regulation (Active Mode)

TPS610982

MODE = High

V_(MAIN) = 3.3 V

Figure 7-33 Boost Load Regulation (Active Mode)

TPS610985

MODE = High

V_(MAIN) = 3 V

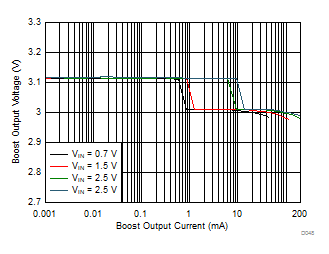

Figure 7-35 Boost Load Regulation (Active Mode)

TPS610986

MODE = High

V_(MAIN) = 3.3 V

Figure 7-37 Boost Load Regulation (Active Mode)

TPS610981

MODE = High

V_IN = 2.5 V

Figure 7-39 LDO Load Regulation

TPS610982

MODE = High

V_IN = 2.5 V

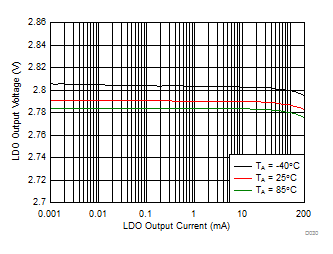

Figure 7-41 LDO Load Regulation (Active Mode)

TPS610981

MODE = Low

No Load

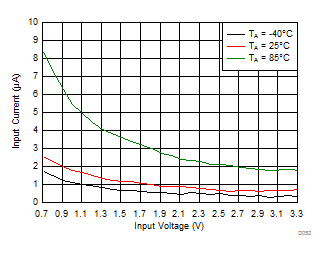

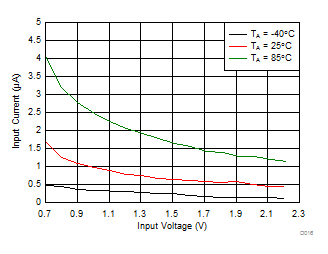

Figure 7-43 Input Current vs Input Voltage (Low Power Mode)

TPS610982

MODE = Low

No Load

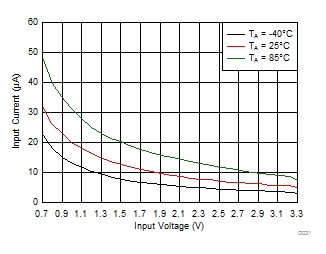

Figure 7-45 No Load Input Current vs Input Voltage (Low Power Mode)

TPS610985

MODE = Low

V_(MAIN) = 3 V

Figure 7-47 Input Current vs Input Voltage (Low Power Mode)

TPS61098. '7	MODE = High	C_O2 = 10 μF
V_IN - V_OUT = 4.3 V - 3.1 V = 1.2 V

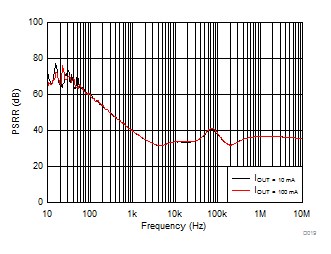

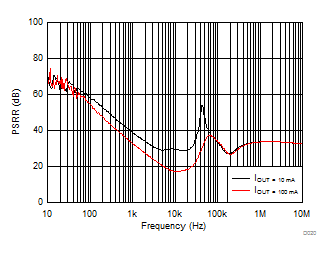

Figure 7-49 LDO PSRR vs Frequency

TPS610982	MODE = Low	C_O2 = 10 μF
V_IN - V_OUT = 3.3 V - 2.8 V = 0.5 V

Figure 7-51 LDO PSRR vs Frequency (Low Power Mode)

TPS61098, '1, '5, '6

MODE = Low

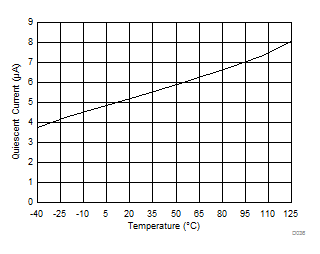

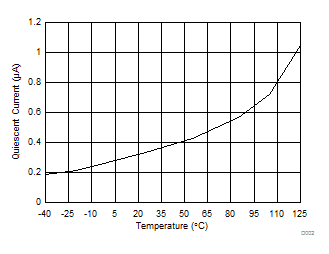

Figure 7-2 I_Q into VMAIN Pin at Low Power Mode vs Temperature

TPS610982

MODE = Low

Figure 7-4 I_Q into VMAIN Pin at Low Power Mode vs Temperature

TPS61098, '7

MODE = High

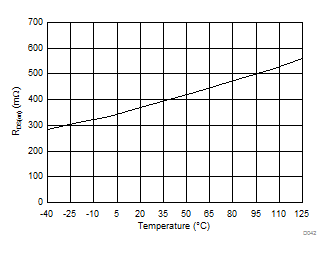

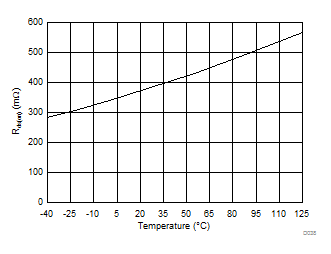

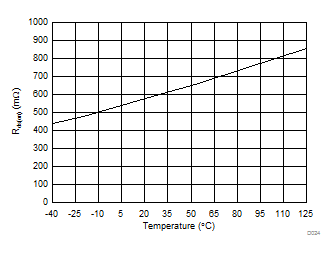

Figure 7-6 Low Side Switch On Resistance vs Temperature

TPS61098, '7

MODE = Low

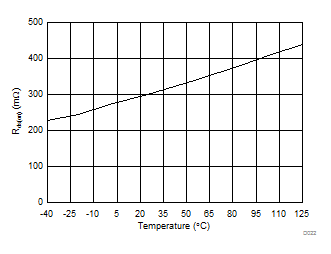

Figure 7-8 Low Side Switch On Resistance vs Temperature

TPS610981

MODE = High / Low

Figure 7-10 Low Side Switch On Resistance vs Temperature

TPS610982

MODE = High / Low

Figure 7-12 Low Side Switch On Resistance vs Temperature

TPS610985

MODE = High / Low

Figure 7-14 Low Side Switch On Resistance vs Temperature

TPS610986

MODE = High / Low

Figure 7-16 Low Side Switch on Resistance vs Temperature

TPS61098, '7

MODE = Low

V_(MAIN) = 2.2 V

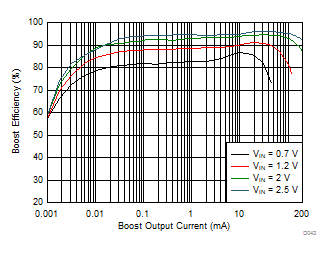

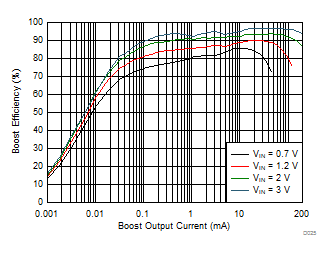

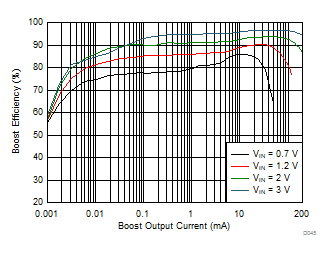

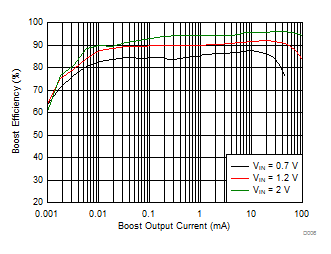

Figure 7-18 Boost Efficiency vs Output Current (Low Power Mode)

TPS610981

MODE = Low

V_(MAIN) = 3.3 V

Figure 7-20 Boost Efficiency vs Output Current (Low Power Mode)

TPS610982

MODE = Low

V_(MAIN) = 3.3 V

Figure 7-22 Boost Efficiency vs Output Current (Low Power Mode)

TPS610985

Mode = Low

V_(MAIN) = 3 V

Figure 7-24 Boost Efficiency vs Output Current (Low Power Mode)

TPS610986

Mode = Low

V_(MAIN) = 3.3 V

Figure 7-26 Boost Efficiency vs Output Current (Low Power Mode)

TPS61098, '7

MODE = Low

V_(MAIN) = 2.2 V

Figure 7-28 Boost Load Regulation (Low Power Mode)

TPS610981

MODE = Low

V_(MAIN) = 3.3 V

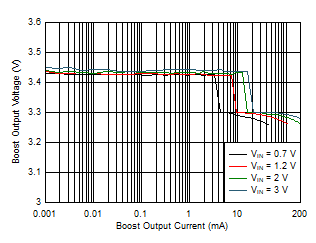

Figure 7-30 Boost Load Regulation (Low Power Mode)

TPS610982

MODE = Low

V_(MAIN) = 3.3 V

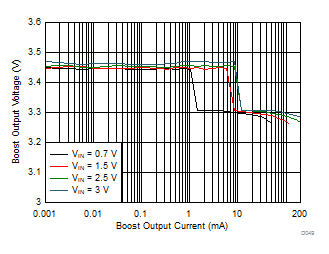

Figure 7-32 Boost Load Regulation (Low Power Mode)

TPS610985

MODE = Low

V_(MAIN) = 3 V

Figure 7-34 Boost Load Regulation (Low Power Mode)

TPS610986

MODE = Low

V_(MAIN) = 3.3 V

Figure 7-36 Boost Load Regulation (Low Power Mode)

TPS61098, '7

MODE = High

V_IN = 3.6 V

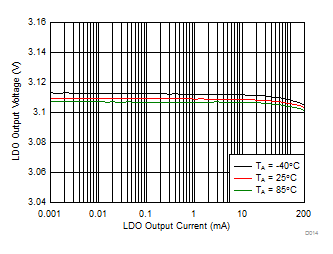

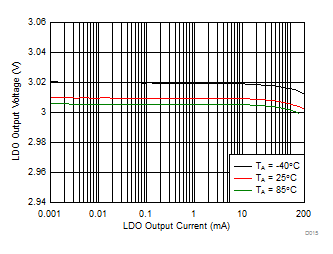

Figure 7-38 LDO Load Regulation

TPS610982

MODE = Low

V_IN = 2.5 V

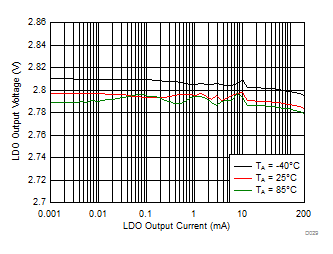

Figure 7-40 LDO Load Regulation (Low Power Mode)

TPS61098, '7

MODE = Low

No Load

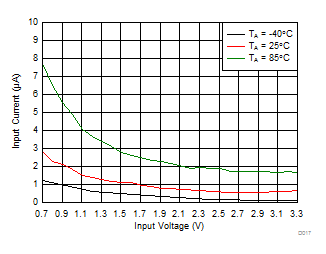

Figure 7-42 Input Current vs Input Voltage (Low Power Mode)

TPS610981

MODE = High

No Load

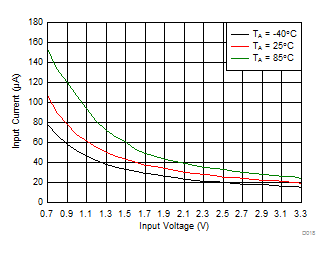

Figure 7-44 Input Current vs Input Voltage (Active Mode)

TPS610982

MODE = High

No Load

Figure 7-46 No Load Input Current vs Input Voltage (Active Mode)

TPS610986

MODE = Low

V_(MAIN) = 3.3 V

Figure 7-48 Input Current vs Input Voltage (Low Power Mode)

TPS610981	MODE = High	C_O2 = 10 μF
V_IN - V_OUT = 3.3 V - 3 V = 0.3 V

Figure 7-50 LDO PSRR vs Frequency

TPS610982	MODE = High	C_O2 = 10 μF
V_IN - V_OUT = 3.3 V - 2.8 V = 0.5 V

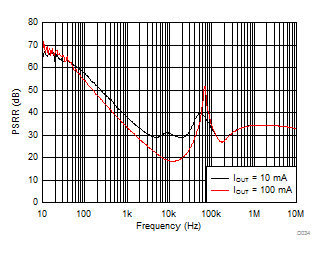

Figure 7-52 LDO PSRR vs Frequency (Active Mode)
