9 Typical Characteristics
Table of Graphs
| FIGURE | ||
|---|---|---|
| Maximum output current | vs Input voltage | Figure 1 |
| Efficiency | vs Output current (TPS61025) | Figure 2 |
| vs Output current (TPS61027) | Figure 3 | |
| vs Input voltage (TPS61025) | Figure 4 | |
| vs Input voltage (TPS61027) | Figure 5 | |
| Output voltage | vs Output current (TPS61025) | Figure 6 |
| vs Output current (TPS61027) | Figure 7 | |
| No load supply current into VBAT | vs Input voltage | Figure 8 |
| No load supply current into VOUT | vs Input voltage | Figure 9 |

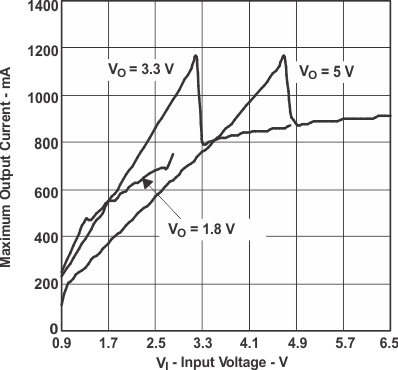

Figure 1. Maximum Output Current vs Input Voltage

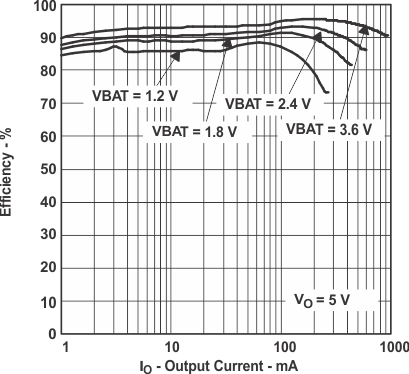

Figure 3. TPS61027 Efficiency vs Output Current

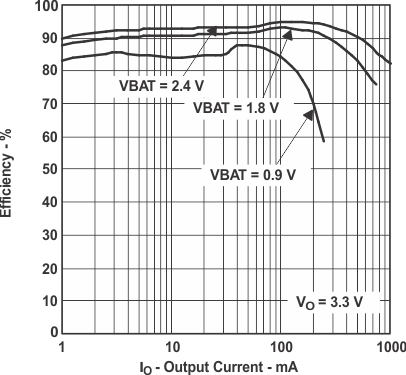

Figure 2. TPS61025 Efficiency vs Output Current

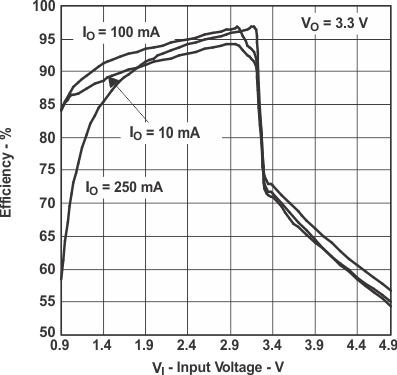

Figure 4. TPS61025 Efficiency vs Input Voltage

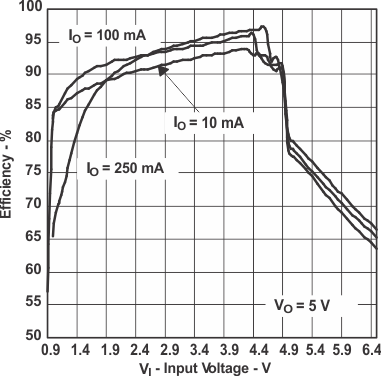

Figure 5. TPS61027 Efficiency vs Input Voltage

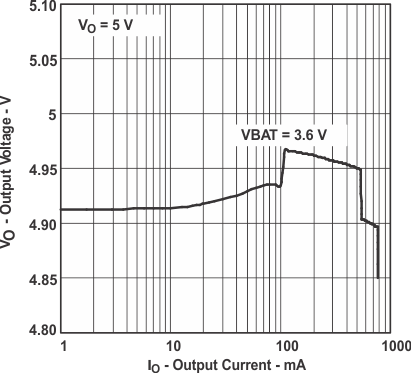

Figure 7. TPS61027 Output Voltage vs Output Current

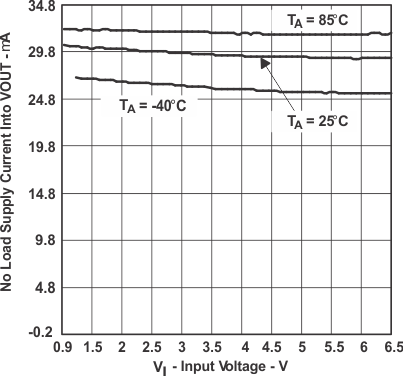

Figure 9. No Load Supply Current Into VOUT vs Input Voltage

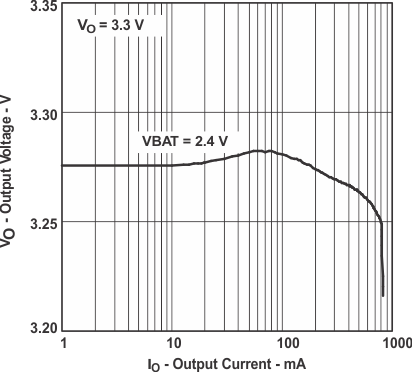

Figure 6. TPS61025 Output Voltage vs Output Current

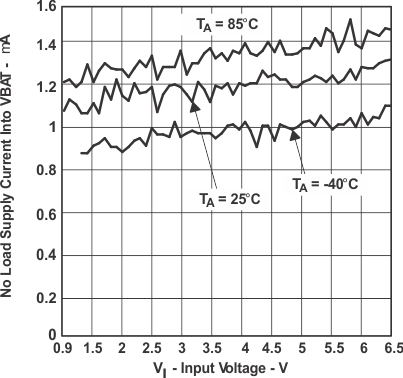

Figure 8. No Load Supply Current Into VBAT vs Input Voltage
