6.6 Typical Characteristics
VIN = 12 V (unless otherwise noted)
VIN = 12 V (unless otherwise noted)

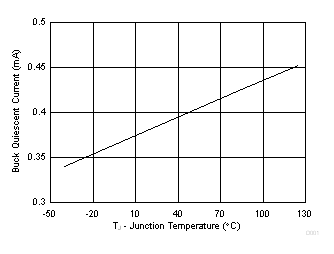

Figure 6-1 TPS561201 Supply Current vs Junction Temperature. VIN = 12 V (unless otherwise noted)
Figure 6-1 TPS561201 Supply Current vs Junction Temperature. VIN = 12 V (unless otherwise noted)

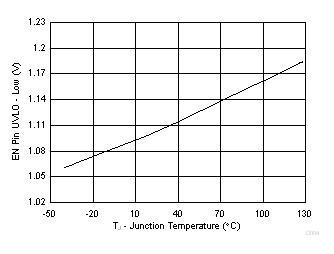

Figure 6-3 EN
Pin UVLO Low Voltage vs Junction Temperature

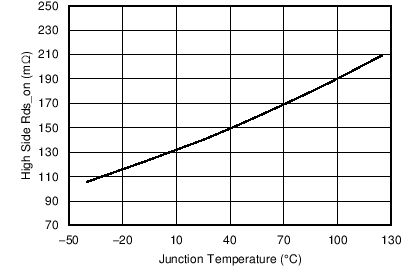

Figure 6-5 High-Side Rds-on vs Junction Temperature

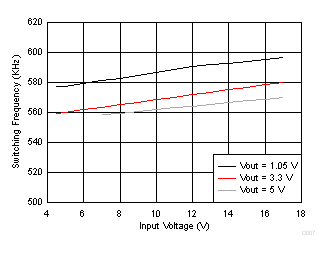

| Iout = 10 mA | ||

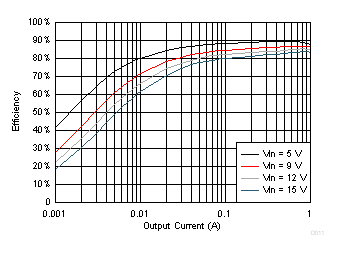

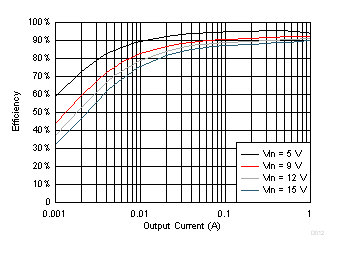

Figure 6-9 TPS561201 VOUT = 1.05 V, Efficiency, L = 2.2 μH

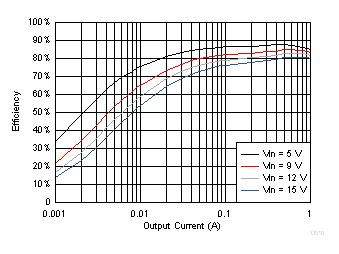

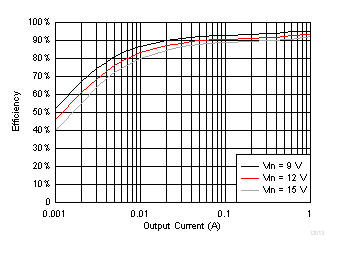

Figure 6-11 TPS561201 VOUT = 3.3 V, Efficiency, L = 3.3 μH

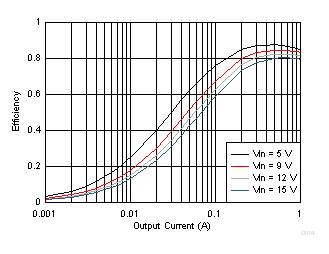

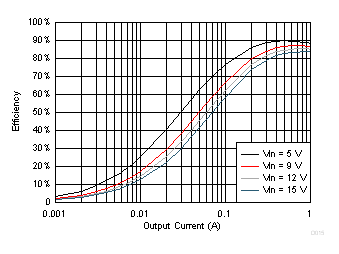

Figure 6-13 TPS561208 VOUT = 1.05 V, Efficiency, L = 2.2 μH

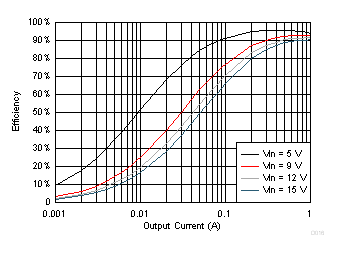

Figure 6-15 TPS561208 VOUT = 3.3 V, Efficiency, L = 3.3 μH

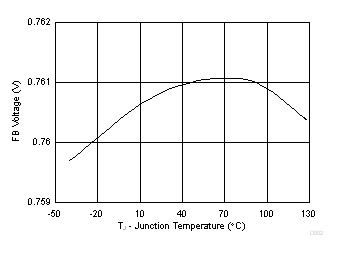

Figure 6-2 VFB
Voltage vs Junction Temperature
Figure 6-4 EN

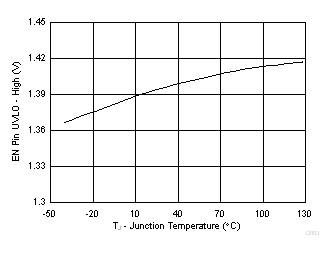

Pin UVLO High Voltage vs Junction Temperature

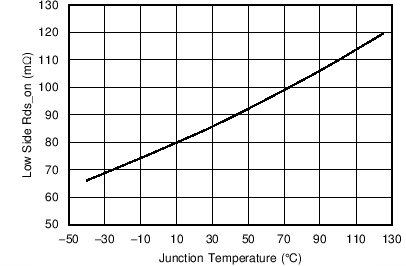

Figure 6-6 Low-Side Rds-on vs Junction Temperature

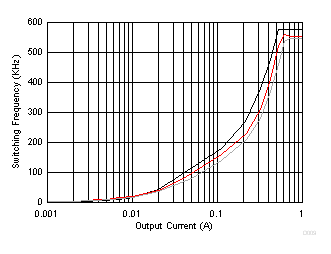

| VIN = 12 V | ||
Figure 6-10 TPS561201 VOUT = 1.5 V, Efficiency, L = 2.2 μH

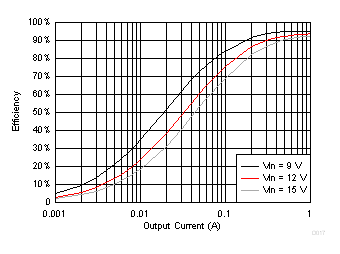

Figure 6-12 TPS561201 VOUT = 5 V, Efficiency, L = 4.7 μH
Figure 6-14 TPS561208 VOUT = 1.5 V, Efficiency, L = 2.2 μH
Figure 6-16 TPS561208 VOUT = 5 V, Efficiency, L = 4.7 μH
