8.2.3 Application Curves

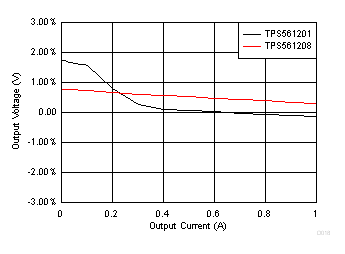

Figure 8-2 Load
Regulation VIN = 5 V
| TPS56201 IOUT = 0.5 A | TPS56208 IOUT = 10 mA |

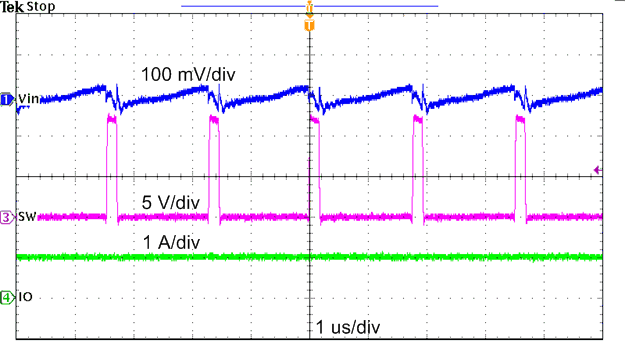

Figure 8-6 TPS561201 Input Voltage Ripple

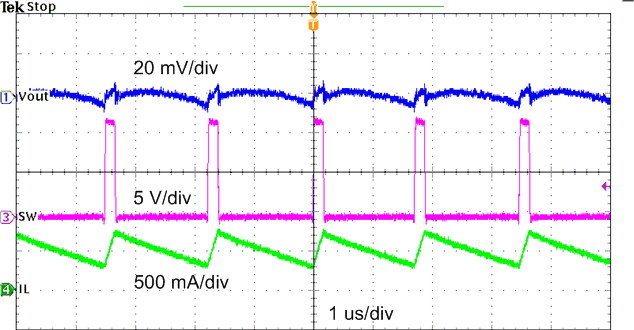

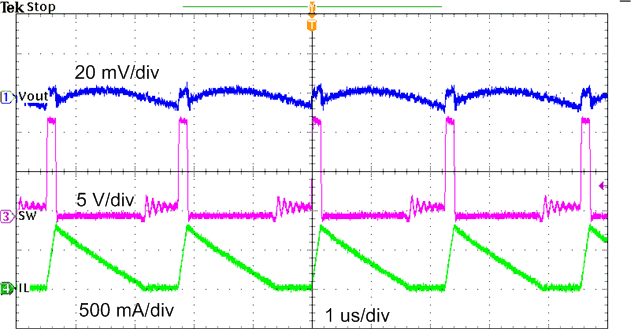

Figure 8-8 TPS561201 Output Voltage Ripple, IOUT = 0.25 A
Figure 8-10 TPS561208 Output Voltage Ripple, IOUT = 0 A

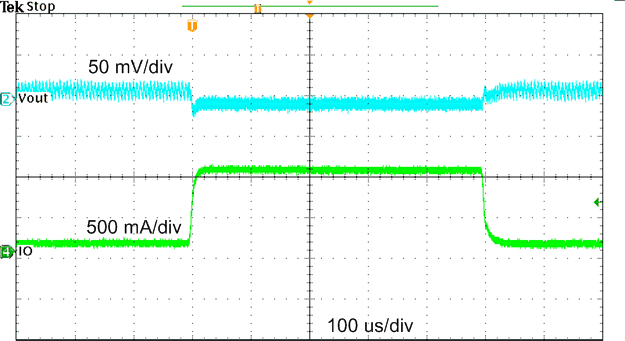

Figure 8-12 TPS561201 Transient Response, 0.5 to 1.5 A

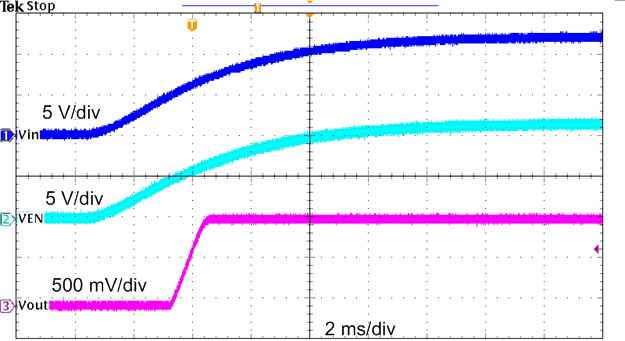

Figure 8-14 TPS561201 Start-Up Relative to VI

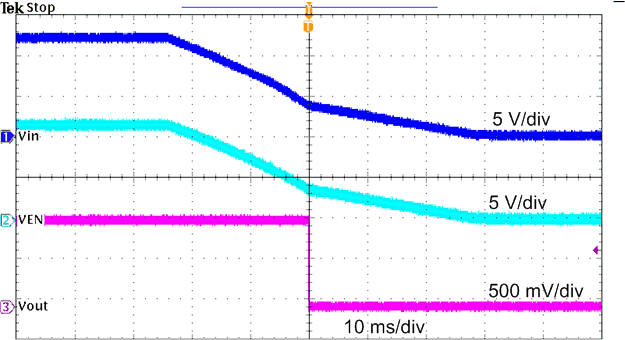

Figure 8-16 TPS561201 Shutdown Relative to VI

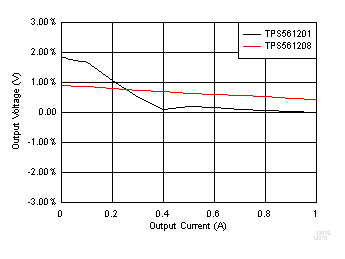

Figure 8-3 Load
Regulation VIN = 12 V

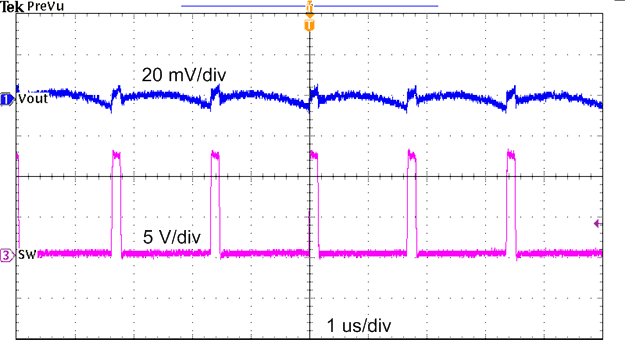

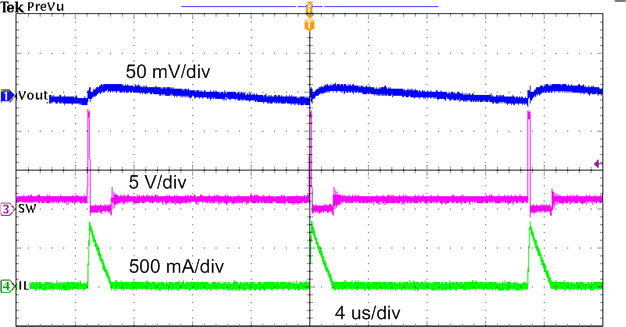

Figure 8-7 TPS561201 Output Voltage Ripple, IOUT = 10 mA
Figure 8-9 TPS561201 Output Voltage Ripple, IOUT = 1 A

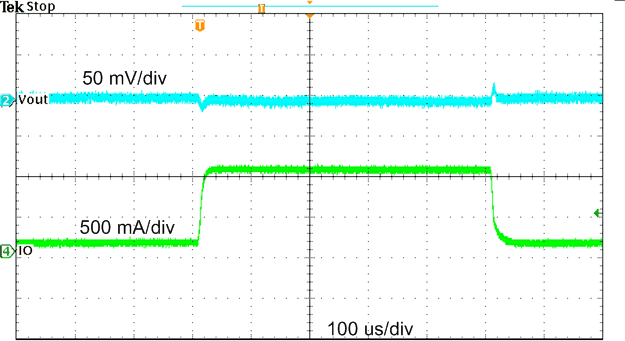

Figure 8-11 TPS561201 Transient Response, 0.1 to 1 A

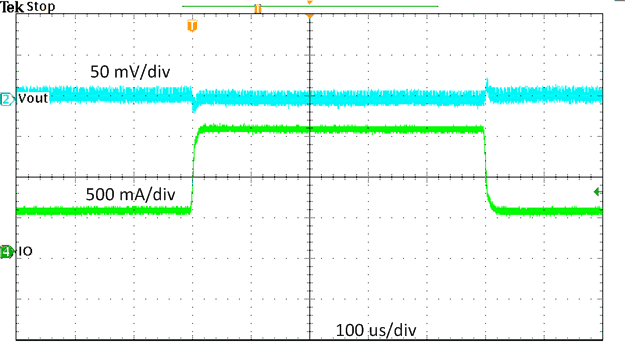

Figure 8-13 TPS561208 Transient Response 0.1 to 1 A

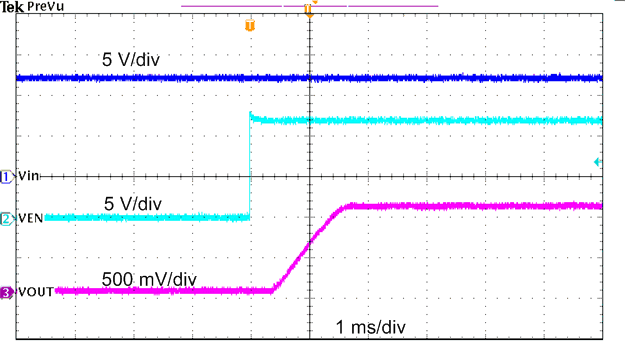

Figure 8-15 TPS561201 Start-Up Relative to EN

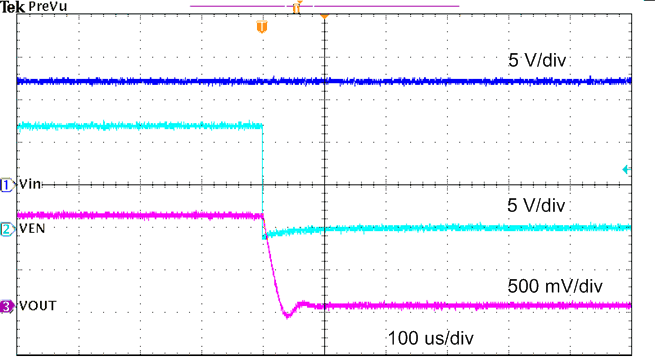

Figure 8-17 TPS561201 Shutdown Relative to EN
