5 Pin Configuration and Functions

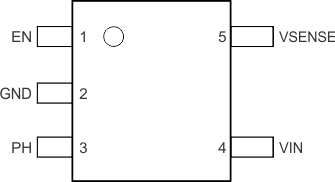

DBV Package
5-Pin SOT-23
(Top View)
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| EN | 1 | I | Enable pin. Float to enable |
| GND | 2 | — | Return for control circuitry and low-side power MOSFET |
| PH | 3 | O | The switch node |
| VIN | 4 | I | Supplies the control circuitry of the power converter |
| VSENSE | 5 | I | Converter feedback input. Connect to output voltage with feedback resistor divider |
