ZHCSF66B April 2016 – May 2019 TPS560200-Q1
PRODUCTION DATA.
8.2.3 Application Curves
VIN = 12 V, VOUT = 1.05 V, TA = 25°C (unless otherwise noted).

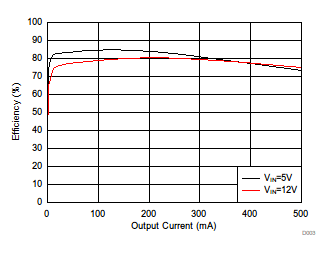

Figure 8. Efficiency

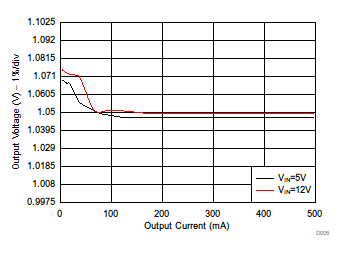

Figure 10. Load Regulation

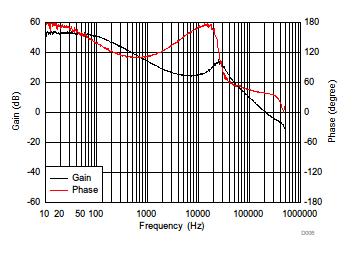

Figure 12. Loop Response, IOUT = 0.25 A

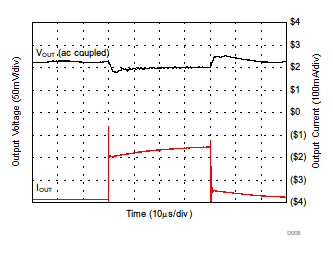

Figure 14. Transient Response, 2% to 50% Load Step

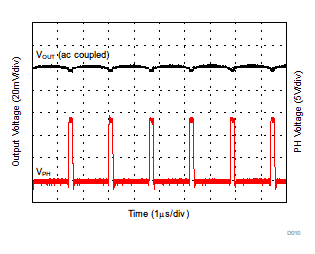

Figure 16. Output Ripple, IOUT = 500 mA

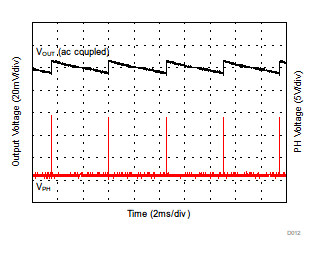

Figure 18. Output Ripple, IOUT = 0 mA

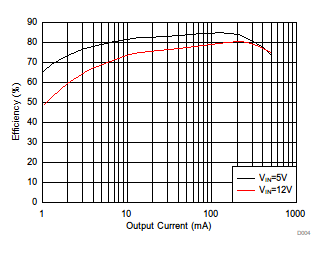

Figure 9. Light-Load Efficiency

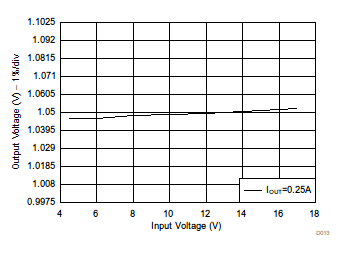

Figure 11. Line Regulation

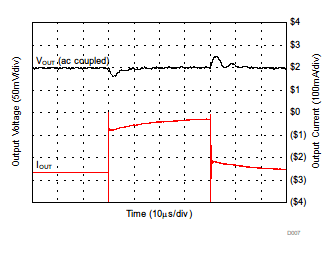

Figure 13. Transient Response, 25% to 75% Load Step

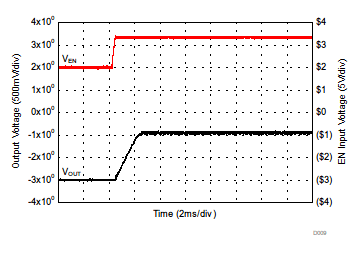

Figure 15. Start-Up Relative to EN

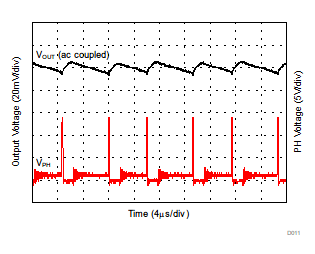

Figure 17. Output Ripple, IOUT = 30 mA
