7.5.5 Target Address and Data Direction Bit
After the START, a target address is sent. This address is seven bits long followed by the eighth bit as a data direction bit (bit R/W). A zero indicates a transmission (WRITE) and a one indicates a request for data (READ).

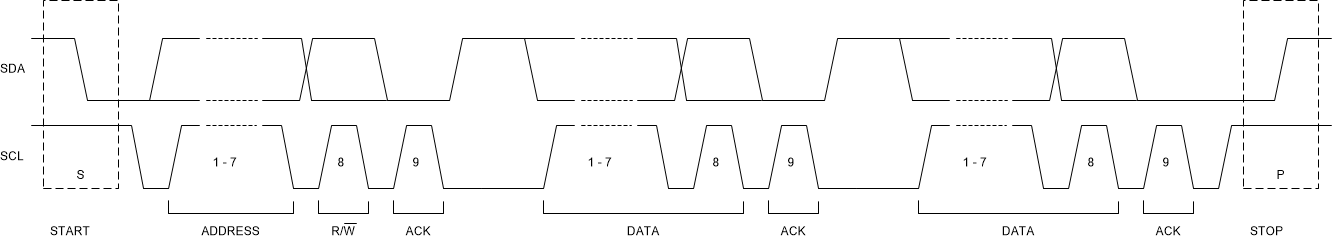

Figure 7-10 Target Address and Data Direction
