8.2.3 Application Curves

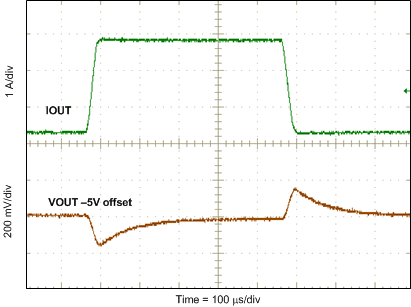

Figure 37. Load Transient

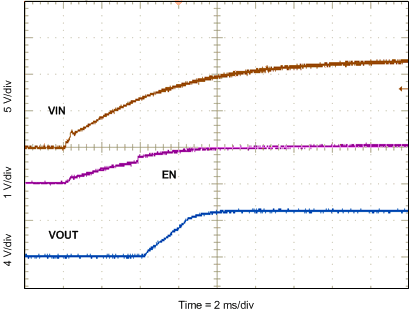

Figure 39. Start-up With VIN
| No Load |
| IOUT = 100 mA |
| VOUT = 5 V | ƒsw = 400 kHz |
| VOUT = 3.3 V | ƒsw = 400 kHz |
| V = 12 V |
| VIN = 12 V | VOUT = 5 V | ƒsw = 400 kHz |

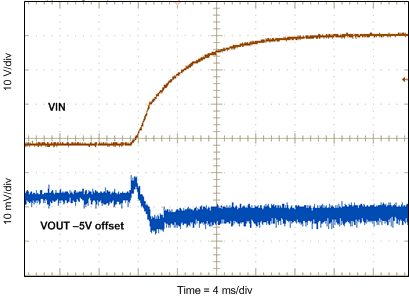

Figure 38. Line Transient (8 V to 40 V)

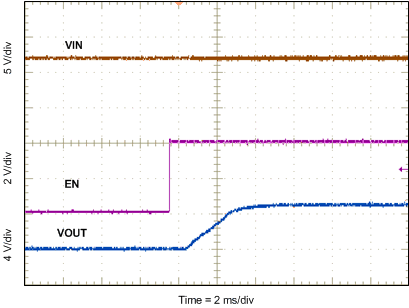

Figure 40. Start-up With EN
| IOUT = 100 mA |
| No Load | EN Floating |
| VOUT = 5 V | ƒsw = 400 kHz |
| VOUT = 3.3 V | ƒsw = 400 kHz |
| VIN = 12 V | VOUT = 5 V | IOUT = 5 A |
| VOUT = 5 V | IOUT = 5 A | ƒsw = 400 kHz |
