7 Specifications
7.1 Absolute Maximum Ratings
over operating junction temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | ||||
|---|---|---|---|---|---|---|
| VDD | Input voltage | –0.3 | 7 | V | ||
| VCT | CT voltage | –0.3 | (VDD + 0.3) | V | ||
| VMR, VRESET, VSENSE |
MR, RESET, SENSE voltage | –0.3 | 7 | V | ||
| IRESET | RESET pin current | 5 | mA | |||
| TJ | Operating junction temperature(2) | –40 | 150 | °C | ||
| Tstg | Storage temperature | –65 | 150 | °C | ||
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under the Electric Characteristics is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) Due to the low dissipated power in this device, it is assumed that TJ = TA.
7.2 ESD Ratings
| VALUE | UNIT | ||||||
|---|---|---|---|---|---|---|---|
| TPS3808G125QDBVRQ1 IN SOT-23 PACKAGE | |||||||
| V(ESD) | Electrostatic discharge | Human body model (HBM), per AEC Q100-002(1) | ±2000 | V | |||
| Charged device model (CDM), per AEC Q100-011 | ±1000 | ||||||
| Machine Model (MM) | ±50 | ||||||
| TPS3808GXX-Q1 IN SOT-23 PACKAGE | |||||||
| V(ESD) | Electrostatic discharge | Human body model (HBM), per AEC Q100-002(1) | ±2000 | V | |||
| Charged device model (CDM), per AEC Q100-011 | ±500 | ||||||
| TPS3808G01QDRVRQ1 IN SON PACKAGE | |||||||
| V(ESD) | Electrostatic discharge | Human body model (HBM), per AEC Q100-002(1) | ±2000 | V | |||
| Charged device model (CDM), per AEC Q100-011 | ±500 | ||||||
| Machine Model (MM) | ±50 | ||||||
(1) AEC Q100-002 indicates HBM stressing is done in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)| MIN | NOM | MAX | UNIT | ||
|---|---|---|---|---|---|
| VDD input supply | 1.8 | 6.5 | V | ||
| VSENSE SENSE pin voltage | 0 | VDD | V | ||
| MR Manual reset pin voltage | 0 | VDD | V | ||
7.4 Thermal Information
| THERMAL METRIC(1) | TPS3808Gxx-Q1 | UNIT | ||
|---|---|---|---|---|
| DBV (SOT-23) | DRV (WSON) | |||
| 6 PINS | 6 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 180.9 | 178.1 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 117.8 | 95.6 | °C/W |
| RθJB | Junction-to-board thermal resistance | 27.8 | 135 | °C/W |
| ψJT | Junction-to-top characterization parameter | 18.9 | 6.3 | °C/W |
| ψJB | Junction-to-board characterization parameter | 27.3 | 136.6 | °C/W |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | N/A | 7.3 | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
7.5 Electrical Characteristics
1.8 V ≤ VDD ≤ 6.5 V, RLRESET = 100 kΩ, CLRESET = 50 pF, over operating temperature range (TJ = –40°C to +125°C) (unless otherwise noted), typical values at TJ = 25°C| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| VDD | Input supply range | 1.8 | 6.5 | V | |||
| IDD | Supply current (into VDD pin) | VDD = 3.3 V, RESET not asserted, MR, RESET, CT open | 2.4 | 5 | μA | ||
| VDD = 6.5 V, RESET not asserted, MR, RESET, CT open | 2.7 | 6 | |||||
| VOL | Low-level output voltage | 1.3 V ≤ VDD < 1.8 V, IOL = 0.4 mA | 0.3 | V | |||
| 1.8 V ≤ VDD ≤ 6.5 V, IOL = 1 mA | 0.4 | ||||||
| Power-up reset voltage(1) | VOL (max) = 0.2 V, I RESET = 15 μA | 0.8 | V | ||||
| VIT | Negative-going input threshold accuracy | TPS3808G01-Q1 | –2% | ±1% | 2% | ||
| VIT ≤ 3.3 V | –1.5% | ±0.5% | 1.5% | ||||
| 3.3 V < VIT ≤ 5 V | –2% | ±1% | 2% | ||||
| VIT ≤ 3.3 V | –40°C < TJ < 85°C | –1.25% | ±0.5% | 1.25% | |||
| 3.3 V < VIT ≤ 5 V | –1.5% | ±0.5% | 1.5% | ||||
| VHYS | Hysteresis on VIT pin | TPS3808G01-Q1 | 1.5 | 3 | %VIT | ||
| –40°C < TJ < 85°C | 1 | 2 | |||||
| 1 | 2.5 | ||||||
| R MR | MR internal pullup resistance | VSENSE = VIT | 70 | 90 | kΩ | ||
| ISENSE | Input current at SENSE pin | TPS3808G01-Q1 | –25 | 25 | nA | ||
| VSENSE = 6.5 V | 1.7 | μA | |||||
| IOH | RESET leakage current | V RESET = 6.5 V, RESET not asserted | 300 | nA | |||
| CIN | Input capacitance, any pin | CT pin | VIN = 0 V to VDD | 5 | pF | ||
| Other pins | VIN = 0 V to 6.5 V | 5 | |||||
| VIL | MR logic low input | 0 | 0.3 VDD | V | |||
| VIH | MR logic high input | 0.7 VDD | VDD | V | |||
(1) Power-up reset voltage is the lowest supply voltage (VDD) at which RESET becomes active (trise(VDD) ≥ 15 μs/V).
7.6 Timing Requirements
| MIN | NOM | MAX | UNIT | ||||
|---|---|---|---|---|---|---|---|
| td | RESET delay time | CT = Open | See Figure 1 | 12 | 20 | 28 | ms |
| CT = VDD | 180 | 300 | 420 | ||||
| CT = 100 pF | 0.75 | 1.25 | 1.75 | ||||
| CT = 180 nF | 0.7 | 1.2 | 1.7 | s | |||
| tpHL | Propagation delay | MR to RESET | VIH = 0.7 VDD, VIL = 0.3 VDD | 150 | ns | ||
| High-level to low-level RESET delay | SENSE to RESET | VIH = 1.05 VIT, VIL = 0.95 VIT | 20 | μs | |||
| tw | Maximum transient duration | SENSE | VIH = 1.05 VIT, VIL = 0.95 VIT | 20 | μs | ||
| MR | VIH = 0.7 VDD, VIL = 0.3 VDD | 0.001 | |||||

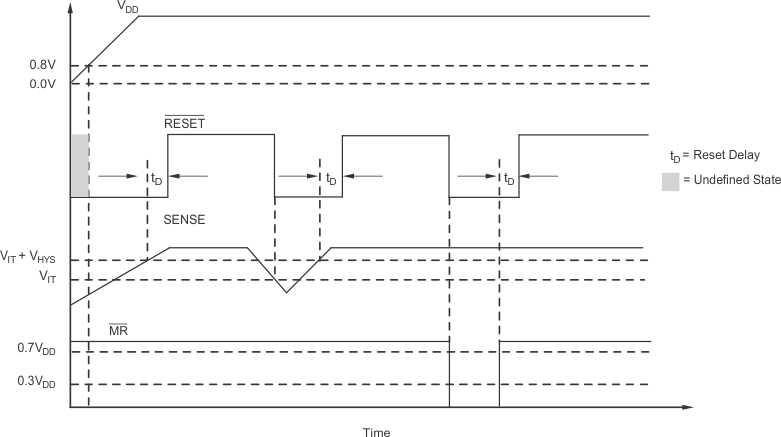

Figure 1. MR and SENSE Reset Timing Diagram

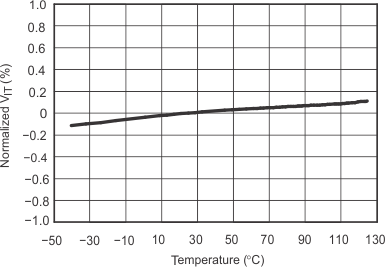

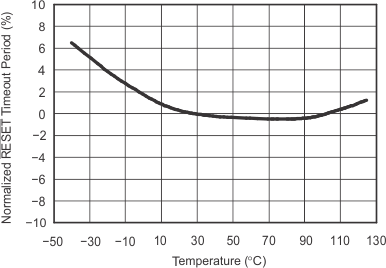

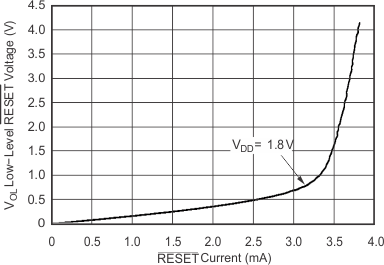

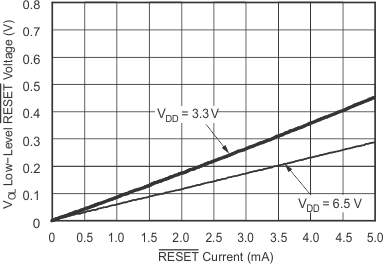

7.7 Typical Characteristics
At TJ = 25°C, VDD = 3.3 V, RLRESET = 100 kΩ, and CLRESET = 50 pF (unless otherwise noted)
