6.7 Typical Characteristics
At TJ = 25°C and VDD = 12 V, unless otherwise noted.
Figure 4. INA Positive Input Threshold Voltage (VIT+(INA)) vs Temperature
| VDD = 1.8 V |
| VDD = 1.8 V |
| Input step ±200 mV |
(High-to-Low Transition at the Inputs)
| VDD = 1.8 V | ||
| VDD = 5 V | ||
| VDD = 5 V, VINA = 410 mV, VINB = 390 mV, VPULL-UP = 3.3 V | ||

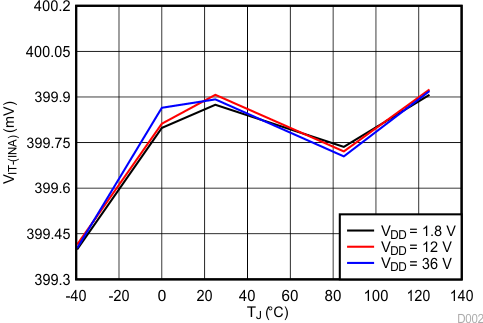

Figure 5. INA Negative Input Threshold Voltage (VIT–(INA)) vs Temperature
| VDD = 1.8 V |
| VDD = 1.8 V |
| Input step ±200 mV |
(Low-to-High Transition at the Inputs)
| VDD = 12 V | ||
| VDD = 5 V, VINA = 390 mV, VINB = 410 mV, VPULL-UP = 3.3 V | ||
1. Minimum pulse duration required to trigger output high-to-low transition. INA = negative spike below VIT– and INB = positive spike above VIT+.
