8.3.3.2 Output or Input Undervoltage With TPS26610, TPS26611 and TPS26612
TPS26610, TPS26611 and TPS26612 devices
provide protection from undervoltage events on IN and OUT pins by turning off the
internal pass FETs and cutting off the signal path whenever VOUT or
VIN goes below VO/I_UVLO threshold. The signal path through
the device is restored again when VOUT or VIN goes above
[VO/I_UVLO – VO/I_UVLO_Hyst] value. The device turns off the
internal FETs within a time of tO/I_UV_CUT after output or input voltage has
gone below VO/I_UVLO threshold. The device recovers from output or input
undervoltage within a time of tOUT_CUT_Rec after output or input voltage has
gone above [VO/I_UVLO – VO/I_UVLO_Hyst] voltage. See the Timing Requirements in Specifications for tO/I_UV_CUT and
tOUT_CUT_Rec.

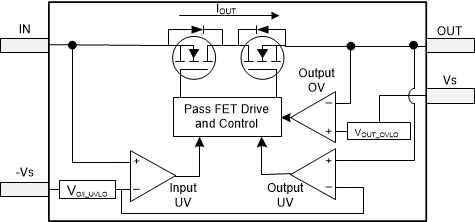

Figure 8-12 Output and Input Undervoltage
Cutoff With TPS26610, TPS26611 and TPS26612In case of overvoltage, undervoltage and miswiring events on IN and OUT pins,
voltages exceeding Absolute Maximum Ratings (see Specifications)
for IN and OUT Pins can damage the device. Figure 8-13 and Figure 8-14 illustrate the output and input undervoltage protection in these devices.

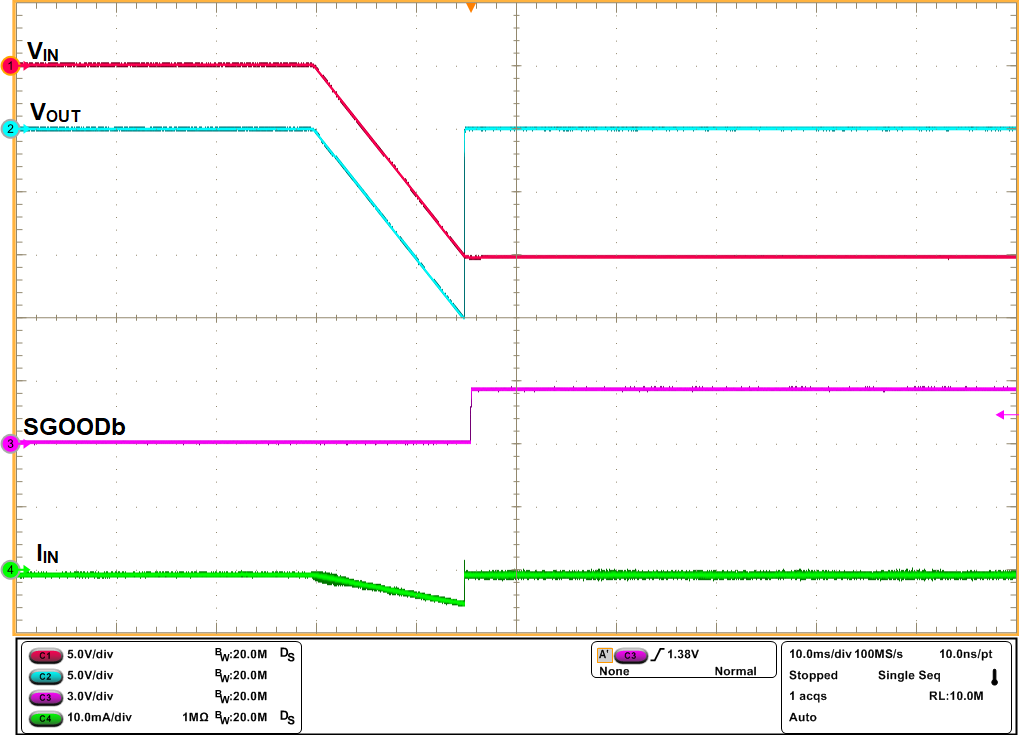

Figure 8-13 Output Undervoltage
Protection

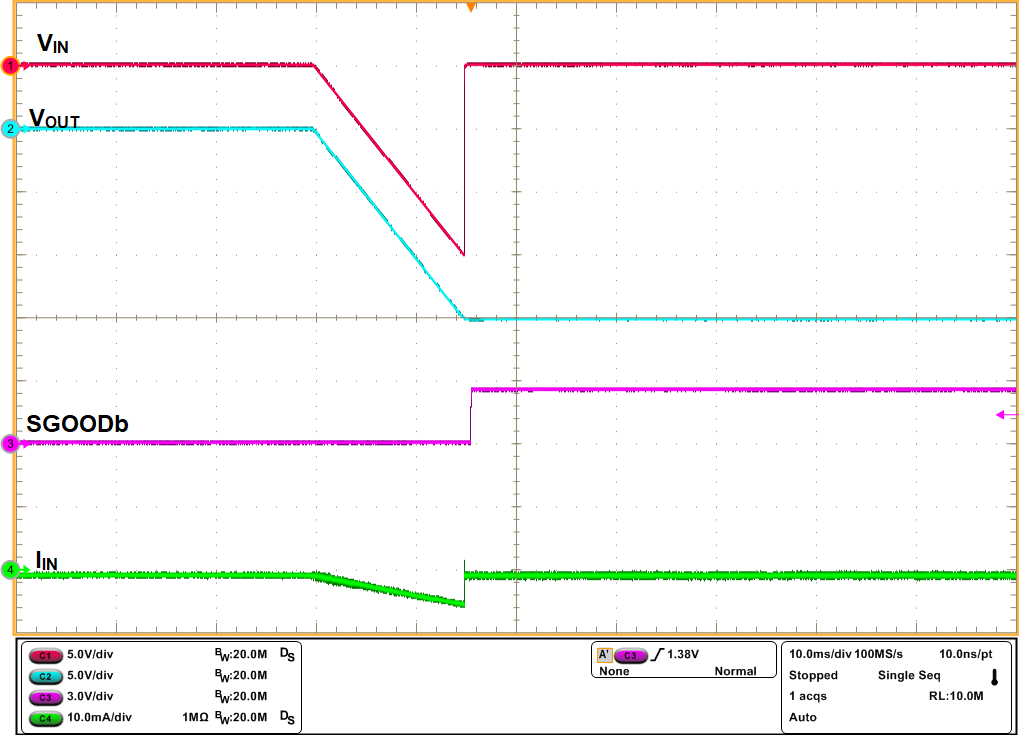

Figure 8-14 Input Undervoltage
Protection
Figure 8-12 Output and Input Undervoltage
Cutoff With TPS26610, TPS26611 and TPS26612Figure 8-13 Output Undervoltage
ProtectionFigure 8-14 Input Undervoltage
Protection
