8.4.2 Enable and Fault Pin Functional Mode 2: Single Device, Host-Controlled
In this mode of operation, the device is enabled by the VIN voltage without the need of an external processor to drive the ENABLE pin. The FLT pin is optionally monitored by an external host as shown in Figure 53.

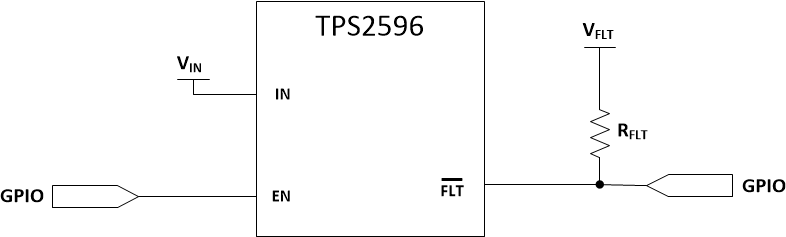

Figure 52. Single Device, Self-Controlled
