10.3.9 RSNS, RSET, RILIMIT and RIMON
The programmable current limit threshold and full-scale cable compensation voltage are determined by the values of the RSNS, RSET, RILIMIT, and RIMON resistors. Refer to Figure 10-15.
- RSNS is the current sense resistor. The recommended voltage across RSNS under current limit should be approximately 50 mV as a compromise between accuracy and power dissipation. For example, if current limiting is desired for IOUT(MAX) ≥ 3.3 A, then RSNS = 0.05 V / 3.3 A = 0.01515 Ω. Choose a standard value of 15 mΩ.
- RSET determines the input current to the transconductance amplifier and current mirror. The amplifier balances the voltage to be equal to that across RSNS. Choose a RSET value to produce an ISET current bfrom 75 - 180 μA at the desired IOUT(MAX). Considering 50 mV across RSET, a value of 300 Ω will provide approximately 166 μA of ISET current to the amplifier and mirror circuit. Care should be taken to limit the ISET current below 200 μA to avoid saturating the internal amplifier circuit.
- RILIMIT in conjuction with the 0.5 × ISET current produces a voltage on the ILIMIT pin which is proportional to the load current flowing in RSNS. For details on setting the current limit, see Current Limit Setting using RILIMIT.
- RIMON in conjuction with the 0.5 × ISET current produces a voltage on the IMON pin which is proportional to the load current flowing in RSNS. For details on setting the current limit. see Cable Compensation.

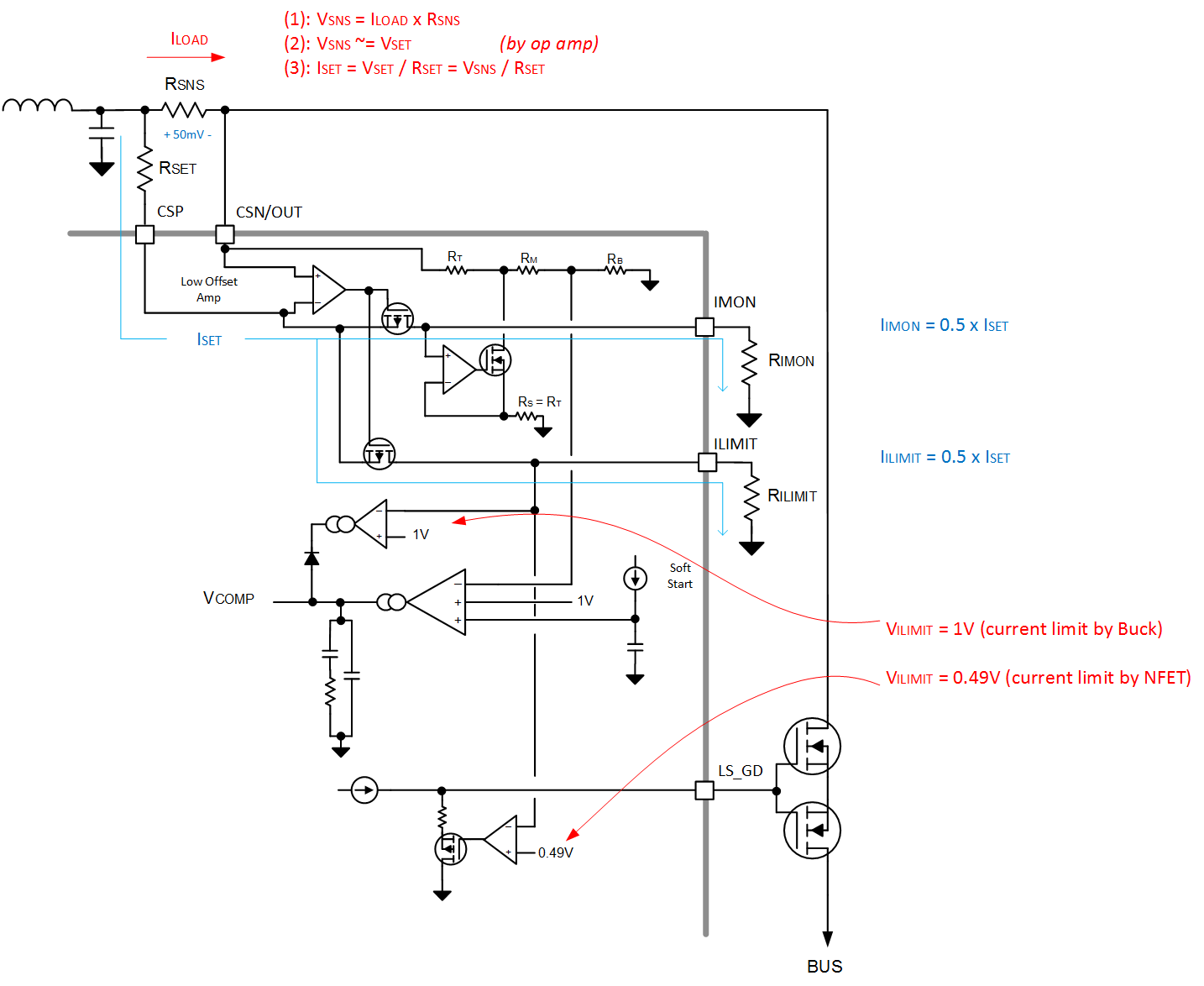

Figure 10-15 Current
Limit and Cable Compensation Circuit
