7.4.1.2 PoE Startup Sequence

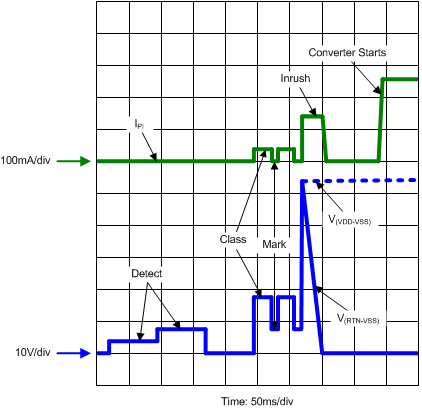

The waveforms of Figure 24 demonstrate detection, classification, and startup from a PSE with type 2 hardware classification. The key waveforms shown are V(VDD-VSS), V(RTN-VSS), and IPI. IEEE 802.3at requires a minimum of two detection levels, two class and mark cycles, and startup from the second mark event. VRTN to VSS falls as the TPS23751 or TPS23752 charges CIN following application of full voltage. Subsequently, the converter starts up, drawing current as seen in the IPI waveform.
Figure 24. Startup
