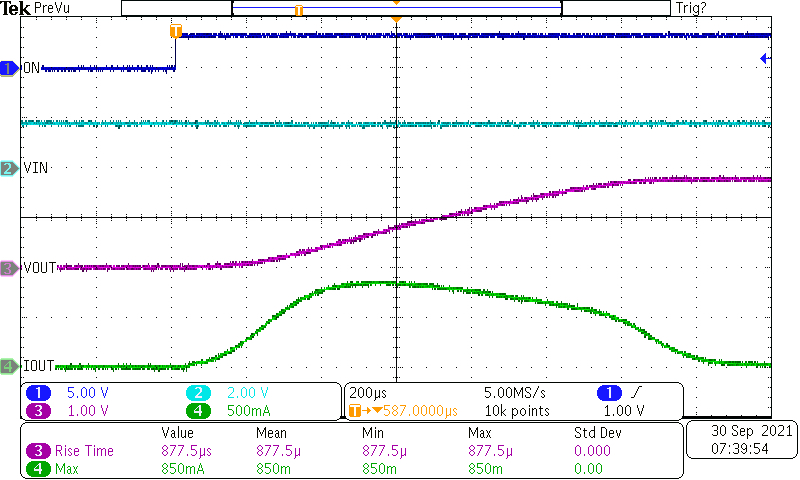

The below scope shot shows the TPS22998 turning on into a 470-μF load with the CT pin tied to VBIAS.
Figure 8-2 TPS22998 Turn-On into 470 μF (CT =
VBIAS)
