ZHCSFR3D November 2016 – December 2023 TPS22976

PRODUCTION DATA

封裝選項

機械數據 (封裝 | 引腳)

DPU|14
- MPSS042A

散熱焊盤機械數據 (封裝 | 引腳)

DPU|14
- QFND320

訂購信息

6.10 Typical DC Characteristics

V_IN1 = V_IN2 = V_BIAS

V_ON1 = V_ON2 = 5 V

V_OUT = Open

Figure 6-1 V_BIAS Quiescent Current vs Bias Voltage Both Channels (TPS22976, TPS22976N)

V_IN1 = V_IN2 = V_BIAS

V_ON1 = V_ON2 = 5 V

V_OUT = Open

Figure 6-3 V_BIAS Quiescent Current vs Bias Voltage Both Channels (TPS22976A)

V_IN1 = V_IN2 = V_BIAS

V_ON1 = V_ON2 = 0 V

V_OUT = 0 V

Figure 6-5 V_BIAS Shutdown Current vs Bias Voltage Both Channels

V_BIAS = 5 V

I_OUT = –200 mA

V_ON = 5 V

Figure 6-7 On-Resistance vs Input Voltage Single Channel - Across Ambient Temperatures (TPS22976)

V_BIAS = 5 V

I_OUT = –200 mA

V_ON = 5 V

Figure 6-9 On-Resistance vs Ambient Temperature Single Channel (TPS22976)

V_BIAS = 2.5 V

I_OUT = –200 mA

V_ON = 5 V

Figure 6-11 On-Resistance vs Ambient Temperature Single Channel (TPS22976A, TPS22976N)

V_BIAS = 2.5 V

I_OUT = –200 mA

V_ON = 5 V

Figure 6-13 On-Resistance vs Input Voltage Single Channel - Across Ambient Temperatures (TPS22976A, TPS22976N)

V_IN = 2.5 V

V_ON = 0 V

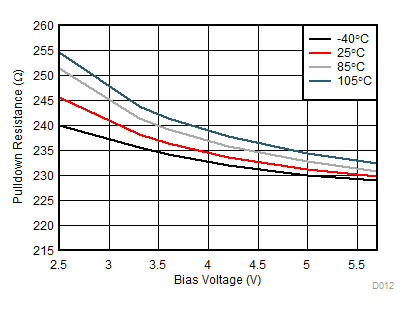

Figure 6-15 Pulldown Resistance vs Bias Voltage Single Channel

V_IN = V_BIAS

Figure 6-17 Low-Level Input Voltage vs Bias Voltage

V_IN1 = V_BIAS

V_ON1 = 5 V

V_OUT = Open

Figure 6-2 V_BIAS Quiescent Current vs Bias Voltage Single Channel (TPS22976, TPS22976N)

V_IN1 = V_BIAS

V_ON1 = 5 V

V_OUT = Open

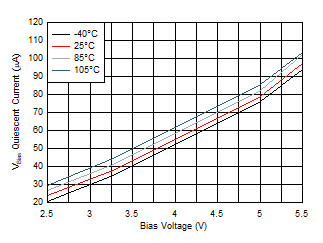

Figure 6-4 V_BIAS Quiescent Current vs Bias Voltage Single Channel (TPS22976A)

V_BIAS = 5 V	V_ON = 0 V	V_OUT = 0 V
Note:	–40°C and 25°C curves have similar values, therefore only one line is visible.

Figure 6-6 Off-State V_IN Current vs Input Voltage Single Channel

V_BIAS = 2.5 V

I_OUT = –200 mA

V_ON = 5 V

Figure 6-8 On-Resistance vs Input Voltage Single Channel - Across Ambient Temperatures (TPS22976)

V_BIAS = 2.5 V

I_OUT = –200 mA

V_ON = 5 V

Figure 6-10 On-Resistance vs Ambient Temperature Single Channel (TPS22976)

V_BIAS = 5 V

I_OUT = –200 mA

V_ON = 5 V

Figure 6-12 On-Resistance vs Ambient Temperature Single Channel (TPS22976A, TPS22976N)

V_BIAS = 5 V

I_OUT = –200 mA

V_ON = 5 V

Figure 6-14 On-Resistance vs Input Voltage Single Channel - Across Ambient Temperatures (TPS22976A, TPS22976N)

V_IN = V_BIAS

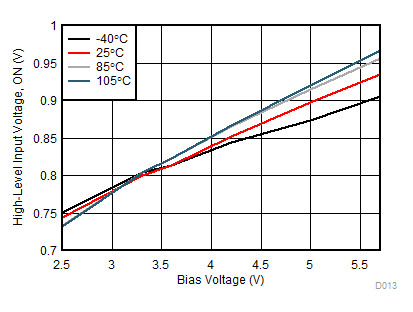

Figure 6-16 High-Level Input Voltage vs Bias Voltage

V_IN = V_BIAS

Figure 6-18 Voltage Input Hysteresis vs Bias Voltage
