7.8.1 Typical DC Characteristics
TA = 125°C data is only applicable to TPS22965NW-Q1 and TPS22965W-Q1.
TA = 125°C data is only applicable to TPS22965NW-Q1 and TPS22965W-Q1.

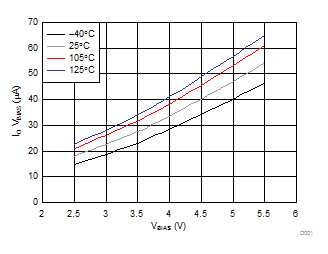

Figure 7-1 VBIAS Quiescent Current vs VBIAS. TA = 125°C data is only applicable to TPS22965NW-Q1 and TPS22965W-Q1.

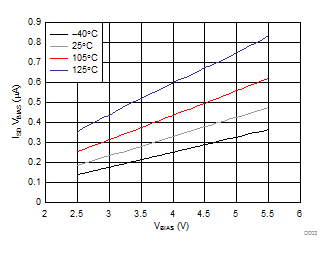

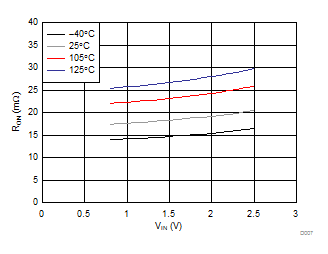

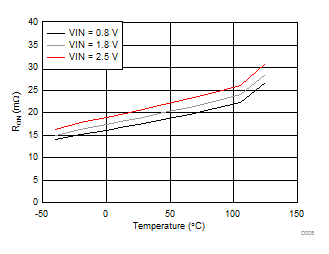

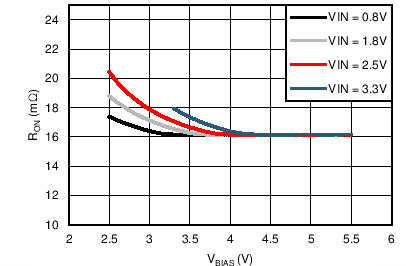

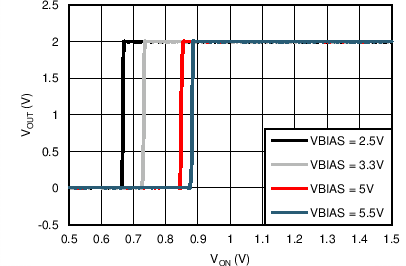

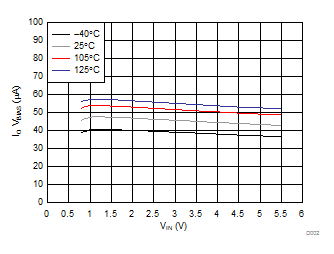

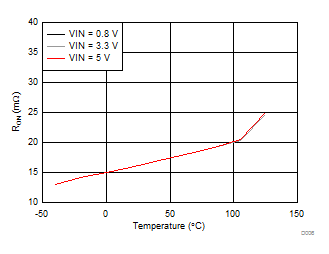

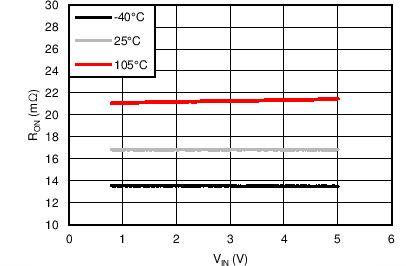

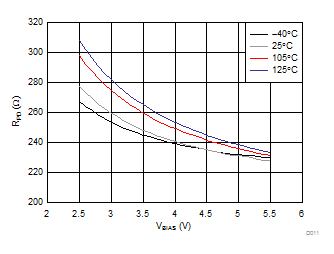

| VIN = 1.8 V | VON = 5 V | VOUT = 0 V |
| VIN = 5 V | VON = 0 V | VOUT = 0 V |
| VBIAS = 2.5 V | IOUT = –200 mA | VON = 5.5 V |
| VBIAS = 2.5 V | IOUT = –200 mA | VON = 5.5 V |
| TA = 25°C | IOUT = –200 mA | VON = 5.5 V |
| VIN = 2 V | TA = 25°C | |
| VBIAS = 5 V | IOUT = –4 A | VON = 5.5 V |
| VBIAS = 5 V | VON = 5 V | VOUT = 0 V |
| VBIAS = 5 V | VON = 0 V | VOUT = 0 V |
| VBIAS = 5 V | IOUT = –200 mA | VON = 5.5 V |
| Note: All three RON curves have the same values; therefore, only one line is visible. | ||
| VBIAS = 5 V | IOUT = –200 mA | VON = 5.5 V |
| VIN = 1.8 V | VON = 0 V | |
| VBIAS = 2.5 V | IOUT = –4 A | VON = 5.5 V |
