ZHCSP18A November 2021 – June 2022 TPS22953-Q1 , TPS22954-Q1

PRODUCTION DATA

封裝選項

機械數據 (封裝 | 引腳)

DQC|10
- MPSS005A

散熱焊盤機械數據 (封裝 | 引腳)

DQC|10
- QFND196E

訂購信息

7.11 Typical Switching Characteristics

V_BIAS = 2.5 V	CT = 1000 pF	V_EN = Low to High

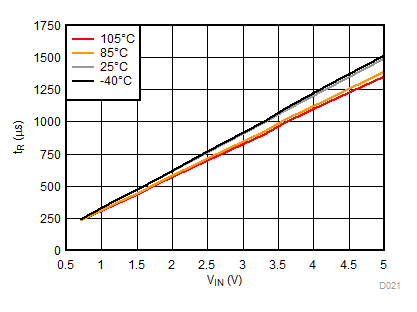

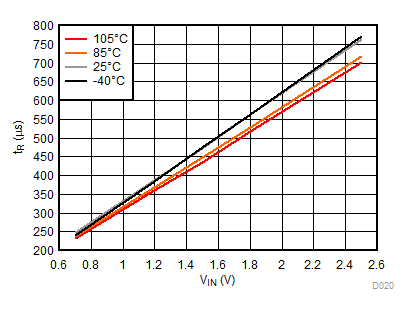

Figure 7-19 t_R vs V_IN, V_BIAS = 2.5 V

V_BIAS = 2.5 V	CT = 1000 pF	V_EN = High to Low

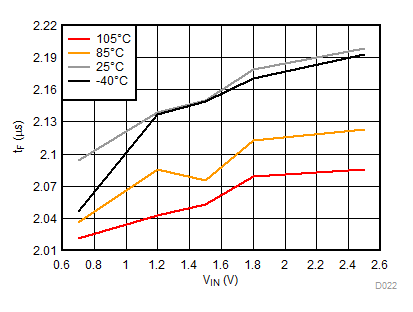

Figure 7-21 t_F vs V_IN, V_BIAS = 2.5 V

V_BIAS = 2.5 V	CT = 1000 pF	V_EN = Low to High

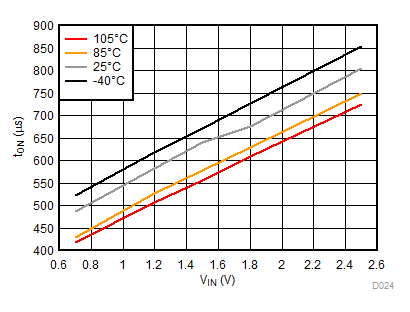

Figure 7-23 t_ON vs V_IN, V_BIAS = 2.5 V

V_BIAS = 2.5 V	CT = 1000 pF	V_EN = High to Low

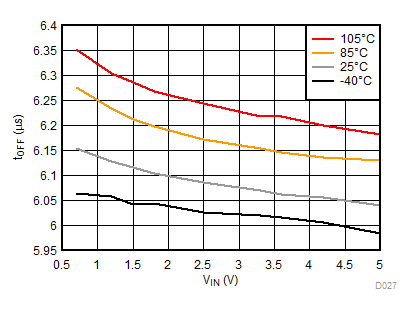

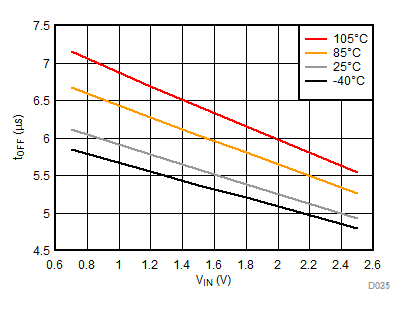

Figure 7-25 t_OFF vs V_IN, V_BIAS = 2.5 V

V_BIAS = 2.5 V	CT = 1000 pF	V_EN = Low to High

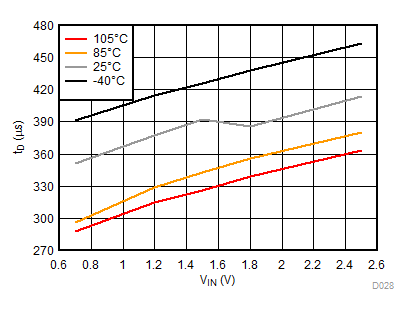

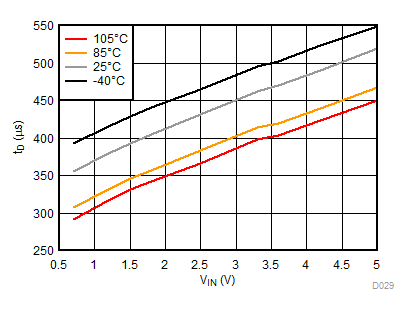

Figure 7-27 t_D vs V_IN, V_BIAS = 2.5 V

	V_IN = 2.5 V	CT = 1000 pF	V_EN = Low to High

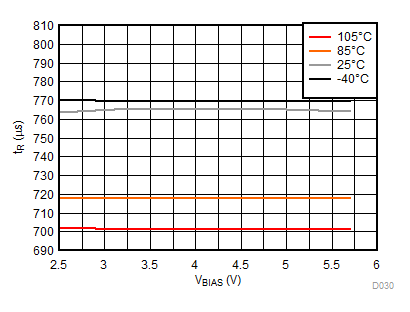

Figure 7-29 t_R vs V_BIAS

V_BIAS = 5 V	CT = 1000 pF	V_EN = Low to High

Figure 7-20 t_R vs V_IN, V_BIAS = 5 V

V_BIAS = 5 V	CT = 1000 pF	V_EN = High to Low

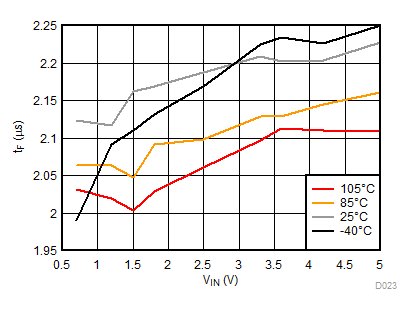

Figure 7-22 t_F vs V_IN, V_BIAS = 5 V

V_BIAS = 5 V	CT = 1000 pF	V_EN = Low to High

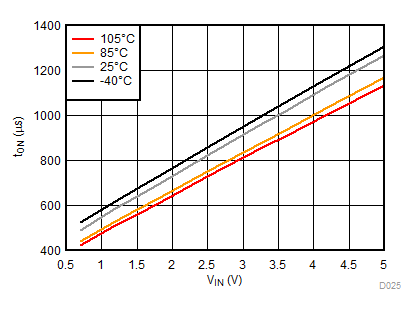

Figure 7-24 t_ON vs V_IN, V_BIAS = 5 V

V_BIAS = 5 V	CT = 1000 pF	V_EN = High to Low

Figure 7-26 t_OFF vs V_IN, V_BIAS = 5 V

V_BIAS = 5 V	CT = 1000 pF	V_EN =Low to High

Figure 7-28 t_D vs V_IN, V_BIAS= 5 V

V_IN = 0.7 V	V_BIAS = 2.5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

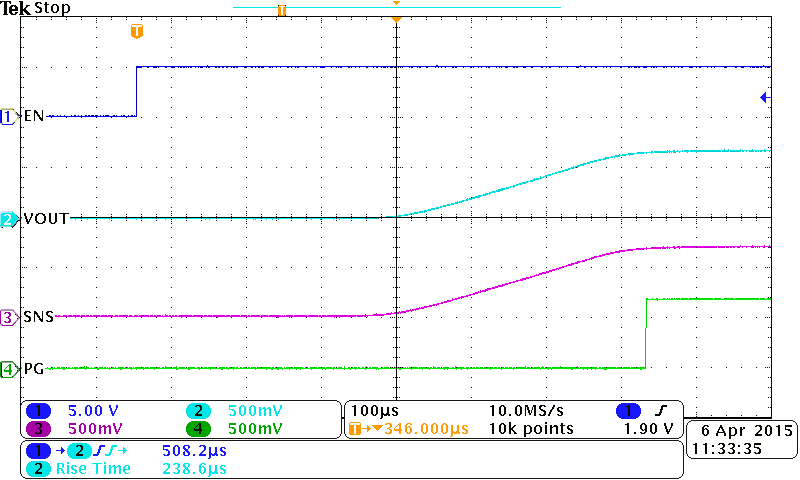

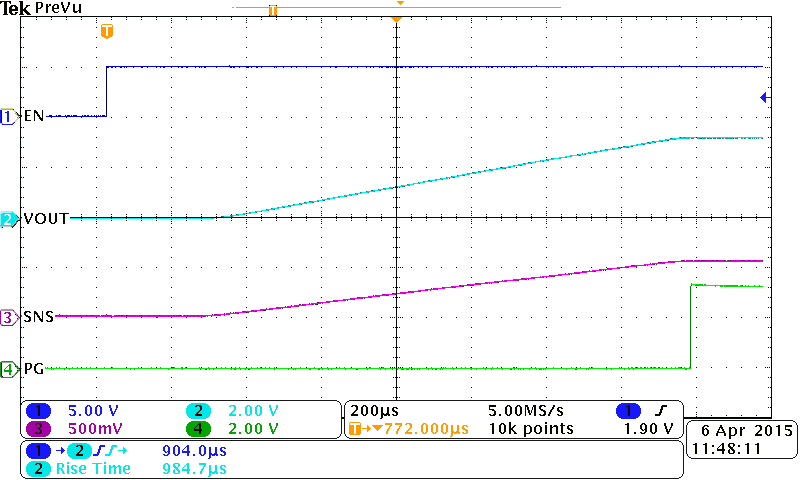

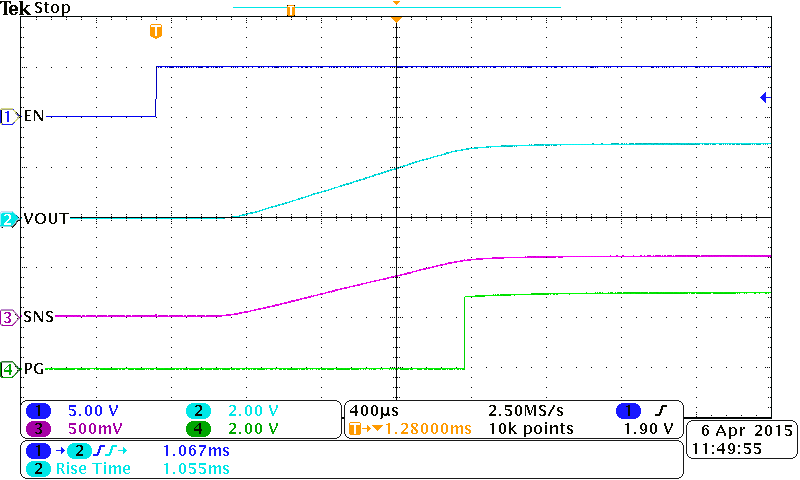

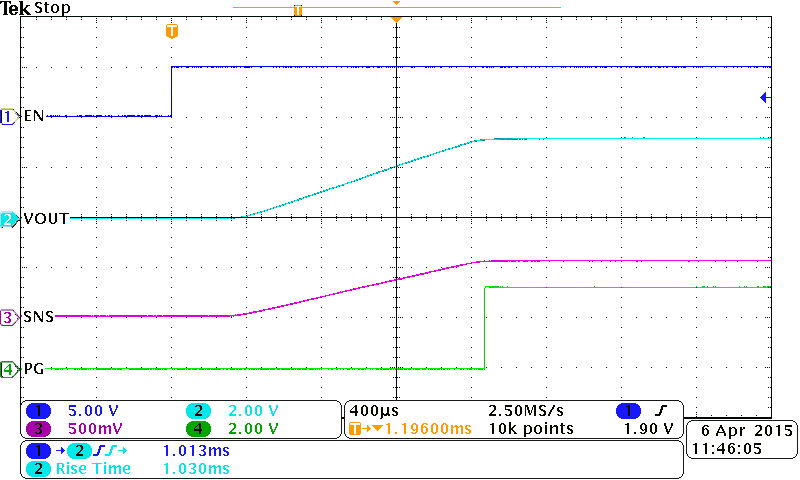

Figure 7-30 Turn-on Waveform, V_BIAS = 2.5 V

V_IN = 0.7 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

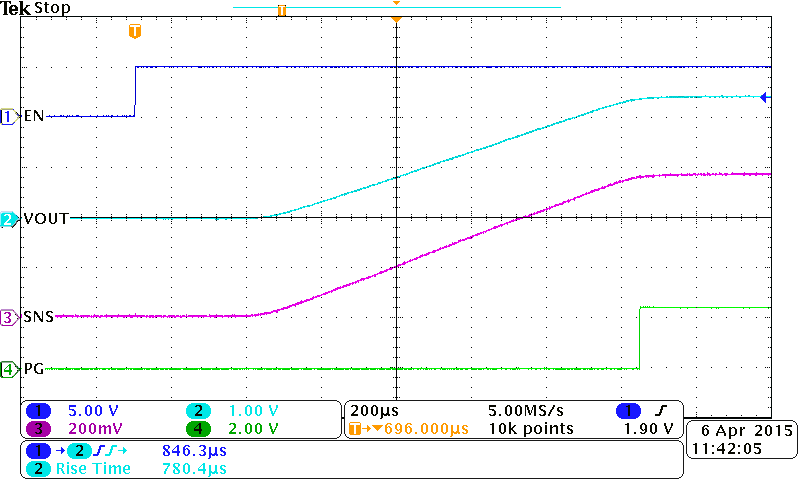

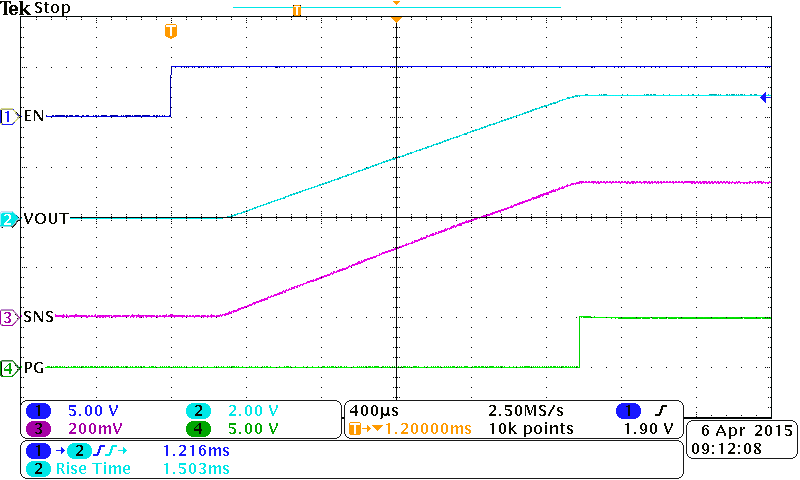

Figure 7-32 Turn-on Waveform, V_BIAS = 5 V

V_IN = 2.5 V	V_BIAS = 2.5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

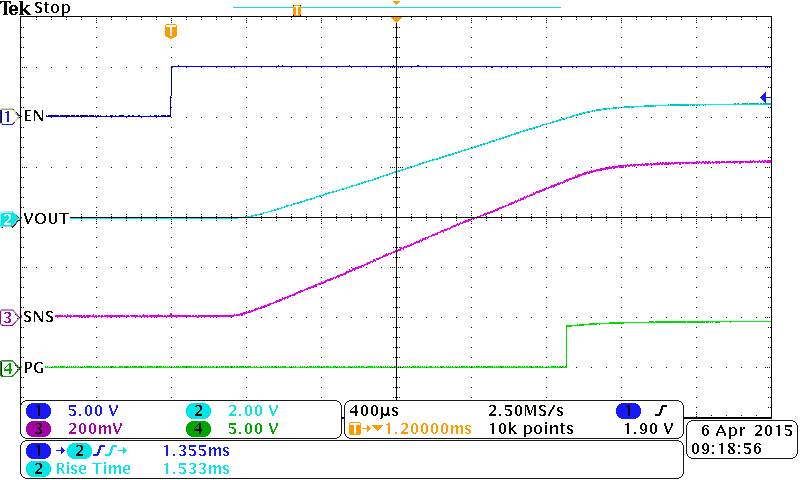

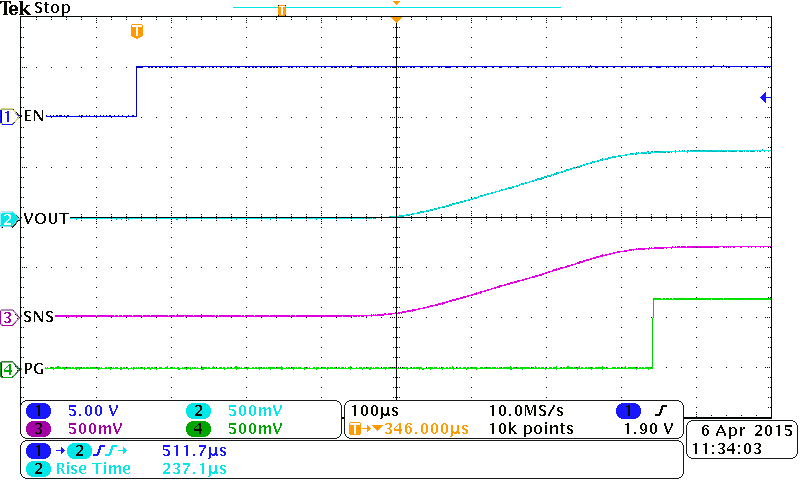

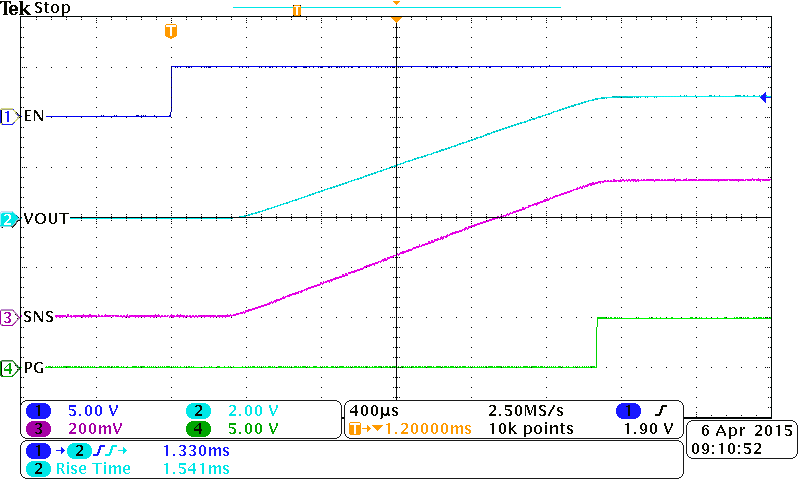

Figure 7-34 Turn-on Waveform, V_BIAS = 2.5 V

V_IN = 2.5 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

Figure 7-36 Turn-on Waveform, V_BIAS = 5 V

V_IN = 3.3 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

Figure 7-38 Turn-on Waveform, V_BIAS = 5 V

V_IN = 5 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

Figure 7-40 Turn-on Waveform, V_BIAS = 5 V

V_IN = 3.3 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = Open

Figure 7-42 Turn-on Waveform, No Load

V_IN = 3.3 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 1 Ω

Figure 7-44 Turn-on Waveform, Heavy Load

V_IN = 5 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 100 μF	R_L = 10 Ω

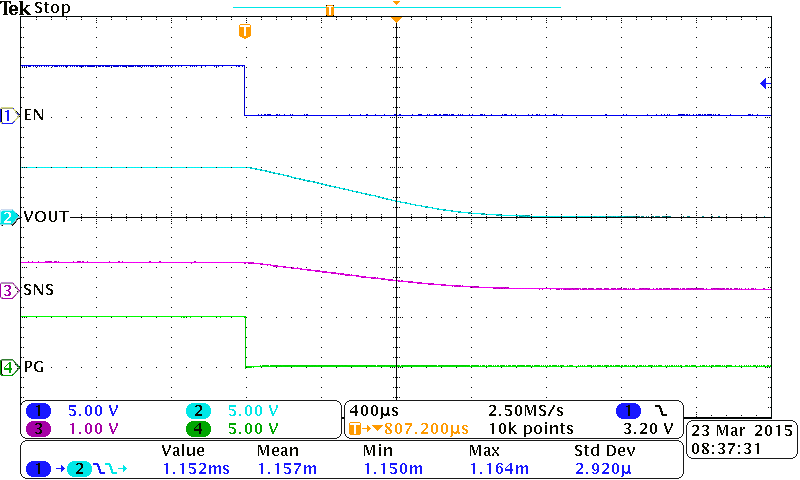

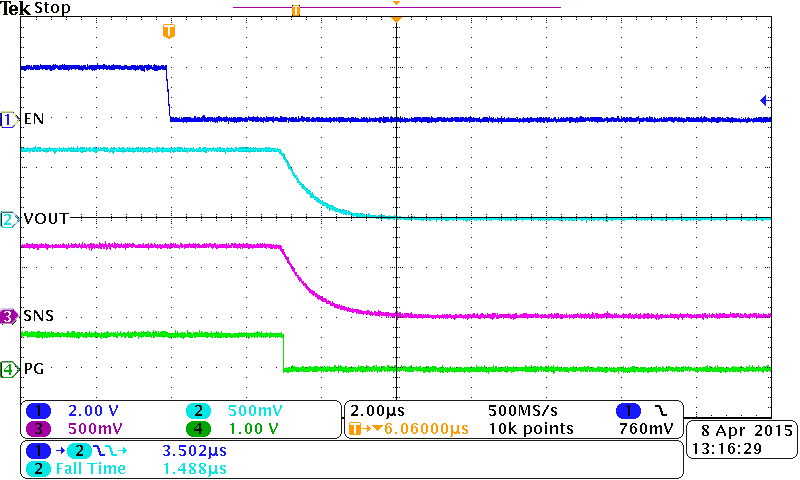

Figure 7-46 PG Response to EN Falling (t_DEGLITCH)

V_IN = 5 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 100 μF	R_L = 10 Ω

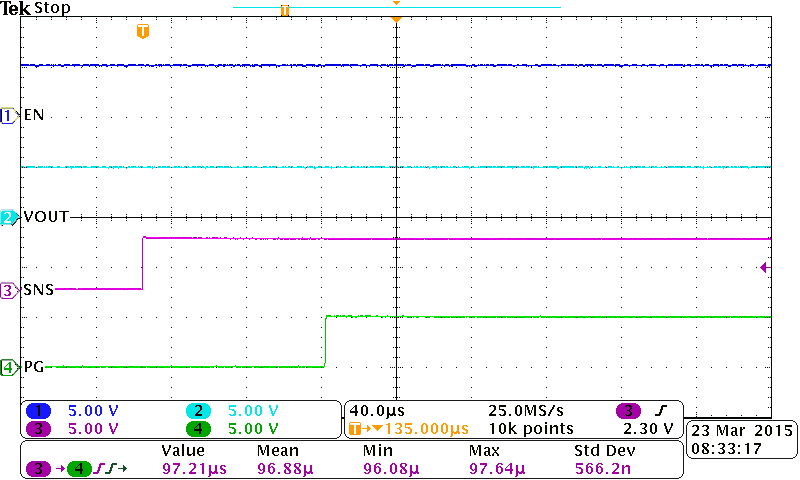

Figure 7-48 PG Response to SNS Rising (t_BLANK)

	V_IN = 10 Ω to GND	V_BIAS = 5 V
	C_IN = 0.2 μF	V_OUT = 5 V

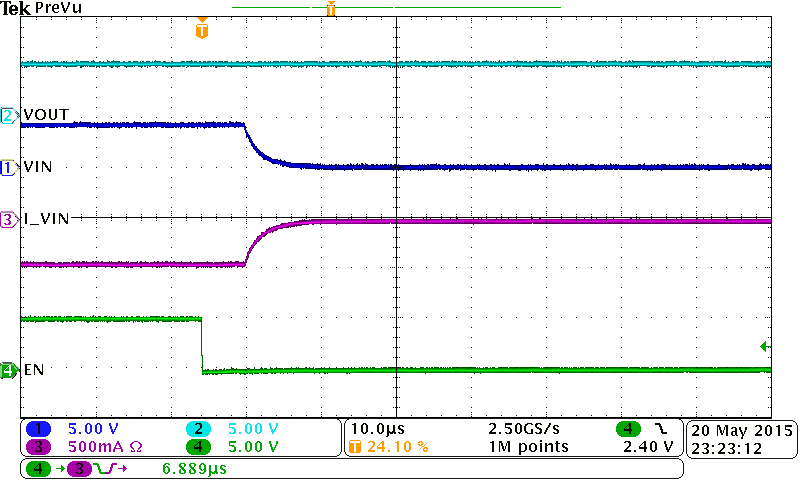

Figure 7-50 Reverse Current Blocking Response Time (t_RCB)

V_IN = 0.7 V	V_BIAS = 2.5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

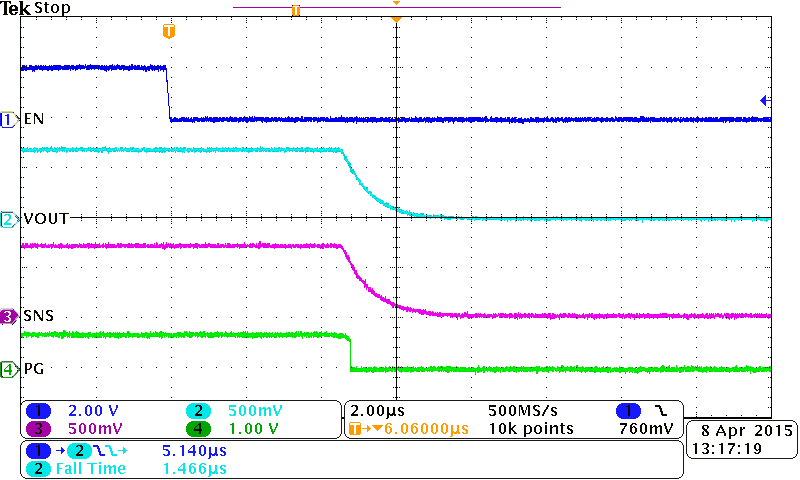

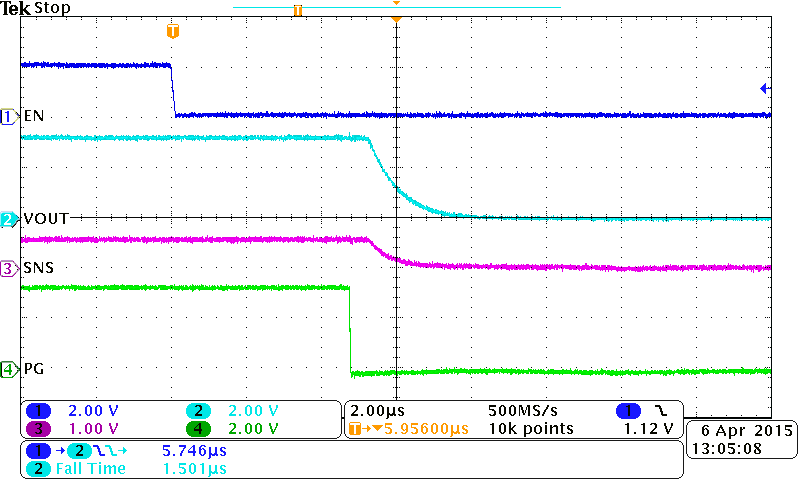

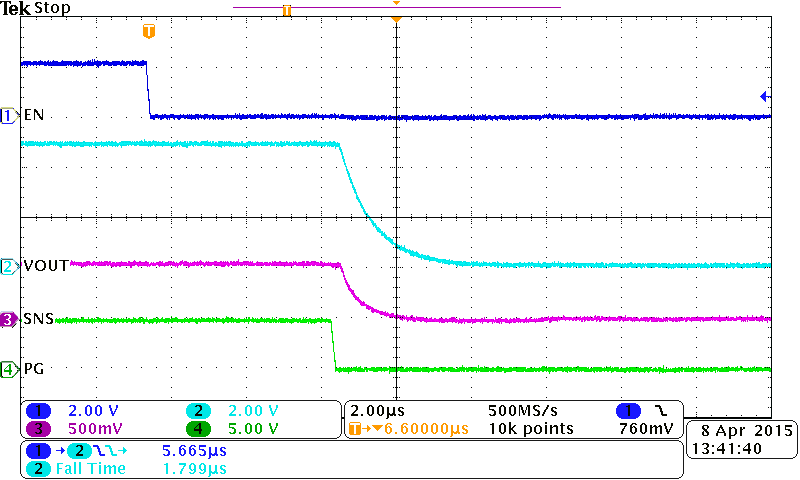

Figure 7-31 Turn-off Waveform, V_BIAS = 2.5 V

V_IN = 0.7 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

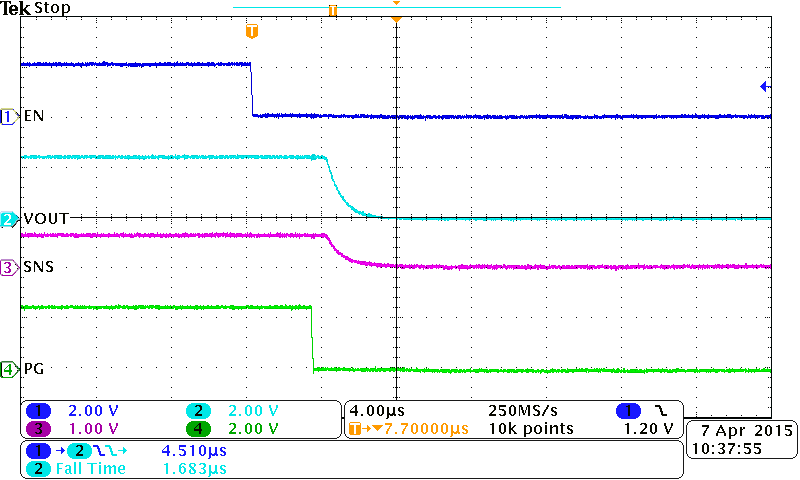

Figure 7-33 Turn-off Waveform, V_BIAS = 5 V

V_IN = 2.5 V	V_BIAS = 2.5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

Figure 7-35 Turn-off Waveform, V_BIAS = 2.5 V

V_IN = 2.5 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

Figure 7-37 Turn-off Waveform, V_BIAS = 5 V

V_IN = 3.3 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

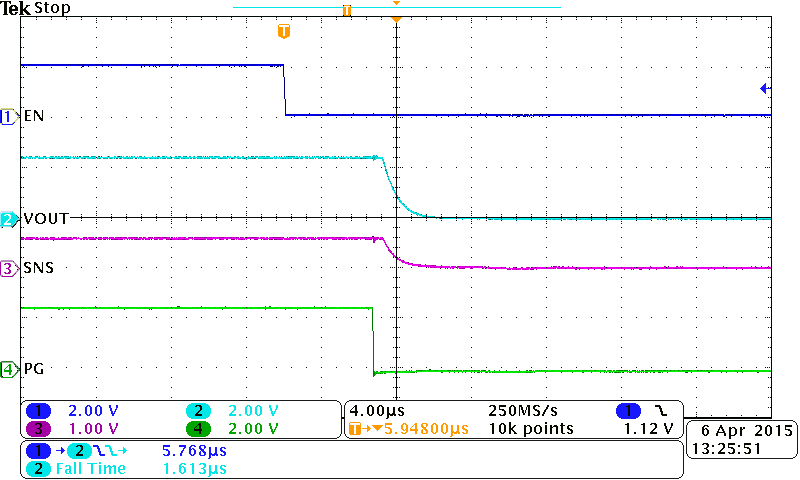

Figure 7-39 Turn-off Waveform, V_BIAS = 5 V

V_IN = 5 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 10 Ω

Figure 7-41 Turn-off Waveform, V_BIAS = 5 V

V_IN = 5 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = Open

Figure 7-43 Turn-on Waveform, No Load

V_IN = 5 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 0.1 μF	R_L = 1 Ω

Figure 7-45 Turn-on Waveform, Heavy Load

V_IN = 5 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 100 μF	R_L = 10 Ω

Figure 7-47 PG Response to SNS Falling With Auto-Restart (t_DEGLITCH and t_RESTART)

V_IN = 5 V	V_BIAS = 5 V	CT = 1000 pF
C_IN = 1 μF	C_L = 100 μF	R_L = None

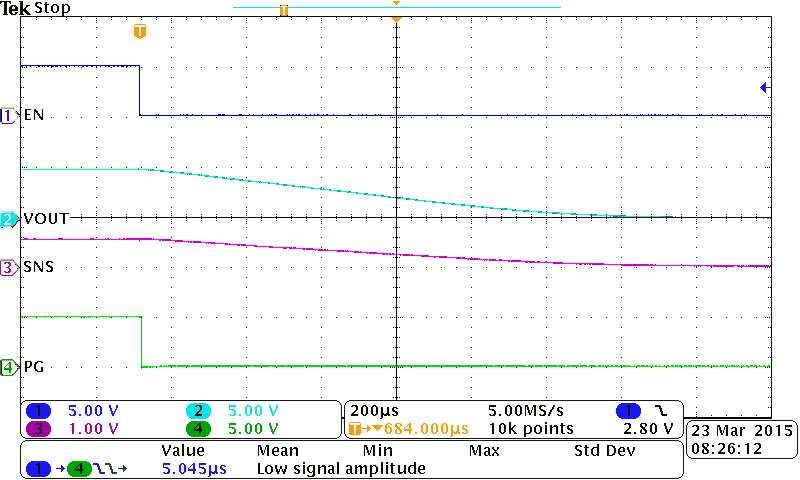

Figure 7-49 Quick Output Discharge of 100-μF Load (t_DIS)
