6 Pin Configuration and Functions

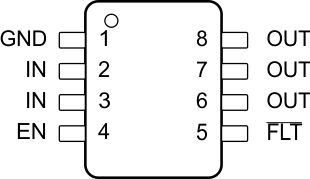

DGK Package
8-Pin VSSOP
Top View
DBV Package
5-Pin SOT-23
Top View
Pin Functions - DGK Package
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| EN | 4 | I | Enable input, logic high turns on power switch |
| FLT | 5 | O | Active-low open-drain output, asserted during overcurrent, or overtemperature conditions |
| GND | 1 | — | Ground connection |
| IN | 2, 3 | PWR | Input voltage and power-switch drain; connect a 0.1-µF or greater ceramic capacitor from IN to GND close to the IC |
| OUT | 6, 7, 8 | PWR | Power-switch output, connect to load |
Pin Functions - DBV Package
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| EN or EN | 4 | I | Enable input, logic high turns on power switch |
| FLT | 3 | O | Active-low open-drain output, asserted during overcurrent, or overtemperature conditions |
| GND | 2 | — | Ground connection |
| IN | 5 | PWR | Input voltage and power-switch drain; connect a 0.1-µF or greater ceramic capacitor from IN to GND close to the IC |
| OUT | 1 | PWR | Power-switch output, connect to load |
