7.3.6.6 MCU I/O Protection
TI recommends using series resistors to protect the microcontroller, for example, 4.7 kΩ when using a 3.3-V microcontroller and 10 kΩ for a 5-V microcontroller.

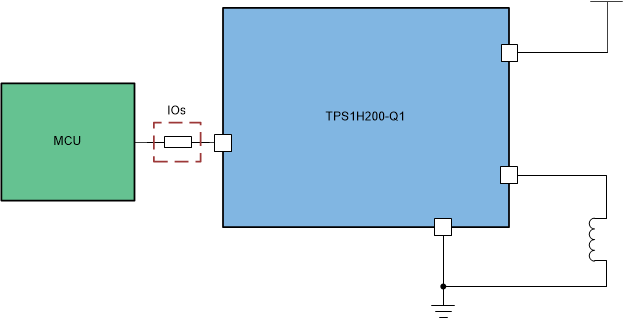

Figure 7-19 MCU I/O External Protection
