6 Specifications
6.1 Absolute Maximum Ratings(1)
over operating free-air temperature range (unless otherwise noted)| MIN | MAX | UNIT | ||||
|---|---|---|---|---|---|---|
| VCC | –0.3 | 7 | V | |||
| VI/O | –0.3 | VCC + 0.3 | V | |||
| TJ | Junction temperature | 150 | °C | |||
| Bump temperature (soldering) | Infrared (15 s) | 220 | °C | |||
| Vapor phase (60 s) | 215 | °C | ||||
| Lead temperature (soldering, 10 s) | 300 | °C | ||||
| Tstg | Storage temperature | –65 | 150 | °C | ||
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±15000 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±1000 | V | ||
| IEC 61000-4-2 Contact Discharge | ±8000 | V | ||
| IEC 61000-4-2 Air-Gap Discharge | ±15000 | V | ||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)| MIN | NOM | MAX | UNIT | ||
|---|---|---|---|---|---|
| TA Operating free-air temperature range | -40 | 85 | °C | ||
| Operating Voltage | VCC Pin | 0.9 | 5.5 | V | |
| IOx Pins | 0 | VCC | |||
6.4 Thermal Information
| THERMAL METRIC(1) | TPD6E001 | UNIT | ||
|---|---|---|---|---|
| RSE (UQFN) | RSF (WQFN) | |||
| 10 PINS | 12 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 235.0 | 75.8 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 140.9 | 74.6 | °C/W |
| RθJB | Junction-to-board thermal resistance | 154.6 | 51.3 | °C/W |
| ψJT | Junction-to-top characterization parameter | 21.8 | 5.9 | °C/W |
| ψJB | Junction-to-board characterization parameter | 154.6 | 51.4 | °C/W |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | N/A | 31.4 | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.
6.5 Electrical Characteristics
VCC = 5 V ± 10%, TA = -40°C to 85°C (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP(1) | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| VCC | Supply voltage | 0.9 | 5.5 | V | |||
| ICC | Supply current | 1 | 100 | nA | |||
| VF | Diode forward voltage | IF = 10 mA | 0.65 | 0.95 | V | ||
| VBR | Breakdown voltage | IBR = 10 mA | 11 | V | |||
| VC | Channel clamp voltage(2) | TA = 25°C, ±15-kV HBM, IF = 10 A |
Positive transients | VCC + 25 | V | ||
| Negative transients | –25 | V | |||||
| TA = 25°C, ±8-kV Contact Discharge (IEC 61000-4-2), IF = 24 A |
Positive transients | VCC + 60 | V | ||||
| Negative transients | –60 | V | |||||
| TA = 25°C, ±15-kV Air-Gap Discharge (IEC 61000-4-2), IF = 45 A |
Positive transients | VCC + 100 | V | ||||
| Negative transients | –100 | V | |||||
| Ii/o | Channel leakage current | Vi/o = GND to VCC | ±1 | nA | |||
| Ci/o | Channel input capacitance | VCC = 5 V, Bias of VCC/2 | 1.5 | pF | |||
(1) Typical values are at VCC = 5 V and TA = 25°C.
(2) Channel clamp voltage is not production tested.
6.6 Typical Characteristics

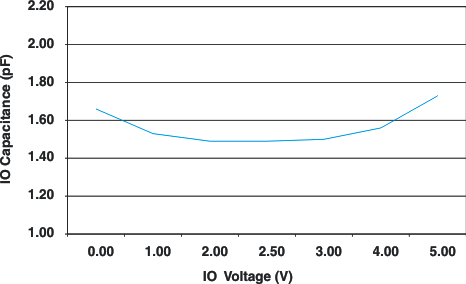

Figure 1. IO Capacitance vs IO Voltage(VCC = 5 V)

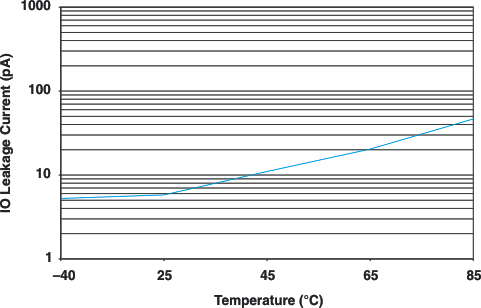

Figure 2. IO Leakage Current vs Temperature(VCC = 5.5 V)
