5 Pin Configuration and Functions

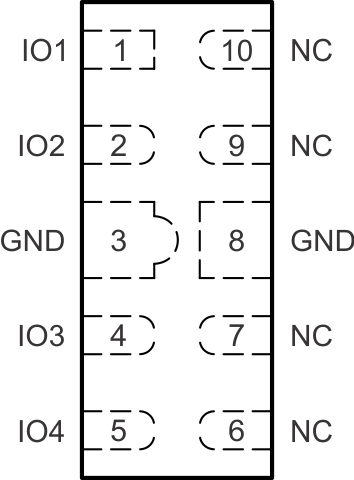

DQA Package
10-Pin USON
Top View
Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| GND | 3 | Ground | Ground. Connect to ground |
| GND | 8 | ||
| IO1 | 1 | I/O | ESD protected channel |
| IO2 | 2 | ||
| IO3 | 4 | ||
| IO4 | 5 | ||
| NC | 6 | NC | Not connected; Used for optional straight-through routing. Can be left floating or grounded |
| NC | 7 | ||
| NC | 9 | ||
| NC | 10 | ||
