SLVSC77D August 2013 – April 2016 TPD2E1B06
PRODUCTION DATA.

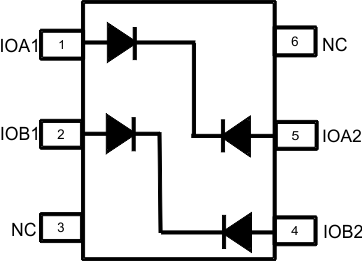

5 Pin Configuration and Functions
DRL Package
6-Pin SOT
Top View
Pin Functions
| PIN | TYPE | DESCRIPTION | USAGE | |
|---|---|---|---|---|
| NAME | NO. | |||
| IOA1 | 1 | I/O | ESD protected channel | See Application Information. |
| IOA2 | 5 | I/O | ||
| IOB1 | 2 | I/O | ||
| IOB2 | 4 | I/O | ||
| NC | 3, 6 | NC | No connect | Can be left floating, grounded, or connected to VCC |
