7.2.2 Other Application Circuits
Figure 7-6, Figure 7-7, and Figure 7-8 show example circuits using the TPA6211A1-Q1 device.
A. C(BYPASS) is optional

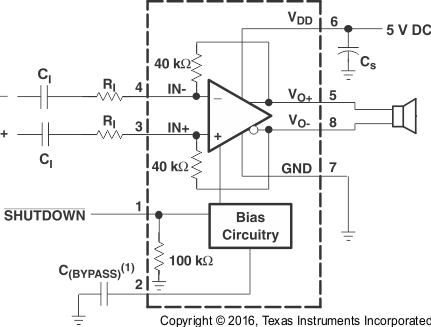

Figure 7-6 Differential Input Application Schematic Optimized With Input Capacitors
A. C(BYPASS) is optional

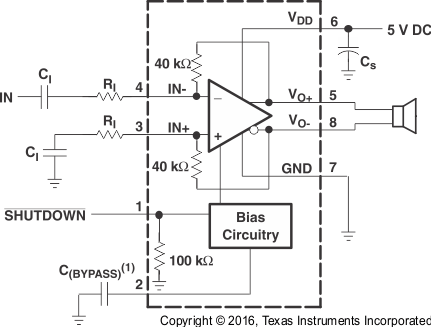

Figure 7-7 Single-Ended Input Application Schematic
A. C(BYPASS) is optional

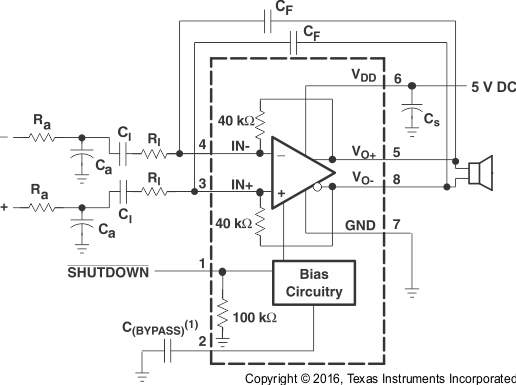

Figure 7-8 Differential Input Application Schematic With Input Bandpass Filter
