7.4.2 Mono Mode (Single Channel Mode)
The and TPA3129D2 can be connected in MONO mode to cut the idle power-loss nearly by half. This is done by:
- Connect INPR and INNR directly to Ground (without capacitors) this sets the device in Mono mode during power up.
- Connect OUTPL and OUTNL to speaker just like normal BTL mode.
- Analog input signal is applied to INPL and INNL.

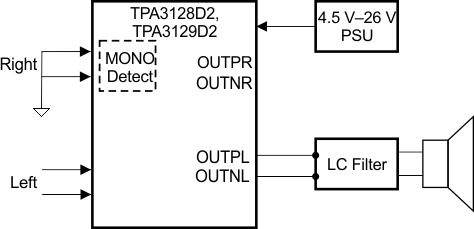

Figure 35. MONO Mode
