Figure 6-5 and Figure 6-6 show a side by side eye diagram comparison at 3 Gbps signals through calibration traces (without the device) and a typical TMUXHS221 channel. Attenuation of the vertical and horizonal eye opening through the device is minimal. The mux device adds only a small amount of jitter at 3 Gbps.

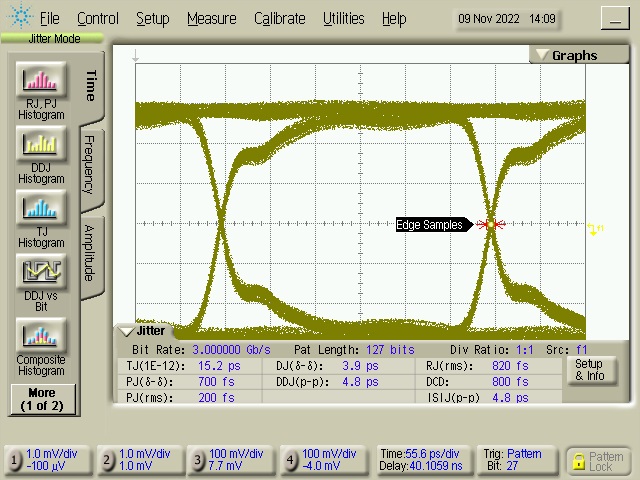

Figure 6-5 Through Calibration Traces
at 3 Gbps

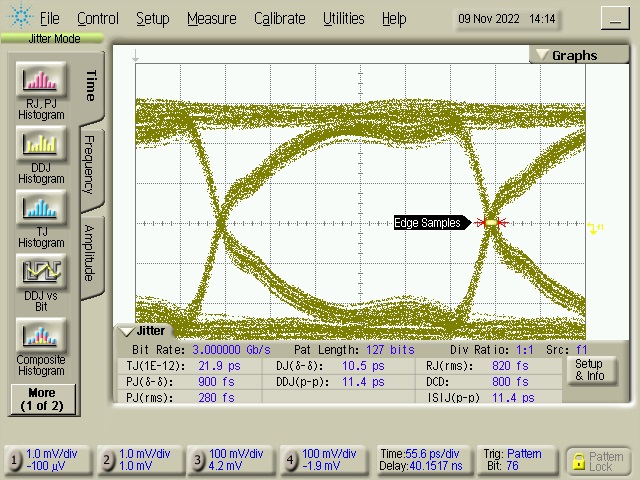

Figure 6-6 Through a Typical
TMUXHS221 Channel at 3 Gbps
