7.10 Typical Characteristics
at TA = 25°C, VDD = 15 V, and VSS = –15 V (unless otherwise noted)

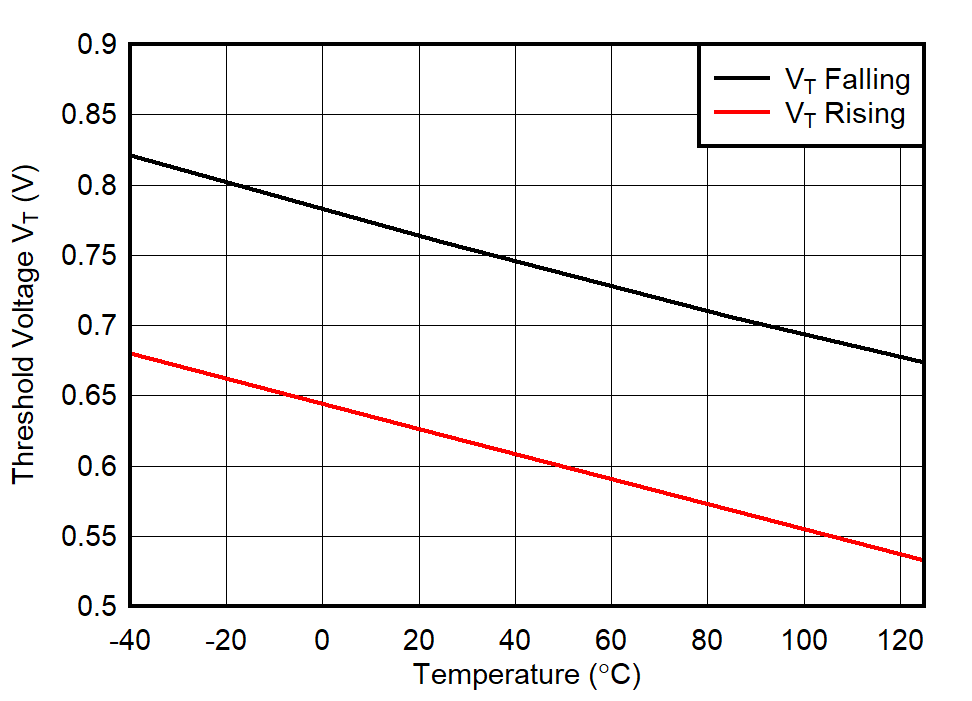

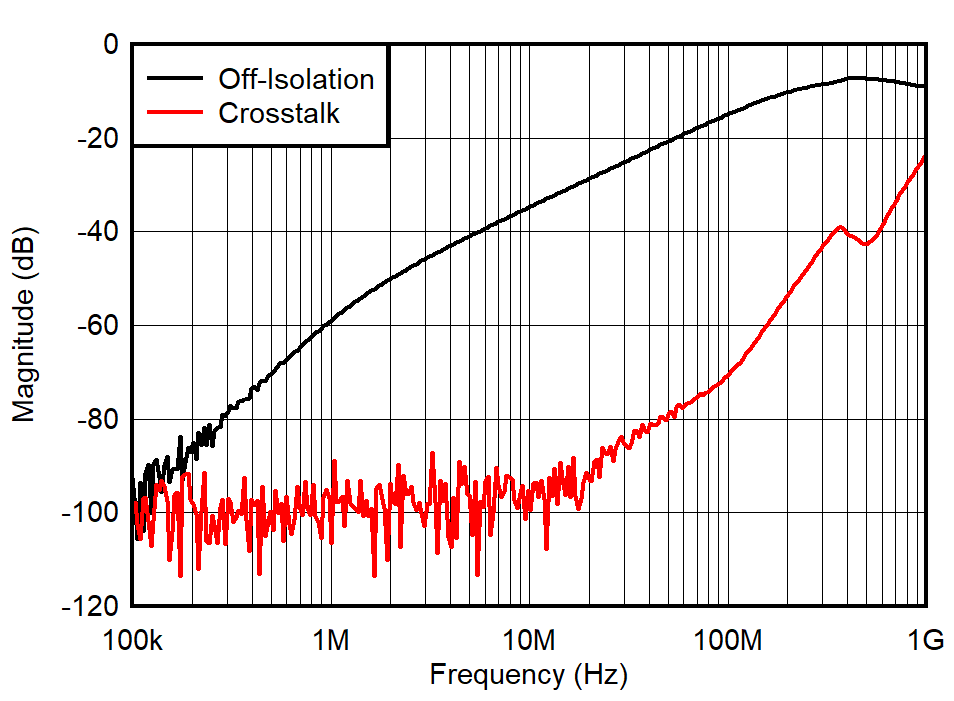

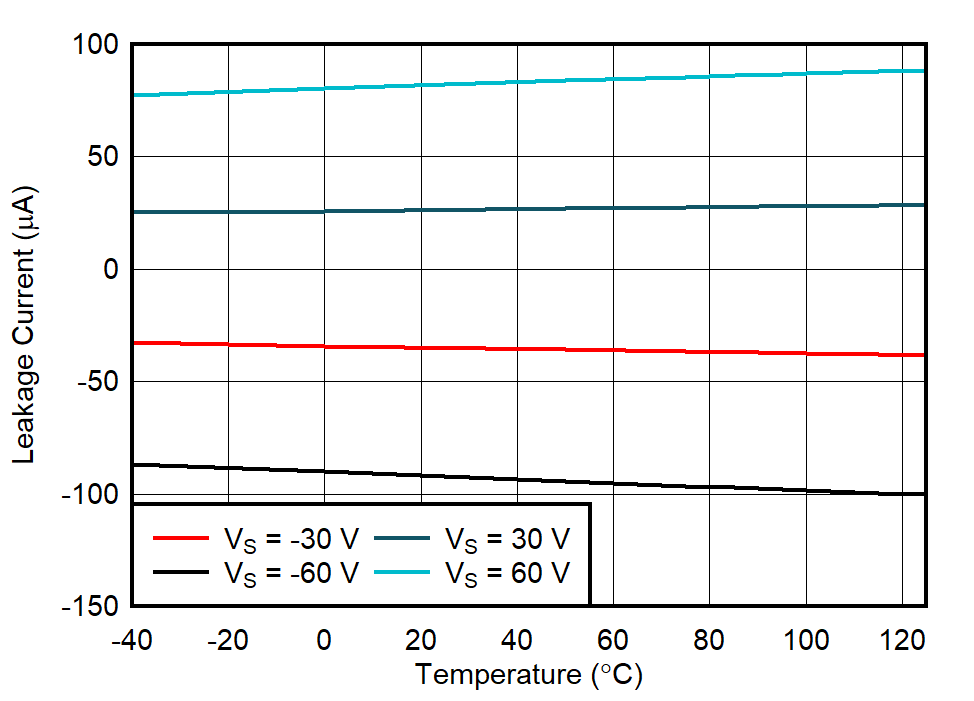

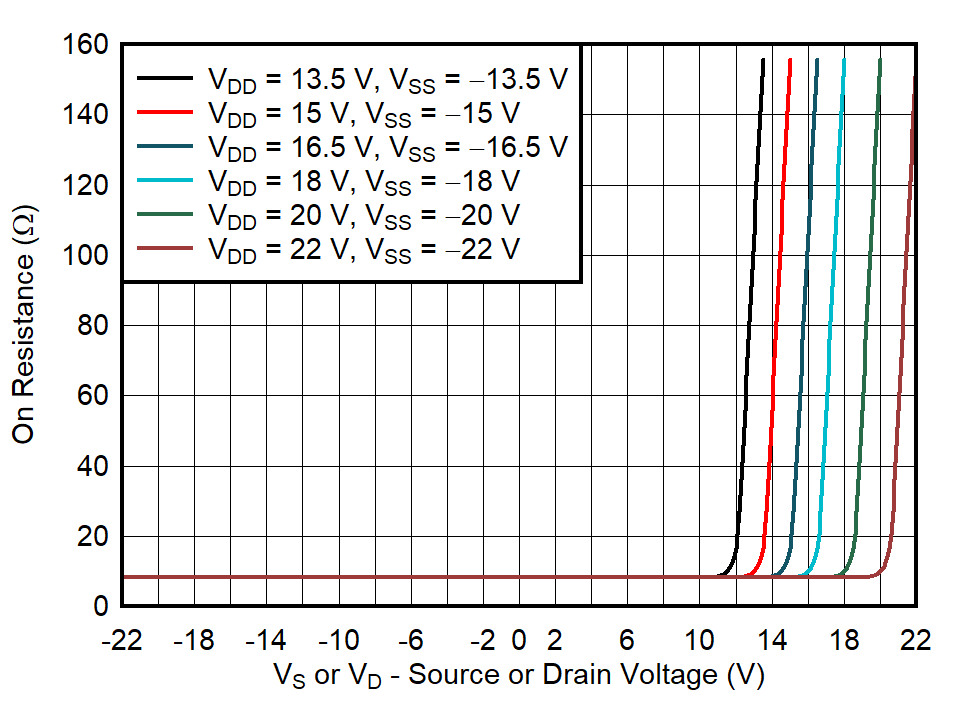

| Dual Supply Voltages |
| Flatest RON region for all supply voltages shown |
| ±20 V Supply Flatest Ron Region |
| Single Supply Flat Ron Region |

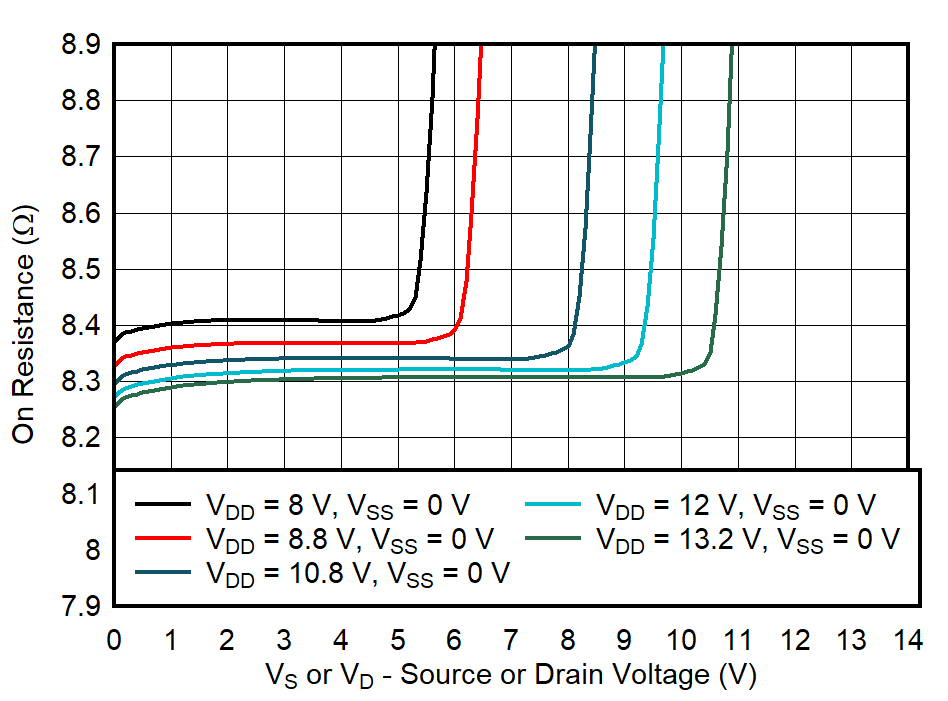

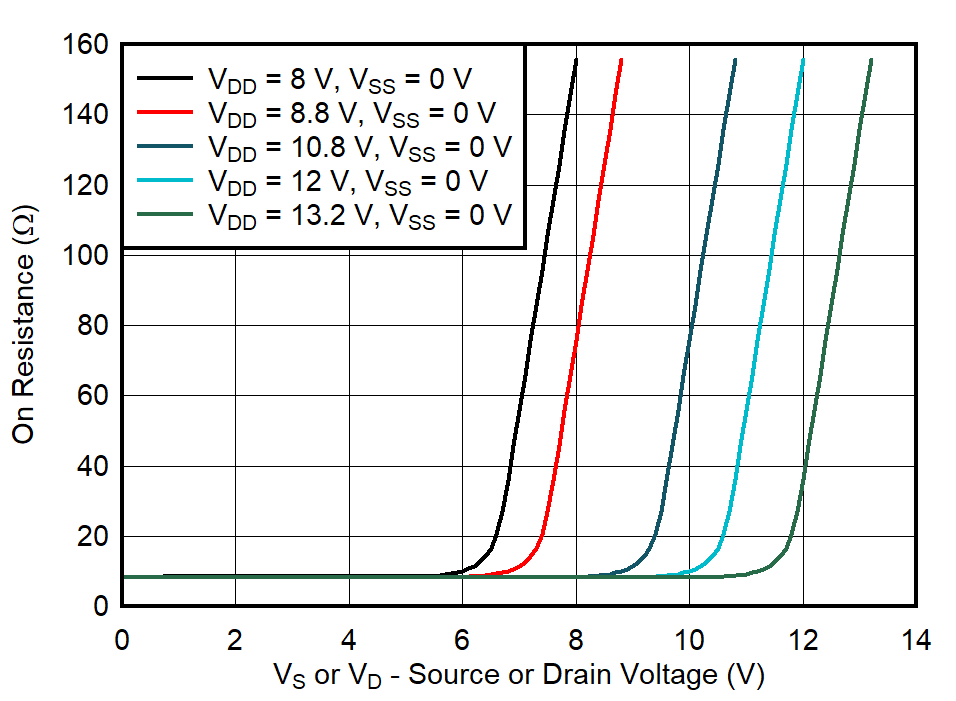

| Single Supply Voltages |

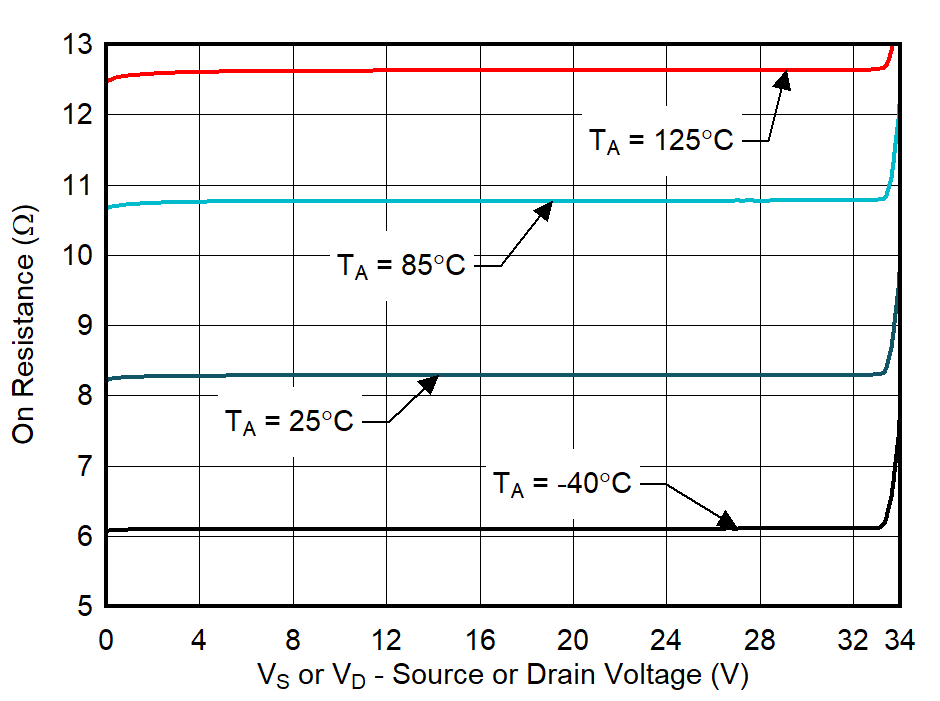

| 36 V VDD Flatest Ron Region |

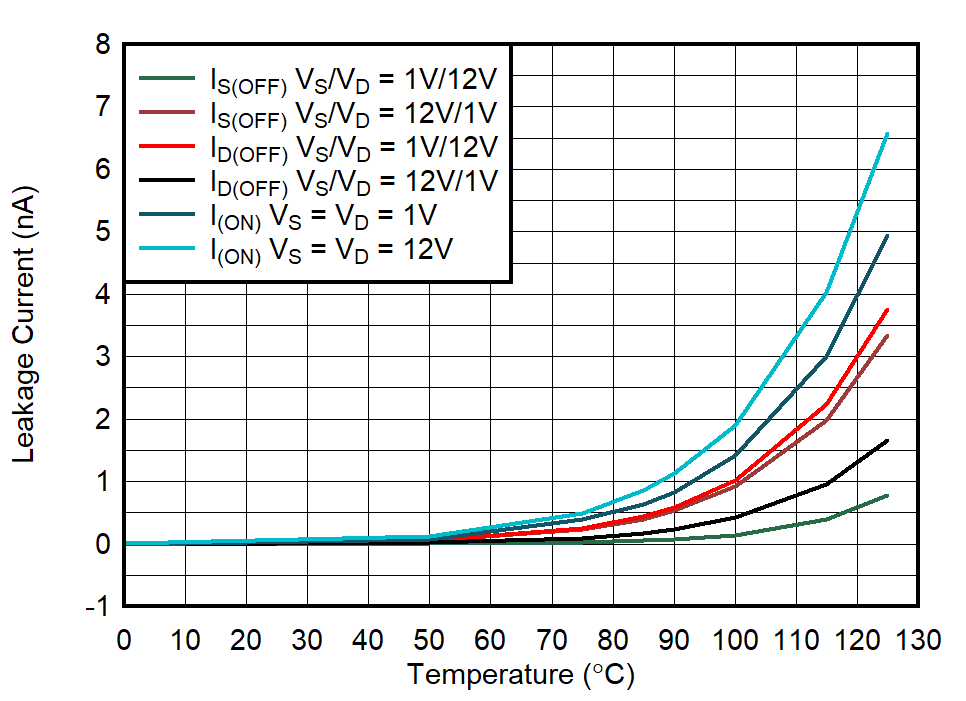

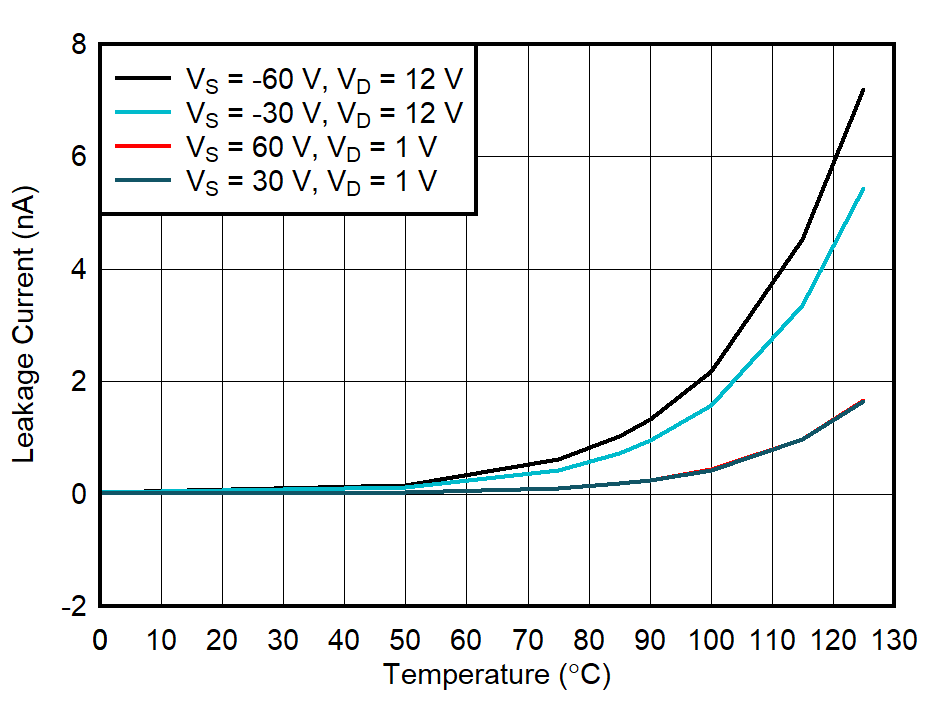

| VDD = 12 V, VSS = 0 V |

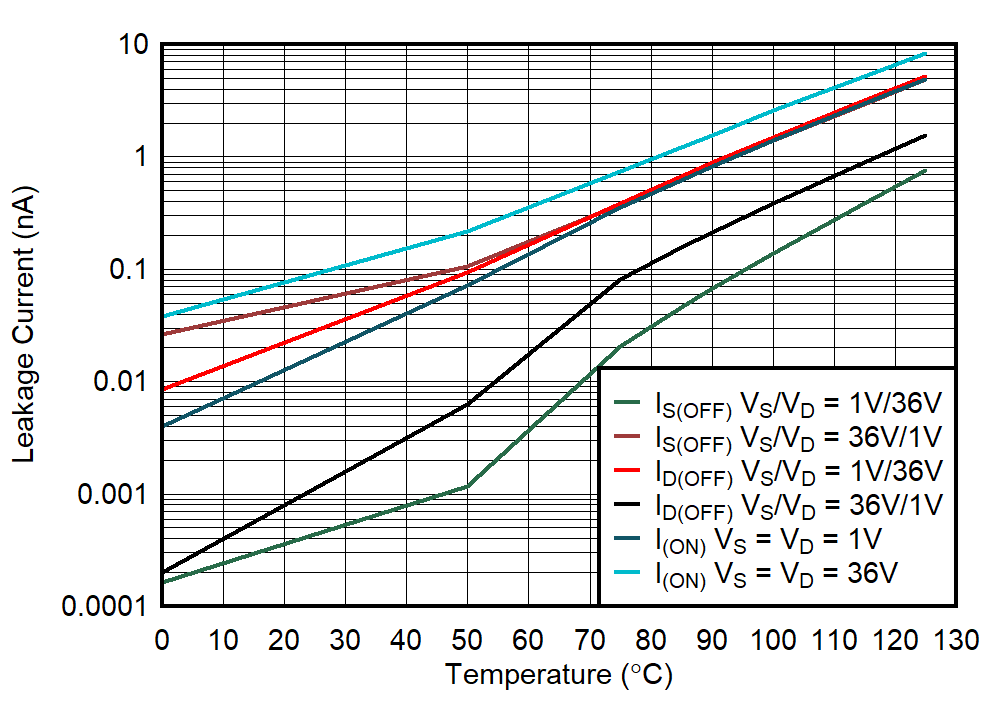

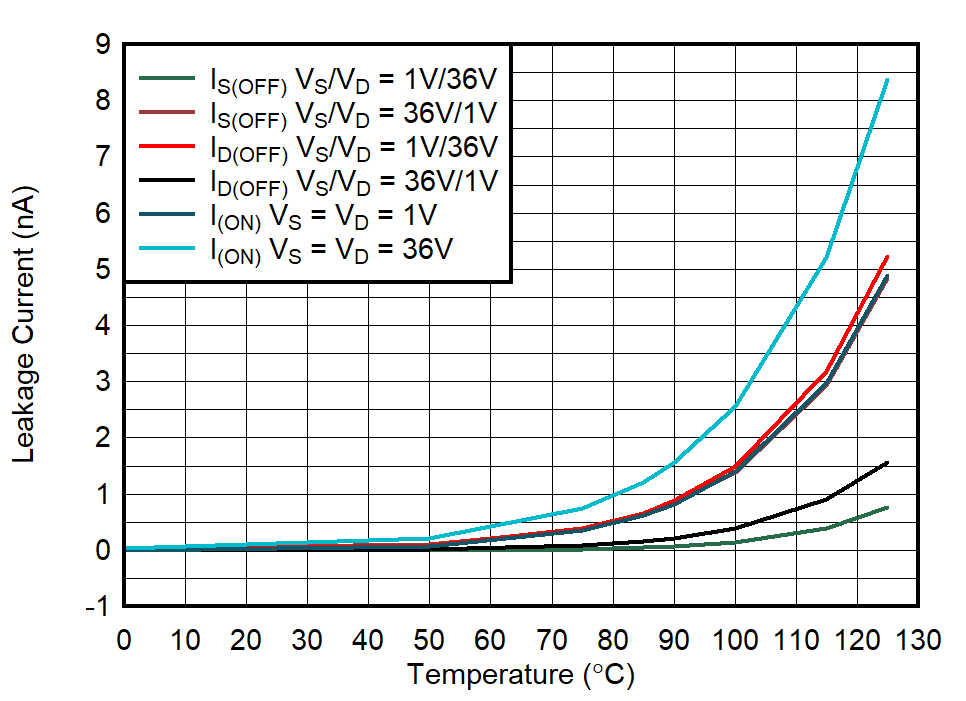

| VDD = 36 V, VSS = 0 V |
| VDD = 36 V, VSS = 0 V |

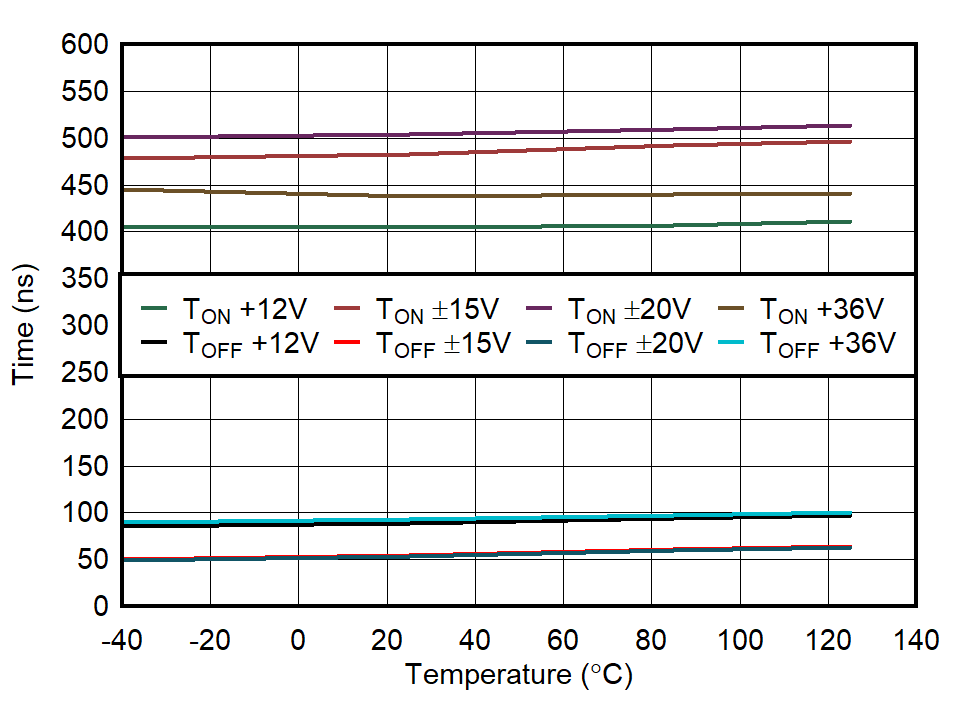

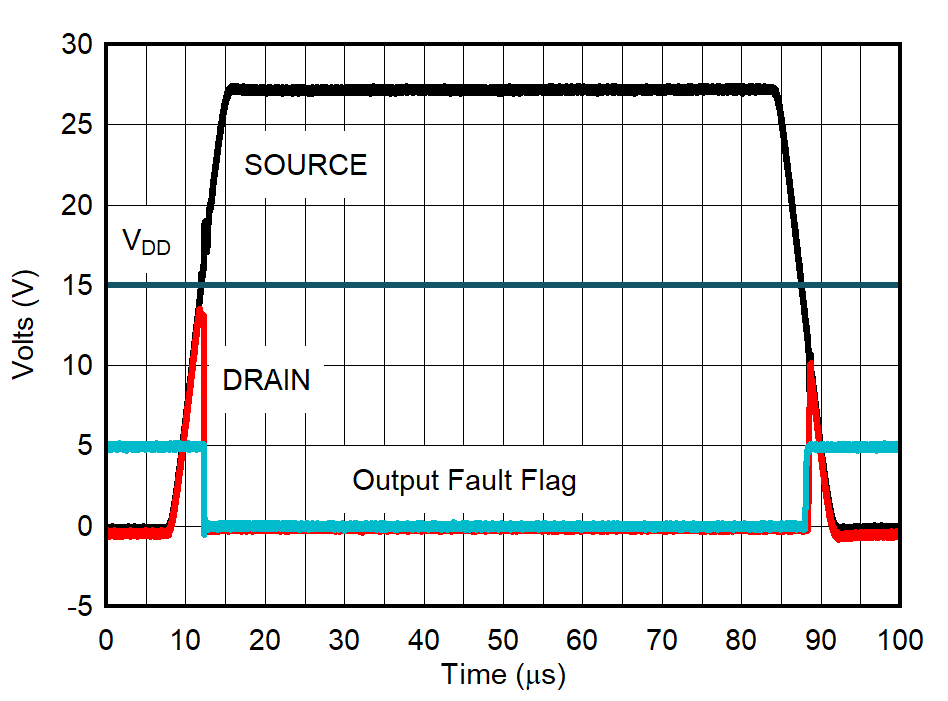

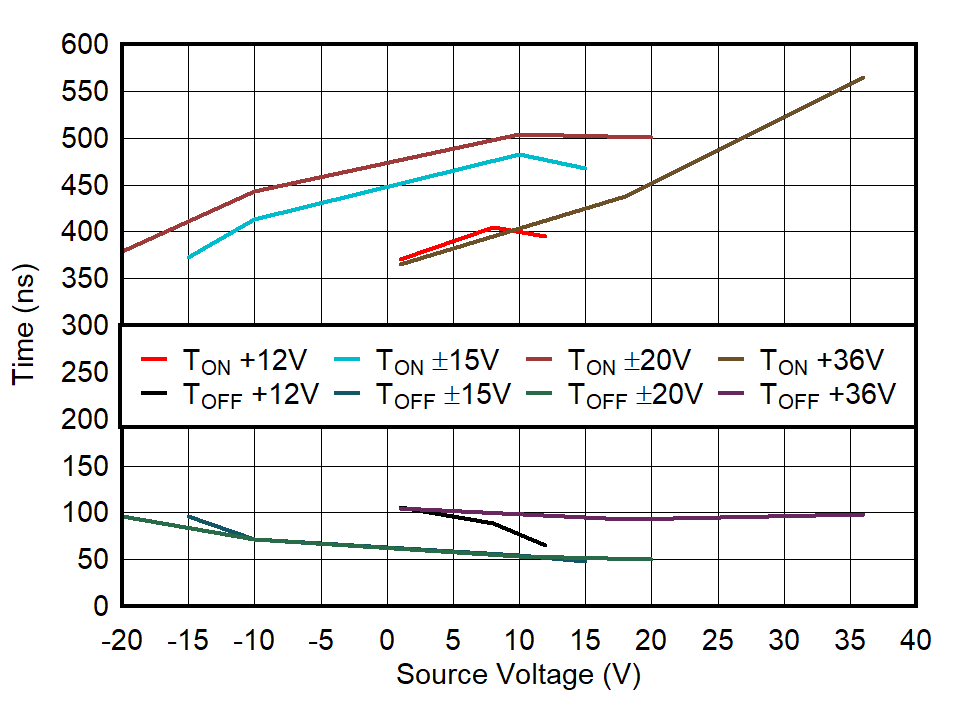

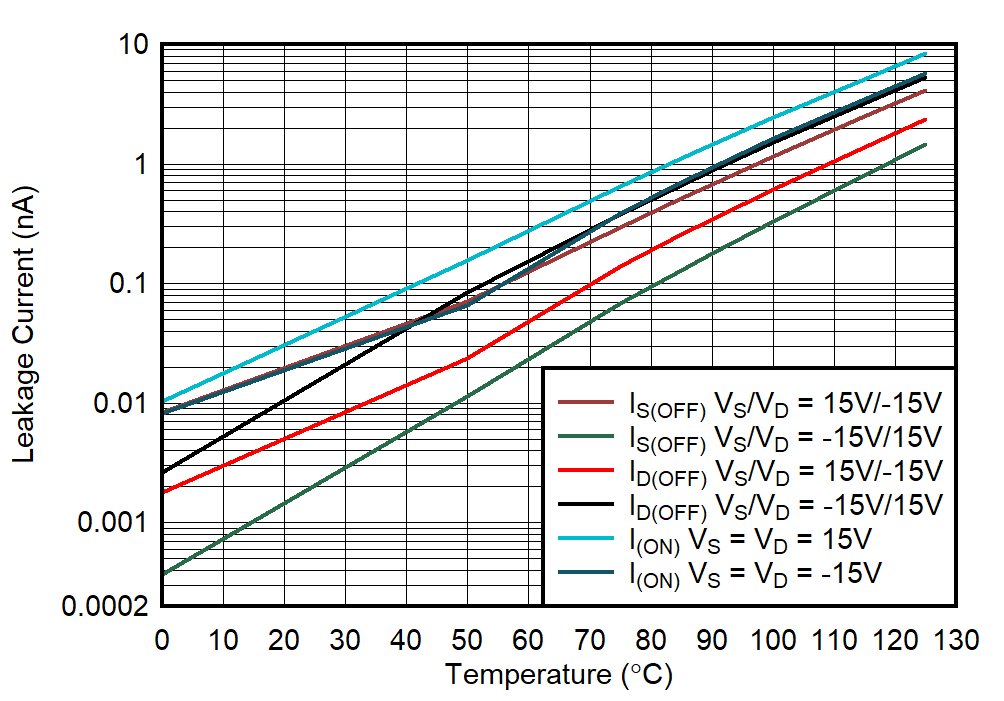

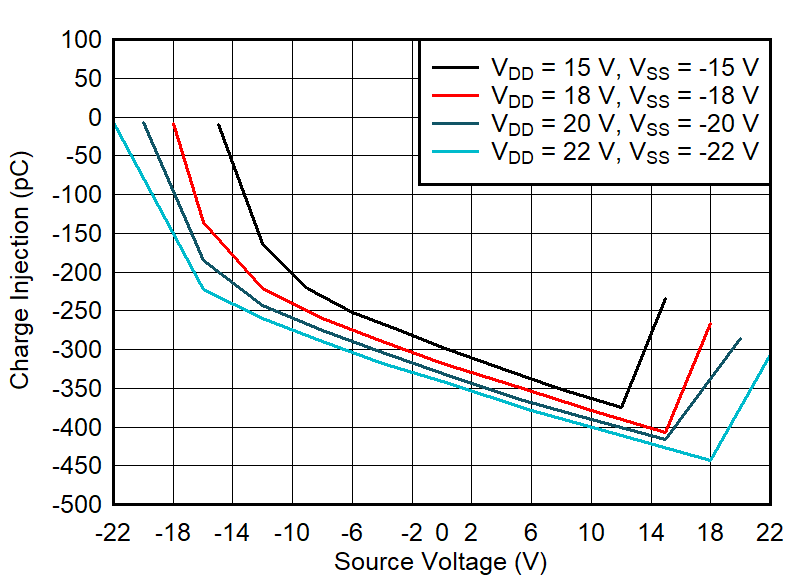

| ±15 V Dual Supply |

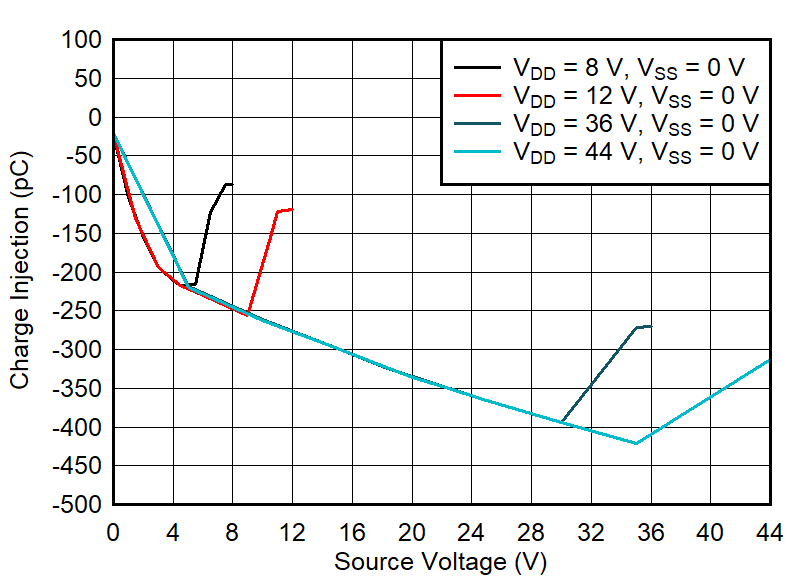

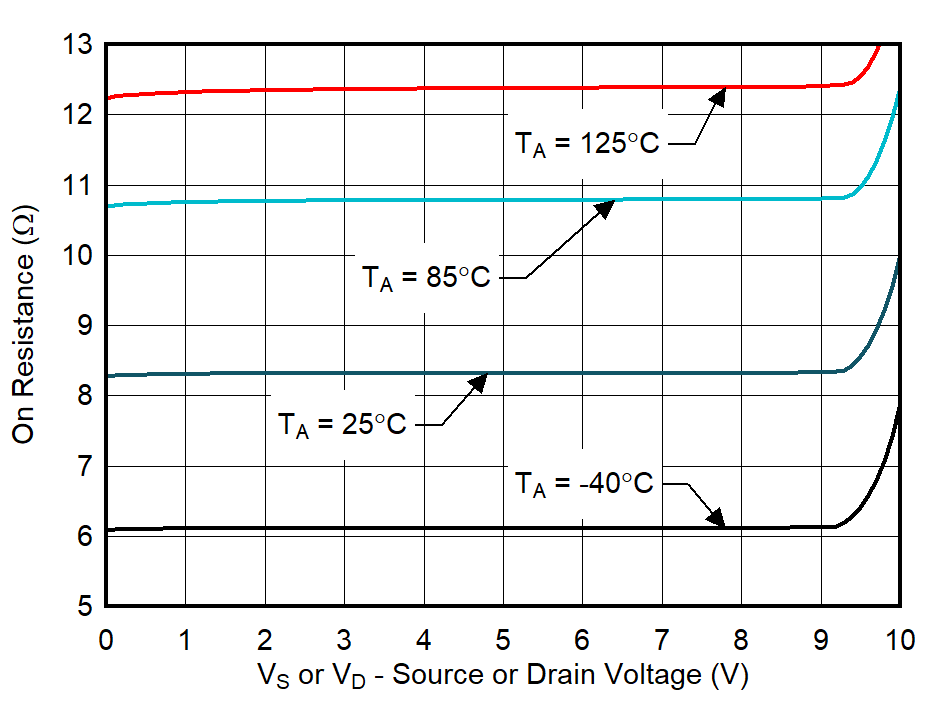

| VDD = 12 V Single Supply |
| ±15 V Dual Supply |

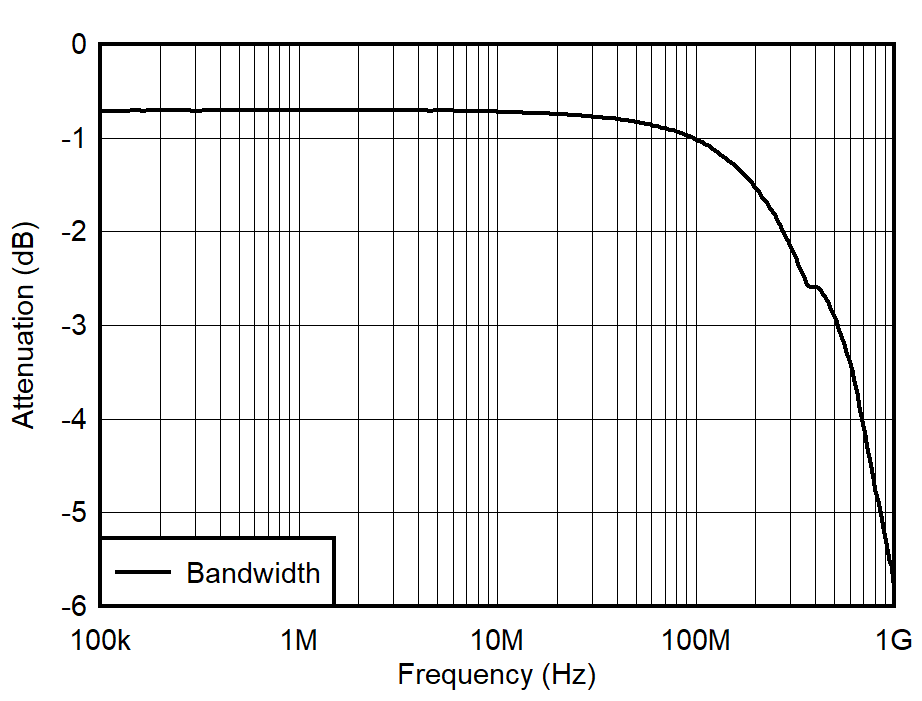

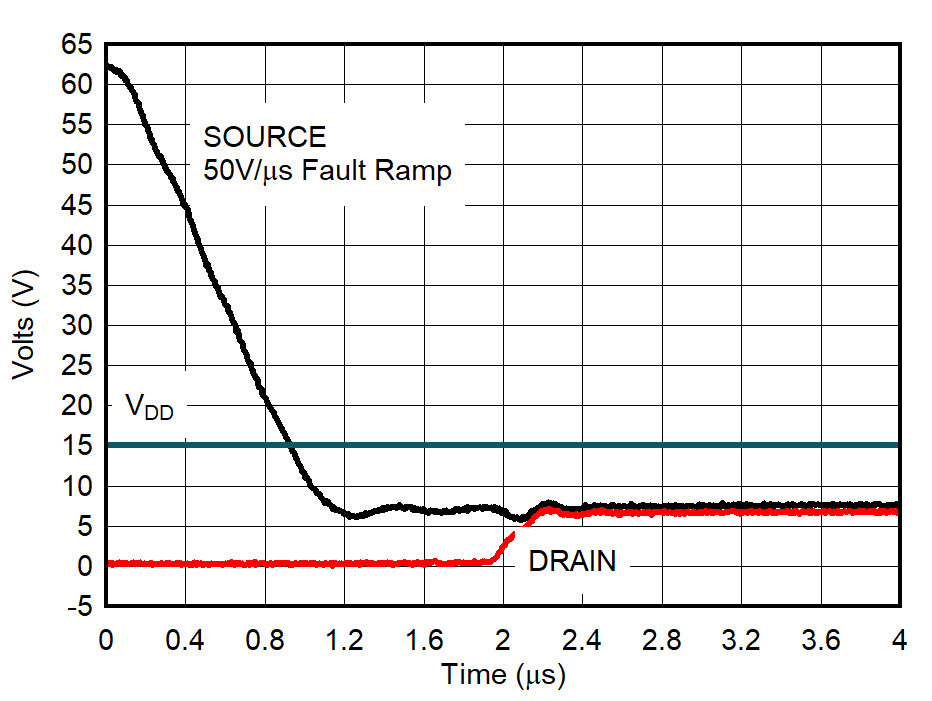

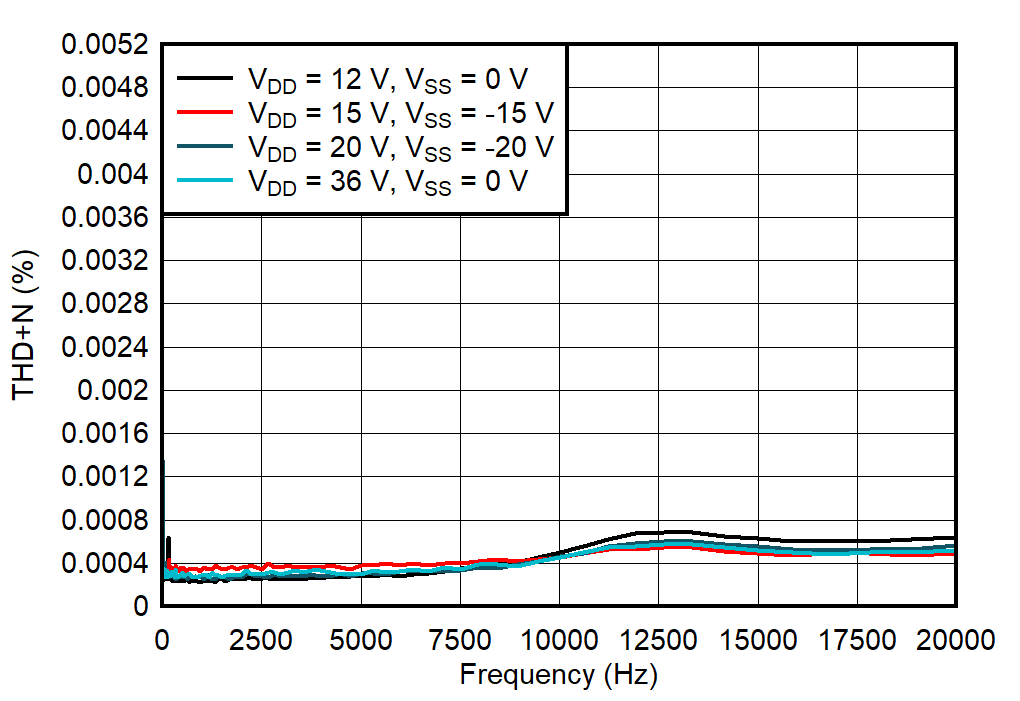

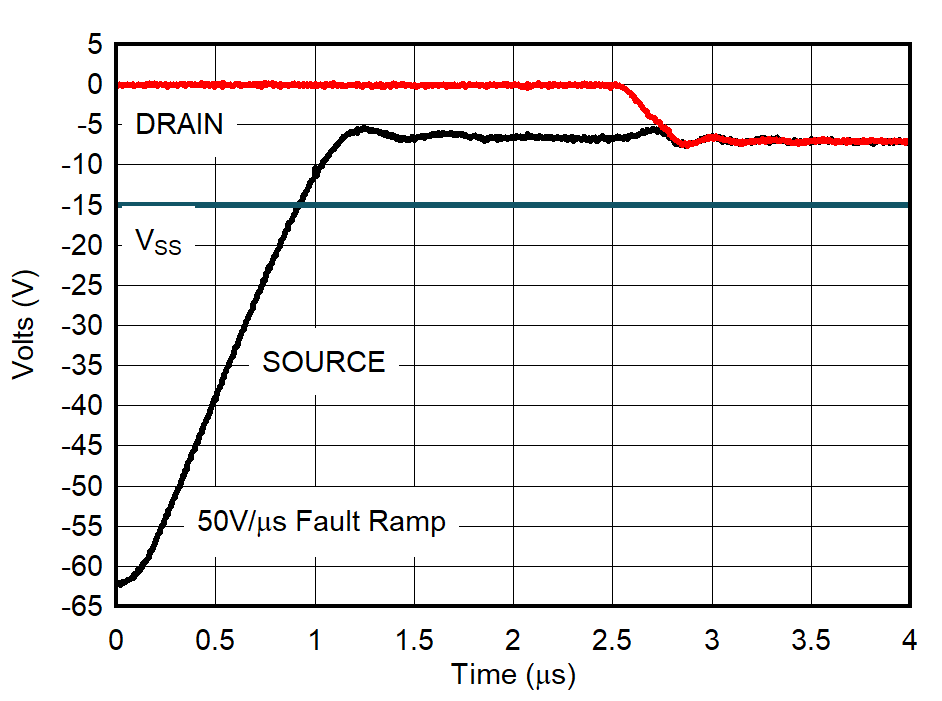

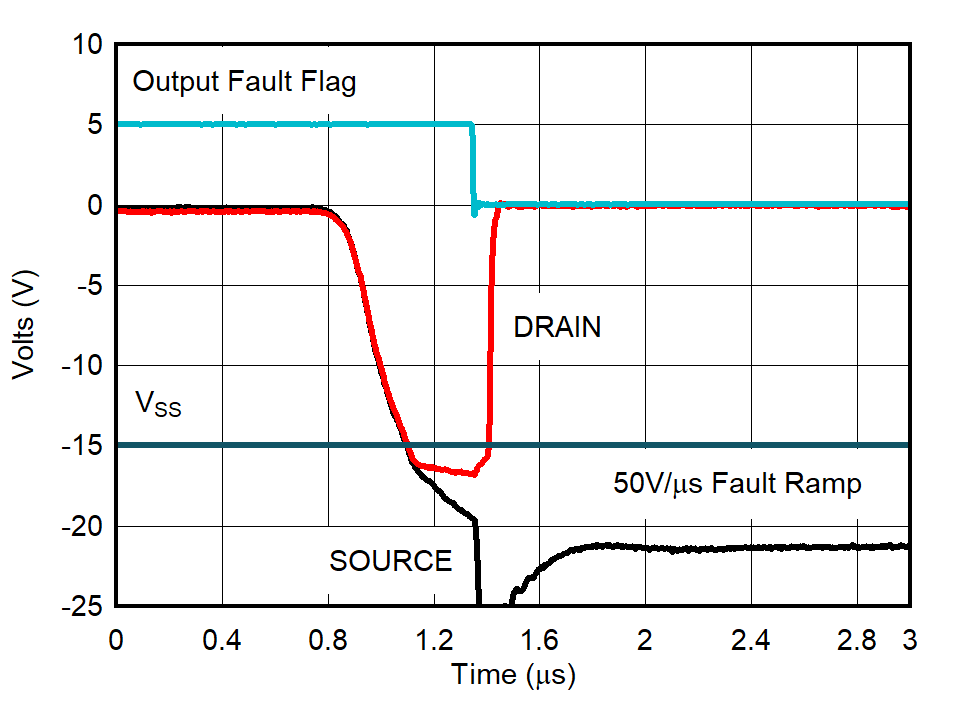

| 50 V/μs Ramp Rate |
| 50 V/μs Ramp Rate |
| Dual Supply Flat Ron Region |
| ±15 V Supply Flatest Ron Region |

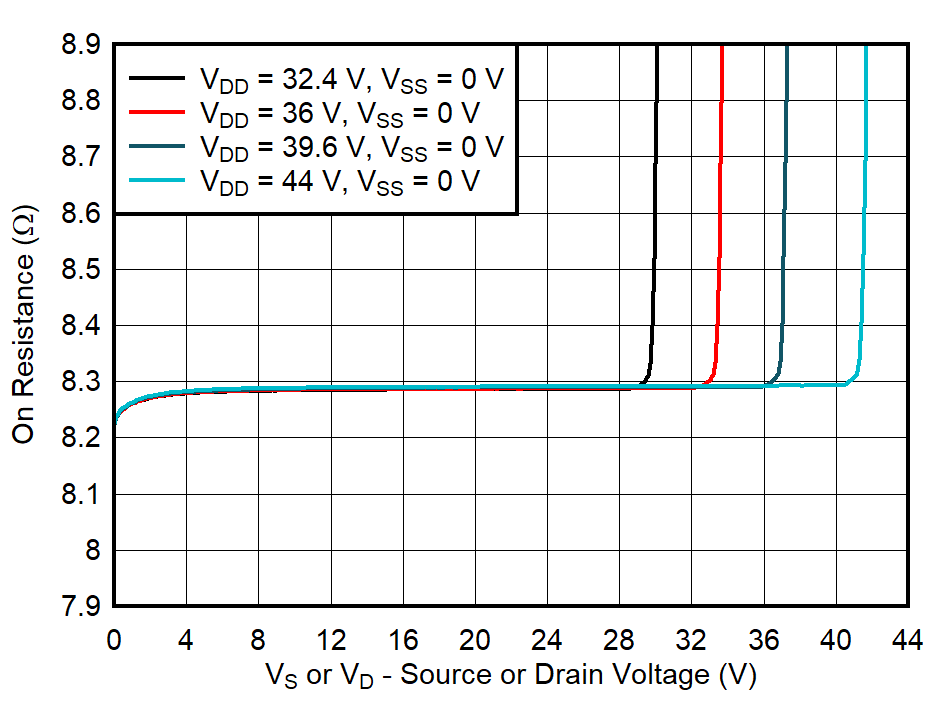

| Single Supply Voltages |
| 12 V VDD Flatest Ron Region |
| Single Supply Flat Ron Region |

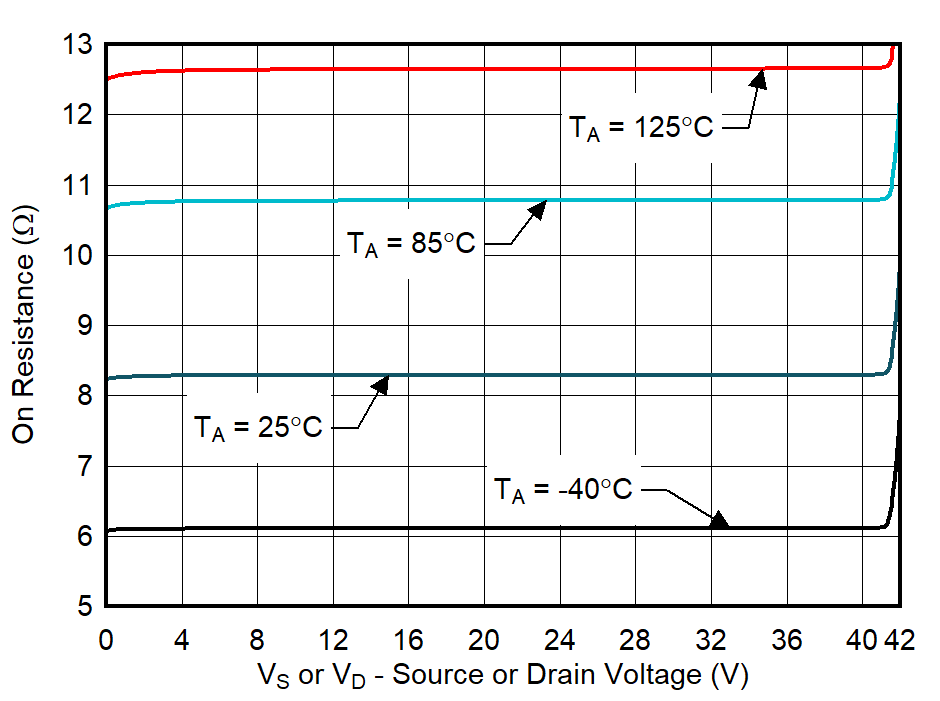

| 44 V VDD Flatest Ron Region |

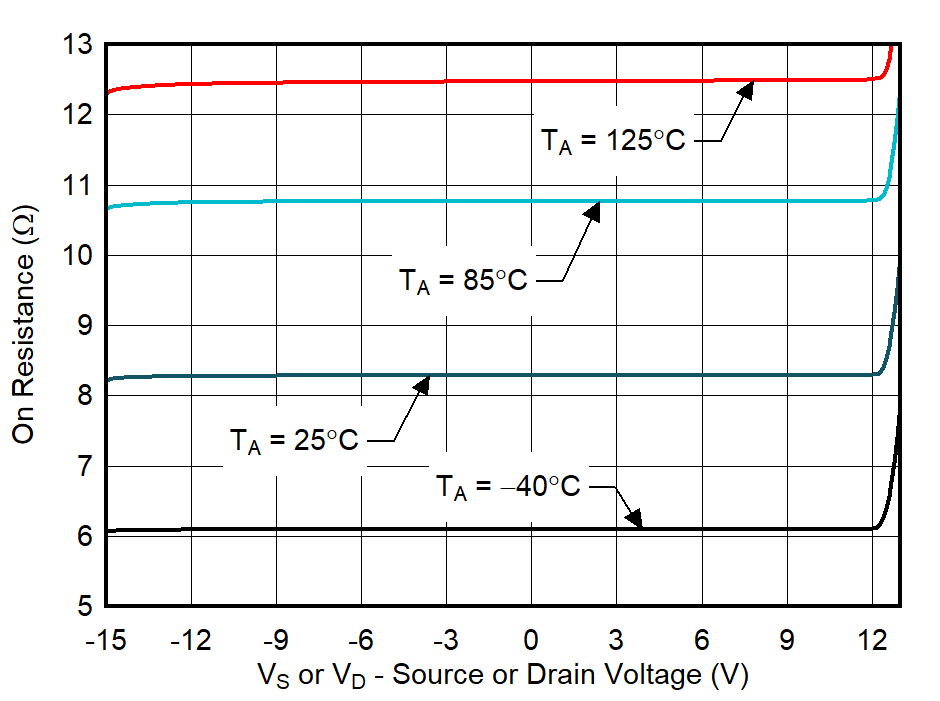

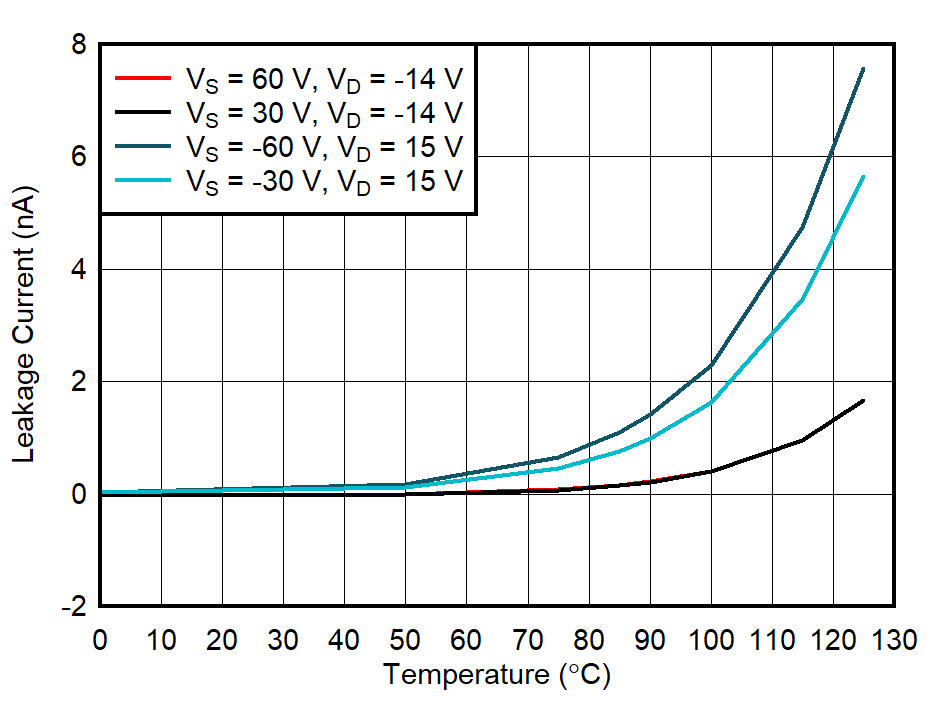

| VDD = 15 V, VSS = –15 V |

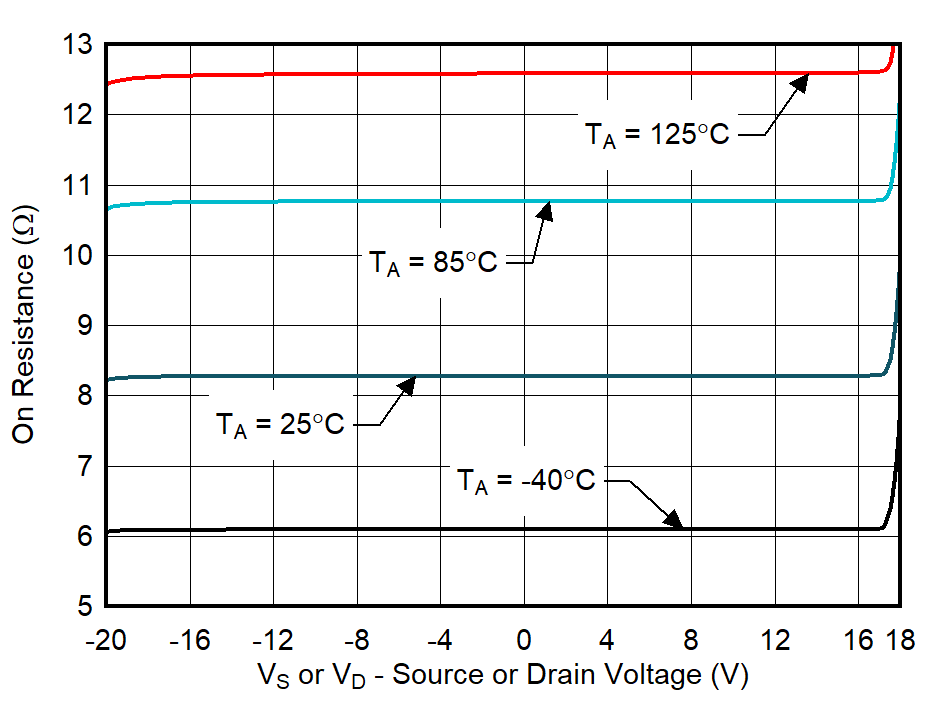

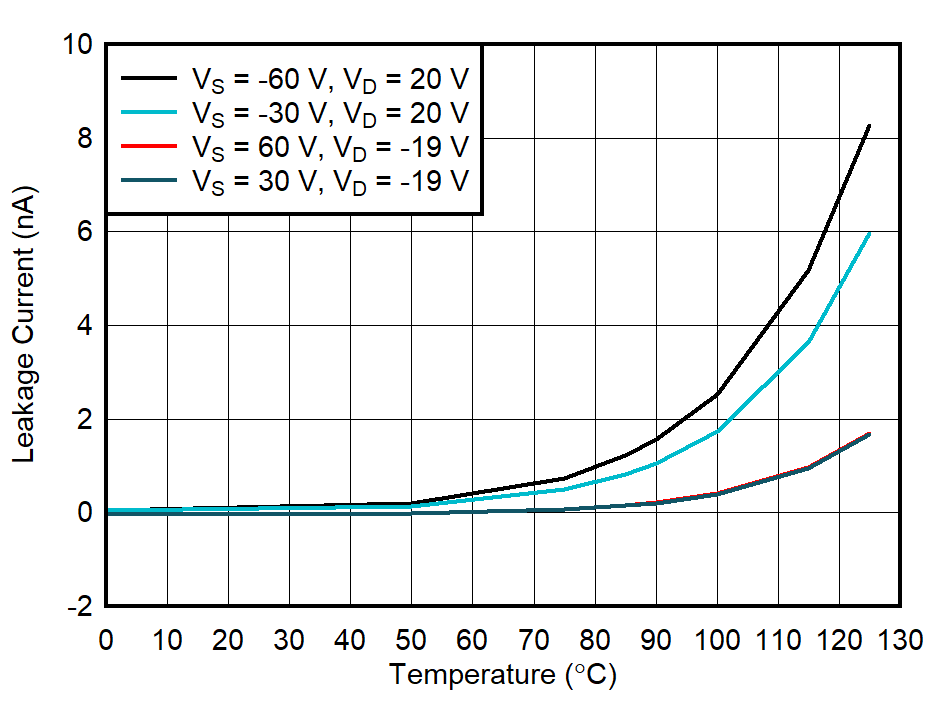

| VDD = +20 V, VSS = –20 V |
| VDD = +20 V, VSS = –20 V |
| ±20 V Dual Supply |
| VDD = 36 V Single Supply |

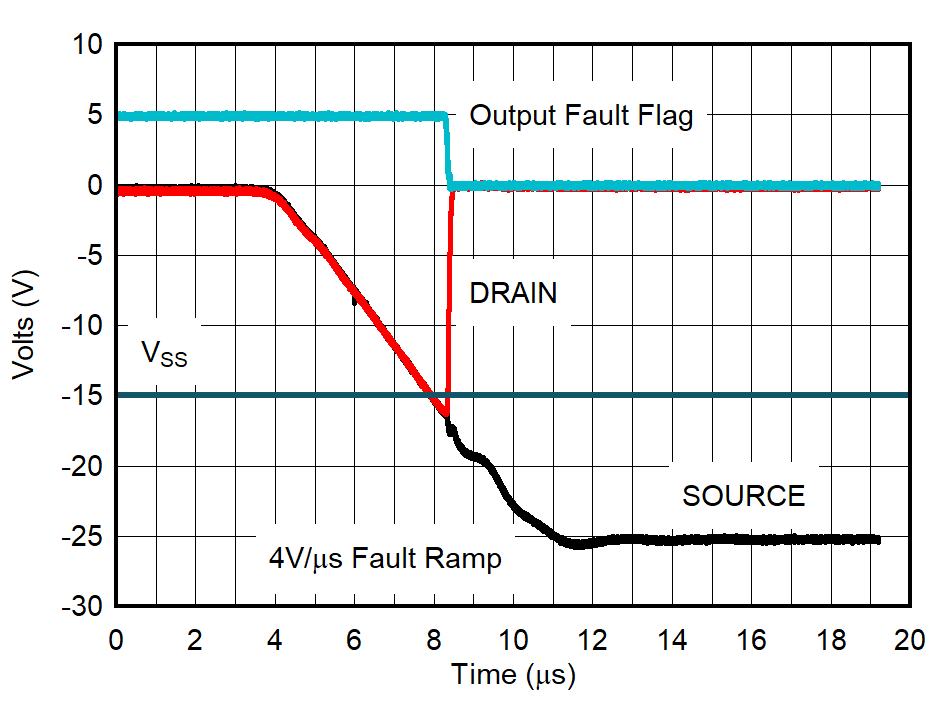

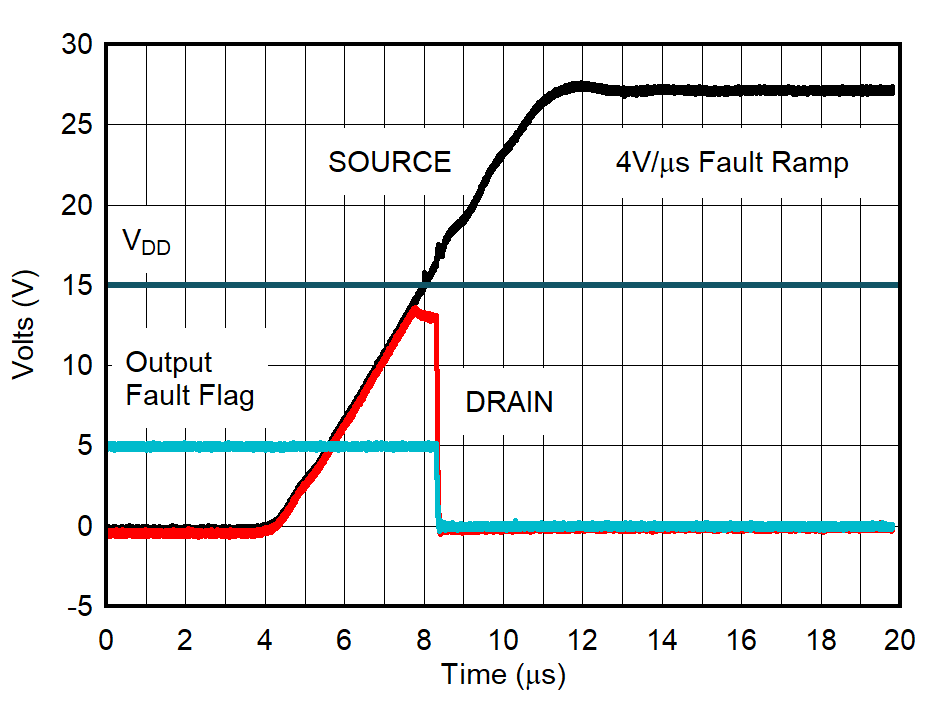

| 4 V/μs Ramp Rate |
| 4 V/μs Ramp Rate |
