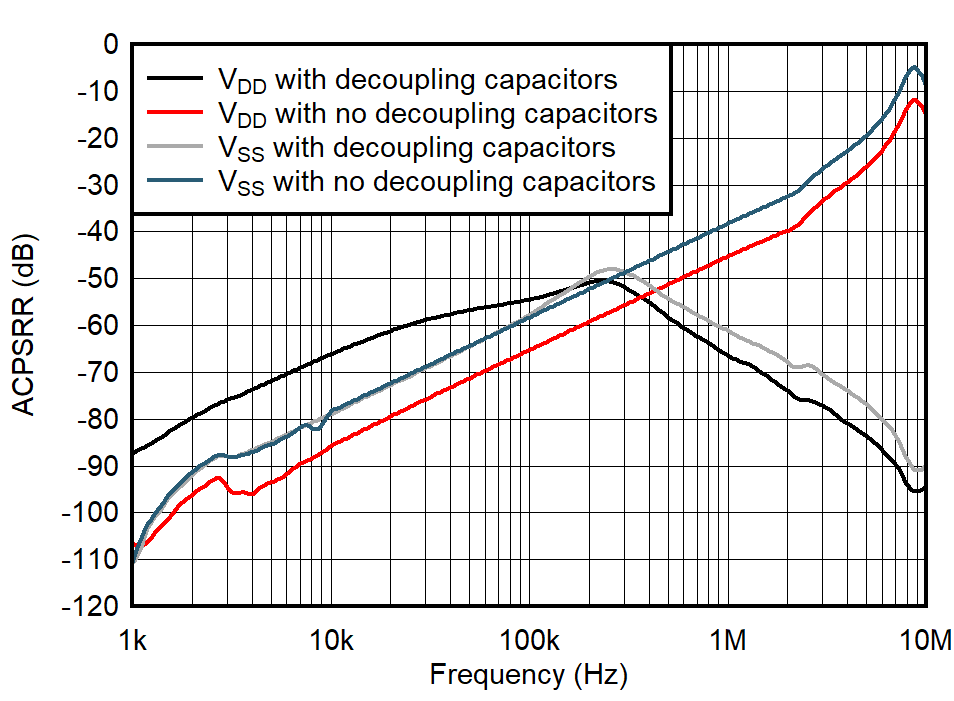

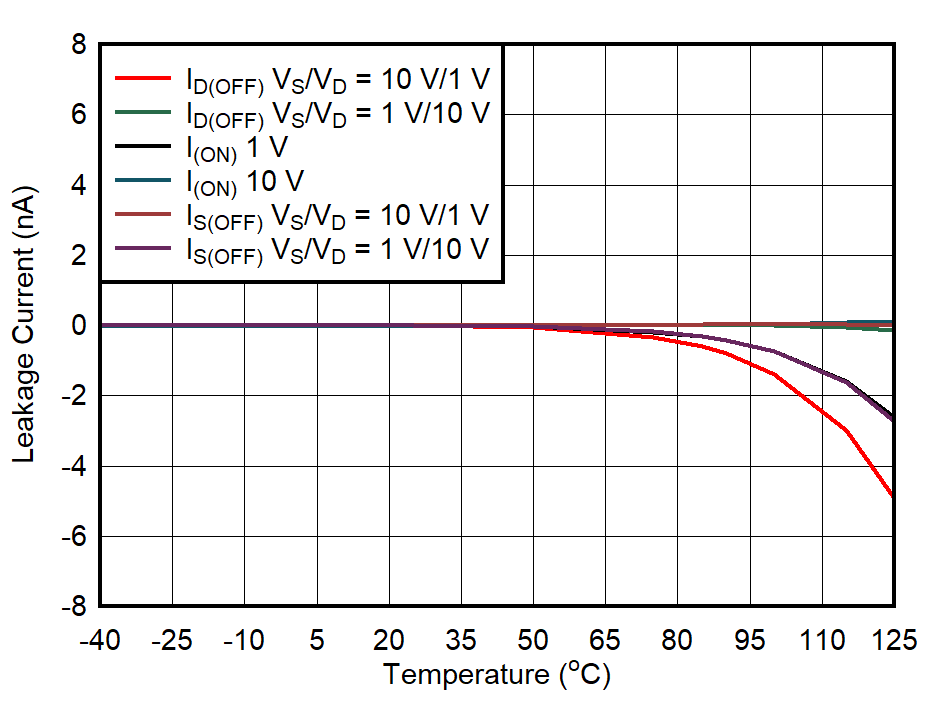

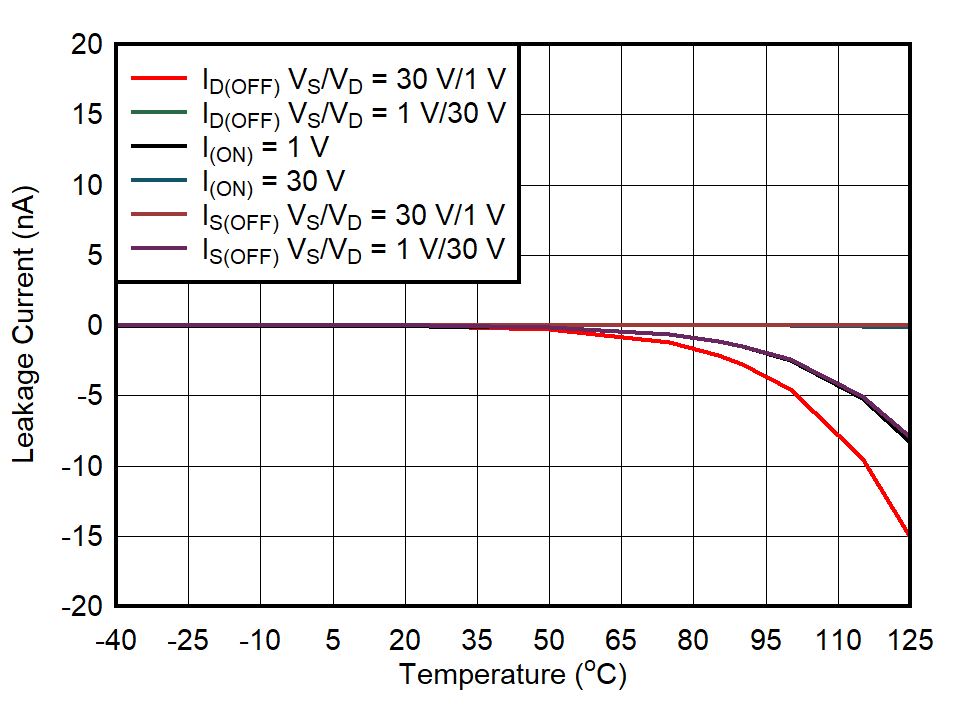

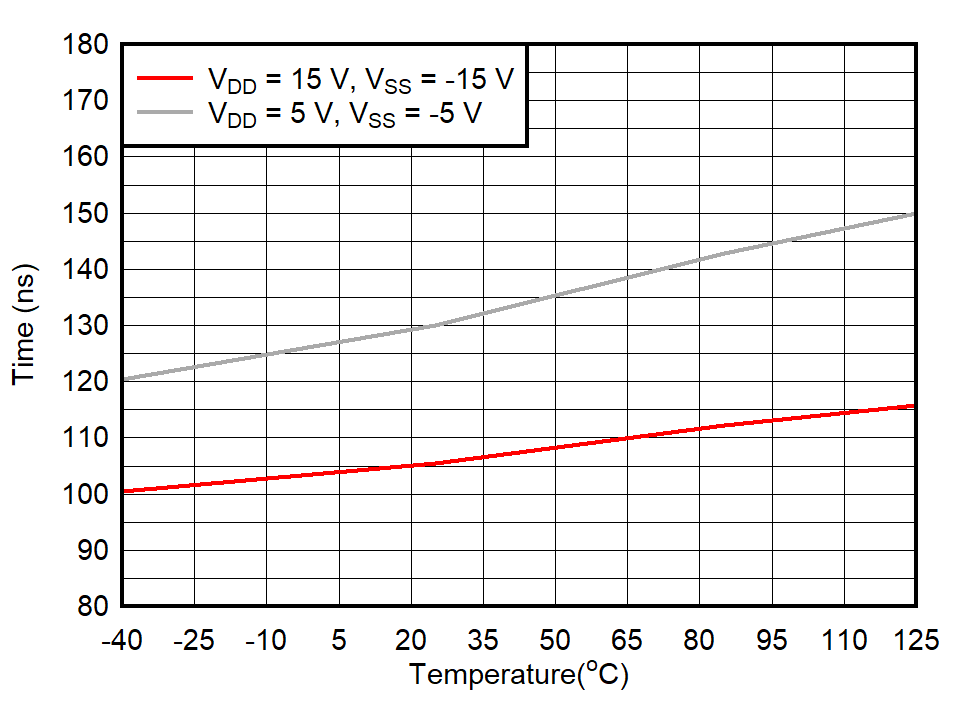

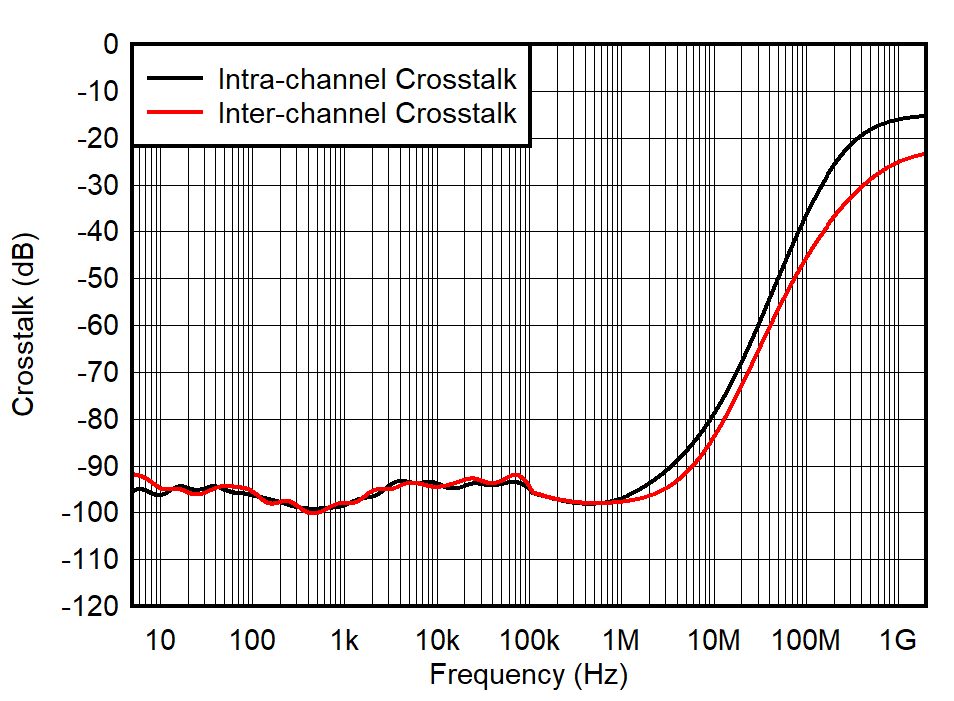

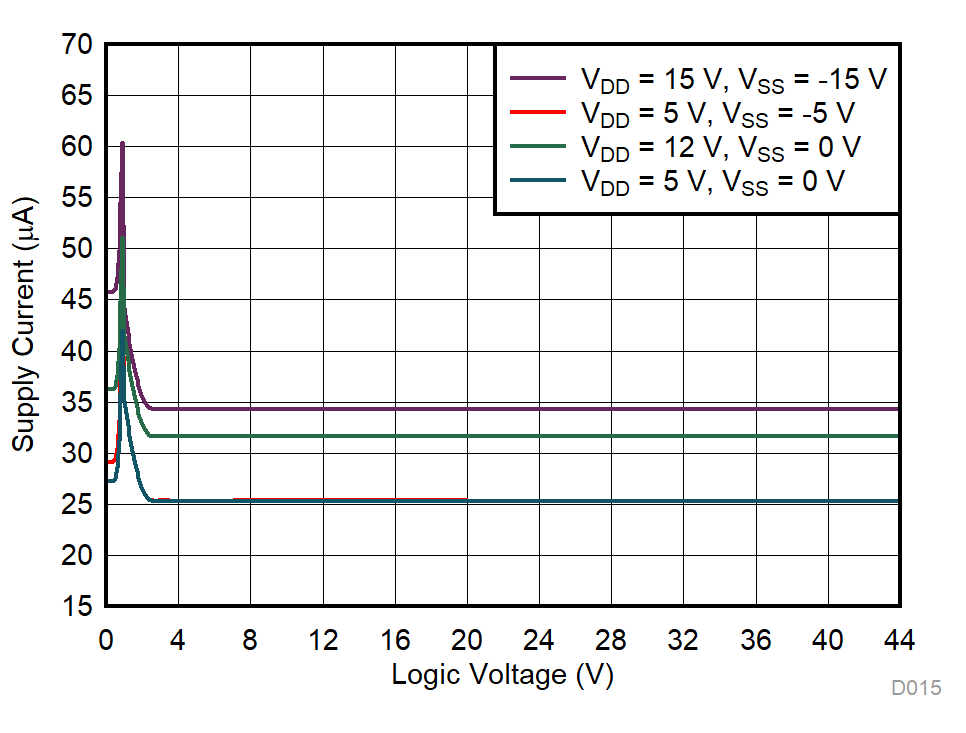

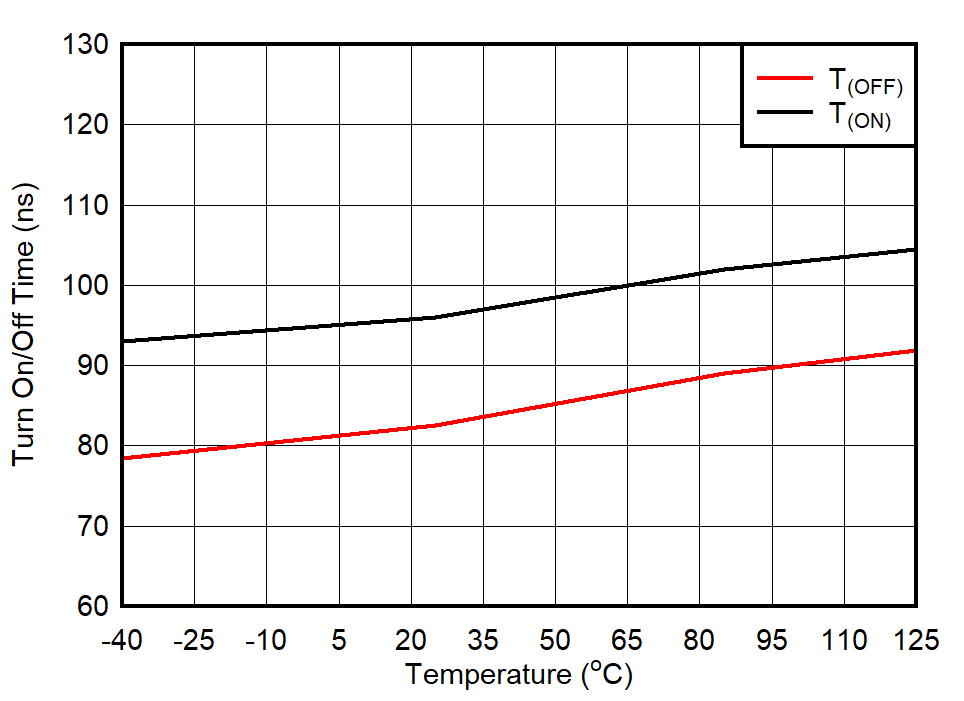

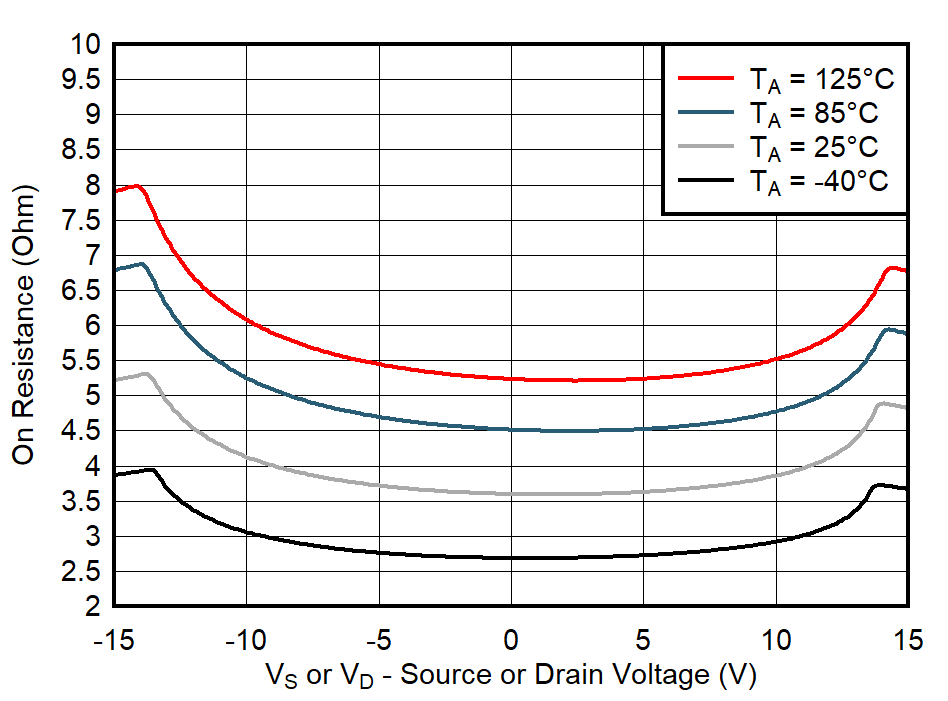

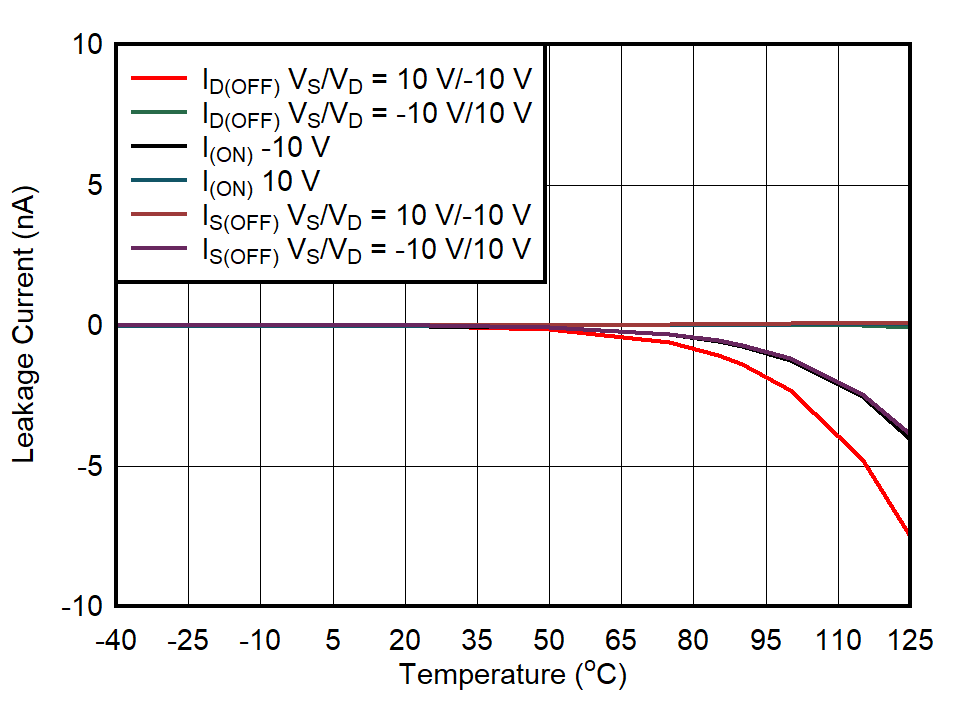

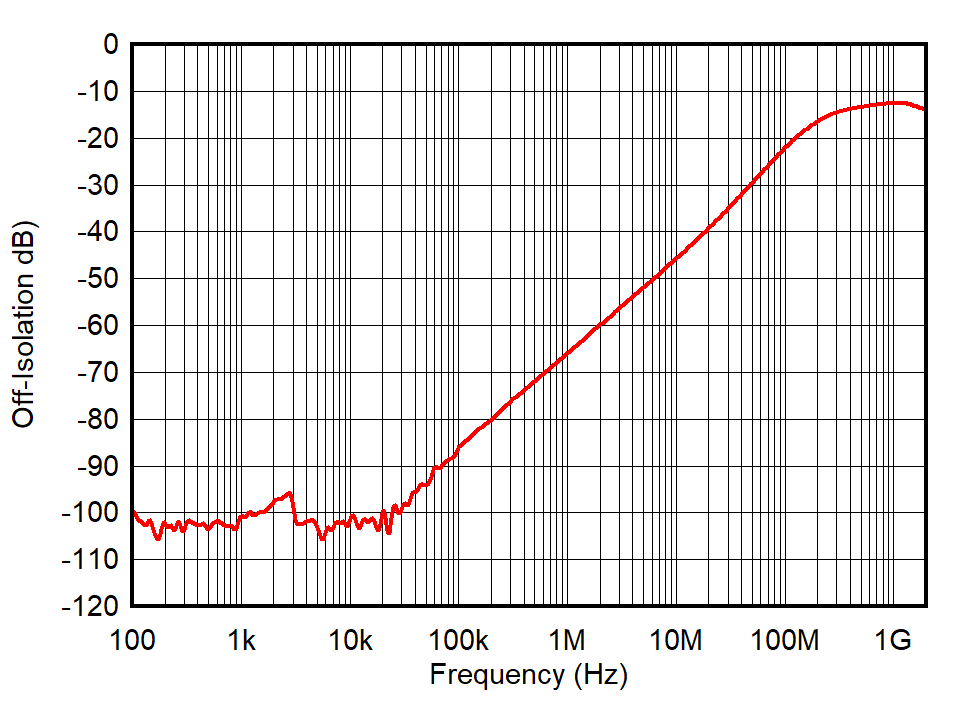

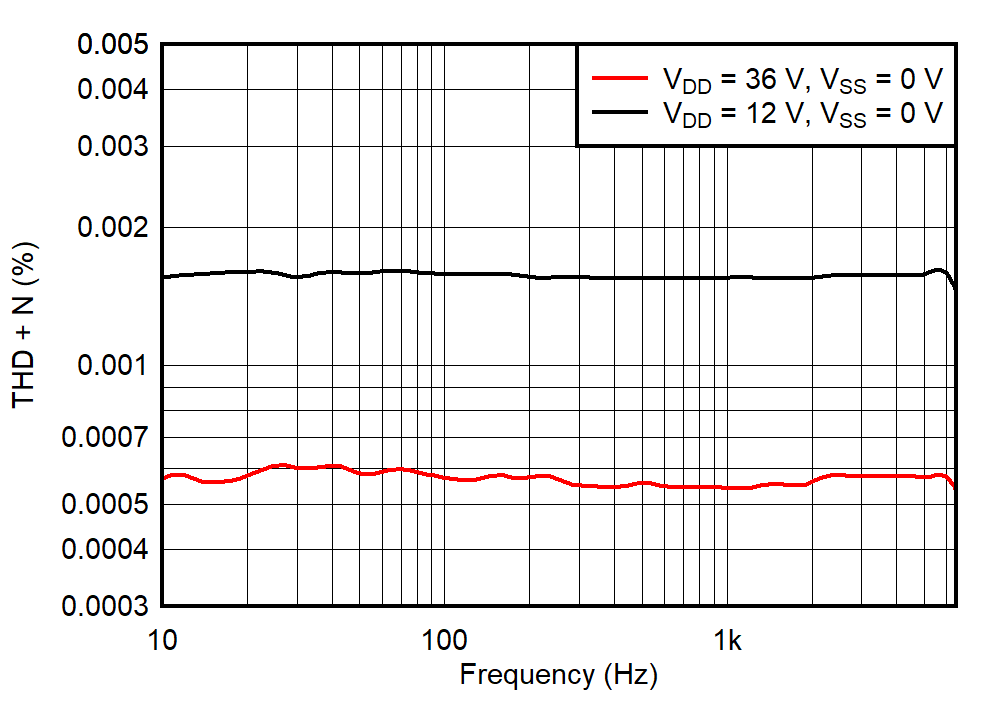

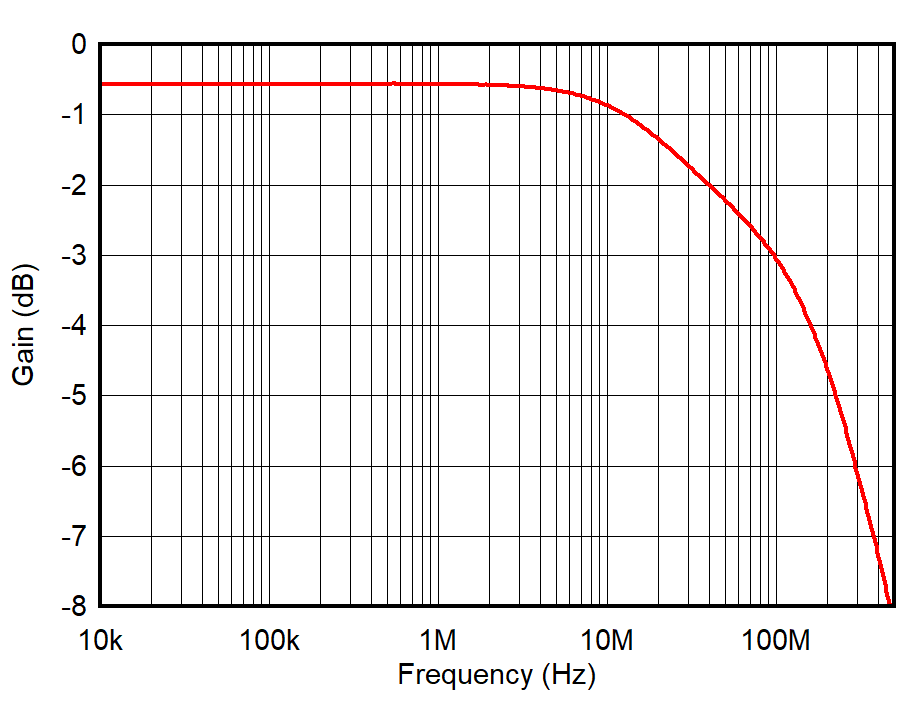

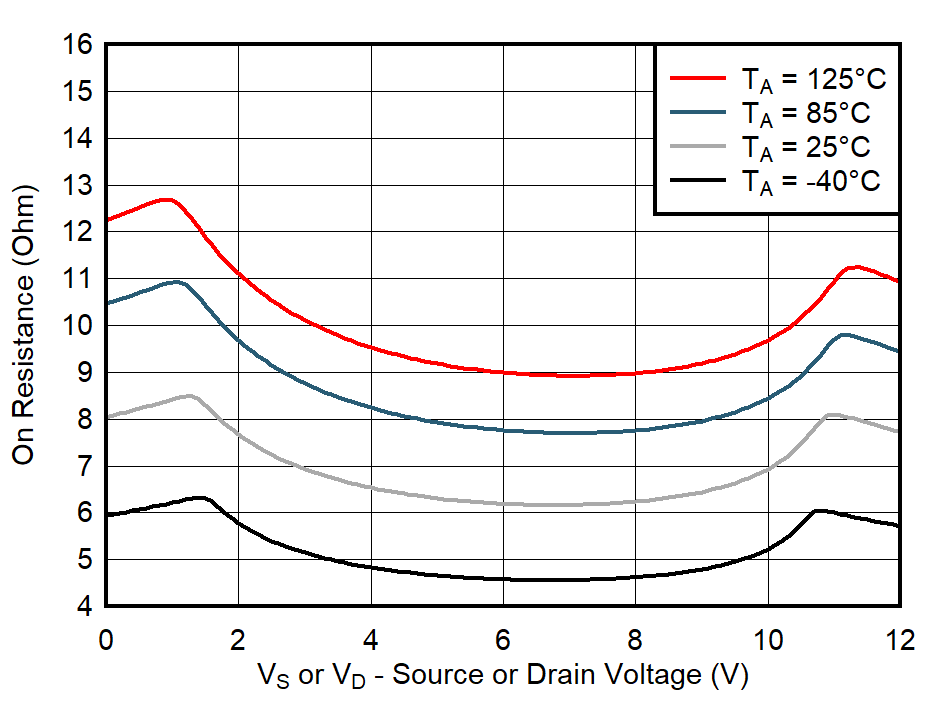

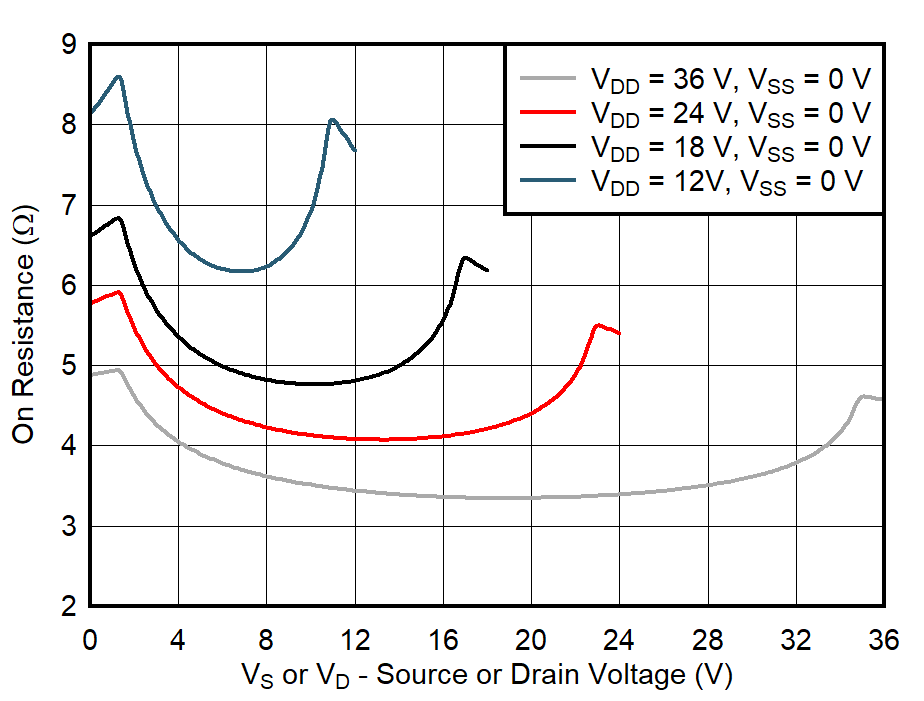

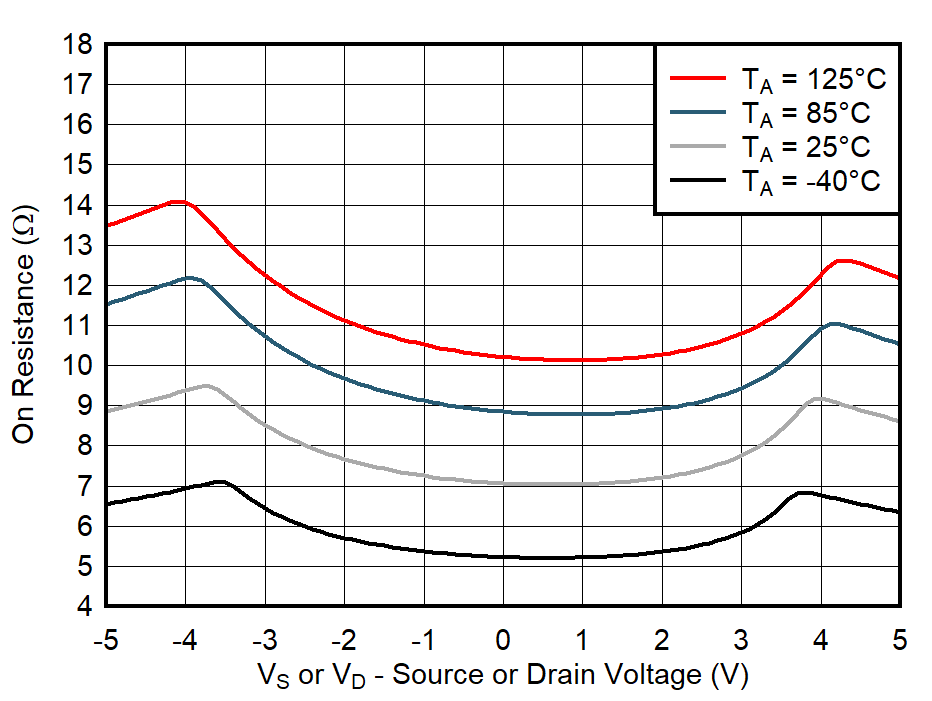

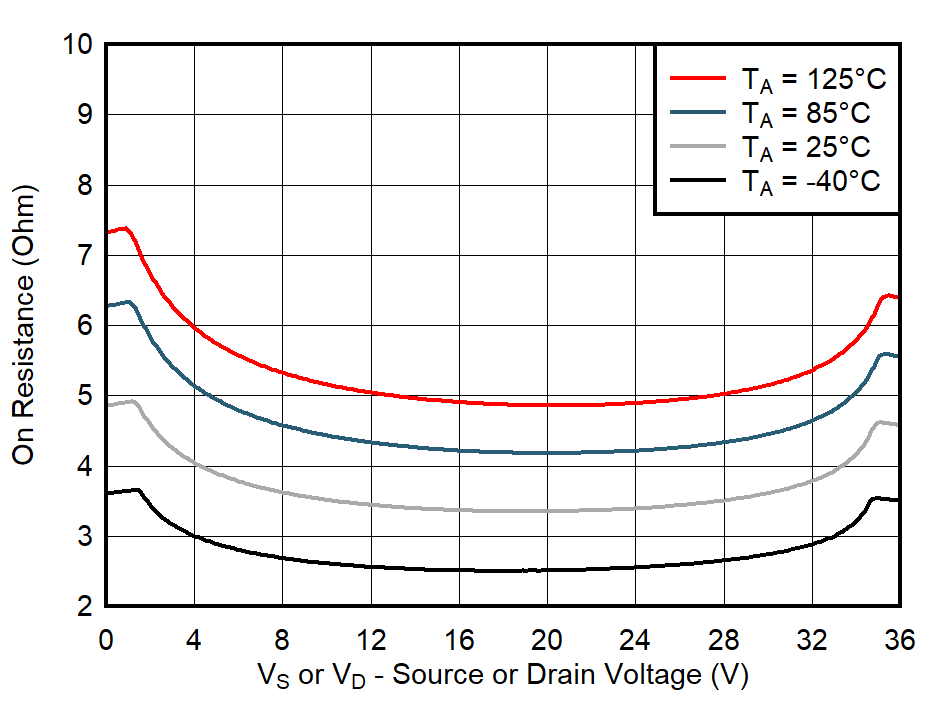

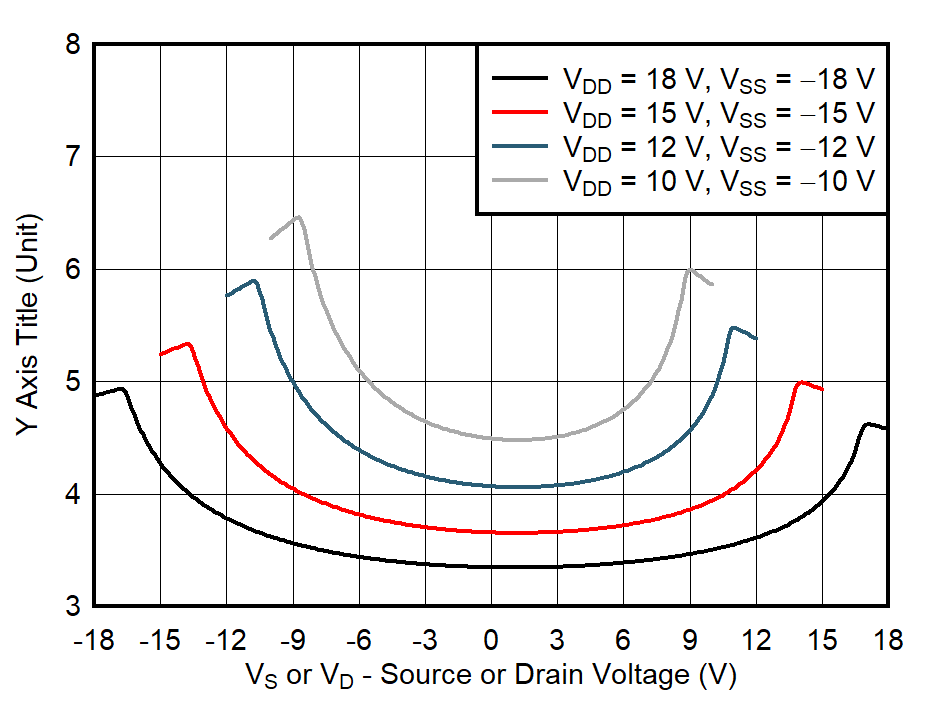

5.14 Typical Characteristics
at TA = 25°C (unless otherwise noted)
| VDD = 15 V, VSS = -15 V |
| VDD = 12 V, VSS = 0 V |
| VDD = 15 V, VSS = -15 V |
| VDD = 12 V, VSS = 0 V |
| VDD = 15 V, VSS = -15 V, TA = 25°C |
| VDD = 15 V, VSS = -15 V |
| VDD = 5 V, VSS = -5 V |
| VDD = 36 V, VSS = 0 V |
| VDD = 36 V, VSS = 0 V |
| VDD = 36 V, VSS = 0 V |
| VDD = 15 V, VSS = -15 V |
| VDD = +15 V, VSS = -15 V |
