6.10 THD + 噪聲
信號的總諧波失真 (THD) 是對諧波失真的度量，定義為多路復用器輸出端所有諧波分量的功率之和與基頻功率之比。該器件的導通電阻隨輸入信號振幅的變化而變化，當漏極引腳連接到低阻抗負載時，會導致失真。總諧波失真加噪聲表示為 THD + N。

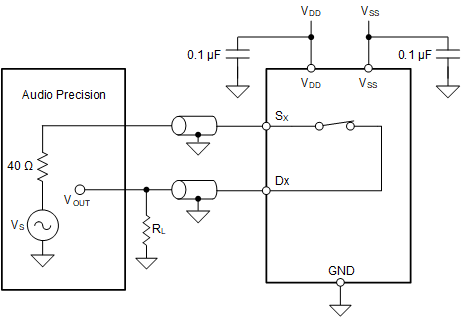

圖 6-10 THD + N 測量設置
