6.9 Bandwidth

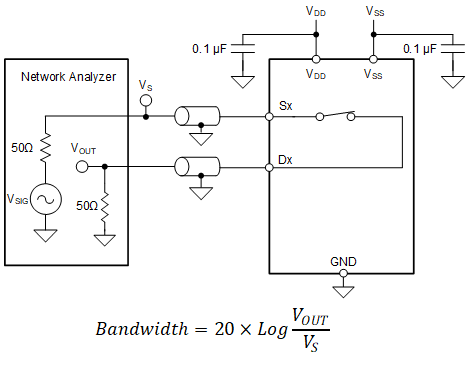

Bandwidth is defined as the range of frequencies that are attenuated by less than 3dB when the input is applied to the source pin (Sx) of an on-channel, and the output is measured at the drain pin (Dx) of the device. The characteristic impedance, Z0, for the measurement is 50Ω. Figure 6-9 shows the setup used to measure bandwidth.
Figure 6-9 Bandwidth Measurement Setup
