7.8 Off Isolation

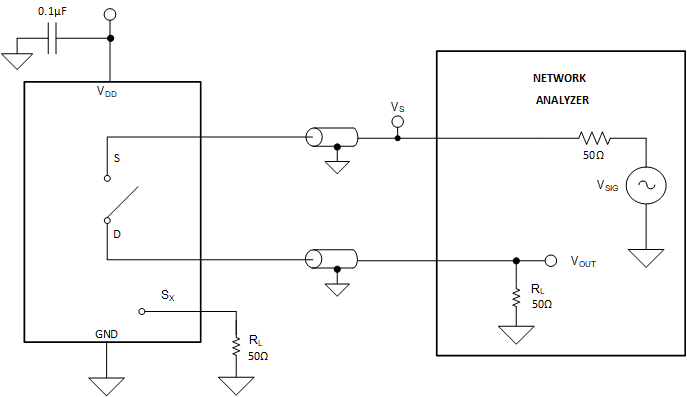

Off isolation is defined as the ratio of the signal at the drain pin (D) of the device when a signal is applied to the source pin (Sx) of an off-channel. Figure 14 shows the setup used to measure, and the equation used to calculate off isolation.
Figure 14. Off Isolation Measurement Setup Equation 1.
