ZHCSKJ0A December 2019 – March 2020 TLV752

PRODUCTION DATA.

封裝選項

機械數據 (封裝 | 引腳)

DSQ|10
- MPDS335B

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

6.6 Typical Characteristics

at operating temperature range T_J = 25°C, V_IN = V_OUT(NOM) + 0.5 V or 1.5 V (whichever is greater), I_OUT = 1 mA, V_EN = V_IN, and C_IN = C_OUT = 1 μF (unless otherwise noted)

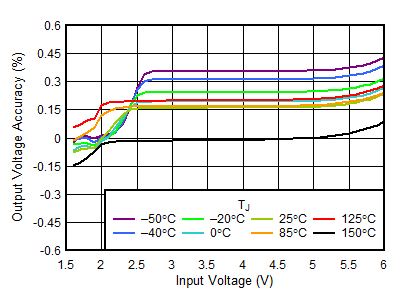

V_OUT = 3.3 V, I_OUT = 1 mA

Figure 1. 3.3-V Line Regulation vs V_IN

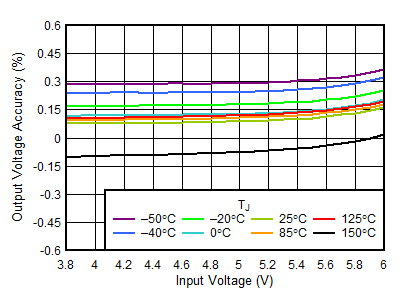

V_OUT = 5.5 V, I_OUT = 1 mA

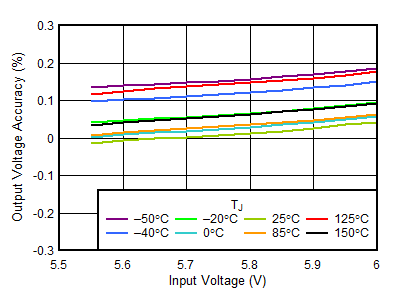

Figure 3. 5.5-V Line Regulation vs V_IN

Figure 5. 0.55-V Dropout Voltage vs I_OUT

I_OUT = 1 A

Figure 7. V_DO vs V_OUT

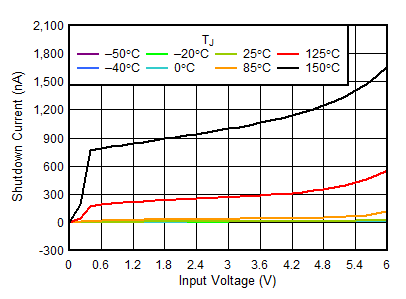

V_EN = 0 V

Figure 9. I_SHDN vs V_IN

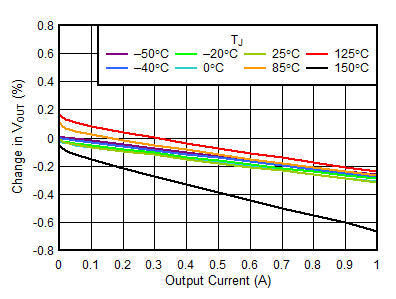

V_IN = 3.8 V, V_OUT = 3.3 V

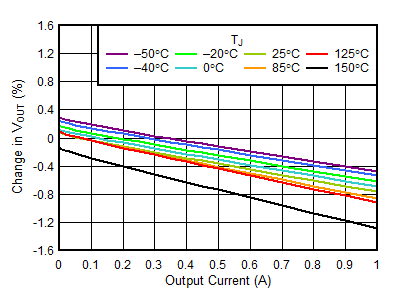

Figure 11. 3.3-V Load Regulation vs I_OUT

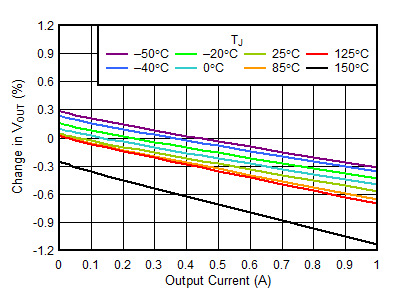

V_IN = 6 V, V_OUT = 5.5 V

Figure 13. 5-V Load Regulation vs I_OUT

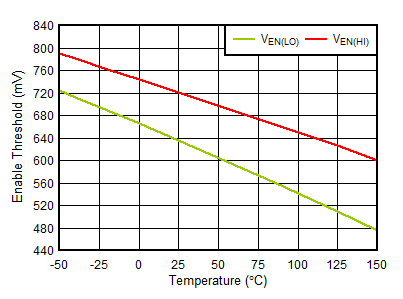

Figure 15. V_EN(HI) and V_EN(LO) vs Temperature

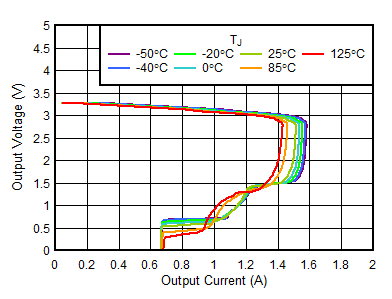

Figure 17. 3.3-V Foldback Current Limit vs I_OUT

V_OUT = 3.3 V, I_OUT = 1 mA, V_IN slew rate = 1 V/µs

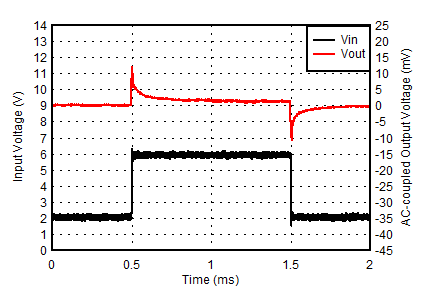

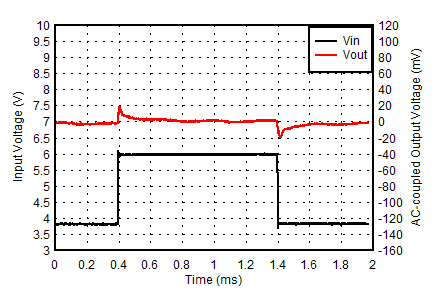

Figure 19. 3.3-V Line Transient

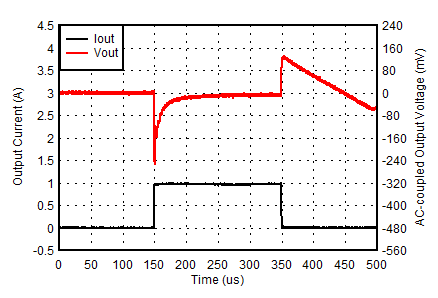

V_OUT = 5 V, V_IN = 5.5 V, I_OUT slew rate = 1 A/µs

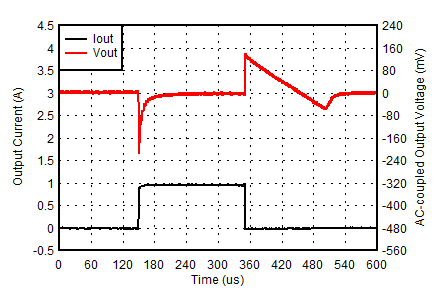

Figure 21. 1-mA to 1-A Load Transient (5 V)

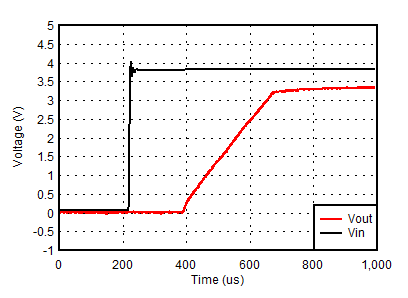

V_IN = 3.8 V, V_OUT = 3.3 V, I_OUT = 1 mA

Figure 23. V_IN Power-Up

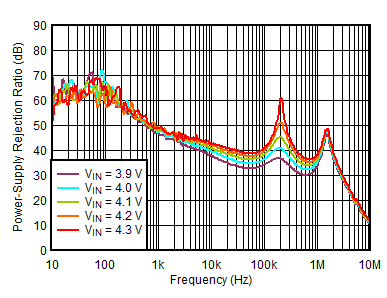

V_OUT = 3.3 V, I_OUT = 500 mA, C_OUT = 2.2 µF

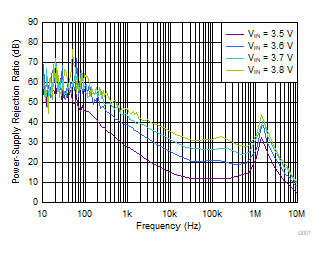

Figure 25. PSRR vs Frequency and V_IN

V_OUT = 3.3 V, I_OUT = 250 mA, C_OUT = 2.2 µF

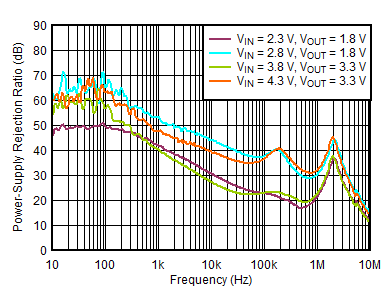

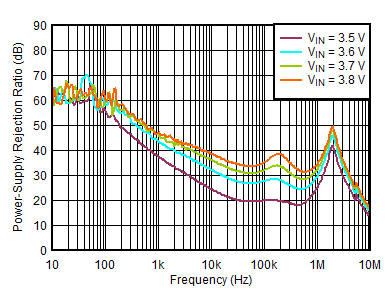

Figure 27. PSRR vs Frequency and V_IN

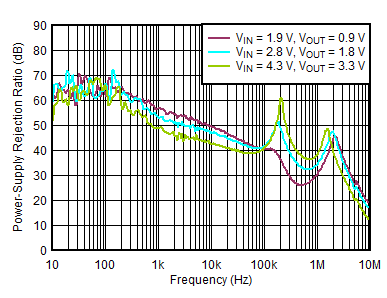

I_OUT = 500 mA, C_OUT = 2.2 µF

Figure 29. PSRR vs Frequency

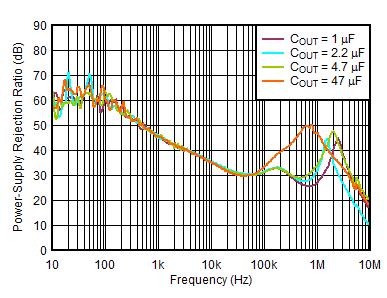

V_IN = 3.8 V, V_OUT = 3.3 V, I_OUT = 500 mA

Figure 31. PSRR vs Frequency and C_OUT

V_IN = 3.8 V, V_OUT = 3.3 V, C_OUT = 2.2 µF

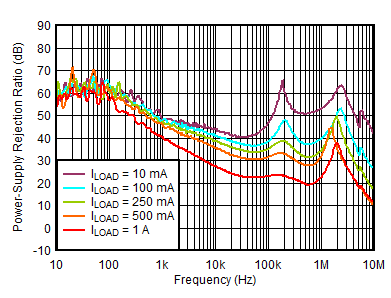

Figure 33. PSRR vs Frequency and I_LOAD

V_IN = 3.8 V, V_OUT = 3.3 V, C_OUT = 2.2 µF,
V_RMS BW = 10 Hz to 100 kHz

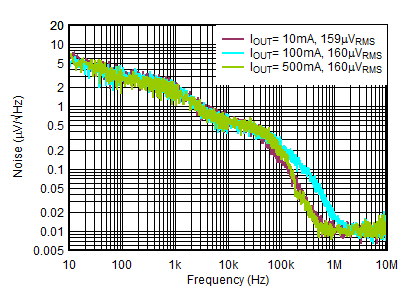

Figure 35. Output Spectral Noise Density vs Frequency

V_IN = 3.8 V, V_OUT = 3.3 V, I_OUT = 100 mA, C_FF = 0 µF,
V_RMS BW = 10 Hz to 100 kHz

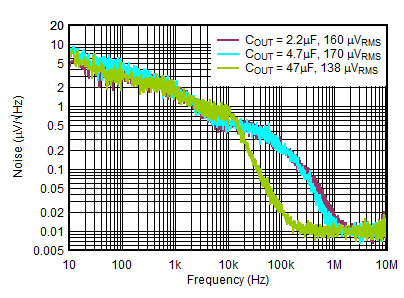

Figure 37. Output Spectral Noise Density vs
Frequency and C_OUT

V_OUT = 0.55 V, I_OUT = 1 mA

Figure 2. 0.55-V Line Regulation vs V_IN

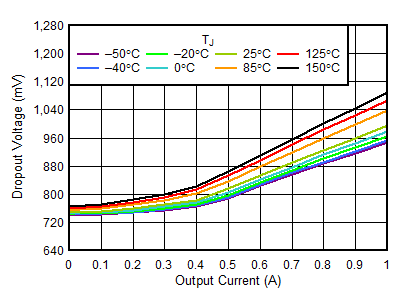

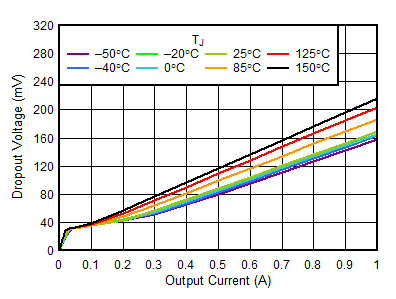

Figure 4. 3.3-V Dropout Voltage vs I_OUT

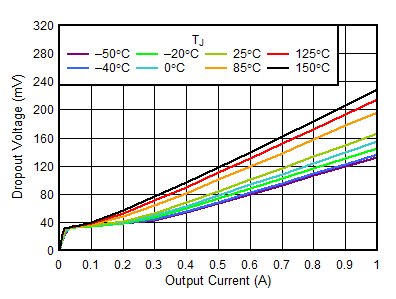

Figure 6. 5.5-V Dropout Voltage vs I_OUT

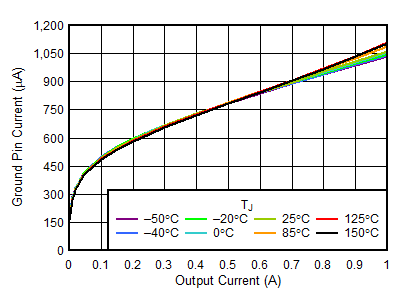

Figure 8. I_GND vs I_OUT

V_OUT = 3.3 V, I_OUT = 0 mA

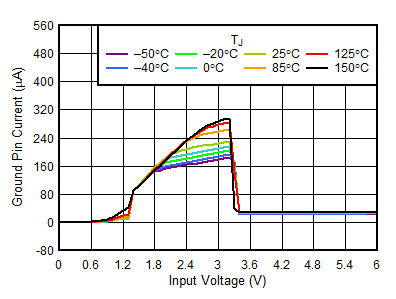

Figure 10. I_GND vs V_IN

V_IN = 2 V, V_OUT = 0.55 V

Figure 12. 0.55-V Load Regulation vs I_OUT

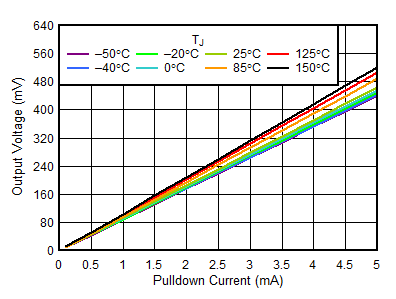

Figure 14. V_OUT vs I_OUT Pulldown Resistor

V_EN = 5.5 V

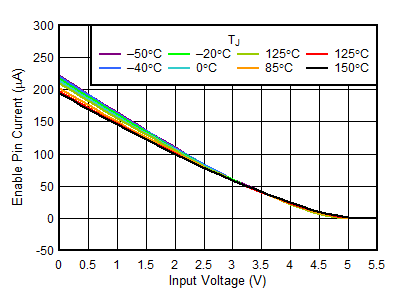

Figure 16. I_EN vs V_IN

V_OUT = 0.55 V, I_OUT = 1 mA, V_IN slew rate = 1 V/µs

Figure 18. 0.55-V Line Transient

V_OUT = 0.55 V, V_IN = 2 V, I_OUT slew rate = 1 A/µs

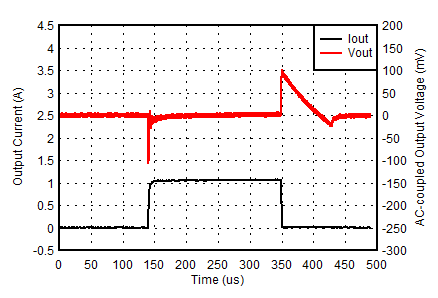

Figure 20. 1-mA to 1-A Load Transient (0.55 V)

V_OUT = 3.3 V, V_IN = 3.8 V, I_OUT slew rate = 1 A/µs

Figure 22. 1-mA to 1-A Load Transient (3.3 V)

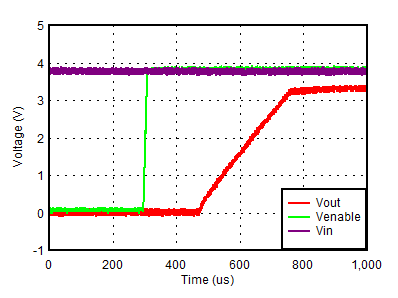

V_IN = 3.8 V, V_OUT = 3.3 V, I_OUT = 1 mA

Figure 24. Startup With EN

V_OUT = 3.3 V, I_OUT = 500 mA, C_OUT = 2.2 µF

Figure 26. PSRR vs Frequency and V_IN

V_OUT = 3.3 V, I_OUT = 250 mA, C_OUT = 2.2 µF

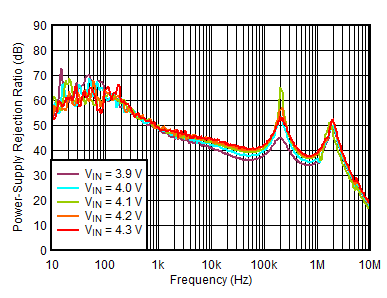

Figure 28. PSRR vs Frequency and V_IN

I_OUT = 1 A, C_OUT = 2.2 µF

Figure 30. PSRR vs Frequency

V_IN = 3.8 V, V_OUT = 3.3 V, I_OUT = 500 mA

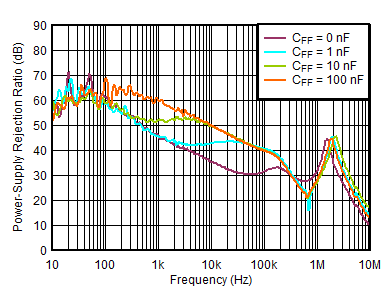

Figure 32. PSRR vs Frequency and C_FF

V_IN = 3.8 V, V_OUT = 3.3 V, C_OUT = 4.7 µF,
V_RMS BW = 10 Hz to 100 kHz

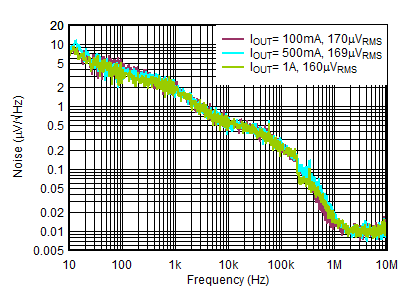

Figure 34. Output Spectral Noise Density vs Frequency

V_IN = 3.8 V, V_OUT = 3.3 V, I_OUT = 500 mA, C_OUT = 2.2 µF,
V_RMS BW = 10 Hz to 100 kHz

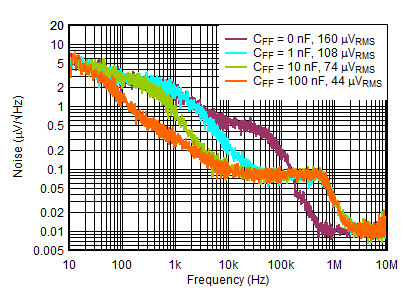

Figure 36. Output Spectral Noise Density vs
Frequency and C_FF

I_OUT = 500 mA, C_OUT = 2.2 µF, V_RMS BW = 10 Hz to 100 kHz

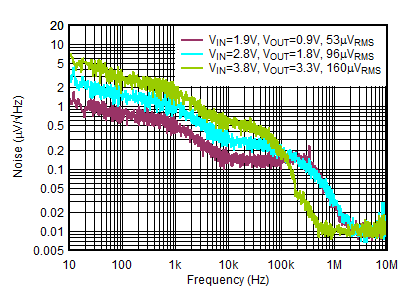

Figure 38. Output Spectral Noise Density vs Frequency
