5.1 Pin Functions: TLV7034/44

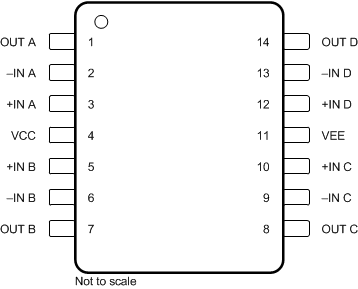

Figure 5-3 TLV7034/44 PW Packages14-Pin TSSOP
Top View
Table 5-3 Pin Functions: TLV7034/44
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | TSSOP | ||
| –IN1 A | 2 | I | Inverting input, channel A |
| +IN A | 3 | I | Noninverting input, channel A |
| –IN B | 6 | I | Inverting input, channel B |
| +IN B | 5 | I | Noninverting input, channel B |
| –IN C | 9 | I | Inverting input, channel C |
| +IN C | 10 | I | Noninverting input, channel C |
| –IN D | 13 | I | Inverting input, channel D |
| +IN D | 12 | I | Noninverting input, channel D |
| NC | — | — | No internal connection |
| OUT A | 1 | O | Output, channel A |
| OUT B | 7 | O | Output, channel B |
| OUT C | 8 | O | Output, channel C |
| OUT D | 14 | O | Output, channel D |
| VEE | 11 | — | Negative (lowest) supply or ground (for single-supply operation) |
| VCC | 4 | — | Positive (highest) supply |
