9.1.2 Monitoring VDD
Many applications monitor the same rail that is powering VDD. In these applications the resistor divider is simply connected to the VDD rail.

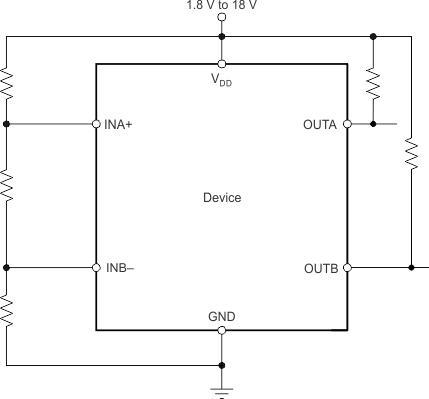

Figure 9-2 Monitoring the Same Voltage as VDD
