9.3.4 Various Output Voltages
The following example circuits show how to configure the external circuitry to furnish different output voltages at 3 A.
spacing
spacing

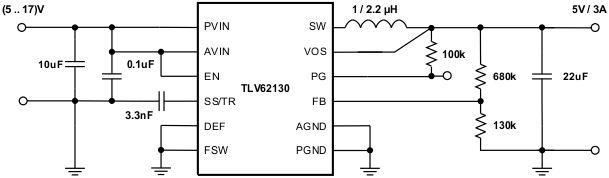

Figure 41. 5-V / 3-A Power Supply spacing
spacing

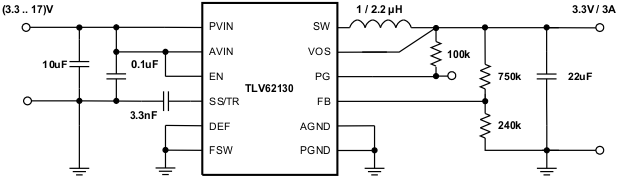

Figure 42. 3.3-V / 3-A Power Supply spacing
spacing
Figure 43. 2.5-V / 3-A Power Supply spacing
spacing

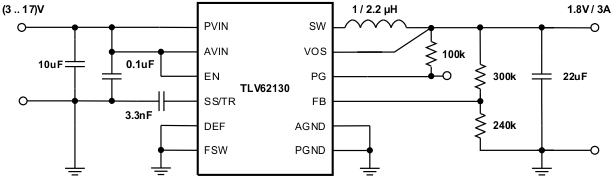

Figure 44. 1.8-V / 3-A Power Supply spacing
spacing
Figure 45. 1.5-V / 3-A Power Supply spacing
spacing
Figure 46. 1.2-V / 3-A Power Supply spacing
spacing

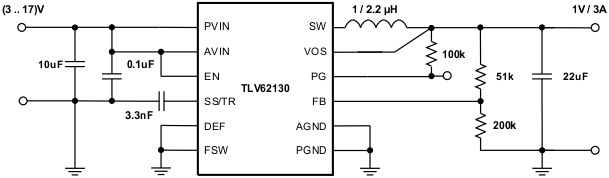

Figure 47. 1-V / 3-A Power Supply spacing
