5.8 Typical Characteristics
Operation of the device at these or any other conditions beyond those indicated in the Recommended Operating Conditions table are not implied.

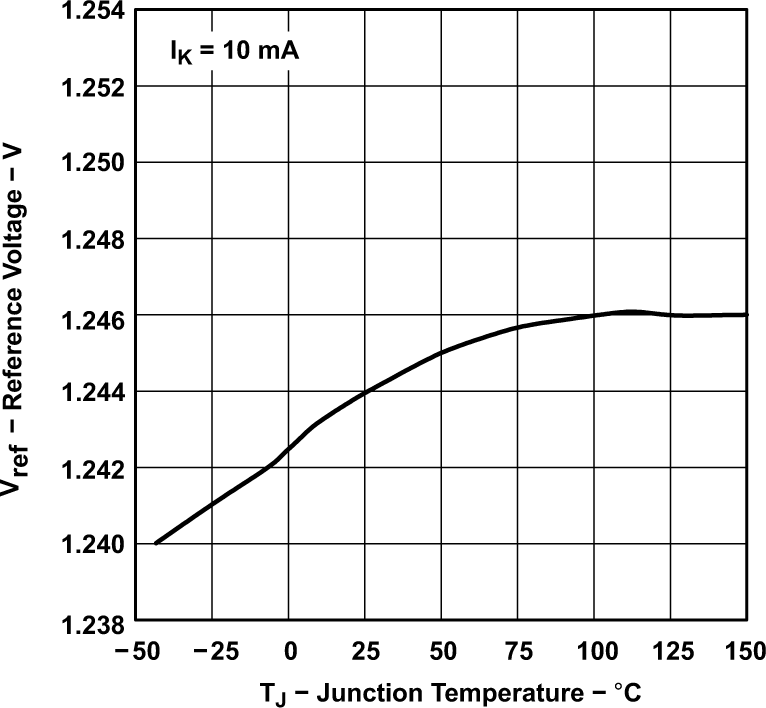

Figure 5-1 Reference Voltage vs Junction Temperature

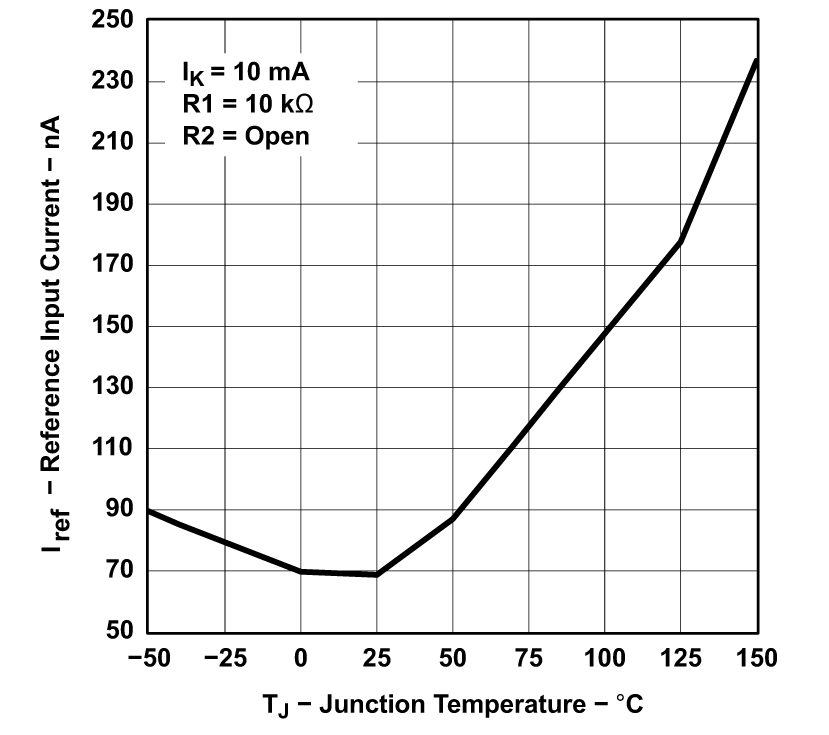

Figure 5-3 Reference Input Current vs Junction Temperature (for TLV431B)

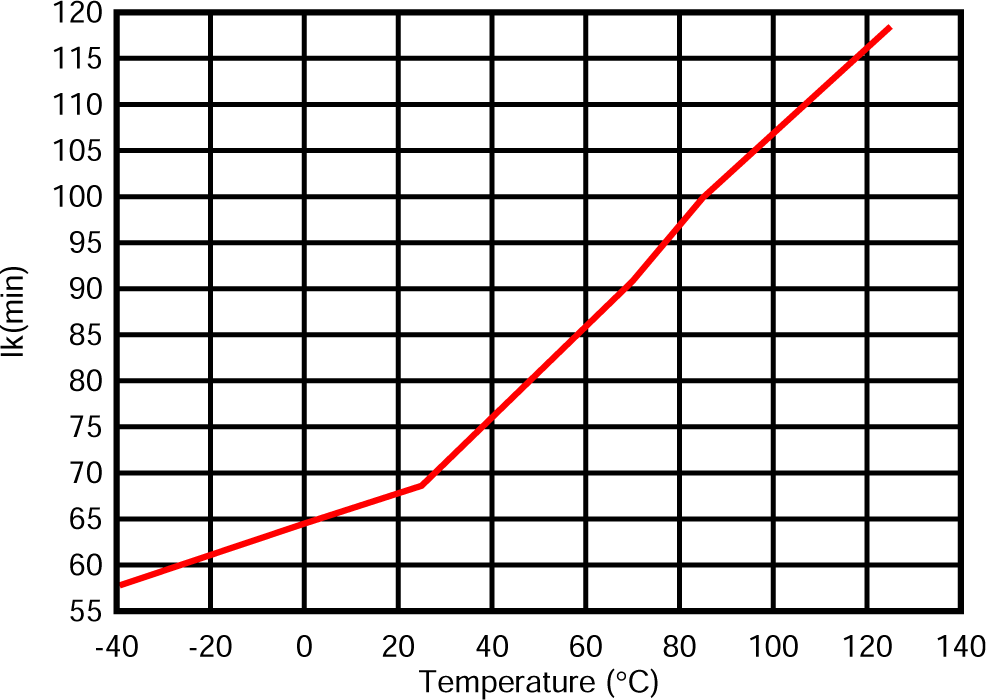

Figure 5-5 Minimum Cathode Current vs Temperature

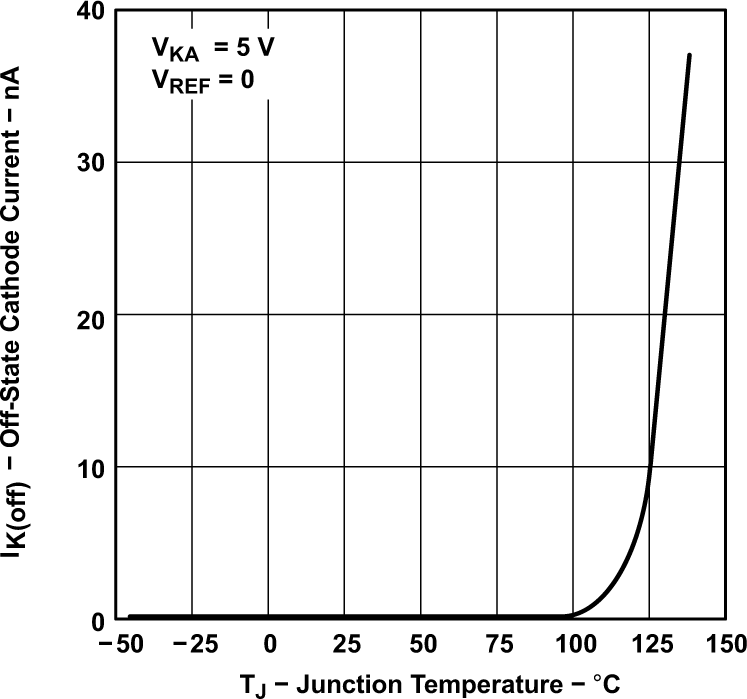

Figure 5-7 Off-State Cathode Current vs Junction Temperature (for TLV431 and
TLV431A)

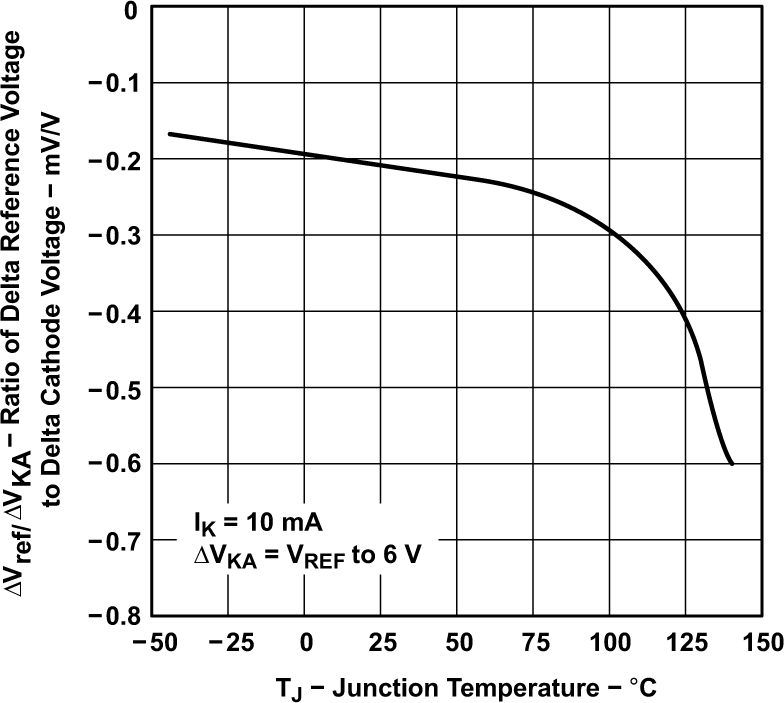

Figure 5-9 Ratio of Delta Reference Voltage to Delta Cathode Voltage vs Junction
Temperature (for TLV431 and TLV431A)?Extrapolated from Life-test Data Taken at 125°C; the Activation Energy Assumed Is 0.7 eV.

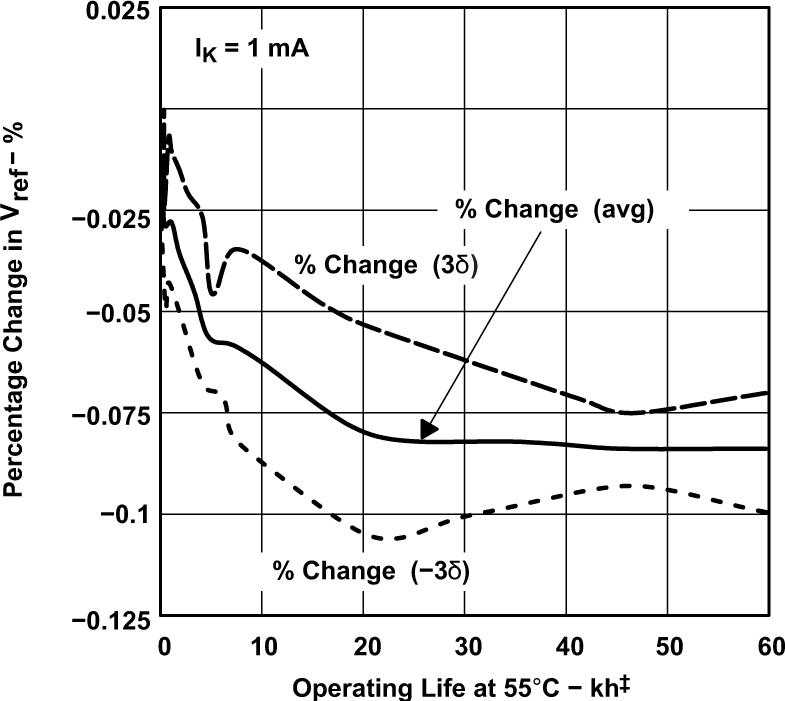

Figure 5-11 Percentage Change in vREF vs Operating Life at 55°C
Figure 5-2 Reference Input Current vs Junction Temperature (for TLV431 and
TLV431A)

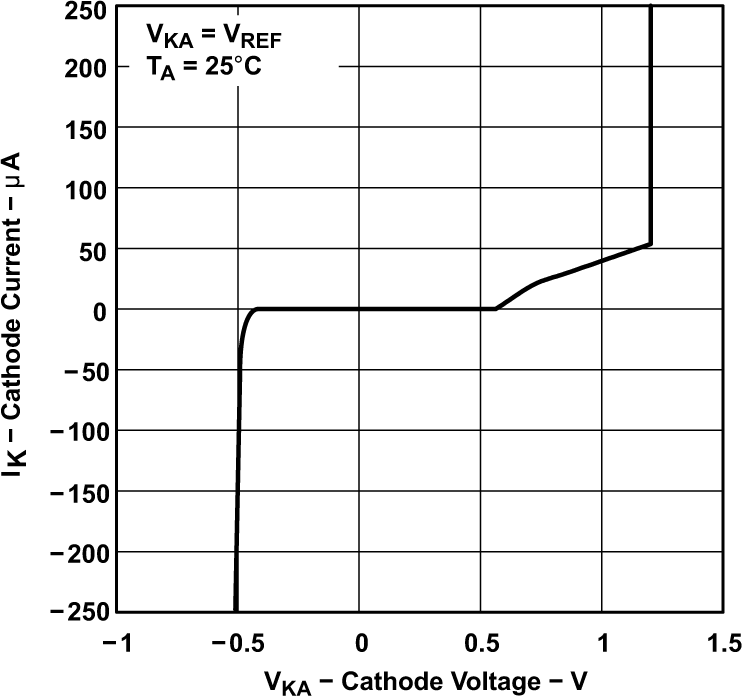

Figure 5-4 Cathode Current vs Cathode Voltage
Figure 5-6 Cathode Current vs Cathode Voltage

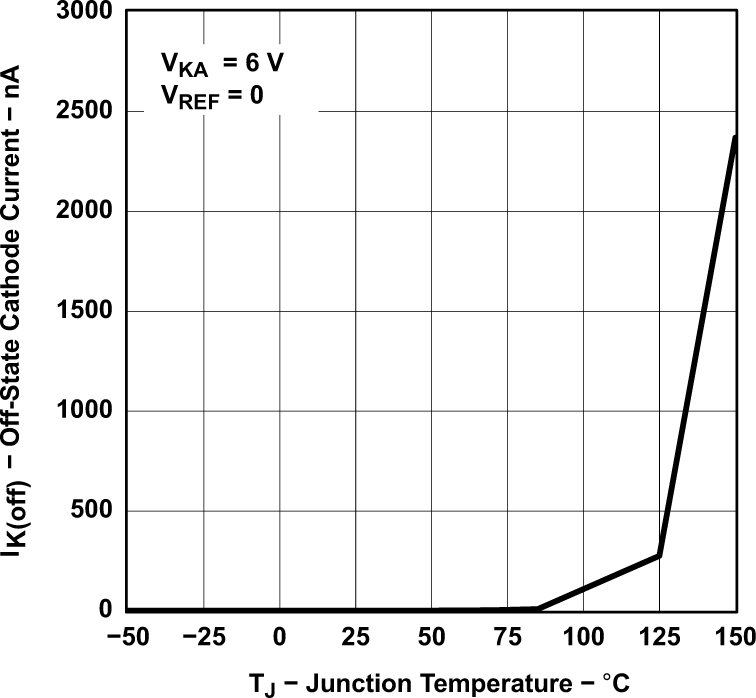

Figure 5-8 Off-State Cathode Current vs Junction Temperature (for TLV431B)

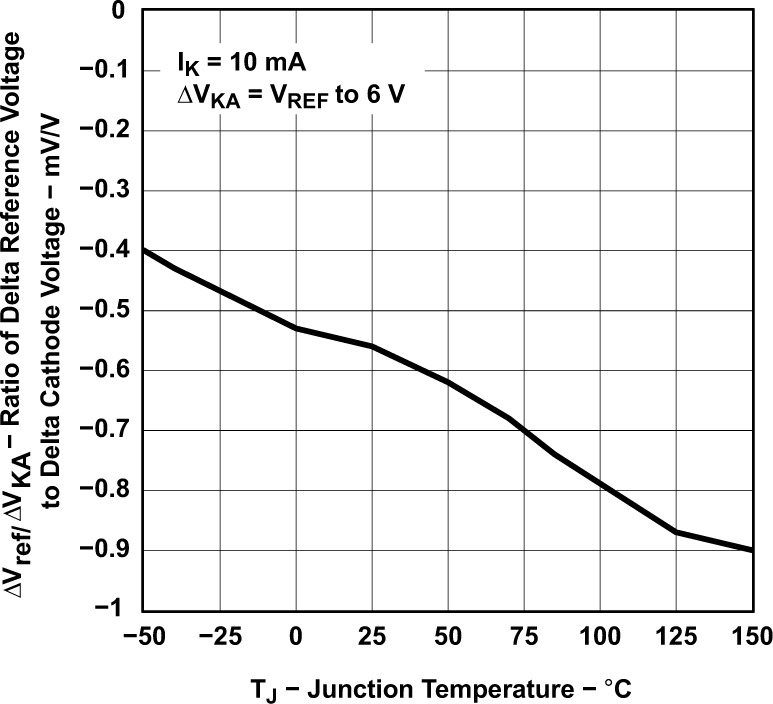

Figure 5-10 Ratio of Delta Reference Voltage to Delta Cathode Voltage vs Junction
Temperature (for TLV431B)

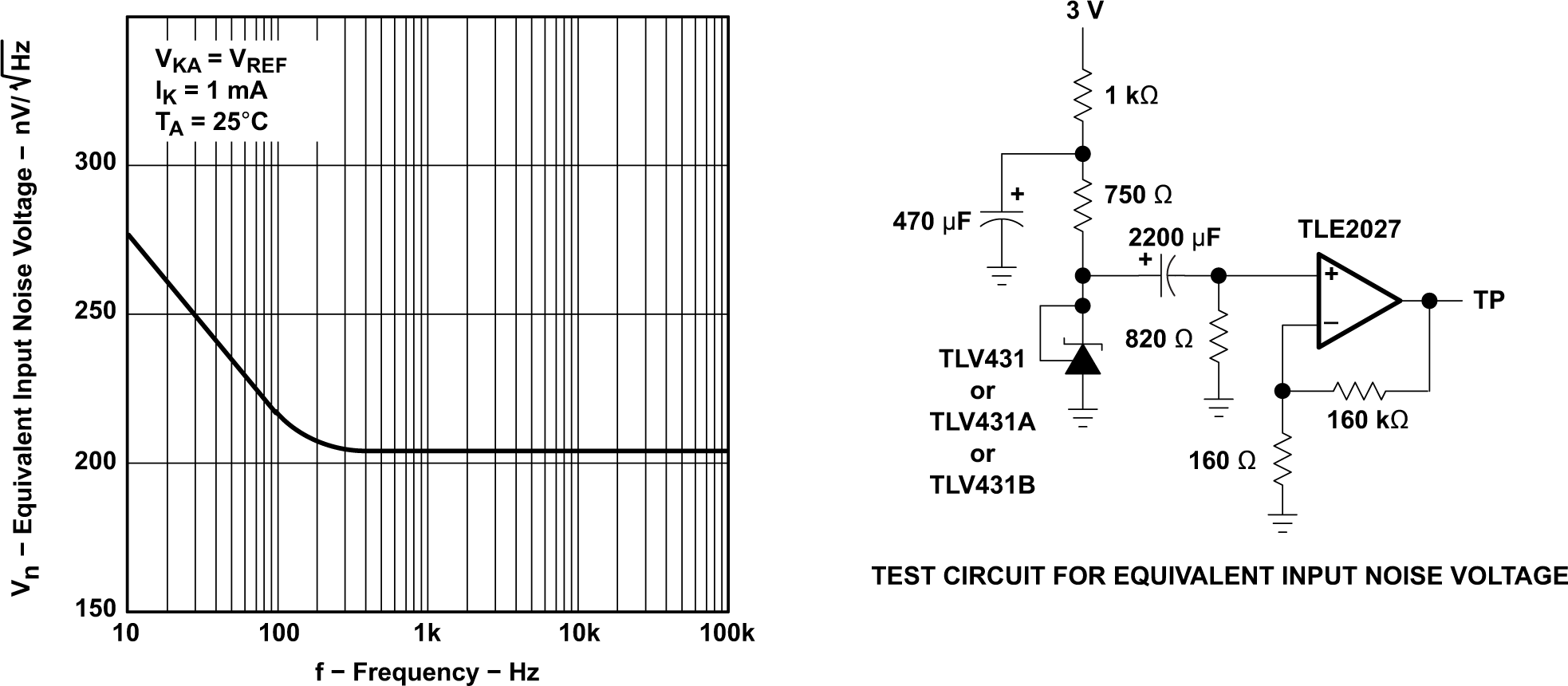

Figure 5-12 Equivalent Input Noise
Voltage

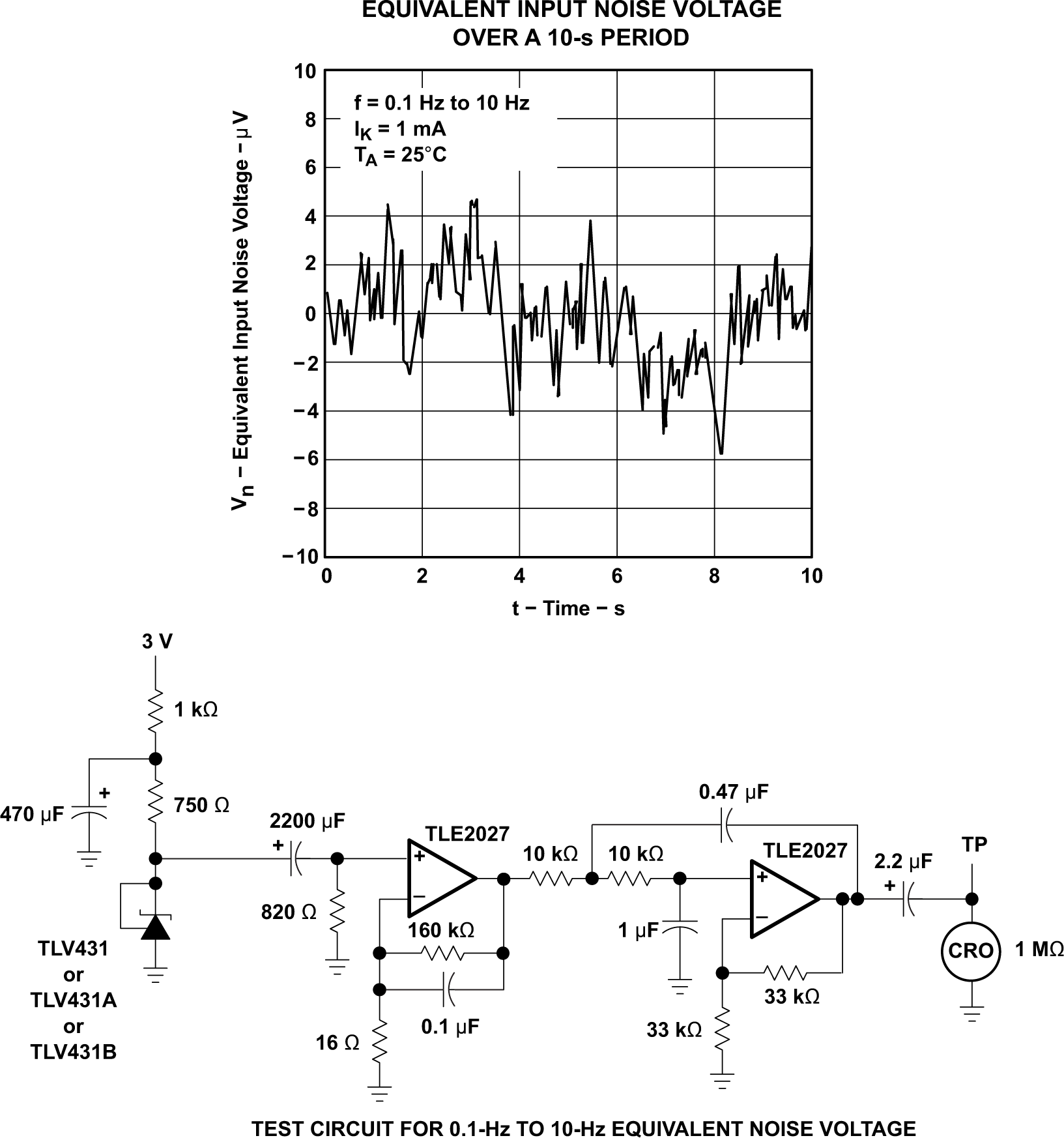

Figure 5-13 Equivalent Noise Voltage
over a 10S Period

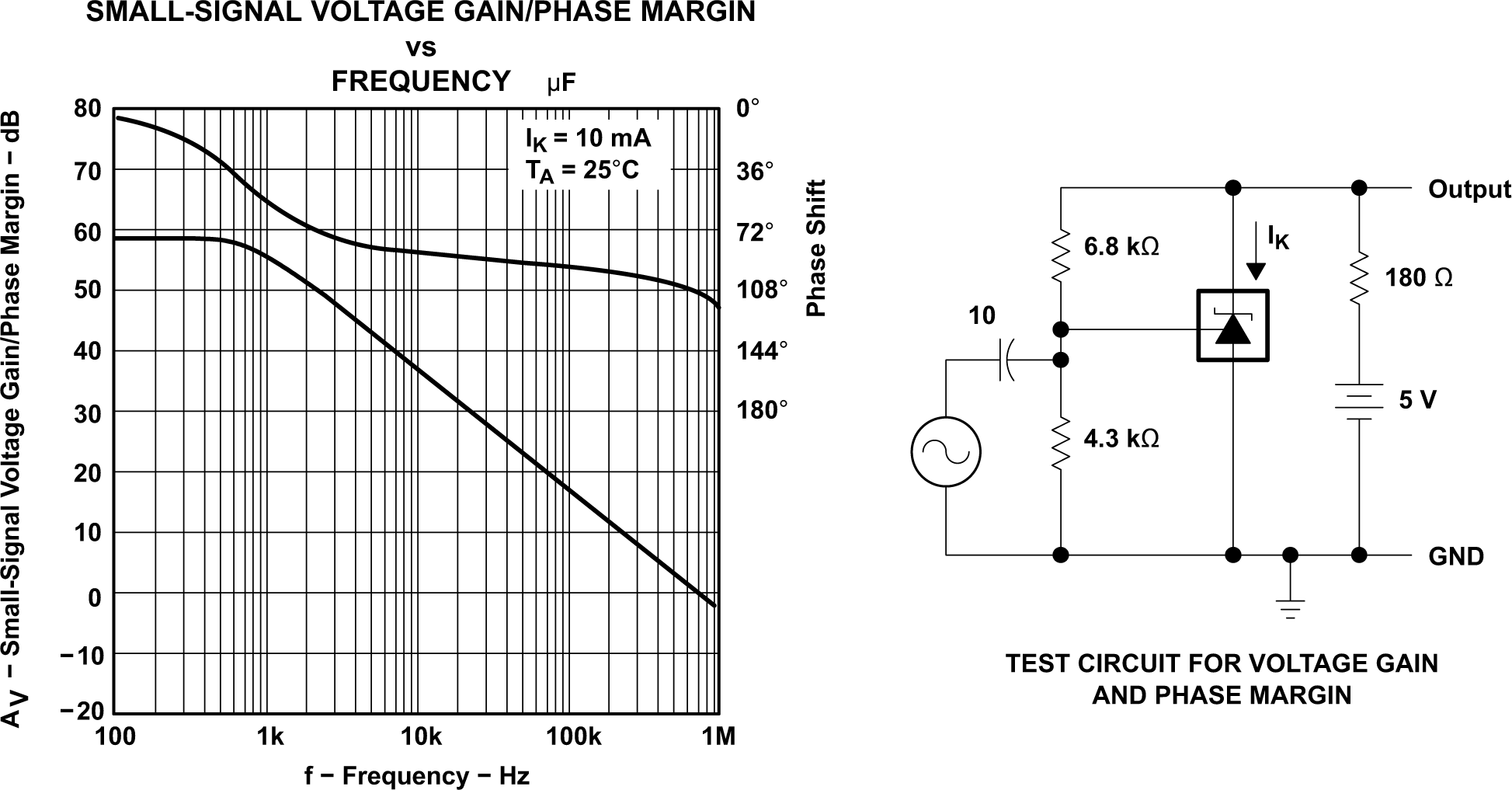

Figure 5-14 Voltage Gain and Phase
Margin

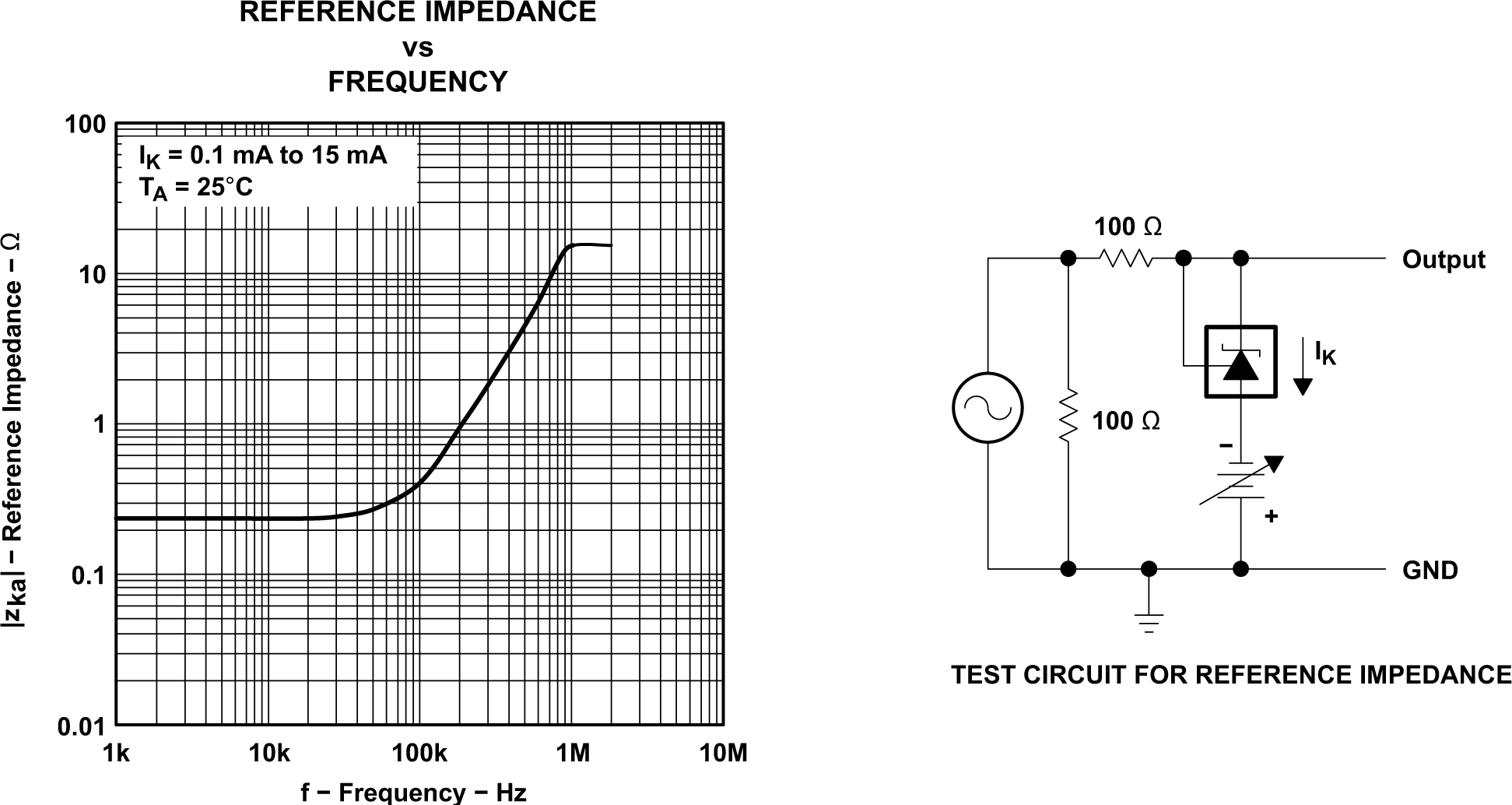

Figure 5-15 Reference Impedance vs
Frequency
Figure 5-16 Pulse Response 1

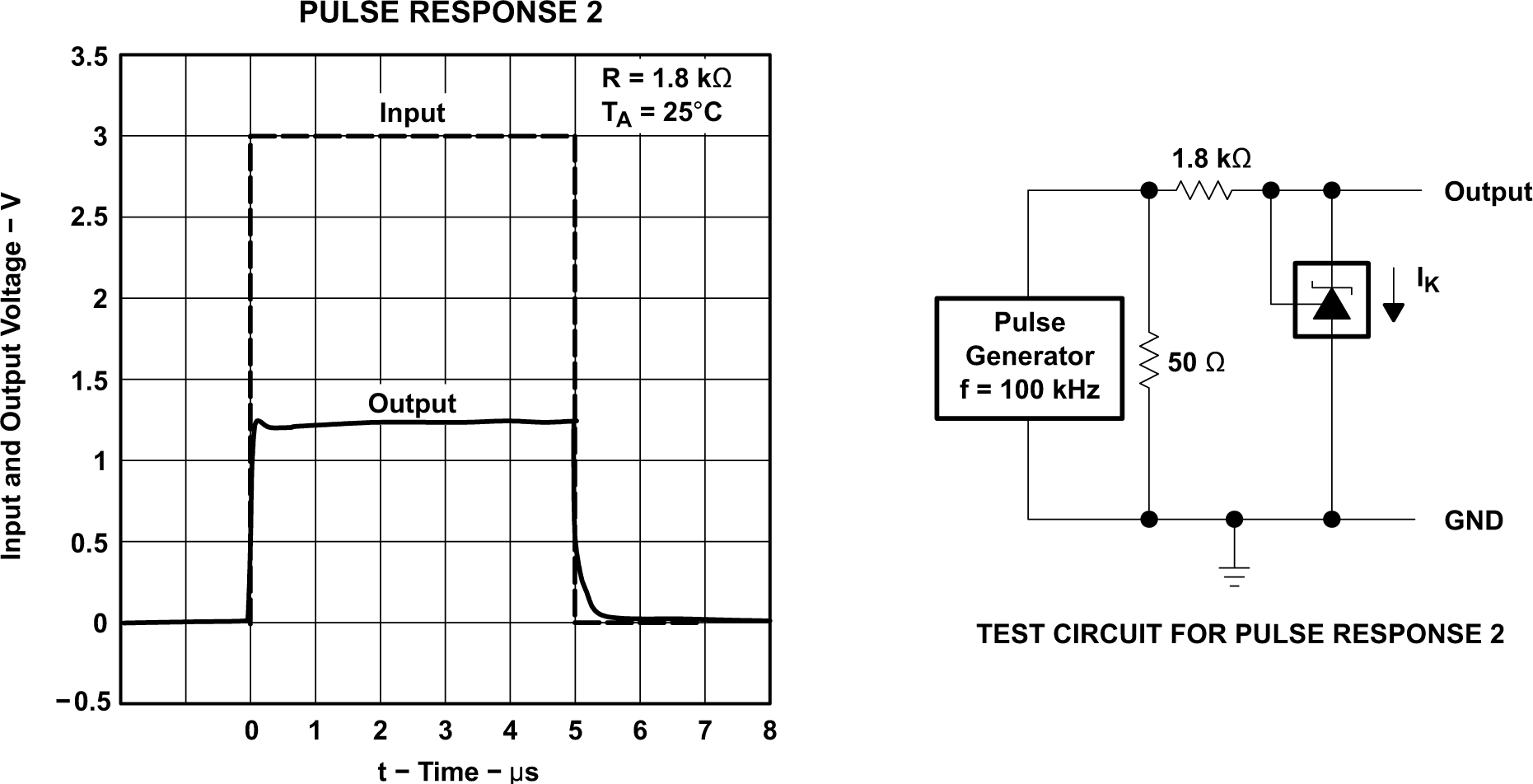

Figure 5-17 Pulse Response 2
?The areas under the curves represent conditions that can
cause the device to oscillate. For VKA = 2V and 3V curves, R2 and
Vbat were adjusted to establish the initial VKA
and IK conditions with CL = 0. Vbat and
CL then were adjusted to determine the ranges of
stability.

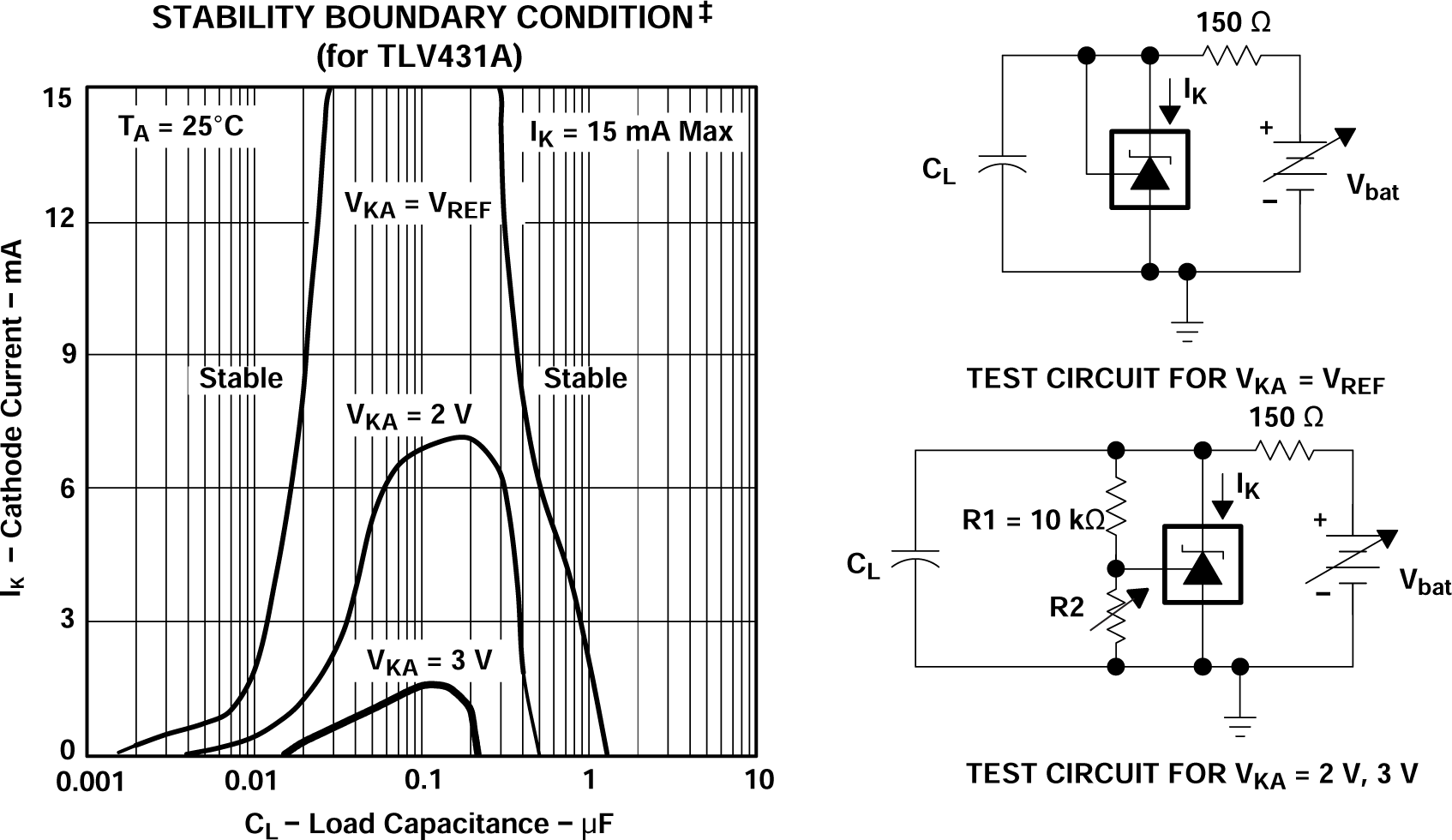

Figure 5-18 Stability Boundary
Conditions

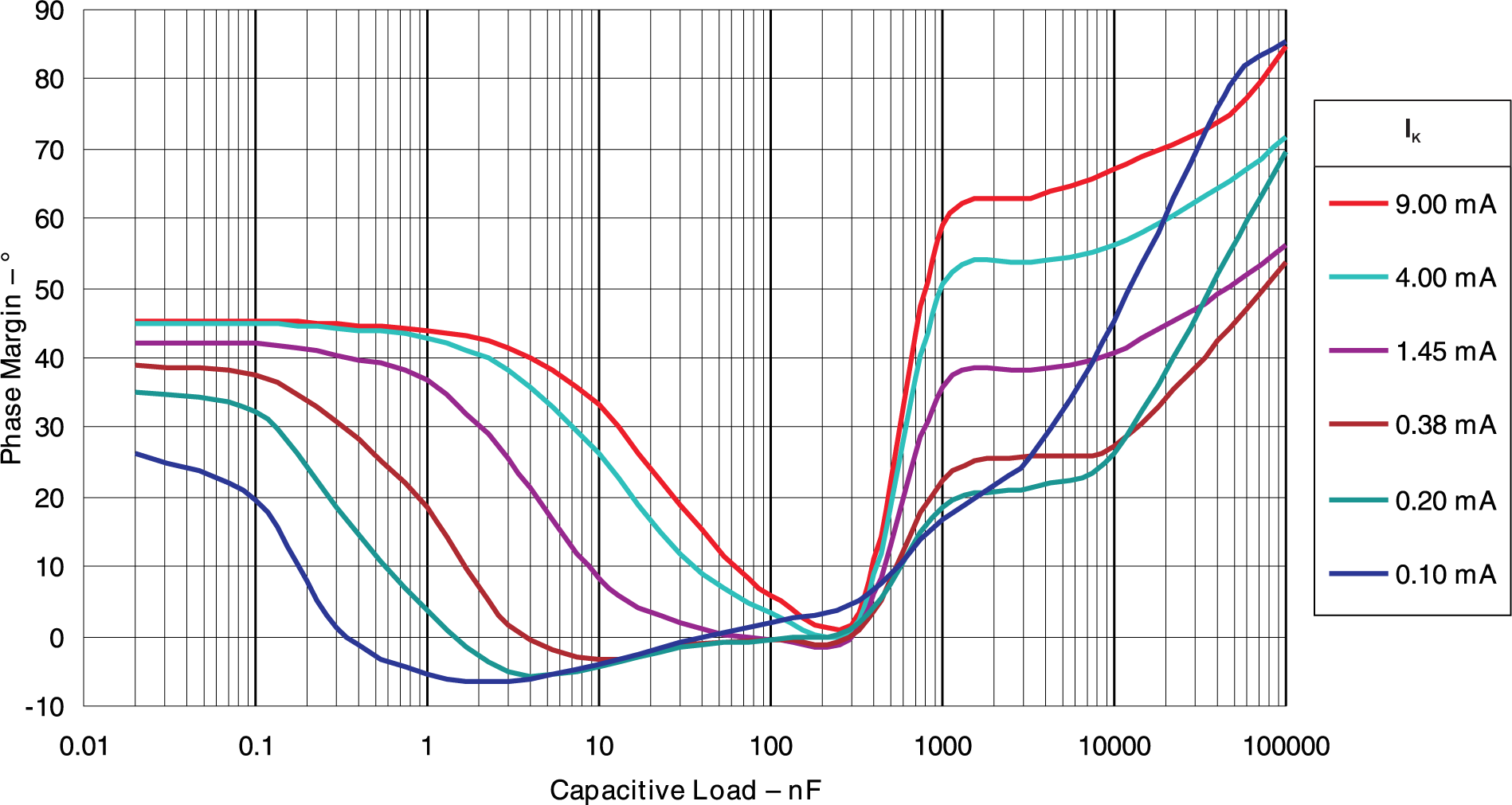

Figure 5-19 Phase Margin vs Capacitive
Load vKA = VREF (1.25V), TA= 25°C

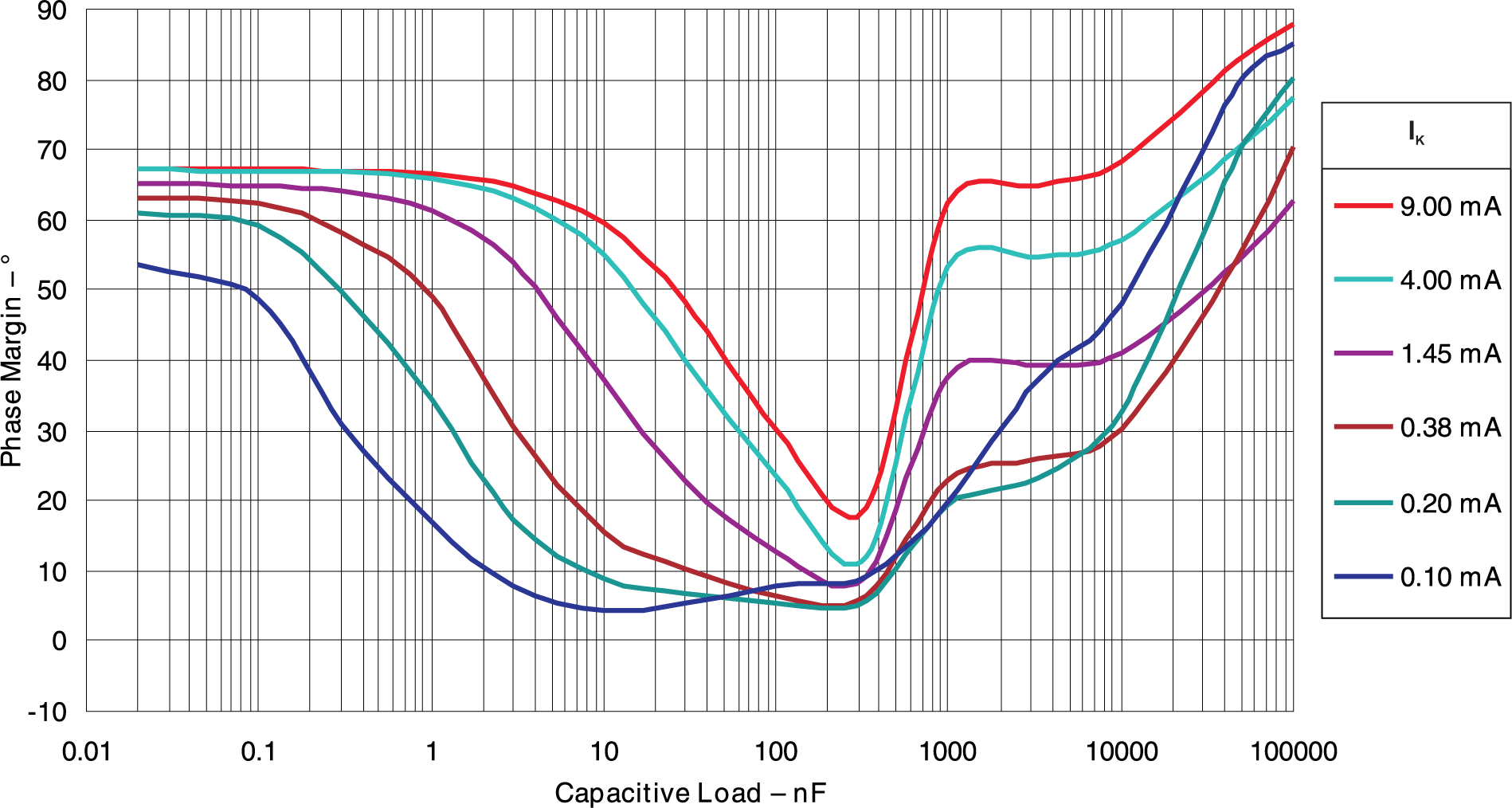

Figure 5-20 Phase Margin vs Capacitive
Load vKA = 2.50V, TA= 25°C

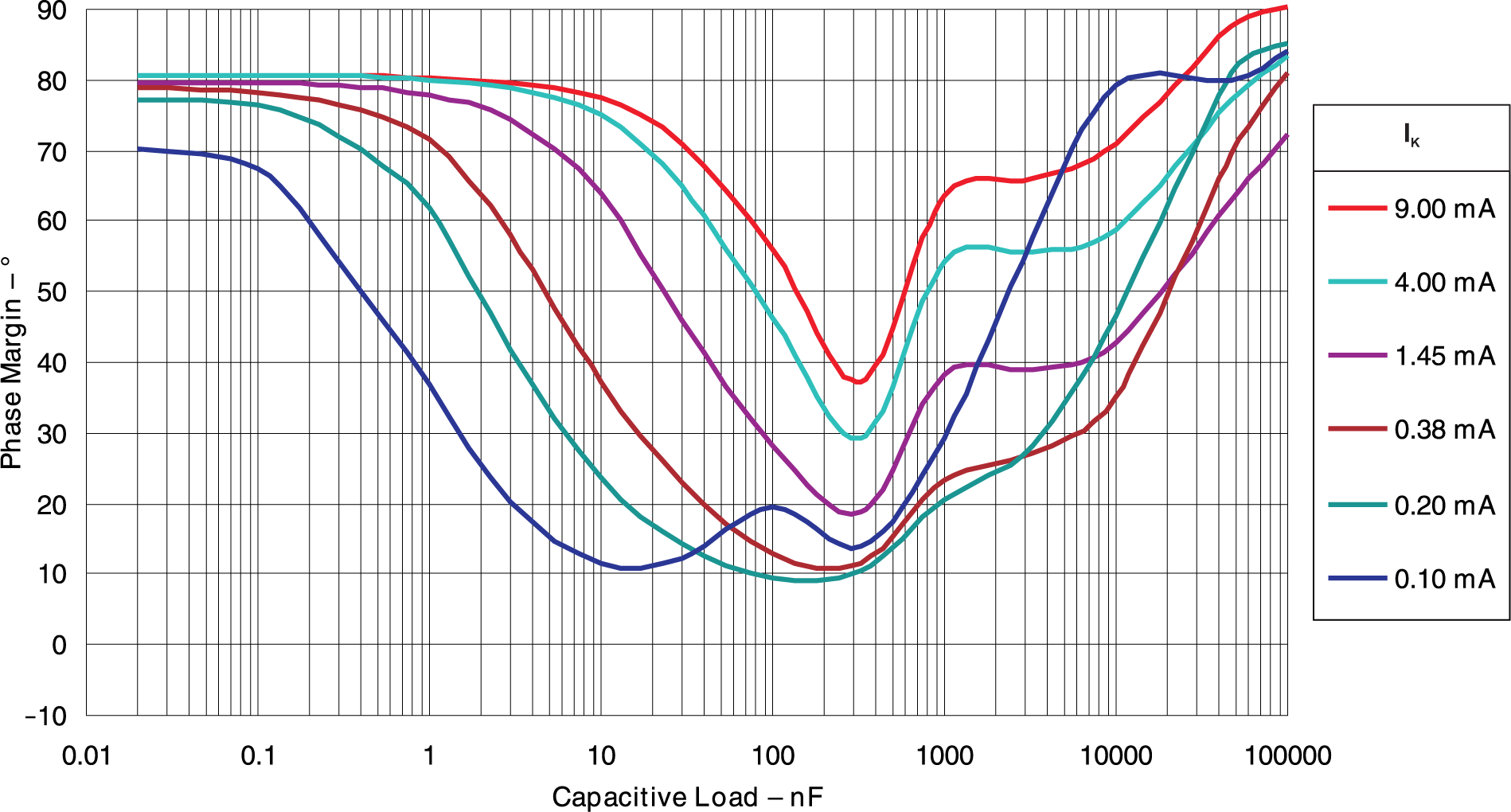

Figure 5-21 Phase Margin vs Capacitive
Load vKA = 5.00V, TA= 25°C
