8.4.3 Switching Thresholds and Hysteresis (VHYS)
The TLV40x1 transfer curve is shown in #SLVSCI79397.
- VIT+ represents the positive-going input threshold that causes the comparator output to change from a logic low state to a logic high state.
- VIT- represents the negative-going input threshold that causes the comparator output to change from a logic high state to a logic low state.
- VHYS represents the difference between VIT+ and VIT- and is 20 mV for TLV40x1Ry and 54 mV for TLV4021S5x.

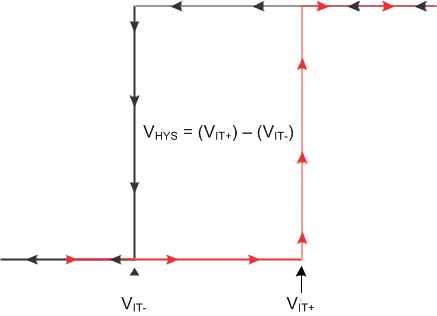

Figure 8-5 Transfer CurveVIT+ and VIT- have mV's of variation over temperature. The significant portion of the variation of these parameters is a result of the internal bandgap voltage from which VIT+ and VIT- are derived. The following hysteresis histograms demonstrate the performance of the TLV40x1 hysteresis circuitry. Since the bandgap reference is used to set VIT+ and VIT-, each of these parameters have a tendency to error (track) in the same direction. For example, if VIT+ has a positive 0.5% error, VIT- would have a tendency to have a similar positive percentage error. As a result, the variation of hysteresis will never be equal to the difference of the highest VIT+ value of its range and the lowest VIT- value of its range.
Figure 8-6 VHYST Histogram (TLV40x1R2, VS=5V)
Figure 8-8 VHYST Histogram (TLV40x1S5, VS=5V)
Figure 8-7 VHYST Histogram (TLV40x1R1, VS=5V)
