ZHCSE78A December 2011 – September 2015 TLV320AIC3262

PRODUCTION DATA.

封裝選項

機械數據 (封裝 | 引腳)

YZF|81
- MXBG143B

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

8 Specifications

8.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted) ⁽¹⁾

	MIN	MAX	UNIT
AVDD1_18, AVDD2_18, AVDD4_18, AVDD_18 to AVSS1, AVSS2, AVSS4, AVSS respectively⁽²⁾	–0.3	2.2	V
AVDD3_33 to AVSS3 and RECVDD_33 to RECVSS	–0.3	3.9	V
DVDD to DVSS	–0.3	2.2	V
IOVDD to IOVSS	–0.3	3.9	V
HVDD_18 to AVSS	–0.3	2.2	V
CPVDD_18 to CPVSS	–0.3	2.2	V
SLVDD to SLVSS, SRVDD to SRVSS, SPK_V to SRVSS⁽³⁾	–0.3	6	V
Digital Input voltage to ground	IOVSS – 0.3	IOVDD + 0.3	V
Analog input voltage to ground	AVSS – 0.3	AVDDx_18 + 0.3	V
VBAT	–0.3	6	V
Operating temperature	–40	85	°C
Junction temperature (T_J Max)		105	°C
Storage temperature, T_stg	–55	125	°C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) TI recommends to keep all AVDDx_18 supplies within ± 50 mV of each other.

(3) TI recommends to keep SLVDD, SRVDD, and SPK_V supplies within ± 50 mV of each other.

8.2 ESD Ratings

			VALUE	UNIT
V_(ESD)	Electrostatic discharge	Human body model (HBM), per ANSI/ESDA/JEDEC JS-001⁽¹⁾	±2400	V
V_(ESD)	Electrostatic discharge	Charged-device model (CDM), per JEDEC specification JESD22-C101⁽²⁾	±1000	V

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

8.3 Recommended Operating Conditions

				MIN	NOM	MAX	UNIT
AVDD1_18, AVDD2_18, AVDD4_18, AVDD_18	Power Supply Voltage Range	Referenced to AVSS1, AVSS2, AVSS4, AVSS respectively⁽¹⁾ It is recommended to connect each of these supplies to a single supply rail.		1.5	1.8	1.95	V
AVDD3_33 , RECVDD_33		Referenced to AVSS3 and RECVSS respectively		1.65⁽³⁾	3.3	3.6
IOVDD		Referenced to IOVSS⁽¹⁾		1.1		3.6
DVDD⁽²⁾		Referenced to DVSS⁽¹⁾		1.26	1.8	1.95
CPVDD_18	Power Supply Voltage Range	Referenced to CPVSS ⁽¹⁾		1.26	1.8	1.95	V
HVDD_18		Referenced to AVSS⁽¹⁾	Ground-centered Configuration	1.5⁽³⁾	1.8	1.95
HVDD_18		Referenced to AVSS⁽¹⁾	Unipolar Configuration	1.65⁽³⁾		3.6
SLVDD⁽¹⁾	Power Supply Voltage Range	Referenced to SLVSS⁽¹⁾		2.7		5.5	V
SRVDD⁽¹⁾	Power Supply Voltage Range	Referenced to SRVSS⁽¹⁾		2.7		5.5	V
SPK_V⁽¹⁾	Power Supply Voltage Range	Referenced to SRVSS⁽¹⁾		2.7		5.5	V
VREF_SAR	External voltage reference for SAR	Referenced to AVSS			1.8	AVDDx_18	V
	PLL Input Frequency⁽⁴⁾	Clock divider uses fractional divide (D > 0), P=1, PLL_CLKIN_DIV=1, DVDD ≥ 1.65 V (Refer to table in SLAU309, Maximum TLV320AIC3262 Clock Frequencies)		10		20	MHz
	PLL Input Frequency⁽⁴⁾	Clock divider uses integer divide (D = 0), P=1, PLL_CLKIN_DIV=1, DVDD ≥ 1.65 V (Refer to table in SLAU309, Maximum TLV320AIC3262 Clock Frequencies)		0.512		20	MHz
MCLK	Master Clock Frequency	MCLK; Master Clock Frequency; IOVDD ≥ 1.65 V				50	MHz
MCLK	Master Clock Frequency	MCLK; Master Clock Frequency; IOVDD ≥ 1.1 V				33	MHz
SCL	SCL Clock Frequency					400	kHz
LOL, LOR	Stereo line output load resistance			0.6	10		kΩ
HPL, HPR	Stereo Headphone Output Load Resistance	Single-ended configuration		14.4	16		Ω
SPKLP-SPKLM, SPKRP-SPKRM	Speaker Output Load Resistance	Differential		7.2	8		Ω
RECP-RECM	Receiver output resistance	Differential		24.4	32		Ω
C_IN	Charge Pump Input Capacitor (CPVDD to CPVSS Pins)				10		µF
C_O	Charge Pump Output Capacitor (VNEG Pin)	Type X7R			2.2		µF
C_F	Charge Pump Flying Capacitor (CPFCP to CPFCM Pins)	Type X7R			2.2		µF
TOPR	Operating Temperature Range			–40		85	°C

(1) All grounds on board are tied together, so they should not differ in voltage by more than 0.1 V max, for any combination of ground signals. AVDDx_18 are within ±0.05 V of each other. SLVDD, SRVDD, and SPK_V are within ±0.05 V of each other.

(2) At DVDD values lower than 1.65V, the PLL does not function. Please see table in SLAU309, Maximum TLV320AIC3262 Clock Frequencies for details on maximum clock frequencies.

(3) Minimum voltage for HVDD_18 and RECVDD_33 should be greater than or equal to AVDD2_18. Minimum voltage for AVDD3_33 should be greater than or equal to AVDD1_18 and AVDD2_18.

(4) The PLL Input Frequency refers to clock frequency after PLL_CLKIN_DIV divider. Frequencies higher than 20 MHz can be sent as an input to this PLL_CLKIN_DIV and reduced in frequency prior to input to the PLL.

8.4 Thermal Information

THERMAL METRIC⁽¹⁾		TLV320AIC3262	UNIT
		YZF (DSBGA)
		81 PINS
R_θJA	Junction-to-ambient thermal resistance	39.1	°C/W
R_θJC(top)	Junction-to-case (top) thermal resistance	0.1	°C/W
R_θJB	Junction-to-board thermal resistance	12.0	°C/W
ψ_JT	Junction-to-top characterization parameter	0.7	°C/W
ψ_JB	Junction-to-board characterization parameter	11.5	°C/W

(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

8.5 Electrical Characteristics, SAR ADC

T_A = 25°C; AVDD_18, AVDDx_18, HVDD_18, CPVDD_18, DVDD, IOVDD = 1.8V; AVDD3_33, RECVDD_33 = 3.3V; SLVDD, SRVDD, SPK_V = 3.6V; f_S (Audio) = 48kHz; Audio Word Length = 16 bits; C_ext = 1μF on VREF_SAR and VREF_AUDIO pins; PLL disabled unless otherwise noted.

PARAMETER		TEST CONDITIONS	MIN	TYP	MAX	UNIT
SAR ADC INPUTS
Analog Input	Input voltage range	IN1L/AUX1 or IN1R/AUX2 Selected	0		VREF_SAR	V
	Input impedance	IN1L/AUX1 or IN1R/AUX2 Selected		1 ÷ (f × C_{SAR_IN})⁽¹⁾		kΩ
	Input capacitance, C_{SAR_IN}			25		pF
	Input leakage current			1		µA
Battery Input	VBAT Input voltage range	VBAT (Battery measurement) selected	2.2		5.5	V
	VBAT Input impedance			5		kΩ
	VBAT Input capacitance			25		pF
	VBAT Input leakage current			1		µA
SAR ADC CONVERSION
	Resolution	Programmable: 8-bit, 10-bit, 12-bit	8		12	Bits
	No missing codes	12-bit resolution		11		Bits
IN1L/ AUX1	Integral linearity	12-bit resolution, SAR ADC clock = Internal Oscillator Clock, Conversion clock = Internal Oscillator / 4, External Reference = 1.8 V⁽³⁾		±1		LSB
	Offset error			±1		LSB
	Gain error			0.07%
	Noise	DC voltage applied to IN1L/AUX1 = 1 V, SAR ADC clock = Internal Oscillator Clock, Conversion clock = Internal Oscillator / 4, External Reference = 1.8 V⁽²⁾⁽³⁾		±1		LSB
VBAT	Accuracy	12-bit resolution, SAR ADC clock = Internal Oscillator Clock, Conversion clock = Internal Oscillator / 4, Internal Reference = 1.25 V		2%
	Offset error			±2		LSB
	Gain error			1.5%
	Noise	DC voltage applied to VBAT = 3.6 V, 12-bit resolution, SAR ADC clock = Internal Oscillator Clock, Conversion clock = Internal Oscillator / 4, Internal Reference = 1.25 V		±0.5		LSB
CONVERSION RATE
	Normal conversion operation	12-bit resolution, SAR ADC clock = 12 MHz External Clock, Conversion clock = External Clock / 4, External Reference = 1.8 V⁽³⁾. With Fast SPI reading of data.			119	kHz
	High-speed conversion operation	8-bit resolution,SAR ADC clock = 12 MHz External Clock, Internal Conversion clock = External Clock (Conversion accuracy is reduced.), External Reference = 1.8 V⁽³⁾. With Fast SPI reading of data.			250	kHz
VOLTAGE REFERENCE - VREF_SAR
	Voltage range	Internal VREF_SAR		1.25 ± 0.05		V
	Voltage range	External VREF_SAR	1.25		AVDDx_18	V
	Reference Noise	CM=0.9V, C_ref = 1 μF		32		μV_RMS
	Decoupling Capacitor			1		μF

(1) SAR input impedance is dependent on the sampling frequency (f designated in Hz), and the sampling capacitor is C_{SAR_IN} = 25 pF.

(2) Noise from external reference voltage is excluded from this measurement.

(3) When utilizing External SAR reference, this external reference should be restricted V_{EXT_SAR_REF} ≤ AVDD_18 and AVDD2_18.

8.6 Electrical Characteristics, ADC

PARAMETER		TEST CONDITIONS	MIN	TYP	MAX	UNIT

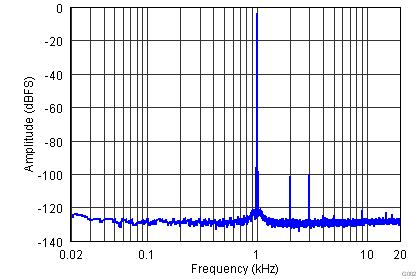

AUDIO ADC (CM = 0.9 V) ⁽¹⁾ ⁽²⁾
	Input signal level (0dB)	Single-ended, CM = 0.9 V		0.5		V_RMS
	Device Set-up	1-kHz sine wave input, Single-ended Configuration IN2R to Right ADC and IN2L to Left ADC, R_in = 20 kΩ, f_s = 48 kHz, AOSR = 128, MCLK = 256*f_s, PLL Disabled; AGC = OFF, Channel Gain = 0 dB, Processing Block = PRB_R1, Power Tune = PTM_R4
SNR	Signal-to-noise ratio, A-weighted⁽¹⁾ ⁽²⁾	Inputs AC-shorted to ground	85	93		dB
SNR	Signal-to-noise ratio, A-weighted⁽¹⁾ ⁽²⁾	IN1R, IN3R, IN4R each exclusively routed in separate tests to Right ADC and AC-shorted to ground IN1L, IN3L, IN4L each exclusively routed in separate tests to Left ADC and AC-shorted to ground		93		dB
DR	Dynamic range A-weighted⁽¹⁾ ⁽²⁾	–60-dB full-scale, 1-kHz input signal		93		dB
THD+N	Total Harmonic Distortion plus Noise	–3-dB full-scale, 1-kHz input signal		–87	–70	dB
THD+N	Total Harmonic Distortion plus Noise	IN1R,IN3R, IN4R each exclusively routed in separate tests to Right ADC IN1L, IN3L, IN4L each exclusively routed in separate tests to Left ADC –3dB full-scale, 1-kHz input signal		–87		dB
	Gain Error	1kHz sine wave input at –3-dBFS, Single-ended configuration R_in = 20K f_s = 48 kHz, AOSR=128, MCLK = 256* f_s, PLL Disabled AGC = OFF, Channel Gain=0dB, Processing Block = PRB_R1, Power Tune = PTM_R4, CM=0.9 V		0.1		dB
	Input Channel Separation	1kHz sine wave input at –3 dBFS, Single-ended configuration IN1L routed to Left ADC, IN1R routed to Right ADC, R_in = 20K AGC = OFF, AOSR = 128, Channel Gain=0 dB, CM=0.9 V		110		dB
	Input Pin Crosstalk	1kHz sine wave input at –3 dBFS on IN2L, IN2L internally not routed. IN1L routed to Left ADC, AC-coupled to ground		116		dB
		1kHz sine wave input at –3 dBFS on IN2R, IN2R internally not routed. IN1R routed to Right ADC, AC-coupled to ground
		Single-ended configuration R_in = 20 kΩ, AOSR = 128 Channel Gain = 0dB, CM = 0.9 V
	PSRR	217Hz, 100mVpp signal on AVDD_18, AVDDx_18 Single-ended configuration, Rin = 20 kΩ, Channel Gain = 0 dB; CM = 0.9 V		59		dB
AUDIO ADC (CM = 0.75 V)
	Input signal level (0dB)	Single-ended, CM=0.75 V, AVDD_18, AVDDx_18 = 1.5 V		0.375		V_RMS
	Device Set-up	1-kHz sine wave input, Single-ended Configuration IN2R to Right ADC and IN2L to Left ADC, R_in = 20K, f_s = 48 kHz, AOSR = 128, MCLK = 256*f_s, PLL Disabled; AGC = OFF, Channel Gain = 0dB, Processing Block = PRB_R1, Power Tune = PTM_R4
SNR	Signal-to-noise ratio, A-weighted ⁽¹⁾ ⁽²⁾	Inputs ac-shorted to ground		91		dB
SNR	Signal-to-noise ratio, A-weighted ⁽¹⁾ ⁽²⁾	IN1R, IN3R, IN4R each exclusively routed in separate tests to Right ADC and AC-shorted to ground IN1L, IN3L, IN4L each exclusively routed in separate tests to Left ADC and AC-shorted to ground		91		dB
DR	Dynamic range A-weighted⁽¹⁾ ⁽²⁾	–60-dB full-scale, 1-kHz input signal		91		dB
THD+N	Total Harmonic Distortion plus Noise	–3-dB full-scale, 1-kHz input signal		–85		dB

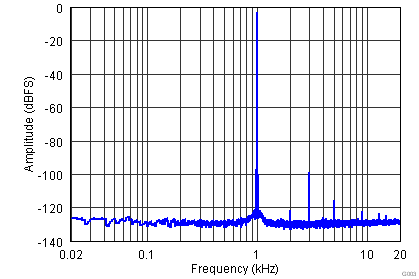

AUDIO ADC (Differential Input, CM = 0.9 V)
	Input signal level (0dB)	Differential, CM = 0.9 V, AVDD_18, AVDDx_18 = 1.8 V		1		V_RMS
	Device Set-up	1-kHz sine wave input, Differential Configuration IN1L, IN1R Routed to Right ADC, IN2L, IN2R Routed to Left ADC R_in = 20 kΩ, f_s = 48 kHz, AOSR = 128, MCLK = 256 × f_s, PLL Disabled, AGC = OFF, Channel Gain = 0dB, Processing Block = PRB_R1, Power Tune = PTM_R4
SNR	Signal-to-noise ratio, A-weighted ⁽¹⁾ ⁽²⁾	Inputs ac-shorted to ground		94		dB
DR	Dynamic range A-weighted⁽¹⁾ ⁽²⁾	–60-dB full-scale, 1-kHz input signal		94		dB
THD+N	Total Harmonic Distortion plus Noise	–3-dB full-scale, 1-kHz input signal		–88		dB
	Gain Error	1-kHz sine wave input at –3 dBFS, Differential configuration R_in = 20 kΩ, f_s = 48 kHz, AOSR=128, MCLK = 256* f_s, PLL Disabled AGC = OFF, Channel Gain=0 dB, Processing Block = PRB_R1, Power Tune = PTM_R4, CM=0.9 V		0.1		dB
	Input Channel Separation	1 kHz sine wave input at –3 dBFS, Differential configuration IN1L/IN1R differential signal routed to Right ADC, IN2L/IN2R differential signal routed to Left ADC, R_in = 20 kΩ AGC = OFF, AOSR = 128, Channel Gain=0 dB, CM=0.9 V		107		dB
	Input Pin Crosstalk	1kHz sine wave input at –3 dBFS on IN2L/IN2R, IN2L/IN2R internally not routed. IN1L/IN1R differentially routed to Right ADC, ac-coupled to ground		109		dB
		1kHz sine wave input at –3 dBFS on IN2L/IN2R, IN2L/IN2R internally not routed. IN3L/IN3R differentially routed to Left ADC, ac-coupled to ground
		Differential configuration R_in = 20 kΩ, AOSR=128 Channel Gain=0dB, CM=0.9 V
	PSRR	217 Hz, 100 mVpp signal on AVDD_18, AVDDx_18 Differential configuration, Rin=20K, Channel Gain=0 dB; CM=0.9 V		59		dB
AUDIO ADC
	ADC programmable gain amplifier gain	IN1 - IN3, Single-Ended, Rin = 10K, PGA gain set to 0 dB		0		dB
		IN1 - IN3, Single-Ended, Rin = 10K, PGA gain set to 47.5 dB		47.5		dB
		IN1 - IN3, Single-Ended, Rin = 20K, PGA gain set to 0 dB		–6		dB
		IN1 - IN3, Single-Ended, Rin = 20K, PGA gain set to 47.5 dB		41.5		dB
		IN1 - IN3, Single-Ended, Rin = 40K, PGA gain set to 0 dB		–12		dB
		IN1 - IN3, Single-Ended, Rin = 40K, PGA gain set to 47.5 dB		35.5		dB
		IN4, Single-Ended, Rin = 20K, PGA gain set to 0 dB		–6		dB
		IN4, Single-Ended, Rin = 20K, PGA gain set to 47.5 dB		41.5		dB
	ADC programmable gain amplifier step size	1-kHz tone		0.5		dB

(1) Ratio of output level with 1-kHz full-scale sine wave input, to the output level with the inputs short circuited, measured A-weighted over a 20-Hz to 20-kHz bandwidth using an audio analyzer.

(2) All performance measurements done with pre-analyzer 20-kHz low-pass filter and, where noted, A-weighted filter. Failure to use such a filter may result in higher THD+N and lower SNR and dynamic range readings than shown in the Electrical Characteristics. The low-pass filter removes out-of-band noise, which, although not audible, may affect dynamic specification values

8.7 Electrical Characteristics, Bypass Outputs

PARAMETER		TEST CONDITIONS	TYP	UNIT
ANALOG BYPASS TO RECEIVER AMPLIFIER, DIRECT MODE
	Device Setup	Load = 32 Ω (differential), 56 pF; Input CM=0.9 V; Output CM=1.65 V; IN1L routed to RECP and IN1R routed to RECM; Channel Gain=0 dB
	Full scale differential input voltage (0dB)		1	V_RMS
	Gain Error	707 mVrms (–3 dBFS), 1-kHz input signal	0.5	dB
	Noise, A-weighted⁽¹⁾	Idle Channel, IN1L and IN1R ac-shorted to ground	13	μV_RMS
THD+N	Total Harmonic Distortion plus Noise	707 mVrms (–3dBFS), 1-kHz input signal	–88	dB
ANALOG BYPASS TO HEADPHONE AMPLIFIER, PGA MODE
	Device Set-up	Load = 16 Ω (single-ended), 56 pF; HVDD_18 = 3.3 V Input CM=0.9 V; Output CM=1.65 V IN1L routed to ADCPGA_L, ADCPGA_L routed through MAL to HPL; and IN1R routed to ADCPGA_R, ADCPGA_R routed through MAR to HPR; R_in = 20K; Channel Gain = 0 dB
	Full scale input voltage (0dB)		0.5	V_RMS
	Gain Error	446 mVrms (–1 dBFS), 1-kHz input signal	–1.2	dB
	Noise, A-weighted⁽¹⁾	Idle Channel, IN1L and IN1R ac-shorted to ground	6	μV_RMS
THD+N	Total Harmonic Distortion plus Noise	446 mVrms (–1 dBFS), 1-kHz input signal	–81	dB
ANALOG BYPASS TO HEADPHONE AMPLIFIER (GROUND-CENTERED CIRCUIT CONFIGURATION), PGA MODE
	Device Set-up	Load = 16 Ω (single-ended), 56 pF; Input CM=0.9 V; IN1L routed to ADCPGA_L, ADCPGA_L routed through MAL to HPL; and IN1R routed to ADCPGA_R, ADCPGA_R routed through MAR to HPR; R_in = 20K; Channel Gain = 0 dB
	Full scale input voltage (0 dB)		0.5	V_RMS
	Gain Error	446 mVrms (–1 dBFS), 1-kHz input signal	–1.0	dB
	Noise, A-weighted⁽¹⁾	Idle Channel, IN1L and IN1R AC-shorted to ground	11	μV_RMS
THD+N	Total Harmonic Distortion plus Noise	446 mVrms (–1 dBFS), 1-kHz input signal	–67	dB
ANALOG BYPASS TO LINE-OUT AMPLIFIER, PGA MODE
	Device Set-up	Load = 10 KΩ (single-ended), 56 pF; Input and Output CM=0.9V; IN1L routed to ADCPGA_L and IN1R routed to ADCPGA_R; Rin = 20k ADCPGA_L routed through MAL to LOL and ADCPGA_R routed through MAR to LOR; Channel Gain = 0 dB
	Full scale input voltage (0 dB)		0.5	V_RMS
	Gain Error	446 mVrms (–1 dBFS), 1-kHz input signal	–0.7	dB
	Noise, A-weighted⁽¹⁾	Idle Channel, IN1L and IN1R AC-shorted to ground	6	μV_RMS
	Noise, A-weighted⁽¹⁾	Channel Gain = 40 dB, Inputs AC-shorted to ground, Input Referred	3	μV_RMS
ANALOG BYPASS TO LINE-OUT AMPLIFIER, DIRECT MODE
	Device Set-up	Load = 10 KΩ (single-ended), 56 pF; Input and Output CM=0.9 V; IN1L routed to LOL and IN1R routed to LOR; Channel Gain = 0 dB
	Full scale input voltage (0 dB)		0.5	V_RMS
	Gain Error	446 mVrms (–1 dBFS), 1-kHz input signal	–0.3	dB
	Noise, A-weighted⁽¹⁾	Idle Channel, IN1L and IN1R AC-shorted to ground	3	μV_RMS

(1) All performance measurements done with 20-kHz low-pass filter and, where noted, A-weighted filter. Failure to use such a filter may result in higher THD+N and lower SNR and dynamic range readings than shown in the Electrical Characteristics. The low-pass filter removes out-of-band noise, which, although not audible, may affect dynamic specification values

8.8 Electrical Characteristics, Microphone Interface

PARAMETER		TEST CONDITIONS		TYP	UNIT

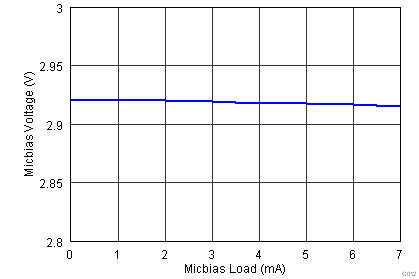

MICROPHONE BIAS (MICBIAS or MICBIAS_EXT)
	Bias voltage	CM=0.9 V, AVDD3_33 = 1.8 V	Micbias Mode 0	1.63	V
		CM=0.9 V, AVDD3_33 = 1.8 V	Micbias Mode 3	AVDD3_33	V
		CM=0.75 V, AVDD3_33 = 1.8 V	Micbias Mode 0	1.36	V
		CM=0.75 V, AVDD3_33 = 1.8 V	Micbias Mode 3	AVDD3_33	V
MICROPHONE BIAS (MICBIAS or MICBIAS_EXT)
	Bias voltage	CM=0.9 V, AVDD3_33 = 3.3 V	Micbias Mode 0	1.63	V
			Micbias Mode 1	2.36	V
			Micbias Mode 2	2.91	V
			Micbias Mode 3	AVDD3_33	V
		CM=0.75 V, AVDD3_33 = 3.3 V	Micbias Mode 0	1.36	V
			Micbias Mode 1	1.97	V
			Micbias Mode 2	2.42	V
			Micbias Mode 3	AVDD3_33	V
	Output Noise	CM=0.9 V, Micbias Mode 2, A-weighted, 20Hz to 20kHz bandwidth, Current load = 0mA.		26	μV_RMS
	Output Noise			184	nV/√Hz
	Current Sourcing	Micbias Mode 0 (CM=0.9 V)⁽¹⁾		3	mA
		Micbias Mode 1 or Micbias Mode 2 (CM=0.9 V)⁽²⁾		7	mA
	Inline Resistance	Micbias Mode 3		63.6	Ω

(1) To provide 3mA, Micbias Mode 0 voltage yields typical voltage of 1.60V for Common Mode of 0.9V.

(2) To provide 7mA, Micbias Mode 1 voltage yields typical voltage of 2.31V, and Micbias Mode 2 voltage yields typical voltage of 2.86V for Common Mode of 0.9V.

8.9 Electrical Characteristics, Audio DAC Outputs

PARAMETER		TEST CONDITIONS	MIN	TYP	MAX	UNIT

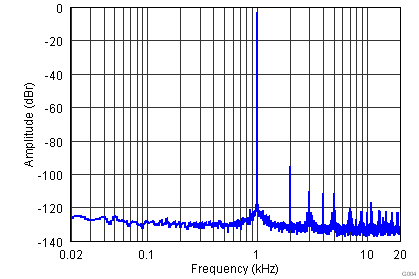

AUDIO DAC – STEREO SINGLE-ENDED LINE OUTPUT
	Device Set-up	Load = 10 kΩ (single-ended), 5 6pF Input & Output CM=0.9 V DOSR = 128, MCLK=256* f_s, Channel Gain = 0dB, Processing Block = PRB_P1, Power Tune = PTM_P4
	Full scale output voltage (0dB)			0.5		V_RMS
SNR	Signal-to-noise ratio A-weighted⁽¹⁾ ⁽²⁾	All zeros fed to DAC input	85	101		dB
DR	Dynamic range, A-weighted ⁽¹⁾ ⁽²⁾	–60-dB 1-kHz input full-scale signal, Word length=20 bits		101		dB
THD+N	Total Harmonic Distortion plus Noise	–3-dB full-scale, 1-kHz input signal		–88		dB
	DAC Gain Error	–3-dB full-scale, 1-kHz input signal		0.1		dB
	DAC Mute Attenuation	Mute		119		dB
	DAC channel separation	–1 dB, 1-kHz signal, between left and right Line out		108		dB
	DAC PSRR	100 mVpp, 1-kHz signal applied to AVDD_18, AVDDx_18		71		dB
	DAC PSRR	100 mVpp, 217-Hz signal applied to AVDD_18, AVDDx_18		71		dB
AUDIO DAC – STEREO SINGLE-ENDED LINE OUTPUT
	Device Setup	Load = 10 kΩ (single-ended), 56pF Input & Output CM=0.75 V; AVDD_18, AVDDx_18, HVDD_18=1.5 V DOSR = 128 MCLK=256* fs Channel Gain = 0 dB Processing Block = PRB_P1 Power Tune = PTM_P4
	Full scale output voltage (0dB)			0.375		V_RMS
SNR	Signal-to-noise ratio, A-weighted ⁽¹⁾ ⁽²⁾	All zeros fed to DAC input		99		dB
DR	Dynamic range, A-weighted ⁽¹⁾ ⁽²⁾	–60dB 1 kHz input full-scale signal, Word length=20 bits		99		dB
THD+N	Total Harmonic Distortion plus Noise	–3 dB full-scale, 1-kHz input signal		–88		dB
AUDIO DAC – MONO DIFFERENTIAL LINE OUTPUT
	Device Setup	Load = 10 kΩ (differential), 56 pF Input & Output CM=0.9 V, LOL signal routed to LOR amplifier DOSR = 128, MCLK=256* f_s, Channel Gain = 0dB, Processing Block = PRB_P1, Power Tune = PTM_P4
	Full scale output voltage (0dB)			1		V_RMS
SNR	Signal-to-noise ratio A-weighted⁽¹⁾ ⁽²⁾	All zeros fed to DAC input		101		dB
DR	Dynamic range, A-weighted ⁽¹⁾ ⁽²⁾	–60 dB 1-kHz input full-scale signal,		101		dB
THD+N	Total Harmonic Distortion plus Noise	–3-dB full-scale, 1-kHz input signal		–86		dB
	DAC Gain Error	–3-dB full-scale, 1-kHz input signal		0.1		dB
	DAC Mute Attenuation	Mute		97		dB
	DAC PSRR	100 mVpp, 1-kHz signal applied to AVDD_18, AVDDx_18		62		dB
	DAC PSRR	100 mVpp, 217-Hz signal applied to AVDD_18, AVDDx_18		63		dB

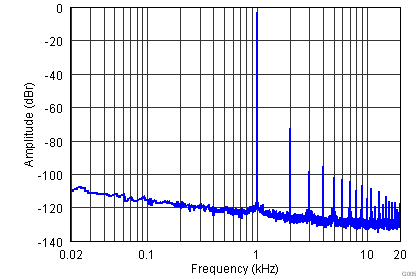

AUDIO DAC – STEREO SINGLE-ENDED HEADPHONE OUTPUT (GROUND-CENTERED CIRCUIT CONFIGURATION)
	Device Set-up	Load = 16 Ω (single-ended), 56 pF, Input CM=0.9 V; DOSR = 128, MCLK=256* f_s, Channel Gain = 0 dB, Processing Block = PRB_P1, Power Tune = PTM_P3, Headphone Output Strength=100%
Output 1	Output voltage			0.5		V_RMS
SNR	Signal-to-noise ratio, A-weighted⁽¹⁾ ⁽²⁾	All zeros fed to DAC input	80	94		dB
DR	Dynamic range, A-weighted ⁽¹⁾ ⁽²⁾	–60 dB 1-kHz input full-scale signal		93		dB
THD+N	Total Harmonic Distortion plus Noise	–3-dB full-scale, 1-kHz input signal		–71	–55	dB
	DAC Gain Error	–3-dB, 1-kHz input full scale signal		–0.2		dB
	DAC Mute Attenuation	Mute		92		dB
	DAC channel separation	–3 dB, 1-kHz signal, between left and right HP out		83		dB
	DAC PSRR	100 mVpp, 1-kHz signal applied to AVDD_18, AVDD1x_18		55		dB
	DAC PSRR	100 mVpp, 217-Hz signal applied to AVDD_18, AVDD1x_18		55		dB

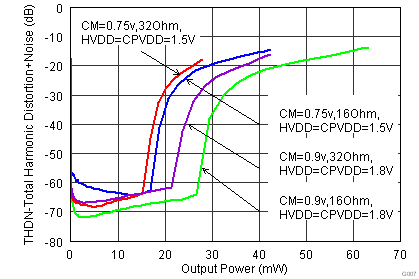

	Power Delivered	THDN ≤ –40 dB, Load = 16 Ω		15		mW
Output 2	Output voltage	Load = 16 Ω (single-ended), Channel Gain = 5 dB		0.8		V_RMS
SNR	Signal-to-noise ratio, A-weighted⁽¹⁾ ⁽²⁾	All zeros fed to DAC input, Load = 16 Ω		96		dB
	Power Delivered	THDN ≤ –40 dB, Load = 16 Ω		24		mW

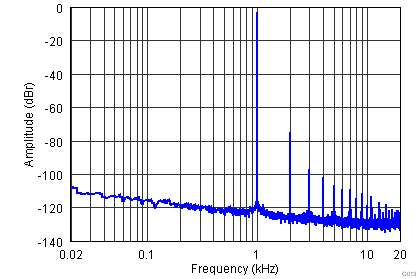

Output 3	Output voltage	Load = 32 Ω (single-ended), Channel Gain = 5 dB		0.9		V_RMS
SNR	Signal-to-noise ratio, A-weighted⁽¹⁾ ⁽²⁾	All zeros fed to DAC input, Load = 32 Ω		97		dB
	Power Delivered	THDN ≤ –40 dB, Load = 32 Ω		22		mW
AUDIO DAC – STEREO SINGLE-ENDED HEADPHONE OUTPUT (UNIPOLAR CIRCUIT CONFIGURATION)
	Device Set-up	Load = 16 Ω (single-ended), 56 pF Input & Output CM=0.9 V, DOSR = 128, MCLK=256* f_s, Channel Gain=0dB Processing Block = PRB_P1 Power Tune = PTM_P4 Headphone Output Control = 100%
	Full scale output voltage (0dB)			0.5		V_RMS
SNR	Signal-to-noise ratio, A-weighted⁽¹⁾ ⁽²⁾	All zeros fed to DAC input		100		dB
DR	Dynamic range, A-weighted ⁽¹⁾ ⁽²⁾	–60 dB 1-kHz input full-scale signal, Power Tune = PTM_P4		100		dB
THD+N	Total Harmonic Distortion plus Noise	–3 dB full-scale, 1-kHz input signal		–79		dB
	DAC Gain Error	–3 dB, 1-kHz input full scale signal		–0.2		dB
	DAC Mute Attenuation	Mute		119		dB
	DAC channel separation	–1 dB, 1-kHz signal, between left and right HP out		88		dB
	DAC PSRR	100 mVpp, 1-kHz signal applied to AVDD_18, AVDD1x_18		64		dB
	DAC PSRR	100 mVpp, 217-Hz signal applied to AVDD_18, AVDD1x_18		70		dB
	Power Delivered	R_L=16 Ω THDN ≤ –40 dB, Input CM=0.9 V, Output CM=0.9 V		15		mW
AUDIO DAC – STEREO SINGLE-ENDED HEADPHONE OUTPUT (UNIPOLAR CIRCUIT CONFIGURATION)
	Device Set-up	Load = 16 Ω (single-ended), 56 pF, Input & Output CM=0.75 V; AVDD_18, AVDDx_18, HVDD_18=1.5 V, DOSR = 128, MCLK=256* f_s, Channel Gain = 0 dB, Processing Block = PRB_P1, Power Tune = PTM_P4 Headphone Output Control = 100%
	Full scale output voltage (0dB)			0.375		V_RMS
SNR	Signal-to-noise ratio, A-weighted⁽¹⁾ ⁽²⁾	All zeros fed to DAC input		99		dB
DR	Dynamic range, A-weighted ⁽¹⁾ ⁽²⁾	-60dB 1 kHz input full-scale signal		99		dB
THD+N	Total Harmonic Distortion plus Noise	–3-dB full-scale, 1-kHz input signal		–77		dB

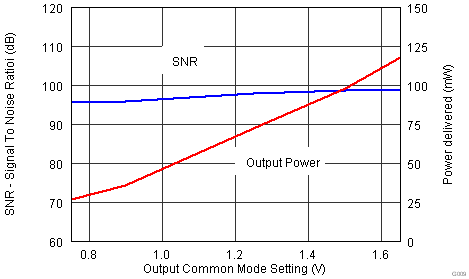

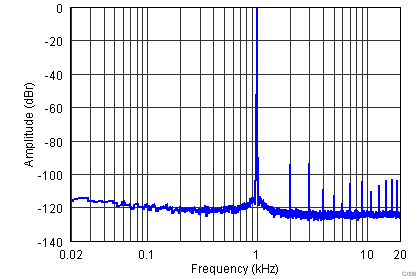

AUDIO DAC – MONO DIFFERENTIAL RECEIVER OUTPUT
	Device Setup	Load = 32 Ω (differential), 56 pF, Output CM=1.65 V, AVDDx_18=1.8 V, DOSR = 128 MCLK=256* f_s, Left DAC routed to LOL to RECP, LOL signal routed to LOR to RECM, Channel (Receiver Driver) Gain = 6dB for full scale output signal, Processing Block = PRB_P4, Power Tune = PTM_P4
	Full scale output voltage (0dB)			2		V_RMS
SNR	Signal-to-noise ratio, A-weighted⁽¹⁾ ⁽²⁾	All zeros fed to DAC input	90	99		dB
DR	Dynamic range, A-weighted ⁽¹⁾ ⁽²⁾	–60-dB 1-kHz input full-scale signal		97		dB
THD+N	Total Harmonic Distortion plus Noise	–3-dB full-scale, 1-kHz input signal		–81		dB
	DAC PSRR	100 mVpp, 1-kHz signal applied to AVDD_18, AVDD1x_18		56		dB
	DAC PSRR	100 mVpp, 217-Hz signal applied to AVDD_18, AVDD1x_18		58		dB
	Power Delivered	R_L=32 Ω THDN ≤ –40 dB, Input CM=0.9 V, Output CM=1.65 V		117		mW

(1) Ratio of output level with 1-kHz full-scale sine wave input, to the output level with the inputs short circuited, measured A-weighted over a 20 Hz to 20-kHz bandwidth using an audio analyzer.

(2) All performance measurements done with 20-kHz low-pass filter and, where noted, A-weighted filter. Failure to use such a filter may result in higher THD+N and lower SNR and dynamic range readings than shown in the Electrical Characteristics. The low-pass filter removes out-of-band noise, which, although not audible, may affect dynamic specification values

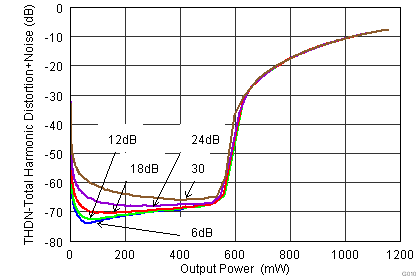

8.10 Electrical Characteristics, Class-D Outputs

PARAMETER		TEST CONDITIONS		TYP	UNIT
DAC OUTPUT TO CLASS-D SPEAKER OUTPUT; LOAD = 8 Ω (DIFFERENTIAL), 56 pF + 33 µH
	Output voltage	SLVDD=SRVDD=3.6, BTL measurement, DAC input = 0 dBFS, class-D gain = 12 dB, THD+N ≤ –20 dB, CM=0.9 V		2.67	V_RMS
SNR	Signal-to-noise ratio	SLVDD=SRVDD=3.6 V, BTL measurement, class-D gain = 6 dB, measured as idle-channel noise, A-weighted (with respect to full-scale output value of 2 Vrms)⁽¹⁾ ⁽²⁾, CM=0.9 V		91	dB
THD	Total harmonic distortion	SLVDD=SRVDD=3.6 V, BTL measurement, DAC input = 0dBFS, class-D gain = 6dB, CM=0.9V		–66	dB
THD+N	Total harmonic distortion + noise	SLVDD=SRVDD=3.6 V, BTL measurement, DAC input = 0dBFS, class-D gain = 6dB, CM=0.9V		–66	dB
PSRR	Power-supply rejection ratio⁽¹⁾	SLVDD=SRVDD=3.6 V, BTL measurement, ripple on SPKVDD = 200 mVp-p at 1 kHz, CM=0.9V		67	dB
PSRR	Power-supply rejection ratio⁽¹⁾	SLVDD=SRVDD=3.6 V, BTL measurement, ripple on SPKVDD = 200 mVp-p at 217 Hz, CM=0.9V		67	dB
	Mute attenuation	Analog Mute Only		102	dB

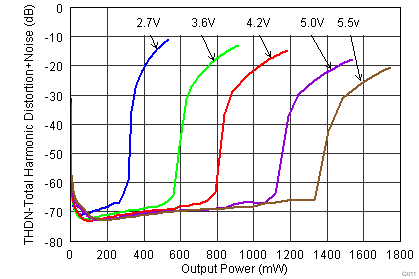

P_O	Maximum output power	THD+N = 10%, f = 1 kHz, Class-D Gain = 12 dB, CM = 0.9 V, R_L = 8 Ω	SLVDD = SRVDD = 3.6 V	0.72	W
			SLVDD = SRVDD = 4.2 V	1.00
			SLVDD = SRVDD = 5.5 V	1.70
		THD+N = 1%, f = 1 kHz, Class-D Gain = 12 dB, CM = 0.9 V, R_L = 8 Ω	SLVDD = SRVDD = 3.6 V	0.58
			SLVDD = SRVDD = 4.2 V	0.80
			SLVDD = SRVDD = 5.5 V	1.37
DAC OUTPUT TO CLASS-D SPEAKER OUTPUT; LOAD = 8 Ω (DIFFERENTIAL), 56 pF + 33 µH
	Output voltage	SLVDD=SRVDD=5 V, BTL measurement, DAC input = 0 dBFS, class-D gain = 12 dB, THD+N ≤ –20dB, CM=0.9 V		3.46	V_RMS
SNR	Signal-to-noise ratio	SLVDD=SRVDD=5 V, BTL measurement, class-D gain = 6 dB, measured as idle-channel noise, A-weighted (with respect to full-scale output value of 2 Vrms)⁽¹⁾ ⁽²⁾ , CM=0.9V		91
THD	Total harmonic distortion	SLVDD=SRVDD=5 V, BTL measurement, DAC input = 0dBFS, class-D gain = 6 dB, CM=0.9 V		–70
THD+N	Total harmonic distortion + noise	SLVDD=SRVDD=5 V, BTL measurement, DAC input = 0dBFS, class-D gain = 6 dB, CM=0.9 V		–70
PSRR	Power-supply rejection ratio⁽¹⁾	SLVDD=SRVDD=5 V, BTL measurement, ripple on SPKVDD = 200 mVp-p at 1 kHz, CM=0.9 V		67
PSRR	Power-supply rejection ratio⁽¹⁾	SLVDD=SRVDD=5 V, BTL measurement, ripple on SPKVDD = 200 mVp-p at 217 Hz, CM=0.9 V		67
	Mute attenuation	Analog Mute Only		102	dB
P_O	Maximum output power	THD+N = 10%, f = 1 kHz, Class-D Gain = 12 dB, CM = 0.9 V, R_L = 8 Ω	SLVDD = SRVDD = 5 V	1.41	W

(1) Ratio of output level with 1-kHz full-scale sine wave input, to the output level with the inputs short circuited, measured A-weighted over a 20-Hz to 20-kHz bandwidth using an audio analyzer.

8.11 Electrical Characteristics, Miscellaneous

PARAMETER		TEST CONDITIONS	TYP	MAX	UNIT
REFERENCE - VREF_AUDIO
	Reference Voltage Settings	CMMode = 0 (0.9 V)	0.9		V
	Reference Voltage Settings	CMMode = 1 (0.75 V)	0.75		V
	Reference Noise	CM=0.9 V, A-weighted, 20-Hz to 20-kHz bandwidth, C_ref = 1μF	1.2		μV_RMS
	Decoupling Capacitor		1		μF
	Bias Current		99		μA
miniDSP⁽¹⁾
	miniDSP clock frequency - ADC	DVDD = 1.26 V		37.5	MHz
	miniDSP clock frequency - DAC	DVDD = 1.26 V		33.0	MHz
	miniDSP clock frequency - ADC	DVDD = 1.65 V		59.5	MHz
	miniDSP clock frequency - DAC	DVDD = 1.65 V		55.0	MHz
	miniDSP clock frequency - ADC	DVDD = 1.71 V		62.5	MHz
	miniDSP clock frequency - DAC	DVDD = 1.71 V		58.0	MHz
SHUTDOWN POWER
	Device Set-up	Coarse AVdd supply turned off, All External analog supplies powered and set available, No external digital input is toggled, register values are retained.
	P(total)⁽²⁾	Sum of all supply currents, all supplies at 1.8 V except for SLVDD = SRVDD = SPK_V = 3.6 V and RECVDD_33 = AVDD3_33 = 3.3 V	9.8		μW
	I(DVDD)		2.6		μA
	I(IOVDD)		0.15		μA
	I(AVDD1_18, AVDD2_18, AVDD4_18, AVDD_18, HVDD_18, CPVDD_18)		1.15		μA
	I(RECVDD_33, AVDD3_33)		0.15		μA
	I(SLVDD, SRVDD, SPK_V)		0.5		μA

(1) miniDSP clock speed is specified by design and not tested in production.

(2) For further details on playback and recording power consumption, refer to Powertune section in SLAU309.

8.12 Electrical Characteristics, Logic Levels

PARAMETER		TEST CONDITIONS	MIN	TYP	MAX	UNIT
LOGIC FAMILY (CMOS)
V_IH	Logic Level	I_IH = 5 μA, IOVDD > 1.65 V	0.7 × IOVDD			V
		I_IH = 5 μA, 1.2V ≤ IOVDD <1.65 V	0.9 × IOVDD			V
		I_IH = 5 μA, IOVDD < 1.2 V	IOVDD			V
V_IL		I_IL = 5 μA, IOVDD > 1.65 V	–0.3		0.3 × IOVDD	V
		I_IL = 5 μA, 1.2V ≤ IOVDD <1.65 V			0.1 × IOVDD	V
		I_IL = 5 μA, IOVDD < 1.2 V			0	V
V_OH		I_OH = 3 mA load, IOVDD > 1.65 V	0.8 × IOVDD			V
V_OH		I_OH = 1 mA load, IOVDD < 1.65 V	0.8 × IOVDD			V
V_OL		I_OL = 3 mA load, IOVDD > 1.65 V			0.1 × IOVDD	V
V_OL		I_OL = 1 mA load, IOVDD < 1.65 V			0.1 × IOVDD	V
	Capacitive Load			10		pF

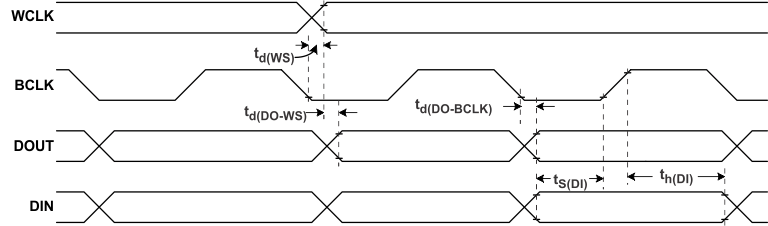

8.13 I²S/LJF/RJF Timing in Master Mode (see Figure 2)

WCLK represents WCLK1 pin for Audio Serial Interface number 1, WCLK2 pin for Audio Serial Interface number 2, and WCLK3 pin for Audio Serial Interface number 3. BCLK represents BCLK1 pin for Audio Serial Interface number 1, BCLK2 pin for Audio Serial Interface number 2, and BCLK3 pin for Audio Serial Interface number 3. DOUT represents DOUT1 pin for Audio Serial Interface number 1, DOUT2 pin for Audio Serial Interface number 2, and DOUT3 pin for Audio Serial Interface number 3. DIN represents DIN1 pin for Audio Serial Interface number 1, DIN2 pin for Audio Serial Interface number 2, and DIN3 pin for Audio Serial Interface number 3. Specifications are at 25° C with DVDD = 1.8V and IOVDD = 1.8 V. Note: All timing specifications are measured at characterization but not tested at final test. The audio serial interface timing specifications are applied to Audio Serial Interface number 1, Audio Serial Interface number 2 and Audio Serial Interface number 3.

PARAMETER		IOVDD=1.8 V		IOVDD=3.3 V		UNIT
PARAMETER		MIN	MAX	MIN	MAX	UNIT
t_d(WS)	WCLK delay		22		20	ns
t_d (DO-WS)	WCLK to DOUT delay (For LJF Mode only)		22		20	ns
t_d (DO-BCLK)	BCLK to DOUT delay		22		20	ns
t_s(DI)	DIN set-up	4		4		ns
t_h(DI)	DIN hold	4		4		ns
t_r	BCLK Rise time		10		8	ns
t_f	BCLK Fall time		10		8	ns

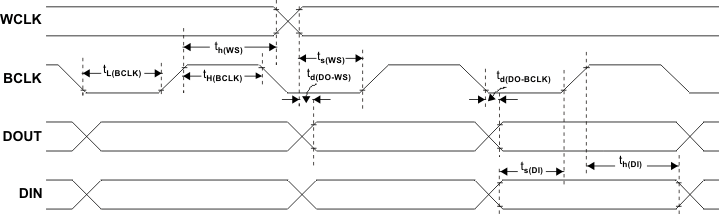

8.14 I²S/LJF/RJF Timing in Slave Mode (see Figure 3)

PARAMETER		IOVDD=1.8 V		IOVDD=3.3 V		UNIT
PARAMETER		MIN	MAX	MIN	MAX	UNIT
t_H (BCLK)	BCLK high period	30		30		ns
t_L (BCLK)	BCLK low period	30		30		ns
t_s (WS)	WCLK set-up	4		4		ns
t_h (WS)	WCLK hold	4		4		ns
t_d (DO-WS)	WCLK to DOUT delay (For LJF mode only)		22		20	ns
t_d (DO-BCLK)	BCLK to DOUT delay		22		20	ns
t_s(DI)	DIN set-up	4		4		ns
t_h(DI)	DIN hold	4		4		ns
t_r	BCLK Rise time		5		4	ns
t_f	BCLK Fall time		5		4	ns

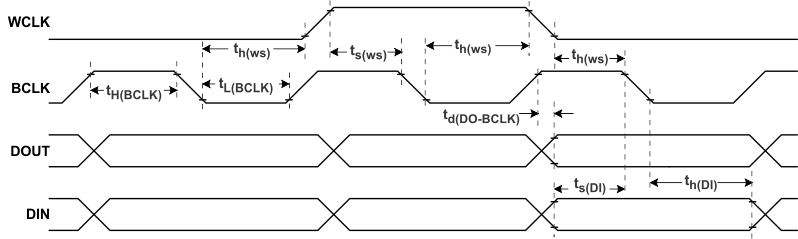

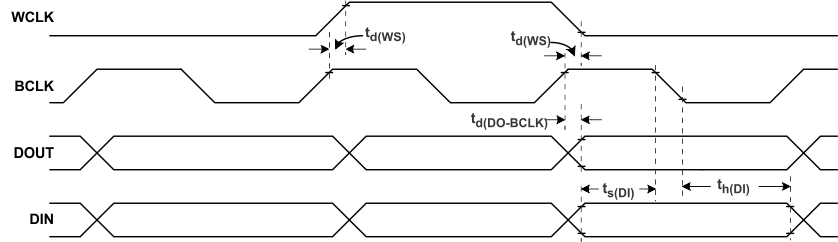

8.15 DSP/Mono PCM Timing in Slave Mode (see Figure 5)

PARAMETER		IOVDD=1.8 V		IOVDD=3.3 V		UNIT
PARAMETER		MIN	MAX	MIN	MAX	UNIT
t_H (BCLK)	BCLK high period	30		30		ns
t_L (BCLK)	BCLK low period	30		30		ns
t_s(WS)	WCLK set-up	4		4		ns
t_h(WS)	WCLK hold	4		4		ns
t_d (DO-BCLK)	BCLK to DOUT delay		22		20	ns
t_s(DI)	DIN set-up	5		5		ns
t_h(DI)	DIN hold	5		5		ns
t_r	BCLK Rise time		5		4	ns
t_f	BCLK Fall time		5		4	ns

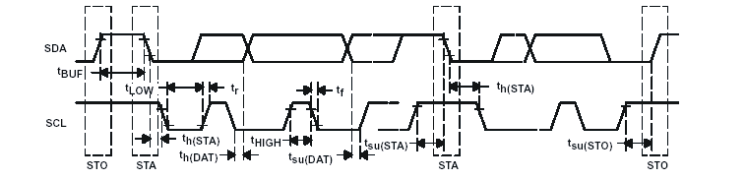

8.16 I²C Interface Timing (see Figure 6)

PARAMETER		TEST CONDITIONS	STANDARD-MODE			FAST-MODE			UNIT
PARAMETER		TEST CONDITIONS	MIN	TYP	MAX	MIN	TYP	MAX	UNIT
f_SCL	SCL clock frequency		0		100	0		400	kHz
t_HD;STA	Hold time (repeated) START condition. After this period, the first clock pulse is generated.		4.0			0.8			μs
t_LOW	LOW period of the SCL clock		4.7			1.3			μs
t_HIGH	HIGH period of the SCL clock		4.0			0.6			μs
t_SU;STA	Set-up time for a repeated START condition		4.7			0.8			μs
t_HD;DAT	Data hold time: For I2C bus devices		0		3.45	0		0.9	μs
t_SU;DAT	Data set-up time		250			100			ns
t_r	SDA and SCL Rise Time				1000	20+0.1C_b		300	ns
t_f	SDA and SCL Fall Time				300	20+0.1C_b		300	ns
t_SU;STO	Set-up time for STOP condition		4.0			0.8			μs
t_BUF	Bus free time between a STOP and START condition		4.7			1.3			μs
C_b	Capacitive load for each bus line				400			400	pF

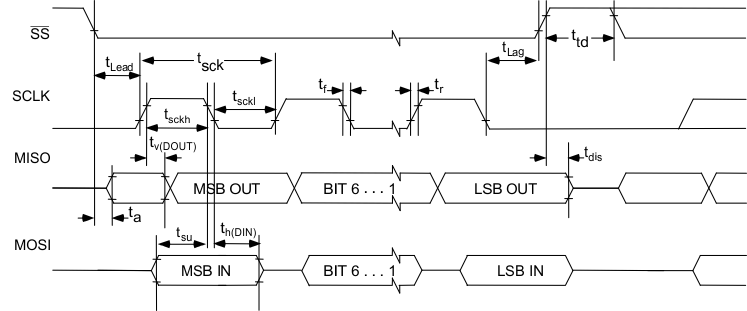

8.17 SPI Interface Timing

SS = SCL pin, SCLK = GPI1 pin, MISO = GPO1 pin, and MOSI = SDA pin. Specifications are at 25° C with DVDD = 1.8 V.
Specifications are at 25° C with DVDD = 1.8 V.

PARAMETER		TEST CONDITIONS	IOVDD=1.8V			IOVDD=3.3V			UNIT
PARAMETER		TEST CONDITIONS	MIN	TYP	MAX	MIN	TYP	MAX	UNIT
t_sck	SCLK Period⁽¹⁾		50			40			ns
t_sckh	SCLK Pulse width High		25			20			ns
t_sckl	SCLK Pulse width Low		25			20			ns
t_lead	Enable Lead Time		25			20			ns
t_trail	Enable Trail Time		25			20			ns
t_d;seqxfr	Sequential Transfer Delay		25			20			ns
t_a	Slave DOUT (MISO) access time				25			20	ns
t_dis	Slave DOUT (MISO) disable time				25			20	ns
t_su	DIN (MOSI) data set-up time		8			8			ns
t_h;DIN	DIN (MOSI) data hold time		8			8			ns
t_v;DOUT	DOUT (MISO) data valid time				20			14	ns
t_r	SCLK Rise Time				4			4	ns
t_f	SCLK Fall Time				4			4	ns
