10 Layout
10.1 Layout Guidelines

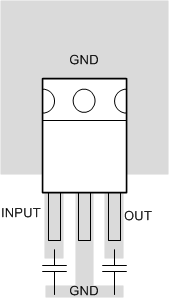

See Figure 6 for an example layout for the TLV2217 using the TO-220 package. Input and output bypass capacitors must be placed as close to the device pins as possible. The output capacitor must have a specified ESR in the range defined by Figure 4. Additionally, the ground pin and thermal tab must be well connected to a ground plane to aid in thermal dissipation.
10.2 Layout Example
Figure 6. TO-220 Package Example Layout
