Pin Functions: TLV1814-Q1 and TLV1824-Q1
D, PW, DYY Package, 14-Pin SOIC, TSSOP, SOT-23, Top View
NOTE: Connect exposed thermal pad directly to V- pin.

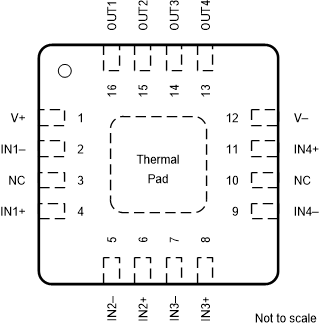

RTE Package, 16-Pad WQFN With Exposed Thermal Pad, Top ViewTable 5-3 Pin Functions: TLV1814-Q1 and TLV1824-Q1
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | SOIC | WQFN | ||
| OUT2(1) | 1 | 15 |
O |
Output pin of the comparator 2 |
| OUT1(1) | 2 | 16 | O | Output pin of the comparator1 |
|
V+ |
3 | 1 | — | Positive supply |
| IN1– | 4 | 2 | I | Negative input pin of the comparator 1 |
| IN1+ | 5 | 4 | I | Positive input pin of the comparator 1 |
| IN2– | 6 | 5 | I | Negative input pin of the comparator 2 |
| IN2+ | 7 | 6 | I | Positive input pin of the comparator 2 |
| IN3– | 8 | 7 | I | Negative input pin of the comparator 3 |
| IN3+ | 9 | 8 | I | Positive input pin of the comparator 3 |
| IN4– | 10 | 9 | I | Negative input pin of the comparator 4 |
| IN4+ | 11 | 11 | I | Positive input pin of the comparator 4 |
| V- | 12 | 12 | — | Negative supply |
| OUT4 | 13 | 13 | O | Output pin of the comparator 4 |
| OUT3 | 14 | 14 | O | Output pin of the comparator 3 |
| NC | — | 3 | — | No Internal Connection - Leave floating or GND |
| NC | — | 10 | — | No Internal Connection - Leave floating or GND |
| Thermal Pad | — | PAD | — | Connect directly to V- pin. |
(1) Some manufacturers transpose the names of channels 1 and 2. Electrically the
pinouts are identical, just a difference in channel naming convention.
