ZHCSNE0B March 2021 – February 2024 TLIN2029A-Q1
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Parameter Measurement Information
-
7 Detailed Description
- 7.1 Overview
- 7.2 Functional Block Diagram
- 7.3
Feature Description
- 7.3.1 LIN (Local Interconnect Network) Bus
- 7.3.2 TXD (Transmit Input and Output)
- 7.3.3 RXD (Receive Output)
- 7.3.4 VSUP (Supply Voltage)
- 7.3.5 GND (Ground)
- 7.3.6 EN (Enable Input)
- 7.3.7 Protection Features
- 7.3.8 TXD Dominant Time Out (DTO)
- 7.3.9 Bus Stuck Dominant System Fault: False Wake Up Lockout
- 7.3.10 Thermal Shutdown
- 7.3.11 Under Voltage on VSUP
- 7.3.12 Unpowered Device and LIN Bus
- 7.4 Device Functional Modes
- 8 Application Information Disclaimer
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
- DRB|8
訂購信息
7.3.1.2.1 Termination
There is an internal pull-up resistor with a serial diode structure to VSUP, so no external pull-up components are required for the LIN responder node applications. An external pull-up resistor (1k?) and a series diode to VSUP must be added when the device is used for commander node applications as per the LIN specification.

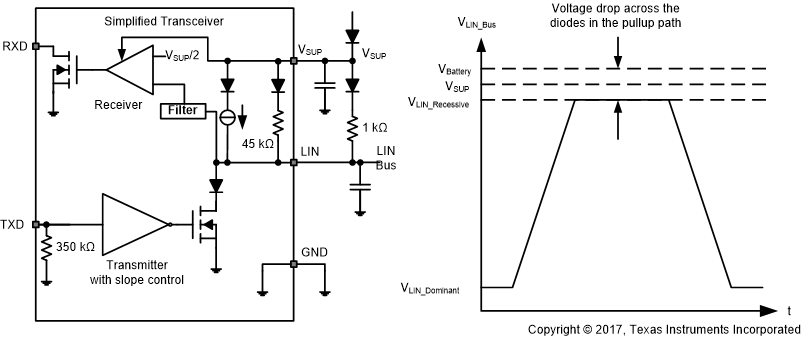

Figure 7-1 shows a commander node configuration and how the voltage levels are defined
Figure 7-1 Commander Node Configuration with Voltage
Levels
